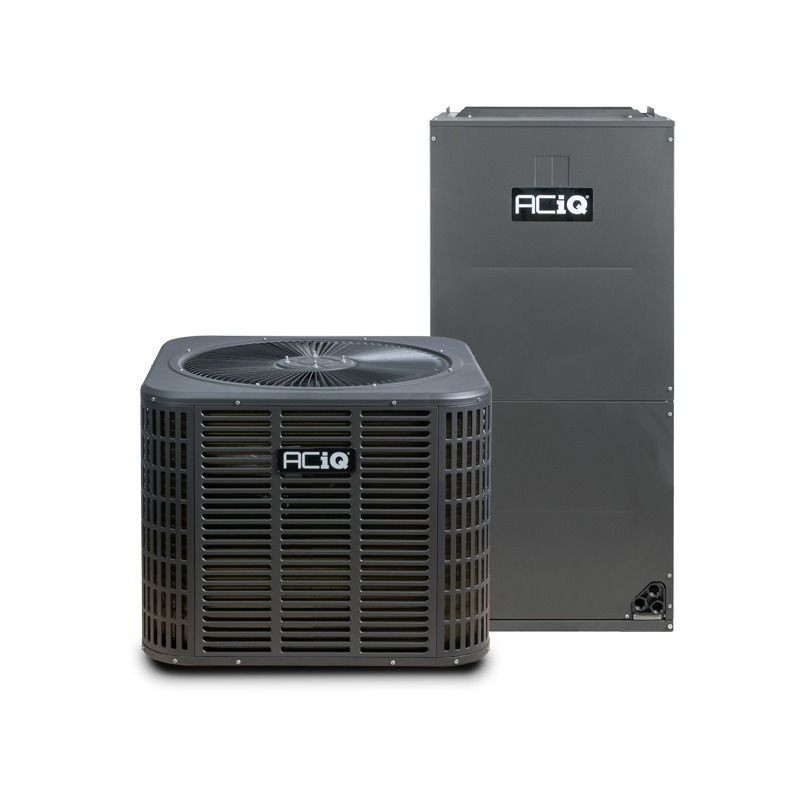

Product Overview
With its efficient multi-speed blower motor, the ACIQ-36TD-AH is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.
QUICK FACTS
- 3 ton central ducted air handler
- Compatible with any 24v thermostat
- Multi speed constant torque blower motor
- Can be installed in upflow or horizontal-right orientations
- Compatible with R454B refrigerant
3 Tons
The ACIQ-36TD-AH air handler is rated for an output of 3 tons. While the unit does require a condenser to function, heat kits may be installed in the air handler to provide supplemental electric heating, which can be used as a backup heat option for a heat pump setup.
Installation and Durability
To make a more versatile unit, ACiQ designed the ACIQ-36TD-AH to easily be installed in an upflow or horizontal right position. For durability, the ACIQ-36TD-AH air handler is designed with an extremely strong outer casing to protect the unit.
Technical Specifications — ACIQ-36TD-HP
| sku | ACIQ-36TD-HP |
|---|---|
| refrigerant charge | 100.53 oz. |
| weight | 176.000000 |
| ahri certificate number | 217006582 |
| manufacturer | ACiQ |
| product features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| hspf2 | 9.0 |
| cooling btu | 34000 BTU |
| heating btu | 36,000 BTU |
| decibel level (dba) | 68 Decibels |
| refrigerant | R454B |
| seer2 | 19 |
| condenser stages | Two Stage |
| compressor type | Scroll |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 35A |
| min. breaker size | 22A |
| tonnage | 3 Ton |
| zone compatibility | Single Zone |
| height | 24-15/16" |
| width | 29-1/8" |
| depth | 29-1/8" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-36TD-AH
| sku | ACIQ-36TD-AH |
|---|---|
| weight | 154.000000 |
| ahri certificate number | 217006582 |
| manufacturer | ACiQ |
| hspf2 | 9.0 |
| cooling btu | 34000 BTU |
| heating btu | 36000 BTU |
| maximum cfm | 1150 |
| decibel level (dba) | 58 Decibels |
| horsepower | 1/2 HP |
| electric backup heat capabilities (optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| refrigerant | R454B |
| filter size | 18" x 20" |
| seer2 | 19 |
| condenser stages | Variable Speed |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| tonnage | 3 Ton |
| connection | Flare to Braze |
| height | 46-1/2" |
| width | 21" |
| depth | 21" |
| warranty | 7 Years Parts with Online Registration |
