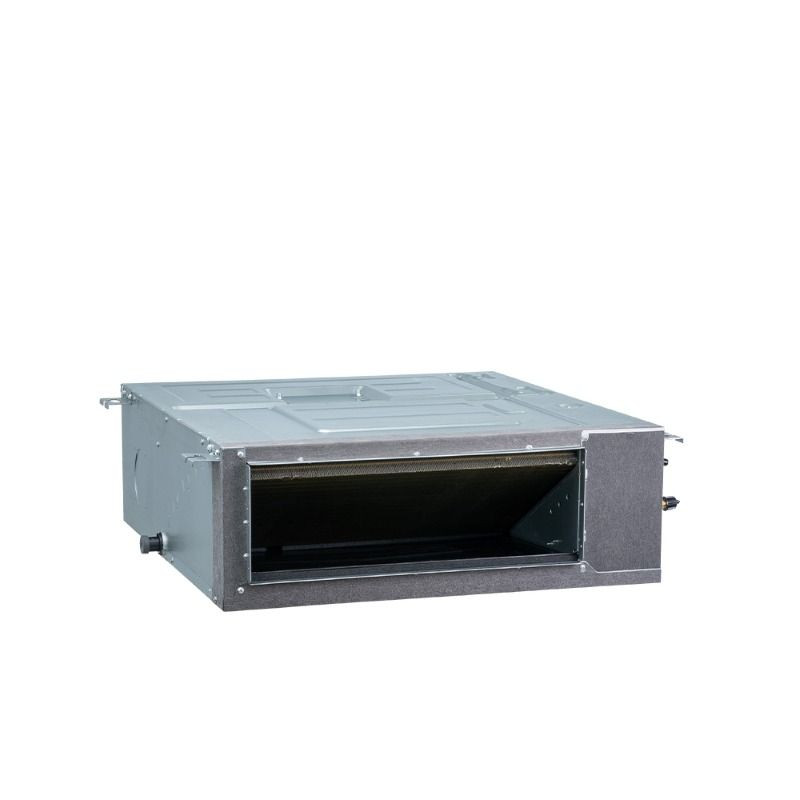

Product Overview
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.
The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.
Installation Considerations
Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.
FEATURES
- 24,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a medium room in most climates
- Wall mounted thermostat included
Concealed Duct
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Technical Specifications — ACIQ-36CD-HH-MC
| sku | ACIQ-36CD-HH-MC |
|---|---|
| refrigerant charge | 126.99 oz. |
| weight | 120.370000 |
| ahri certificate number | 216032348 |
| manufacturer | ACiQ |
| hspf2 | 11.1 |
| cooling btu | 36,000 BTU |
| heating btu | 42,000 BTU |
| maximum cfm | Up to 1236.10 CFM |
| decibel level (dba) | As low as 31 Decibels |
| electric heat | Heat Pump |
| refrigerant | R454B |
| seer2 | 17.6 |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230V, 1 Phase, 60Hz |
| electric phase filter | Single Phase |
| btu/tonnage | 36,000 BTU/3 Ton |
| mini split type | Concealed Duct |
| zone compatibility | Single Zone |
| height | 11.81" |
| width | 47.24" |
| depth | 29.53" |
| warranty | 12 year compressor, 7 year parts with online registration |
