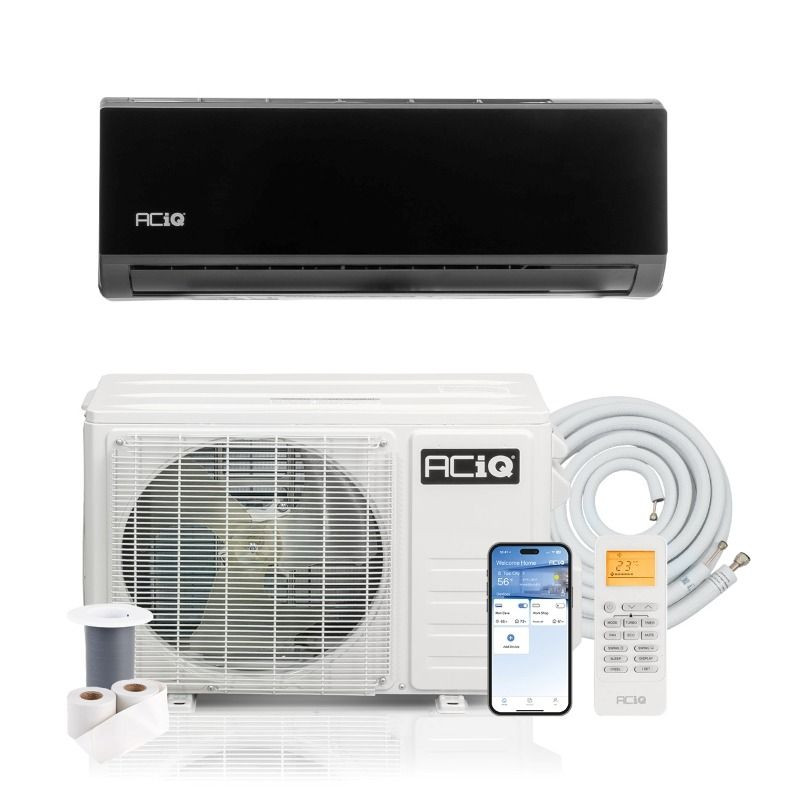

Product Overview
Your ACIQ mini split comes with a 6-year compressor warranty and a 4-year parts warranty when you register at ACIQ.com, giving you confidence in your investment. It’s designed to keep your system running smoothly, so you can rely on consistent performance year after year. With ACIQ’s support, you get both comfort and peace of mind built right into your system.
Comfort That Adapts to You
ACIQ Essentials delivers targeted comfort with smart features like Auto Mode, I FEEL temperature sensing, and multi-directional airflow, all designed to keep you comfortable without the guesswork. Whether you’re cooling a single room or heating a space quickly with Turbo Mode, your system adjusts to match your needs. And with ECO Mode, you’ll save energy without sacrificing performance.
Clean, Quiet, and Easy to Live With
Breathe easier with PureClean air sterilization and optional Self-Clean mode, which help maintain a healthier indoor environment with less maintenance. Enjoy peace and quiet thanks to Sleep Mode, MUTE function, and ultra-quiet operation as low as 25 decibels. Add in programmable timers, Dry Mode, Child Lock, and LED display control, and you’ve got effortless, everyday comfort built right in.
Looking for Something More? ACIQ Still Has You Covered!
While ACIQ Essentials is perfect for single-zone comfort, ACIQ offers a wide selection of systems and series for every need. Enjoy the peace of mind of extended warranties, or enjoy precise comfort in every room with a multi-zone setup. All while still saving energy over traditional systems.
Technical Specifications — ACIQ-K09Z-HP115B
| sku | ACIQ-K09Z-HP115B |
|---|---|
| refrigerant charge | 23.28 oz. |
| weight | 61.700000 |
| manufacturer | ACiQ |
| product features | New Refrigerant Compliant, WiFi |
| hspf2 | Region IV / V: 9.5 / 8.2 |
| cooling btu | 9000 BTU |
| heating btu | 10000 BTU |
| decibel level (dba) | 54 (Max) |
| energy star | Yes |
| refrigerant | R454B |
| seer bundle | 19 |
| seer2 | 19 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 115V, 1 Phase, 60Hz |
| electric phase filter | Single Phase |
| max breaker size | MOP: 25A |
| min. breaker size | MCA: 16A |
| tonnage | 0.75 Ton |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | -4°F ~ 86°F |
| min/max outdoor temp for cooling | 5°F ~ 122°F |
| zone compatibility | Single Zone |
| height | 19.61" |
| width | 30.98" |
| depth | 11.42" |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-K09W-BL-HP115B
| sku | ACIQ-K09W-BL-HP115B |
|---|---|
| weight | 26.500000 |
| ahri certificate number | 217606037 |
| manufacturer | ACiQ |
| replaces | ACiQ-K09W-HP115 |
| hspf2 | Region IV / V: 9.5 / 8.2 |
| cooling btu | 9000 BTU |
| heating btu | 10000 BTU |
| maximum cfm | Up to 342 CFM |
| decibel level (dba) | As low as 28 Decibels |
| energy star | Yes |
| refrigerant | R454B |
| seer bundle | 19 |
| seer2 | 19 |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 115V, 1 Phase, 60Hz |
| electric phase filter | Single Phase |
| tonnage | 0.75 Ton |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Single Zone |
| height | 11.50" |
| width | 31.93" |
| depth | 7.99" |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
