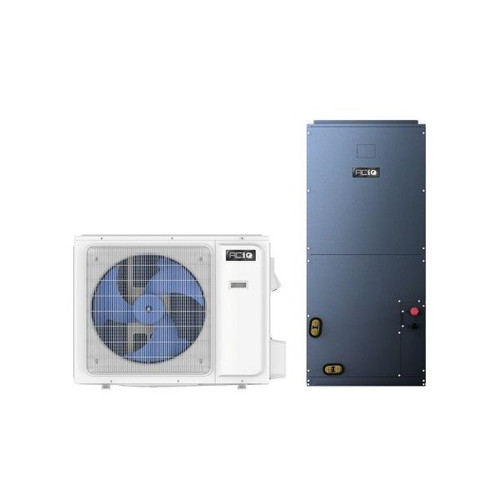

Product Overview
With its efficient multi-speed blower motor, the ACIQ-36-AH-E-32 is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.
QUICK FACTS
- 3 ton central ducted air handler
- Compatible with any 24v thermostat
- Multi speed constant torque blower motor
- Multi-positional - Can be installed in upflow, downflow, or horizontal left/right orientations
- Compatible with R32 refrigerant
3 Tons
The ACIQ-36-AH-E-32 air handler is rated for an output of 3 tons. While the unit does require a condenser to function, heat kits may be installed in the air handler to provide supplemental electric heating, which can be used as a backup heat option for a heat pump setup.
Installation and Durability
To make a more versatile unit, ACiQ designed the ACIQ-36-AH-E-32 to easily be installed in an upflow, downflow, or horizontal left/right position. For durability, the ACIQ-36-AH-E-32 air handler is designed with an extremely strong outer casing to protect the unit.
Technical Specifications — ACIQ-36-HP-E-32
| sku | ACIQ-36-HP-E-32 |
|---|---|
| refrigerant charge | 81.13 oz. |
| weight | 156.500000 |
| manufacturer | ACiQ |
| product features | Inverter, Variable Speed Condenser |
| hspf2 | 8.6 |
| cooling btu | 35,000 BTU |
| heating btu | 36,000 BTU |
| decibel level (dba) | 59 Decibels |
| refrigerant | R32 |
| seer2 | 17 |
| condenser stages | Variable Speed |
| compressor type | Rotary |
| liquid valve size | 3/8" |
| suction valve size | 5/8" |
| electrical | 208/230v 1 Phase 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 35 Amps |
| min. breaker size | 24 Amps |
| tonnage | 3 Ton |
| height | 31-13/16" |
| width | 41-3/16" |
| depth | 17-15/16" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-36-AH-E-32
| sku | ACIQ-36-AH-E-32 |
|---|---|
| weight | 152.000000 |
| manufacturer | ACiQ |
| hspf2 | 8.6 |
| cooling btu | 35,000 BTU |
| heating btu | 36,000 BTU |
| maximum cfm | 1100 |
| decibel level (dba) | 48 Decibels |
| horsepower | 1/2 HP |
| electric backup heat capabilities (optional) | 15 Kilowatts |
| configuration | Multi-Positional |
| refrigerant | R32 |
| filter size | 18" x 20" |
| condenser stages | Variable Speed |
| liquid valve size | 3/8" |
| suction valve size | 5/8" |
| electrical | 208/230v 1 Phase 60 Hz |
| electric phase filter | Single Phase |
| tonnage | 3 Ton |
| connection | Flare to Braze |
| height | 49" |
| width | 21" |
| depth | 21" |
| warranty | 7 Years Parts with Online Registration |
