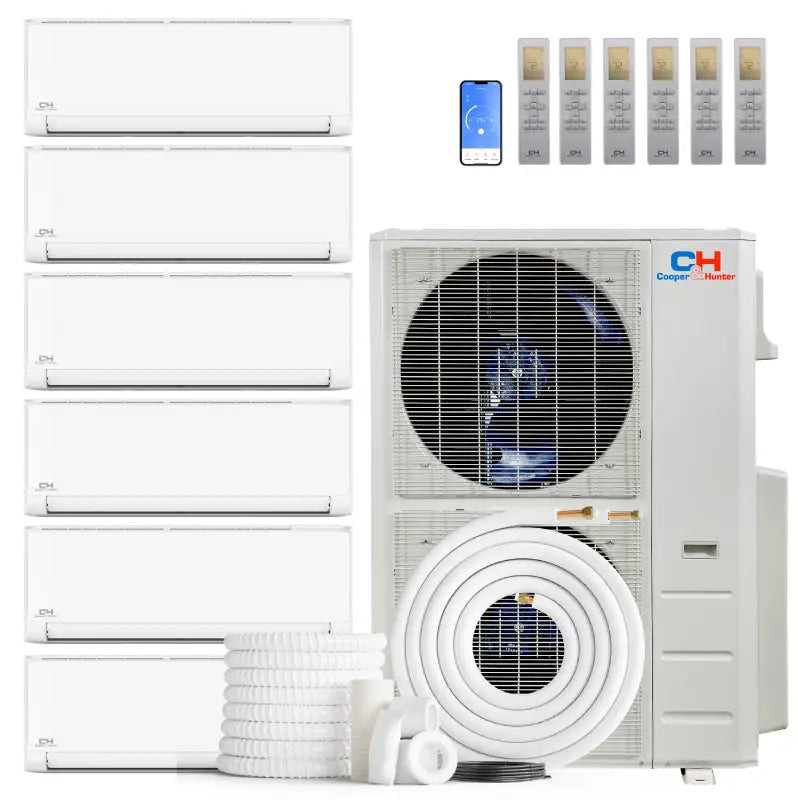

Cooper & Hunter 6-Zone Multi-Split System
Transform your space with this powerful 60000 BTU 6-zone climate control system featuring sleek wall-mounted indoor units. Designed for maximum flexibility, this system allows you to independently control temperature in six different areas of your home or business.
System Configuration
This package includes one outdoor condensing unit paired with six indoor units in the following BTU distribution: 9K+9K+9K+9K+9K+9K. Each zone can be controlled independently, giving you precise climate control exactly where you need it.
About Wall Mounted Units
These stylish units mount directly on your wall, providing efficient heating and cooling without taking up floor space. The sleek, modern design complements any interior while delivering powerful performance.
Key Features
- 6 Independent Zones: Control temperature separately in each room for personalized comfort
- High Efficiency: Up to 22 SEER rating for maximum energy savings
- Eco-Friendly R454B Refrigerant: Next-generation low-GWP refrigerant
- Inverter Technology: Variable-speed compressor for precise temperature control and energy efficiency
- Year-Round Comfort: Both heating and cooling in one system
- Quiet Operation: Indoor units as quiet as 19 dB(A)
- Wi-Fi Ready: Optional smart control via smartphone app (Wi-Fi module sold separately)
- Energy Star Certified: Meets federal energy efficiency standards
What's Included
- 1× Outdoor Condensing Unit (60000 BTU capacity)
- 6× Wall-Mounted Indoor Units
- 6× Wireless Remote Controls
- Installation hardware and mounting brackets
- User manuals and warranty documentation
Installation Kit Options
This listing offers multiple installation kit options to match your specific needs:
- No Installation Kit: Base price - perfect if you already have line sets or will source them separately
- 16 FT Line Sets: Includes pre-flared copper refrigerant lines for standard installations
- 25 FT Line Sets: Extended reach for larger spaces or more complex layouts
- 50 FT Line Sets: Maximum distance option for challenging installations or large properties
Technical Specifications
Indoor Units Specifications
| Indoor Unit 1 | CH-R09MOLVWM-230VI (9,000 BTU) |
| Capacity | 9,000 BTU/h |
| Dimensions (WxDxH) | 31.57x7.87x11.61 inches |
| Noise Level | As low as 19 dB(A) |
| Indoor Unit 2 | CH-R09MOLVWM-230VI (9,000 BTU) |
| Capacity | 9,000 BTU/h |
| Dimensions (WxDxH) | 31.57x7.87x11.61 inches |
| Noise Level | As low as 19 dB(A) |
| Indoor Unit 3 | CH-R09MOLVWM-230VI (9,000 BTU) |
| Capacity | 9,000 BTU/h |
| Dimensions (WxDxH) | 31.57x7.87x11.61 inches |
| Noise Level | As low as 19 dB(A) |
| Indoor Unit 4 | CH-R09MOLVWM-230VI (9,000 BTU) |
| Capacity | 9,000 BTU/h |
| Dimensions (WxDxH) | 31.57x7.87x11.61 inches |
| Noise Level | As low as 19 dB(A) |
| Indoor Unit 5 | CH-R09MOLVWM-230VI (9,000 BTU) |
| Capacity | 9,000 BTU/h |
| Dimensions (WxDxH) | 31.57x7.87x11.61 inches |
| Noise Level | As low as 19 dB(A) |
| Indoor Unit 6 | CH-R09MOLVWM-230VI (9,000 BTU) |
| Capacity | 9,000 BTU/h |
| Dimensions (WxDxH) | 31.57x7.87x11.61 inches |
| Noise Level | As low as 19 dB(A) |
Outdoor Unit Specifications
| Outdoor Model | CH-R60MES-230VO |
| Power Supply | 208/230V, 1Ø, 60Hz |
| Total Capacity | 60,000 BTU/h |
| SEER Rating | Up to 22 |
| Refrigerant Type | R454B (Eco-Friendly) |
| Compressor Type | Inverter DC |
| Dimensions (WxDxH) | 39.4 x 15.4 x 31.5 inches |
| Operating Range (Cooling) | 0°F to 122°F |
| Operating Range (Heating) | -22°F to 75°F |
Warranty
Backed by Cooper & Hunter's comprehensive warranty program for your peace of mind.
