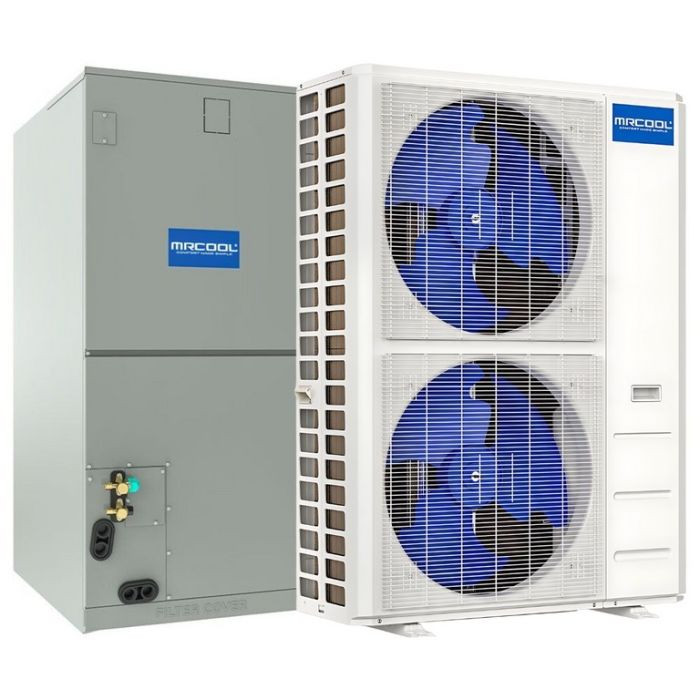

MRCOOL® 2nd Gen 36,000 BTU (3 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-36-HP-MUAH-230A00-O + CENTRAL-36-HP-C-230B00-O
MRCOOL® 2nd Gen 36,000 BTU (3 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-36-HP-MUAH-230A00-O + CENTRAL-36-HP-C-230B00-O
Summary
Upgrade your home's heating and cooling with the MRCOOL® Hyper Heat 2nd Gen 36K BTU 3.0 Ton Central Ducted Heat Pump Split System. Designed for exceptional performance in extreme temperatures, this system delivers year-round comfort while maintaining energy efficiency. With an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10.2, you can enjoy reduced utility costs without compromising performance.
Built with the latest R-454B refrigerant, this eco-friendly system minimizes environmental impact. Compatible with the MRCOOL® VersaPro® Central Ducted Air Handler, it provides seamless operation with smart thermostat control via the MRCOOL® SmartHVAC App.
Key Features & Benefits:
-
Superior Energy Efficiency: 17.4 SEER2 & 10.2 HSPF2-4 for optimized heating and cooling performance.
-
Extreme Climate Performance: Reliable operation in extreme heat and cold conditions.
-
Smart Energy Management: Reduces energy consumption with precise climate control.
-
Easy Installation: Works with No Vac® Quick Connect® Line Sets (sold separately), includes stub pipes and copper nuts for flare nut configuration.
-
Eco-Friendly Refrigerant: Uses next-gen R-454B refrigerant for sustainability.
-
Durability: Painted galvanized steel exterior for long-lasting protection.
-
Advanced Control: Includes MRCOOL® Smart Thermostat and SmartHVAC App compatibility.
-
Voice Control Support: Works with Alexa, Google Assistant, & Siri.
-
Versatile Installation Options: Supports upflow, downflow, and horizontal configurations.
-
Optional Heat Kit: Available for additional heating capacity.
-
Industry-Leading Warranty: 10-year warranty on compressor, parts, and labor.
What’s Included?
-
MRCOOL® Hyper Heat 36K BTU 3 Ton Condenser (Model: CENTRAL-36-HP-C-230B00-O)
-
MRCOOL® VersaPro® 3 Ton Central Ducted Air Handler
-
MRCOOL® Smart Thermostat
Outdoor Unit:
CENTRAL-36-HP-C-230B00-O
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-36-HP-MUAH-230A00-O |
|
GTIN |
00840255586474 |
|
UPC |
840255586474 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
3 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |
The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime. This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality. The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control. |
|
CFM |
1188.97/1083.02/971.19/865.24 |
|
TONNAGE |
3 |
|
COOLING CAPACITY (BTU) |
36000 |
|
HEATING CAPACITY (BTU) |
36000 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
8.0/6.0 |
|
COLOR |
gray |
|
DECIBEL RATING LOW (DBA) |
28 |
|
DECIBEL RATING HIGH (DBA) |
48 |
|
NUMBER OF SPEEDS |
3 |
|
MAX LINESET LENGTH (FT) |
246 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
19x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW/8kW/10kW/15kW/20kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
21.02 |
|
NET HEIGHT (IN) |
49.02 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
129.41 |
|
GROSS DEPTH (IN) |
24.41 |
|
GROSS HEIGHT (IN) |
52.56 |
|
GROSS WIDTH (IN) |
26.57 |
|
GROSS WEIGHT (LBS) |
153.88 |
Indoor Unit: MVP-36-HP-MUAH-230A00-O
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-36-HP-MUAH-230A00-O |
|
GTIN |
00840255586474 |
|
UPC |
840255586474 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
3 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |
The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime. This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality. The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control. |
|
CFM |
1188.97/1083.02/971.19/865.24 |
|
TONNAGE |
3 |
|
COOLING CAPACITY (BTU) |
36000 |
|
HEATING CAPACITY (BTU) |
36000 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
8.0/6.0 |
|
COLOR |
gray |
|
DECIBEL RATING LOW (DBA) |
28 |
|
DECIBEL RATING HIGH (DBA) |
48 |
|
NUMBER OF SPEEDS |
3 |
|
MAX LINESET LENGTH (FT) |
246 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
19x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW/8kW/10kW/15kW/20kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
21.02 |
|
NET HEIGHT (IN) |
49.02 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
129.41 |
|
GROSS DEPTH (IN) |
24.41 |
|
GROSS HEIGHT (IN) |
52.56 |
|
GROSS WIDTH (IN) |
26.57 |
|
GROSS WEIGHT (LBS) |
153.88 |
Important Notes:
-
Designed for ducted HVAC setups only.
-
Installation must be performed by a licensed HVAC professional for the warranty to be valid.
