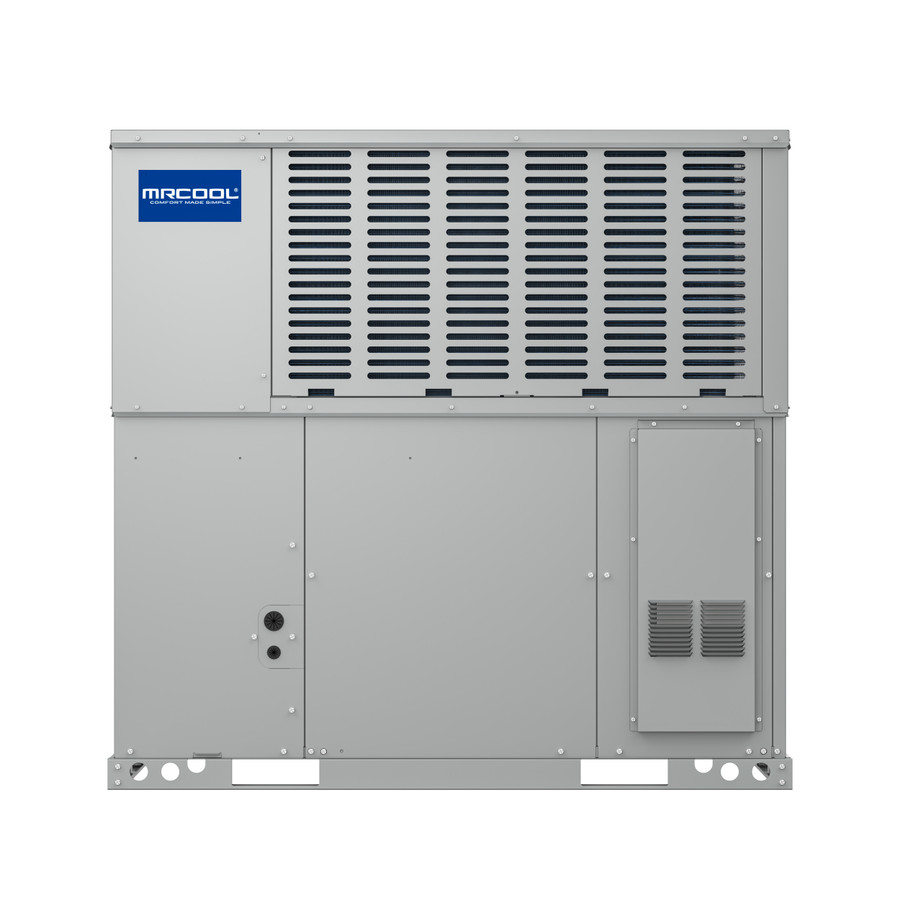

MRCOOL VersaPro® 3 Ton 90,000 BTU Packaged A/C & Gas Unit (R-454B) — MPG36S090MO13C
Overview
The MRCOOL® VersaPro® MPG36S090MO13C combines efficient cooling with dependable gas heat in a compact, all-in-one packaged design. It’s built with a durable, power-painted galvanized steel cabinet, a horizontal discharge layout to help reduce perceived outdoor noise, and microchannel coil construction for efficient heat transfer and corrosion resistance. A high-efficiency compressor paired with an ECM blower motor supports steadier airflow and comfort, while integrated safety controls help protect the system under demanding conditions.
Fuel type: Natural Gas / Propane (LP conversion kit included).
Highlights
- Cooling efficiency: 13.4 SEER2 / 11 EER2.
- Heating efficiency: 81% AFUE gas heat with 90,000 BTU input.
- Next-gen refrigerant: R-454B with lower GWP than older blends.
- ECM blower: improved airflow control and comfort consistency.
- Microchannel coil: aluminum construction for durability and heat transfer.
- Flexible install: supports horizontal and downflow configurations.
- Propane capable: LP kit included.
What’s Included
- Packaged A/C & gas unit: MPG36S090MO13C
- LP conversion kit (included)
Performance & Electrical
| Cooling | 3 Ton • 34,000 BTU |
| Heating | 90,000 BTU Input • 72,000 BTU Output • 81% AFUE • 1 Stage |
| Efficiency | 13.4 SEER2 • 11 EER2 |
| Airflow | 1050 CFM |
| Power | 208/230V • 1 Phase • 60 Hz |
| Max Fuse / Breaker | 40A |
| Minimum Circuit Ampacity | 25.2A |
| Refrigerant | R-454B • 46 oz |
| Sound Level | 79 dBA |
| Min Ambient Cooling | 64.4°F |
Connections & Components
| Control Type | 24V Thermostat |
| Gas Connection | 1/2" |
| Drain Connection | 3/4" |
| Compressor | Rotary (non-inverter) |
| Condenser Fan | PSC • 1/6 HP • 840 RPM |
| Blower Motor | ECM • 1/2 HP • 4 Speeds |
| Ignition | Direct Spark Ignition |
| Metering Device | Piston |
| Burners | 7 |
Dimensions & Weight
| Net | 50.69" W × 46.44" D × 35.06" H • 444 lb |
| Gross | 51.44" W × 48.625" D × 37" H • 467 lb |
Documents & Downloads
Important
- Fuel: Natural gas or propane (LP kit included).
- Install orientation: Downflow or horizontal.
- Warranty: Base coverage listed as 5-year parts / 20-year heat exchanger. Registered coverage listed as 10-year parts / lifetime heat exchanger.
- Electrical: 208/230V single phase; confirm breaker sizing and local code requirements before installation.
FAQs
Is this unit compatible with natural gas and propane?
Yes—this model supports natural gas and propane, and an LP conversion kit is included.
What installation orientations are supported?
Supports downflow and horizontal installation configurations.
What thermostat does it use?
It’s designed for a standard 24V thermostat control setup.
What are the key efficiency ratings?
Rated at 13.4 SEER2 and 11 EER2 for cooling, with 81% AFUE for the gas furnace.
What electrical circuit is typically required?
The unit is listed at 208/230V, with a 40A max fuse/breaker and 25.2A minimum circuit ampacity. Always size wiring and protection per local code and the installation manual.
