Overview
The 5 Ton MRCOOL Central Heat Pump and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system pairs the MRCOOL outdoor unit with a gas furnace delivering 96% AFUE with 100,000 BTU (8.33 Ton) heating. Dual-fuel capable: in milder cold the heat pump provides efficient electric heat, and during extreme cold the system can switch to gas furnace backup heat for dependable comfort.
- Capacity: 5 Ton
- Furnace efficiency: 96% AFUE
- Furnace output: 100,000 BTU (8.33 Ton)
- Refrigerant: R454B
- Voltage: 115V,208-230V
- Efficiency: 16 SEER
- EER: 10
Highlights
- Pre-charged coil design for a simpler, safer install with MRCOOL No-Vac® pre-charged line sets.
- CoolGuard® corrosion-resistant coil for long service life.
- Pre-installed TXV and multi-position application for flexible installs.
- Next-generation, low‑GWP R‑454B refrigerant support with A2L leak detection compatibility.
- Compact footprint designed to fit modern, high-efficiency homes.
- 96% AFUE high-efficiency heating designed to reduce gas usage and operating cost.
- Two-stage performance for smoother temperature control and quieter cycles.
- Advanced heat exchanger design for long-lasting reliability.
- Multi-position installation support (upflow/horizontal depending on model).
- Included LP conversion kit on many models (confirm per model/spec).
Comfort & Operation
MRCOOL® Pre‑Charged Coils are built for straightforward upgrades: they’re designed to pair with MRCOOL No‑Vac® pre‑charged line sets, helping reduce install time while keeping the system sealed.
MRCOOL® VersaPro® 96% AFUE furnaces focus on high-efficiency comfort with staged operation that helps maintain steadier indoor temperatures and quieter run cycles.
How dual fuel works: the system can favor efficient electric heat in milder weather, then switch to gas heat during extreme cold.

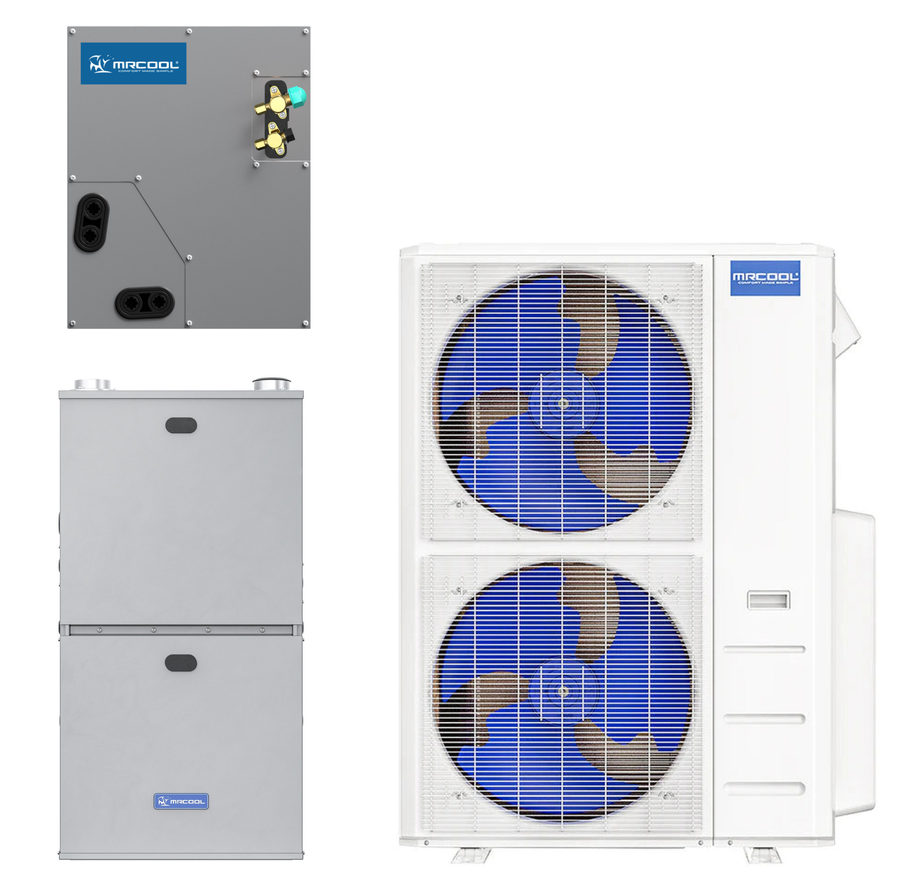

What’s Included
- Outdoor unit: CENTRAL-60-HP-C-230B00-O — 60K MRCOOL® Hyper Heat Central Ducted Condenser
- Gas furnace: MGM96EE100C5NB — MRCOOL® VersaPro® 100k BTU 96% AFUE Gas Furnace
- Indoor coil: MCMP4860COTB — 4-5 Ton MultiPositional 21" Cased Coil - Pre-Charged R454B
- Line set: choose length in the options (If no installation kit is selected will not be included).
Technical Specifications — Outdoor Unit
| Brand | MRCOOL |
|---|---|
| Model | CENTRAL-60-HP-C-230B00-O |
| Unit type | Split System Heat Pump |
| Equipment type | Condenser |
| Tonnage | 5 |
| Cooling capacity (BTU) | 54000 |
| Heating capacity (BTU) | 56000 |
| SEER2 | 16 |
| EER2 | 10 |
| Refrigerant | R454B |
| Sound rating (dBA) | 65 |
| Electrical | 208-230 • 1 ph • 60 Hz |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 37.48 × 52.48 × 16.34 in |
Technical Specifications — Gas Furnace
| Brand | MRCOOL |
|---|---|
| Model | MGM96EE100C5NB |
| AFUE | 96 |
| Fuel type | Natural/Propane Gas |
| BTU input | 100000 |
| BTU output | 95000 |
| Stage | Two |
| Electrical | 115 • 1 ph • 60 Hz |
| Dimensions (W×H×D) | 20.98 × 33.74 × 28.74 in |
| Net weight | 153.5 |
| Warranty | Parts: 5 Years |
Technical Specifications — Indoor Coil
| Brand | MRCOOL |
|---|---|
| Model | MCMP4860COTB |
| Unit type | Split System Coil |
| Tonnage | 4-5 Ton |
| Configuration | Multi-Position |
| Cased | Yes |
| Refrigerant | R-454B |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 21.625 × 27.75 × 21.5 in |
| Net weight | 97 |
| Warranty | Parts: 10 Year |
Documents & Downloads
60K MRCOOL® Hyper Heat Central Ducted Condenser (CENTRAL-60-HP-C-230B00-O)
MRCOOL® VersaPro® 100k BTU 96% AFUE Gas Furnace (MGM96EE100C5NB)
4-5 Ton MultiPositional 21" Cased Coil - Pre-Charged R454B (MCMP4860COTB)
