MRCOOL DIY 5th Gen 6-Zone Ductless Mini Split AC & Heat Pump 48000 BTU (9K+9K+9K+9K+9K+12K), One-Way Cassette Units, 230V
A multi-zone heating & cooling system designed for simple setup, smart control, and efficient year-round comfort.
Overview
Take full control of your indoor climate with a DIY-focused multi-zone mini split system that delivers efficient heating, cooling, and dehumidification with independent control in each area.
DIY-MULTI6-48HP230D-O + 5X DIYCASSETTE09HP-230D25-O + DIYCASSETTE12HP-230D25-O
DIY-MULTI6-48HP230D-O
40
45
Why Homeowners Love It
- DIY-friendly setup: Designed to reduce install complexity and avoid specialized HVAC steps when using DIY Quick Connect line sets.
- Whole-home zoning: Set different temperatures in different rooms for more comfort and less wasted energy.
- Smart control: Manage each zone with app control and voice assistants.
- All-season comfort: Cooling, heating, dry/dehumidify, and auto modes for changing weather.
- Built to last: Gold Fin condenser coating helps resist corrosion in harsh climates.
What’s Included

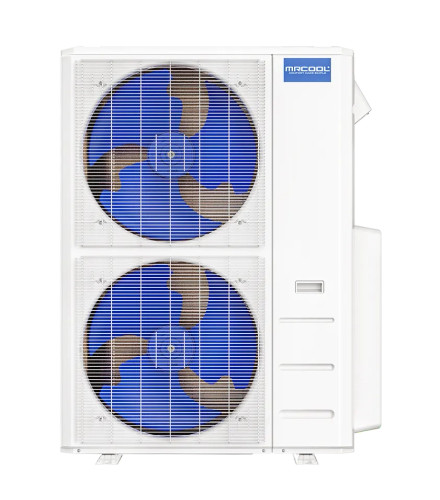

- (1) Outdoor condenser: DIY-MULTI6-48HP230D-O
- Indoor units:
- 9,000 BTU (x5) — Model: DIYCASSETTE09HP-230D25-O
- 12,000 BTU (x1) — Model: DIYCASSETTE12HP-230D25-O
- Wireless remotes (zone control)
- DIY Quick Connect line sets (installation kit must be selected to be included; DIY Quick Connect line sets are the pre-charged component)
- Installation accessories & documentation (see Documents & Downloads)
Mrcool DIY Multi-Zones
Key Features
- DIY Quick Connect compatibility: Pre-charged line sets (when included/selected) can eliminate vacuum pump and gauge steps.
- Energy-efficient inverter performance for stable temperatures and lower operating costs.
- Gold Fin condenser for corrosion resistance and durability.
- Room-by-room airflow control and washable filters for simple upkeep.
- Display & diagnostics on the indoor unit for quick status checks.
- Low-ambient performance with heating capability down to -13°F.
DIY Quick Connect line sets are model-specific and must match the system. Always follow the installation manual for your exact configuration.
Comfort Modes
- Auto: Automatically selects heating or cooling to maintain setpoint.
- Cool / Heat: Dedicated modes for seasonal comfort.
- Dry: Dehumidifies while maintaining comfort.
- Sleep: Energy-saving overnight profile.
- Timer: Scheduled on/off for efficiency.
Warranty
Coverage commonly includes a 7-year compressor warranty and a 5-year parts warranty (registration requirements apply).
Optional lifetime compressor coverage may be available depending on program/registration.
Indoor Specs
| brand name | MRCOOL |
|---|---|
| sku | DIY 5th Gen OuttaSight |
| model | DIYCASSETTE12HP-230D25-O |
| unit type | Mini-Split |
| short description | MRCOOL® DIY® Series 5th Gen OuttaSight® 12K BTU 230V One-Way Ceiling Cassette |
| works with | DIY 5th Gen Systems |
| feature list |
|
| cfm | 353 / 312 / 283 / 247 / 177 |
| voltage (V) | 208-230 |
| phase | 1 |
| cycle (Hz) | 60 |
| max fuse breaker (a) | 15 |
| min circuit ampacity (a) | 3 |
| mount type | Ceiling |
| color | White |
| rated load | 1 |
| max coverage area | 550 |
| refrigerant type | R-454B |
| decibel rating (dba) | 37 |
| decibel rating low (dba) | 24 |
| decibel rating high (dba) | 41 |
| air flow direction | 1-Way |
| liquid line size | 1/4 |
| suction line size | 3/8 |
| blower motor rpm | 1075/982/797 |
| filter type | Reusable |
| fan only option | Yes |
| quiet mode | Yes |
| sleep mode | Yes |
| auto cool | Yes |
| wifi compatibility | Yes |
| app compatibility | Yes |
| works with ios | Yes |
| works with android | Yes |
| remote control included | Yes |
| registered warranty | Limited Lifetime Compressor |
| base warranty | 5-Year Part/7-Year Compressor |
| base parts warranty | 5 Years |
| registered compressor warranty | Limited Lifetime Compressor |
| base compressor warranty | 7 Years |
| has batteries | Yes |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | Yes |
| contains compressed gas | Yes |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| net depth (in) | 13.19 |
| net height (in) | 8.98 |
| net width (in) | 50.31 |
| net weight | 45 |
| gross depth (in) | 22.48 |
| gross height (in) | 22.64 |
| gross width (in) | 57.6 |
| gross weight (lbs) | 88 |
Outdoor Specs
Helpful Notes
Mixing indoor unit types
Many multi-zone configurations allow mixing compatible wall mounts and other indoor styles. Confirm compatibility for your condenser model before ordering.
DIY Quick Connect line sets
The “pre-charged” component is the DIY Quick Connect line set (when included/selected). Follow the install manual for required accessories, connections, and any long-line rules.
Electrical & breaker sizing
Use MCA (40) and Max Fuse/Breaker (45) as starting points, then size per the installation manual and local code.
Line sizing
Indoor line sizes: 1/4 / 3/8. Confirm final line sizes and allowable lengths for your exact pairing before selecting a line set.
