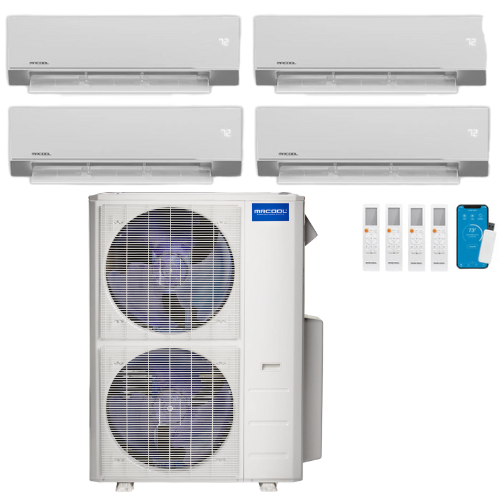

MRCOOL Olympus 4th Generation 4-Zone Ductless Mini Split AC & Heat Pump 48000 BTU (12K+12K+12K+24K), Wall Mount Units, 230V
Premium performance for up to six zones with advanced inverter efficiency, SmartHVAC control, and durable Gold Fin® protection.
Overview
The Olympus Multi-Zone 4th Gen is built for whole-home flexibility—one outdoor condenser can support multiple indoor zones for independent room comfort. Note: multi-zone systems run in one mode at a time (the system heats or cools as a whole).
MULTI6-48HP230C-O + 3X O-12-HP-WMAH-230C-O + O-24-HP-WMAH-230C-O
MULTI6-48HP230C-O
34.0
40
Why Homeowners Love It
- Your comfort, multiplied: Multi-zone technology gives room-by-room temperature control in up to six zones.
- Premium efficiency: Advanced inverter performance helps reduce monthly heating and cooling costs.
- All-season reliability: Dependable low-ambient operation and stable comfort in changing outdoor conditions.
- Smart control: Set schedules, adjust setpoints, and manage zones from the SmartHVAC app (plus Alexa/Google voice).
- Built to last: Gold Fin® condenser protection improves corrosion resistance—ideal for harsh or coastal regions.
Important: This system is not marketed as DIY—professional installation is required.
What’s Included
- (1) Outdoor condenser: MULTI6-48HP230C-O
- Indoor wall mounts:
- 12,000 BTU (x3) — Model: O-12-HP-WMAH-230C-O
- 24,000 BTU (x1) — Model: O-24-HP-WMAH-230C-O
- Zone remotes/controllers (model-specific)
- Refrigerant line sets & interconnect/communication wiring (must be selected in the options to be included; choose the appropriate length for each indoor unit based on your layout)
- Mounting hardware for indoor units
- Installation documentation (see Documents & Downloads)
Mrcool DIY Multi-Zones
Key Features
- Advanced inverter technology: High efficiency and stable comfort with variable-speed performance.
- Low-ambient cooling: Designed for applications that may require cooling in colder weather (e.g., server rooms / greenhouses).
- Refrigerant leak detection: Built-in monitoring with fault indication to help protect the system.
- Gold Fin® condenser: Added corrosion resistance for long-term durability.
- SmartHVAC control: App scheduling + remote access, plus Alexa/Google voice integration.
- Comfort features: Sleep mode, auto restart, and diagnostic codes (model-specific).
R-454B is an A2L refrigerant. Installation/service must follow the manufacturer manual and applicable codes.
Comfort Modes
- Auto: Automatically selects heating or cooling to maintain setpoint.
- Cool / Heat: Dedicated modes for seasonal comfort.
- Dry: Dehumidifies while maintaining comfort.
- Sleep: Energy-saving overnight profile.
- Timer: Scheduled on/off for efficiency.
Multi-zone systems operate in one mode at a time—you can’t heat one room while cooling another.
Warranty
Standard coverage commonly includes a 7-year compressor warranty and a 5-year parts warranty (registration requirements apply).
Extended limited lifetime replacement coverage may require enrollment in the MRCOOL® Care Kit program and additional conditions/fees.
Indoor Specs
| brand name | MRCOOL |
|---|---|
| series | Olympus 4th Gen Air Handlers |
| model | O-24-HP-WMAH-230C-O |
| unit type | Mini-Split |
| short description | Olympus 24,000 BTU 2 Ton Ductless Mini-Split Wall Mounted Air Handler - 230V/60Hz |
| long description | Stay comfortable all year long with the MRCOOL® OLYMPUS ESTAR® 24k Series air handler, a reliable solution for both heating and cooling. Designed to efficiently serve areas up to 1050 square feet, it’s an excellent fit for large rooms, offices, garages, and more. Its compact design also makes for an easy, straightforward installation. With built-in Wi-Fi capabilities and the MRCOOL® Smart HVAC app, you can control the system from your smartphone or tablet—anytime, anywhere. Prefer a hands-on approach? Use the included remote control for quick and simple access to your comfort settings. Built for high efficiency, the unit features a SEER2 rating of 23, EER2 of 14, and HSPF2-4 rating of 11.7, helping you save on energy costs without compromising performance. Multiple indoor fan speed options and whisper-quiet operation at just 51.5 dB ensure a peaceful and customized climate experience. The system now uses R-454B refrigerant, an environmentally friendly choice that supports greener living while delivering the performance you expect. You’ll also enjoy versatile control options, including compatibility with Amazon Alexa and Google Assistant for voice-activated comfort, in addition to app and remote access. Backed by an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and 5-year parts protection, the MRCOOL® OLYMPUS ESTAR® 24k Series air handler offers advanced technology, dependable performance, and year-round climate control you can count on. |
| works with | O-ES-24-HP-C-230C-O1 MULTI4-27HP230C-O MULTI5-36HP230C-O MULTI6-48HP230C-O |
| tonnage | 2.0 |
| voltage (v) | 208/230 |
| phase | 1 |
| cycle (hz) | 60 |
| max fuse breaker (a) | 15 |
| min circuit ampacity (a) | 3.0 |
| mount type | Wall |
| color | White |
| max coverage area | Up to 1050 |
| refrigerant type | R-454B |
| decibel rating (dba) | 54.5/43.5/38.5/27/16 |
| decibel rating low (dba) | 16.0 |
| decibel rating high (dba) | 54.5 |
| number of speeds | 5 (Variable) |
| oscillation | Yes |
| lineset fitting type | Flare |
| liquid line size | 3/8 |
| suction line size | 5/8 |
| blower motor speeds | 812.3/618/412/317.8/317.8 |
| blower motor rpm | 1000/850/630 |
| filter type | Reusable |
| auxiliary heater included | No |
| auxiliary heater available | No |
| fan only option | Yes |
| sleep mode | Yes |
| auto cool | Yes |
| wifi compatibility | Yes |
| app compatibility | Yes |
| works with ios | Yes |
| works with android | Yes |
| remote control included | Yes |
| ul listed | Yes |
| csa listed | Yes |
| etl listed | Yes |
| base warranty | 5-Year Parts |
| base parts warranty | 5-Year |
| base remote warranty | 5 Year |
| registered labor warranty | None |
| base labor warranty | None |
| has batteries | Yes |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains compressed gas | Yes |
| proposition 65 warning | Yes |
| restricted states | GU, PR, VI |
| net depth (in) | 11.02 |
| net height (in) | 14.61 |
| net width (in) | 47.13 |
| net weight | 43.65 |
| gross depth (in) | 14.17 |
| gross height (in) | 17.91 |
| gross width (in) | 50.39 |
| gross weight (lbs) | 55.56 |
Outdoor Specs
Helpful Notes
Professional installation required
Installation must be completed by a qualified HVAC professional. Improper installation can cause water leakage, electrical shock, or fire.
Mixing indoor unit types
Many Olympus multi-zone configurations allow mixing compatible indoor styles (wall mounts, ceiling cassettes, and concealed duct models). Confirm compatibility for your condenser model before ordering.
Line sets & wiring (options)
Line sets and communication wiring may be bundled depending on your selected options. If no installation kit is selected, they may not be included. Select the appropriate length for each indoor unit based on your layout.
Electrical & breaker sizing
Use MCA (34.0) and Max Fuse/Breaker (40) as starting points, then size per the installation manual and local code.
Line sizing
Indoor line sizes: 1/4 / 3/8 | 3/8 / 5/8. Confirm final line sizes, allowable lengths, and any additional charge requirements for your exact pairing before selecting line sets.
