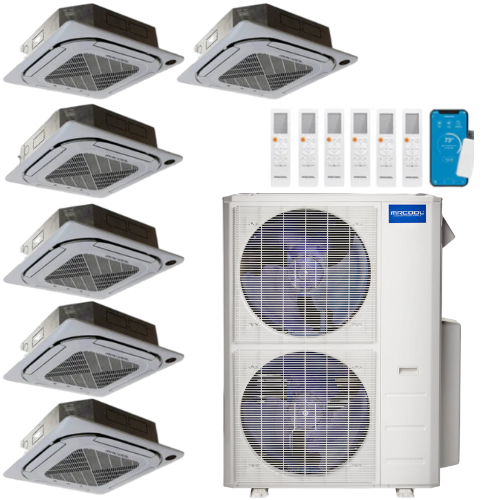

MRCOOL Olympus 4th Generation 6-Zone Ductless Mini Split AC & Heat Pump 48000 BTU (9K+9K+9K+9K+9K+9K), Ceiling Cassette Units, 230V
A space-saving ceiling cassette solution with a clean, flush look, quiet operation, and multi-zone comfort for up to six rooms.
Overview
Designed to fit seamlessly into the ceiling for a flush look, Olympus ceiling cassettes help free up wall space while delivering efficient, even comfort. Multi-zone systems run in one mode at a time (the system heats or cools as a whole).
MULTI6-48HP230C-O + 6X CASSETTE09HP-230C-P-O
MULTI6-48HP230C-O
34.0
40
Why Homeowners Love It
- Clean, modern aesthetic: Ceiling-mounted design delivers a discreet, flush appearance that blends into the room.
- Save wall space: Ideal when wall space is limited or you prefer an uncluttered layout.
- Quiet comfort: Designed for low-noise operation—great for bedrooms, offices, and nurseries.
- Multi-zone control: Flexible zone-by-zone comfort for up to six areas with one outdoor unit.
- Smart control: Manage schedules and setpoints using SmartHVAC app plus Alexa/Google voice control.
Important: This system is not DIY—professional installation is required.
What’s Included
- (1) Outdoor condenser: MULTI6-48HP230C-O
- Indoor ceiling cassettes:
- 9,000 BTU (x6) — Model: CASSETTE09HP-230C-P-O
- Zone remotes/controllers (model-specific)
- Refrigerant line sets & interconnect/communication wiring (must be selected in the options to be included; choose the appropriate length for each indoor unit based on your layout)
- Mounting/ceiling hardware (model-specific)
- Installation documentation (see Documents & Downloads)
Mrcool DIY Multi-Zones
Key Features
- Space-saving ceiling design: Flush look that maximizes usable wall space.
- Advanced inverter efficiency: High performance with strong SEER2 ratings (varies by model pairing).
- Low-ambient cooling capability: Suitable for specialty cooling needs in colder weather (application dependent).
- Refrigerant leak detection: Built-in monitoring with fault indication to help protect the system.
- Gold Fin® condenser: Added corrosion resistance for long-term durability.
- SmartHVAC control: App scheduling + remote access, plus Alexa/Google voice integration.
R-454B is an A2L refrigerant. Installation/service must follow the manufacturer manual and applicable codes.
Comfort Modes
- Auto: Automatically selects heating or cooling to maintain setpoint.
- Cool / Heat: Dedicated modes for seasonal comfort.
- Dry: Dehumidifies while maintaining comfort.
- Sleep: Energy-saving overnight profile.
- Timer: Scheduled on/off for efficiency.
Multi-zone systems operate in one mode at a time—you can’t heat one room while cooling another.
Warranty
Standard coverage commonly includes a 7-year compressor warranty and a 5-year parts warranty (registration requirements apply).
Extended limited lifetime replacement coverage may require MRCOOL® Care Kit enrollment and additional conditions/fees. Some extended program terms may exclude certain indoor types—confirm program details for ceiling cassette configurations.
Indoor Specs
Outdoor Specs
Helpful Notes
Professional installation required
Installation must be completed by a qualified HVAC professional. Improper installation can cause water leakage, electrical shock, or fire.
Mode limitation (multi-zone)
The system heats or cools as a whole. You can’t heat one room while cooling another at the same time.
Line sets & wiring (options)
Line sets and communication wiring may be bundled depending on your selected options. If no installation kit is selected, they may not be included. Select the appropriate length for each indoor unit based on your layout.
Electrical & breaker sizing
Use MCA (34.0) and Max Fuse/Breaker (40) as starting points, then size per the installation manual and local code.
Line sizing
Indoor line sizes: 1/4 / 3/8. Confirm final line sizes, allowable lengths, and any additional charge requirements for your exact pairing before selecting line sets.
