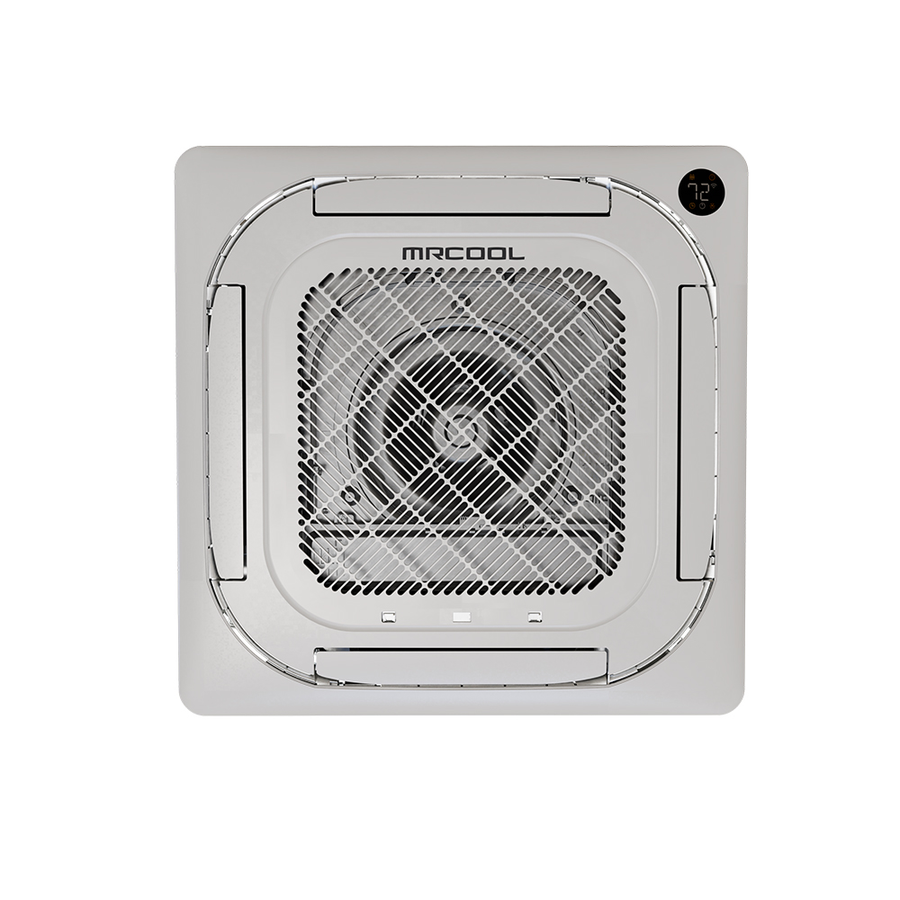

MRCOOL Olympus Cassette 24,000 BTU (2 Ton) – CASSETTE24HP-230C-P-O
MRCOOL Olympus Cassette 24,000 BTU (2 Ton) Ductless Mini-Split Ceiling Cassette with Panel – 230V/60Hz (Model: CASSETTE24HP-230C-P-O)
Overview
The MRCOOL® OLYMPUS 24K CASSETTE delivers powerful heating and cooling for spaces up to 1,050 sq. ft.. Its ceiling-mounted, flush-fit design blends seamlessly into any interior for a modern, space-saving look ideal for residential or light commercial applications. Operating at a quiet 48.5 dB (high), it maintains a serene environment without sacrificing performance. Using eco-forward R-454B refrigerant with low global warming potential, it combines high efficiency with reduced environmental impact. Backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, it’s a dependable, sleek comfort solution.
Use our sizing calculator () to dial in capacity.
Quick Facts
- Capacity: 24,000 BTU (2 Ton)
- Max Coverage: Up to 1,050 sq. ft.
- Refrigerant: R-454B
- Mount Type: Ceiling cassette (flush)
- Airflow Direction: Downflow
- Quiet Operation: 48.5/45/42.5/33.5/33.5 dBA (5 speeds)
- Electrical: 208/230V, 1-Phase, 60 Hz
- Line Sizes: 3/8" liquid, 5/8" suction (flare)
- Control: Remote included; Fan Only, Sleep Mode, Auto Cool
- Certifications: UL, CSA, ETL
Works With (Compatible Outdoor Units)
O-ES-24-HP-C-230C-O1 • MULTI4-27HP230C-O • MULTI5-36HP230C-O • MULTI6-48HP230C-O
Included in Your Order
- MRCOOL Olympus 24K Ceiling Cassette with Panel – Model: CASSETTE24HP-230C-P-O
- Remote Control
- Reusable Air Filter
- Installation & Owner’s Documentation
Note: Line set and outdoor unit sold separately. Ensure compatibility with the outdoor condenser listed above.
Key Features
- Sleek flush ceiling installation to save wall space
- R-454B low-GWP refrigerant for reduced environmental impact
- 5 variable fan speeds with oscillation for even air distribution
- Comfort modes: Auto Cool, Fan Only, Sleep Mode
- Quiet operation for bedrooms and offices
- Remote control included
- Safety & compliance: UL / CSA / ETL listed
Technical Specifications
General
| Specification | Details |
|---|---|
| Brand | MRCOOL |
| Series | Olympus Cassette |
| Model | CASSETTE24HP-230C-P-O |
| GTIN | 00840255588034 |
| UPC | 840255588034 |
| Unit Type | Mini-Split (Ceiling Cassette) |
| Tonnage | 2 Ton |
| Max Coverage Area | Up to 1,050 sq. ft. |
| Air Flow Direction | Downflow |
| Number of Speeds | 5 (Variable) |
| Oscillation | Yes |
| Color | White |
| Mount Type | Ceiling |
| Filter Type | Reusable |
Performance & Sound
| Specification | Details |
|---|---|
| Refrigerant | R-454B |
| Decibel Rating (dBA) | 48.5 / 45 / 42.5 / 33.5 / 33.5 |
| Decibel Rating – Low (dBA) | 33.5 |
| Decibel Rating – High (dBA) | 48.5 |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
Electrical & Connections
| Specification | Details |
|---|---|
| Voltage / Phase / Frequency | 208/230V / 1-Phase / 60 Hz |
| Max Fuse / Breaker | 15 A |
| Min Circuit Ampacity | 3 A |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
Blower
| Specification | Details |
|---|---|
| Blower Motor Speeds | 765.2 / 706.3 / 635.7 / 547.4 / 547.4 |
| Blower Motor RPM | 624 / 568 / 426 |
Controls & Connectivity
| Specification | Details |
|---|---|
| Remote Control Included | Yes |
| Wi-Fi / App Compatibility | No |
| Works with iOS / Android | No / No |
Certifications & Compliance
| Specification | Details |
|---|---|
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Proposition 65 Warning | Yes |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
| Restricted States | GU, PR, VI |
Dimensions & Weights
| Specification | Details |
|---|---|
| Net Width x Depth x Height (in) | 32.68" × 32.68" × 8.07" |
| Net Weight (lbs) | 47.18 |
| Gross Weight (lbs) | 59.08 |
Warranty Information
- Limited Lifetime Warranty
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- Registered Labor Warranty: None
- Base Labor Warranty: None
Manuals & Downloads
Please note: This ceiling cassette must be paired with a compatible MRCOOL® Olympus outdoor condenser (see “Works With”). Line set, outdoor unit, and accessories are sold separately.
