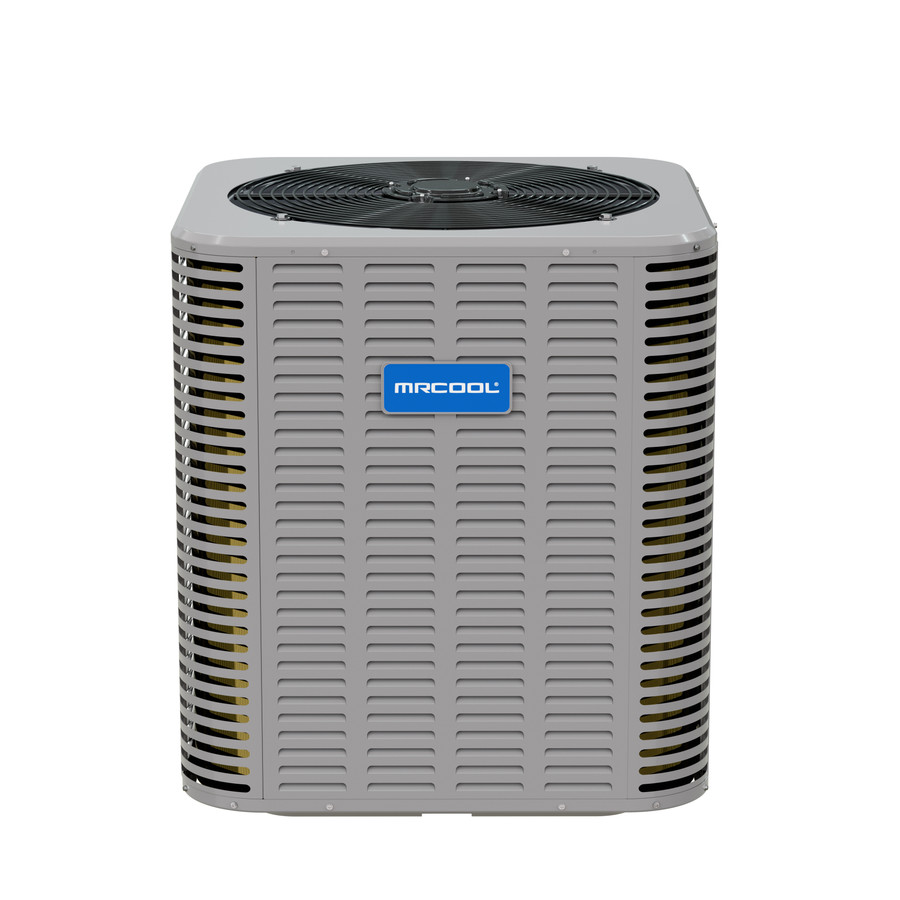

MRCOOL Signature Series 2.5 Ton Heat Pump Condenser | MCAESHS4T3021AA
MRCOOL Signature Series 2.5 Ton 14.3 SEER2 Heat Pump Condenser | MCAESHS4T3021AA
Summary
The MRCOOL® Signature Series 30k Heat Pump Condenser delivers reliable, energy-efficient performance year-round. With ratings of 14.3 SEER2 and 11.7 EER2, it offers consistent heating and cooling while helping homeowners manage energy costs in every season. Whether battling intense summer heat or chilly winter air, this system is built to maintain a comfortable indoor environment. The unit comes pre-charged with R-454B refrigerant, a low-GWP alternative that aligns with current environmental standards. This refrigerant reduces environmental impact without compromising performance. The pre-charged design speeds up installation, reducing both time and labor expenses. At the heart of the system is a rugged single-speed scroll compressor that ensures steady, efficient operation. Inner-groove copper tubing enhances heat transfer, while integrated pressure and temperature sensors protect against extreme conditions. An intelligent defrost function maintains reliable performance in cold weather by preventing frost buildup. Despite its powerful capabilities, the Signature Series 30k runs quietly at just 63 decibels. A sound-dampening top helps keep operational noise to a minimum, making it suitable for residential areas. For added durability, the exterior features a steel louver coil guard and wire fan discharge grille for extra protection. With sweat connection service valves and an easy-access gauge port, installation and maintenance are simple. Backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, it's a dependable investment in long-term home comfort.
Important
AHRI certified - meets industry standards. Register your product to activate warranty coverage. This condenser contains R-454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R-454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
Key Features
- 30,000 BTU cooling capacity (2.5 Ton)
- 27,500 BTU heating capacity
- 14.3 SEER2 efficiency rating
- 11.7 EER2 efficiency rating
- 7.5 HSPF2 heating efficiency
- Scroll compressor for reliable operation
- Quiet operation (63 dBA)
- Pre-charged with R-454B refrigerant
- Factory pre-charged for 15-foot line set
- Compact design for easy installation
- Built-in protection sensors
- Intelligent defrost function
- AHRI certified
Complete Technical Specifications
| Brand | MRCOOL |
| Series | Signature Series Heat Pump Condenser |
| Model | MCAESHS4T3021AA |
| UPC | 840255595797 |
| GTIN | 00840255595797 |
| Unit Type | Split System Heat Pump Condenser |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Cooling Capacity | 27,500 BTU (2.5 Ton) |
| Heating Capacity | 27,500 BTU |
| Efficiency Ratings | 14.3 SEER2, 11.7 EER2, 7.5 HSPF2 |
| Refrigerant | R-454B (93.5 oz) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Min Circuit Ampacity | 18A |
| Max Fuse Breaker | 30A |
| Compressor Type | Scroll |
| Condenser Fan Motor | PSC, 1/5 HP |
| CFM | 2200 |
| Sound Rating | 63 dBA |
| Min Ambient Cooling | 59°F |
| Min Ambient Heating | 5°F |
| Max Lineset Length | 100 ft |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Net Dimensions (HxWxD) | 25" x 23.6" x 23.6" |
| Net Weight | 146 lbs |
| Shipping Dimensions | 26.2" x 24.8" x 24.8" |
| Shipping Weight | 152 lbs |
Performance Features
| Compatible Equipment | Signature Series Multi-Position or Stud Mount Air Handlers |
| Compressor Technology | Scroll compressor for durability and efficiency |
| Refrigerant | Eco-friendly R-454B with lower global warming potential |
| Noise Reduction | Sound-dampening design for quiet operation (63 dBA) |
| Protection Features | Built-in sensors monitor temperature and pressure |
| Defrost System | Intelligent defrost function for cold weather operation |
Warranty Information
- Registered Warranty: 10 years parts, limited lifetime compressor
- Base Warranty: 10 years parts, limited lifetime compressor
- Registration may be required for full warranty coverage
Manuals & Certifications
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Advanced Technology
The MRCOOL Signature Series 30k Heat Pump Condenser features a durable scroll compressor and energy-efficient design for reliable, quiet operation. The inner-groove copper tubing enhances heat transfer efficiency while the sound-dampening top reduces operational noise to just 63 decibels. Built-in sensors monitor internal temperature and pressure conditions, providing protection against extreme operating environments. The intelligent defrost function ensures optimal performance even in colder temperatures down to 5°F. With its 14.3 SEER2 cooling efficiency and 7.5 HSPF2 heating efficiency, this heat pump condenser delivers powerful performance for year-round comfort in medium to large-sized spaces.
Installation Advantages
This heat pump condenser simplifies installation with its pre-charged R-454B refrigerant system designed for a 15-foot line set. The compact cabinet houses all components including the 2.5-ton scroll compressor system. The accessible service valves and gauge ports make maintenance straightforward. The unit is designed to work with Signature Series Multi-Position or Stud Mount Air Handlers for complete system compatibility. The durable construction and comprehensive warranty options make this condenser a dependable HVAC solution for residential applications.
