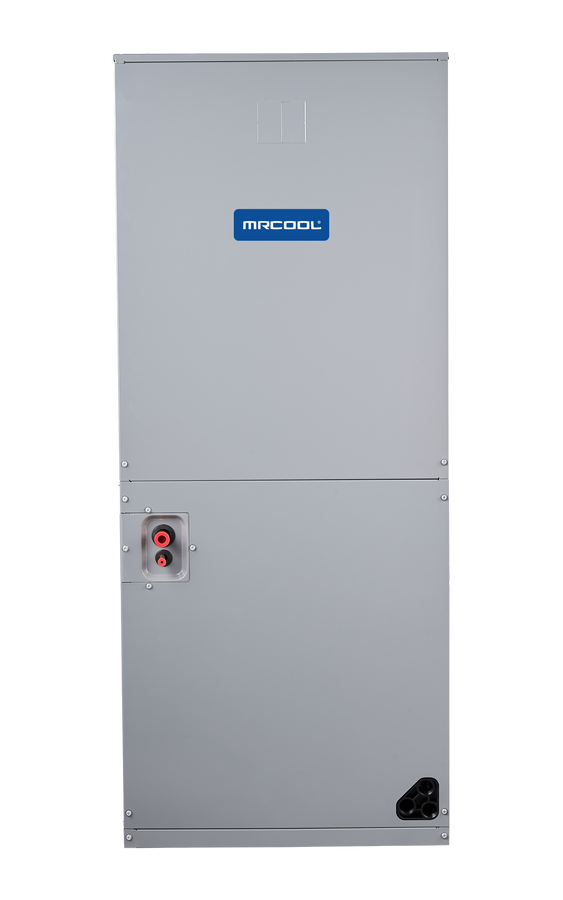

MRCOOL Signature Series 2.5 Ton Multi-Position Air Handler | MCAEAMPEF30C21AA
MRCOOL Signature Series 2.5 Ton Multi-Position Air Handler | MCAEAMPEF30C21AA
Summary
The MRCOOL® Signature Series 30k Multi-Position Air Handler is engineered to provide powerful, efficient comfort in any season. Featuring advanced R-454B refrigerant, this system meets modern environmental standards while helping reduce your energy use and carbon footprint without compromising performance. Its multipositional capability allows for flexible installation in upflow, downflow, or horizontal configurations, making it a smart fit for new builds, remodels, or system upgrades. The slim, compact design makes it ideal for tight spaces such as closets, attics, or crawlspaces, while still delivering full heating and cooling power when paired with a compatible MRCOOL® condenser or heat pump. Built for long-term performance, the air handler includes a durable galvanized steel cabinet, a high-efficiency ECM blower motor, and copper "A" coils with enhanced aluminum fins for excellent heat transfer and humidity control. Internal thermal insulation helps reduce condensation and energy loss, supporting quieter operation and greater efficiency. Installation is simple and cost-effective, with a design that minimizes labor time. A built in air filter rack makes regular maintenance fast and easy, and an optional electric heat kit adds extra comfort for colder climates. The unit is fully compatible with most third-party smart thermostats, giving homeowners the freedom to control comfort with the platform of their choice. Protected by a 10-year limited parts warranty, the MRCOOL® Signature Series 30k Multi-Position Air Handler is a reliable, space-saving, energy-efficient solution for total home comfort.
Important
AHRI certified - meets industry standards. Register your product to activate warranty coverage. This air handler contains R-454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R-454B condenser equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
Key Features
- 30,000 BTU capacity (2.5 Ton)
- Multi-position installation (upflow, downflow, horizontal)
- Advanced R-454B refrigerant technology
- High-efficiency ECM blower motor
- Quiet operation (53 dBA)
- Durable galvanized steel cabinet
- Copper "A" coils with enhanced aluminum fins
- Built-in air filter rack for easy maintenance
- Compatible with most third-party smart thermostats
- Optional electric heat kit available
- Internal thermal insulation
- AHRI certified
- 5-speed blower motor for precise airflow control
Complete Technical Specifications
| Brand | MRCOOL |
| Series | Signature Series Multi-Position Air Handler |
| Model | MCAEAMPEF30C21AA |
| UPC | 840255595865 |
| GTIN | 00840255595865 |
| Unit Type | Air Handler |
| Configuration | Multi-Position |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Capacity | 30,000 BTU (2.5 Ton) |
| CFM | 983 |
| Refrigerant | R-454B |
| Electrical | 208/230V 1 Phase 60 Hz |
| Min Circuit Ampacity | 4.5A |
| Max Fuse Breaker | 6A |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 960 |
| Sound Rating | 53 dBA |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection Size | 3/4" |
| Filter Type | Replaceable |
| Filter Size | 18" x 21" x 1" |
| Metering Device | Orifice |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes (5kW, 7.5kW, 10kW) |
| Net Dimensions (HxWxD) | 45.75" x 19.625" x 22" |
| Net Weight | 129 lbs |
| Shipping Dimensions | 47.625" x 22.83" x 25.6" |
| Shipping Weight | 142 lbs |
Performance Features
| Compatible Equipment | Signature Series Top Discharge Condensers |
| Installation Flexibility | Multi-position (upflow, downflow, horizontal) |
| Refrigerant | Advanced R-454B with lower environmental impact |
| Motor Technology | High-efficiency ECM blower motor |
| Noise Reduction | Quiet operation (53 dBA) |
| Coil Technology | Copper "A" coils with enhanced aluminum fins |
| Cabinet Construction | Durable galvanized steel |
| Speed Control | 5-speed motor for precise airflow adjustment |
| Smart Home Compatibility | Works with most third-party smart thermostats |
| Heating Options | Optional electric heat kits (5kW, 7.5kW, 10kW) |
Warranty Information
- Registered Warranty: 10 years parts, limited lifetime compressor
- Base Warranty: 10 years parts, limited lifetime compressor
- Registration may be required for full warranty coverage
Manuals & Certifications
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Advanced Technology
The MRCOOL Signature Series 30k Multi-Position Air Handler features advanced ECM motor technology that provides superior energy efficiency and precise airflow control with five speed settings. The copper "A" coils with enhanced aluminum fins deliver exceptional heat transfer and humidity control for optimal indoor comfort. The durable galvanized steel cabinet ensures long-lasting performance, while comprehensive thermal insulation minimizes energy loss and prevents condensation. Operating at just 53 decibels, this air handler offers whisper-quiet performance. The ECM motor's intelligent operation automatically adjusts airflow to maintain optimal system performance, while compatibility with most third-party smart thermostats enables seamless integration into modern smart home ecosystems for ultimate comfort control.
Installation Advantages
This 2.5-ton air handler provides exceptional installation versatility with true multi-position capability for upflow, downflow, or horizontal configurations, making it ideal for space-constrained installations in closets, attics, and crawlspaces. The high-efficiency ECM motor delivers superior performance with lower energy consumption compared to standard PSC motors. The built-in air filter rack simplifies routine maintenance with easy access for quick filter replacements. The unit's design minimizes installation time and labor costs, while multiple optional electric heat kit sizes (5kW, 7.5kW, or 10kW) provide flexible heating capacity for various climate requirements. With its compact footprint and comprehensive compatibility with Signature Series Top Discharge Condensers, this air handler represents a premium, energy-efficient solution for residential HVAC systems requiring robust performance in larger homes.
