MRCOOL Signature Series Heat Kits – R-454B (Stud-Mount Air Handlers)
MRCOOL Signature Series Heat Kits – R-454B (Stud-Mount Air Handlers)
Overview

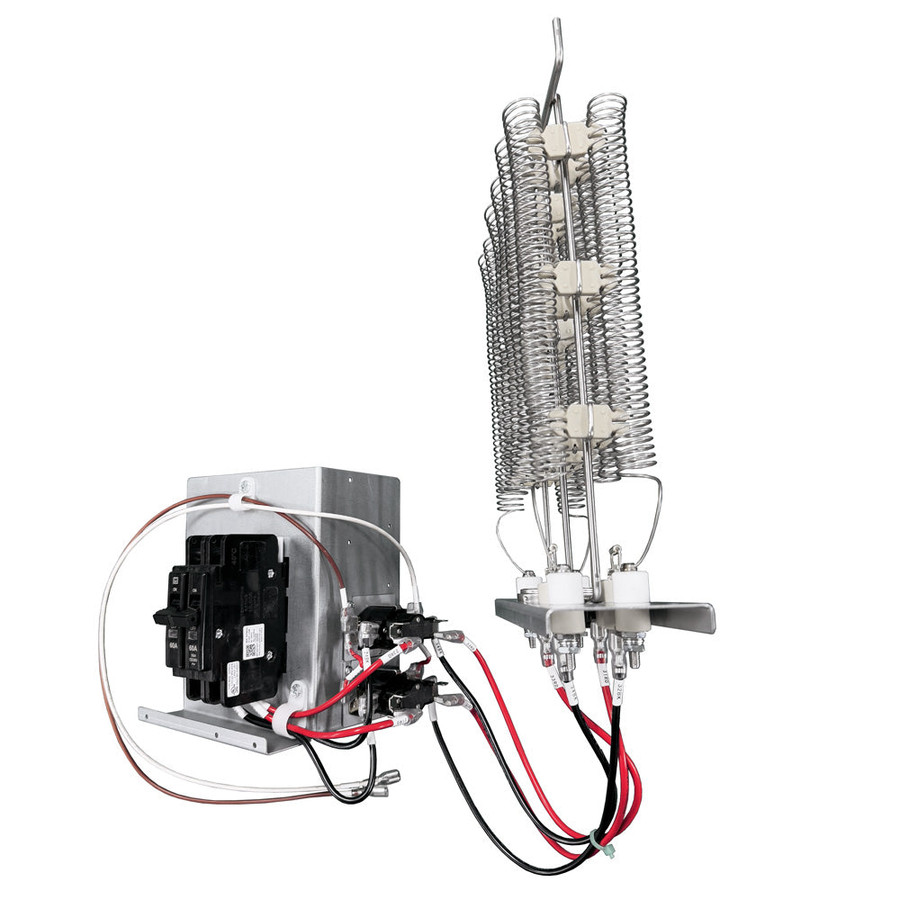

MRCOOL Signature Series electric heat kits provide auxiliary and emergency heat for R-454B Stud-Mount air handlers. Available in 5 kW, 7.5 kW, and 10 kW sizes, each kit ships with an integrated circuit breaker that functions as a local service disconnect and helps protect internal components.
Models (Stud-Mount)
| Brand | Series | Model | GTIN | UPC | Unit Type | Short Description | Works With | Gross WxHxD (in) |
|---|---|---|---|---|---|---|---|---|
| MRCOOL | Signature Series Heat Kit | MCAEHWD5X1AA | 00840255596053 | 840255596053 | Heat Kit | MRCOOL 5kW Heat Kit R-454B for Stud-Mount Air Handlers | Signature Series R-454B Stud-Mount Air Handlers | 10.38 × 9.25 × 14.13 |
| MRCOOL | Signature Series Heat Kit | MCAEHWD7X1AA | 00840255596060 | 840255596060 | Heat Kit | MRCOOL 7.5kW Heat Kit R-454B for Stud-Mount Air Handlers | Signature Series R-454B Stud-Mount Air Handlers | 10.38 × 9.25 × 14.13 |
| MRCOOL | Signature Series Heat Kit | MCAEHWD10X1AA | 00840255596077 | 840255596077 | Heat Kit | MRCOOL 10kW Heat Kit R-454B for Stud-Mount Air Handlers | Signature Series R-454B Stud-Mount Air Handlers | 10.38 × 9.25 × 14.13 |
Electrical & Sizing (Stud-Mount AHUs)
Electrical: 208/230V, 1-Phase, 60 Hz
| Heater Model | Capacity | Heater Amps @240V |
|---|---|---|
| MCAEHWD5X1AA | 5 kW | 20.84 A |
| MCAEHWD7X1AA | 7.5 kW | 31.25 A |
| MCAEHWD10X1AA | 10 kW | 41.67 A |
Heating kW Voltage Correction Factor: 240→1.00, 230→0.92, 220→0.84, 210→0.77, 208→0.75
| Stud-Mount AHU Size | Heat Kit | MCA @208V | MCA @230V | MOP @208V | MOP @230V |
|---|---|---|---|---|---|
| 18K | 5 kW / 7.5 kW / 10 kW | 23.1 / 35.3 / 46.3 | 25.1 / 38.5 / 50.3 | 25 / 40 / 50 | 30 / 40 / 60 |
| 24K | 5 kW / 7.5 kW / 10 kW | 23.1 / 35.3 / 46.3 | 25.1 / 38.5 / 50.3 | 25 / 40 / 50 | 30 / 40 / 60 |
| 30K | 5 kW / 7.5 kW / 10 kW | 23.1 / 35.3 / 46.3 | 25.1 / 38.5 / 50.3 | 25 / 40 / 50 | 30 / 40 / 60 |
| 36K | 5 kW / 7.5 kW / 10 kW | 23.1 / 35.3 / 46.3 | 25.1 / 38.5 / 50.3 | 25 / 40 / 50 | 30 / 40 / 60 |
Key Features
- Specifically designed for MRCOOL Signature Series R-454B Stud-Mount air handlers.
- Integrated 60A breaker acts as a local service disconnect and helps protect internal components.
- Correctly size branch overcurrent protection per nameplate (breaker does not replace OCPD).
Installation & Wiring
- Remove blower access panel and block-off plate; prep breaker knockout.
- Slide heater assembly into blower section and secure; mount bracket to cabinet rail.
- Place breaker(s) on bracket and secure; route wiring away from sharp edges.
- Connect accessory harness to the air handler control board (W1/W2/C) per wiring diagram.
- Power up, call for heat at the thermostat, verify operation, and reinstall panels.
Manuals & Documentation
- MRCOOL Signature Series Stud-Mount AHU Electric Heat Kit – Installation & Owner’s Manual (PDF)
Warranty
- 1-Year Limited Warranty on Heat Kits (professional installation required).
