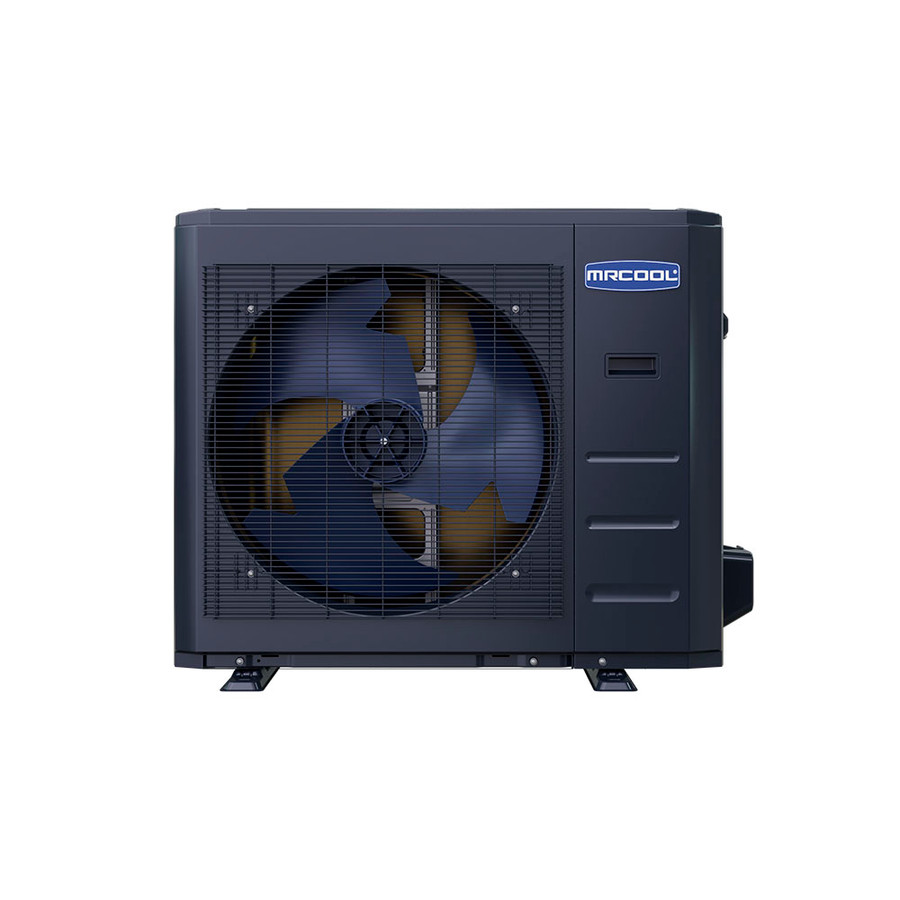

MRCOOL Universal R-454B 2.5 Ton Inverter Heat Pump Condenser – UHP18030-O
MRCOOL Universal R-454B 2.5 Ton Inverter Heat Pump Condenser – UHP18030-O
Summary
The MRCOOL® Universal® 30K DC Inverter Condenser delivers reliable, year-round comfort with up to 17.2 SEER2 efficiency. Its compact, side-discharge footprint eases placement in tight spaces, while optional NO-VAC® Quick Connect® line sets streamline installation.
Important
Up to 17.2 SEER2 efficiency. DC inverter variable speed. R-454B refrigerant. Optional NO-VAC® Quick Connect® line sets.
What's Included
- Universal® Series Inverter Condenser (UHP18030-O)
- Installation & Owner’s Manual
- Warranty Information
Features
- Efficient DC inverter for quiet, precise temperature control
- Space-saving design; ideal for retrofit applications
- Pairs with Universal® multi-voltage air handlers and optional heat kits
- 100% heating output down to −13°F and 100% cooling output up to 110°F (see brochure notes)
Technical Specifications
| Brand / Series | MRCOOL / Universal R-454B |
| Model | UHP18030-O |
| GTIN | 00840255587884 |
| UPC | 840255587884 |
| Unit Type | Universal Series Heat Pump |
| Equipment Type | Condenser |
| SEER2 / EER2 | Up to 17.2 / Up to 12 |
| HSPF2-4 / HSPF2-5 | 10.8 / 8.8 |
| Tonnage | 2.5 |
| Cooling / Heating Capacity (BTU) | 30,000 / 33,000 |
| Voltage / Phase / Cycle | 208/230V / 1 / 60 Hz |
| Max Fuse Breaker / Min Circuit Ampacity (A) | 30 / 29.5 |
| Color | Dark Grey |
| Refrigerant / Charge | R-454B / 105.82 oz |
| Sound Level | 62 dBA |
| Inverter | DC |
| Max Line Set Length | 164 ft |
| Liquid / Suction Line Sizes | 3/8" / 3/4" |
| Compressor Type | Rotary |
| Condenser Fan Motor RPM | 950 / 950 / 850 / 750 |
| Metering Device | EXV |
| Listings | UL, CSA, ETL |
| Energy Star | Yes |
| Base Warranty | 10-Year Parts / 10-Year Compressor / 2-Year Labor |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
| Prop 65 Warning | Yes |
| Net Dimensions (W × D × H) | 37.24" × 16.14" × 31.89" |
| Net / Gross Weight | 166.67 lbs / 176.37 lbs |
| Gross Dimensions (W × D × H) | 42.91" × 19.68" × 34.84" |
Airflow & Operating Range
| Outdoor Airflow (CFM) | 3001.9 |
| Cooling Output | Up to 100% at 110°F (see brochure) |
| Heating Output | Up to 100% at −13°F (see brochure) |
Compatibility & Pairing
- Pairs with MRCOOL® Universal® Air Handler UAH18030-O (heat kits optional)
- Optional NO-VAC® Quick Connect® line sets
Warranty Information
- Parts: 10 Years (limited)
- Compressor: 10 Years (limited)
- Labor: 2 Years (limited)
Manuals & Downloads
Safety & Install Notes
- Install per code; qualified technicians only.
- Provide proper clearances and level base; use matched components.
Environmental & Efficiency Features
R-454B refrigerant and inverter technology work together to boost efficiency and reduce environmental impact.
