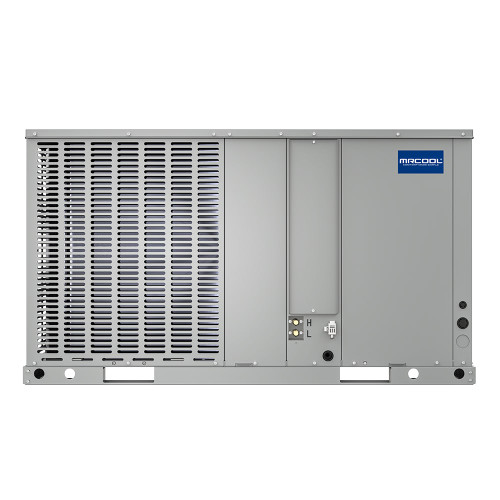

MRCOOL VersaPro® 5 Ton Horizontal Packaged Heat Pump (R-454B) — MPH601HO13C
Overview
The MRCOOL® VersaPro® MPH601HO13C is a high-capacity horizontal packaged heat pump built for dependable cooling and heating with steady airflow and quiet operation. It uses R-454B refrigerant and pairs a high-efficiency scroll compressor with an ECM blower motor for consistent comfort. The cabinet is power-painted galvanized steel, with aluminum tubing/fin coils for corrosion resistance and long service life.
Highlights
- Efficiency: 13.4 SEER2 / 11 EER2 / HSPF2-4 6.7.
- Capacity: 56,500 BTU cooling and 56,000 BTU heating.
- Airflow: 1750 CFM listed.
- Refrigerant: R-454B (lower GWP than older refrigerants).
- Components: Scroll compressor, ECM condenser fan motor, ECM blower motor.
- Aux heat ready: optional heat strips available (5 / 7.5 / 10 / 15 / 20 kW).
- Controls: standard 24V thermostat.
What’s Included
- Packaged heat pump unit: MPH601HO13C
Performance & Electrical
| Capacity | 5 Ton |
| Cooling Capacity | 56,500 BTU |
| Heating Capacity | 56,000 BTU |
| Efficiency | 13.4 SEER2 • 11 EER2 • HSPF2-4: 6.7 |
| Airflow | 1750 CFM |
| Power | 208/230V • 1 Phase • 60 Hz |
| Max Fuse / Breaker | 60A |
| Minimum Circuit Ampacity | 48.6A |
| Refrigerant | R-454B • 95 oz |
| Sound Level | 81 dBA |
| Min Ambient Cooling | 32°F |
| Min Ambient Heating | -0.4°F |
Connections & Components
| Control Type | 24V Thermostat |
| Drain Connection | 3/4" |
| Compressor | Scroll (non-inverter) |
| Condenser Fan | ECM • 1/4 HP |
| Blower Motor | ECM • 3/4 HP • 3 Speeds |
| Metering Device | Piston |
| Auxiliary Heat | Not included • Optional: 5 / 7.5 / 10 / 15 / 20 kW |
Dimensions & Weight
| Net | 42.06" W × 58.5" D × 33.06" H • 450 lb |
| Gross | 42.24" W × 59.25" D × 34.07" H • 467 lb |
Documents & Downloads
Important
- Aux heat: Optional heat strip kits are available (5 / 7.5 / 10 / 15 / 20 kW); not included.
- Warranty: Base coverage listed as 5-year parts / 5-year compressor. Registered coverage listed as 10-year parts / 10-year compressor.
- Electrical: Confirm breaker sizing, wire gauge, and disconnect requirements per local code and the install manual.
- Prop 65: This product includes a Proposition 65 warning.
FAQs
What efficiency ratings does this unit have?
13.4 SEER2, 11 EER2, and HSPF2-4 6.7.
What size area is a 5 ton packaged heat pump typically used for?
It depends on insulation, windows, ceiling height, climate, and duct design. A 5-ton system is commonly used for larger homes/spaces, but the correct size should be based on a Manual J load calculation and duct evaluation.
Does it support auxiliary electric heat strips?
Yes. Auxiliary heat is available in 5 / 7.5 / 10 / 15 / 20 kW sizes (not included).
What are the electrical requirements?
Listed as 208/230V, 1-phase, with 60A max fuse/breaker and 48.6A MCA. Always verify requirements in the installation manual and local electrical code.
What is the refrigerant and charge amount?
Refrigerant is R-454B, with a factory charge listed at 95 oz.
What are the unit’s capacities and airflow?
Cooling: 56,500 BTU. Heating: 56,000 BTU. Airflow listed at 1750 CFM.
What are the listed minimum ambient temperatures?
Minimum ambient cooling is 32°F. Minimum ambient heating is -0.4°F.
