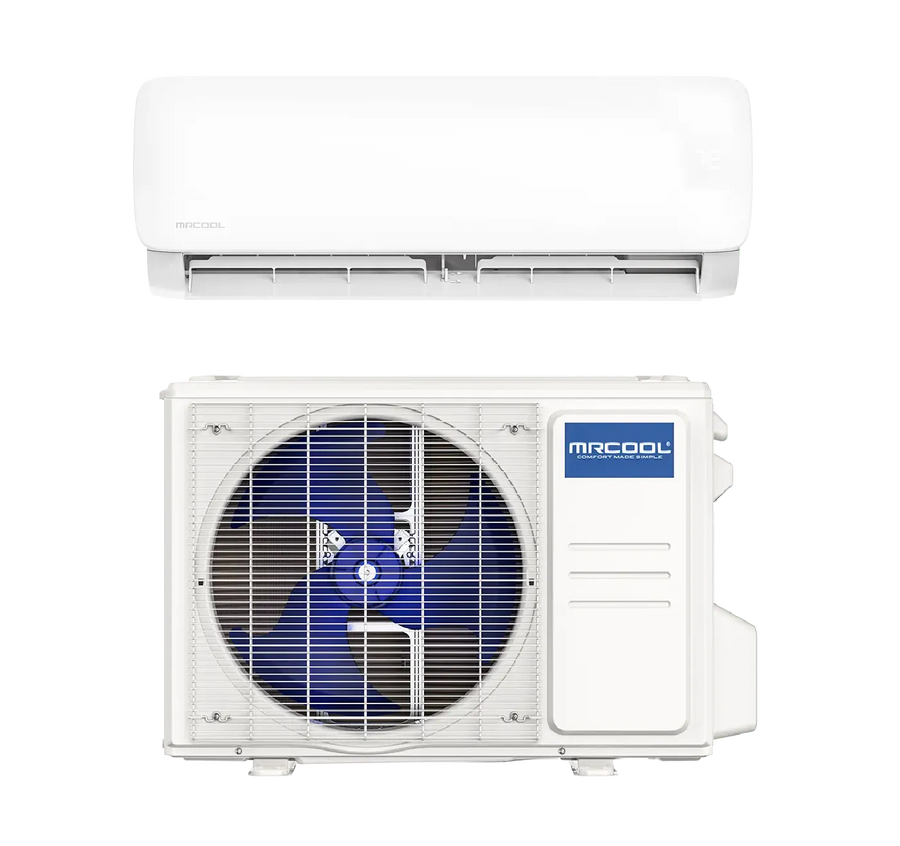

MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 12,000 BTU (1 TON) 19.5 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-12-HP-11516D-O
MRCOOL DIY Mini Split - EZPRO 5th Gen 12,000 BTU (1 TON) 19.5 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-12-HP-11516D-O
Summary
The MRCOOL® EASY PRO™ 12k BTU Mini-Split Systemdelivers affordable, professional-grade comfort for spaces up to 550 sq. ft., combining the Easy Pro™ air handler with a matching 19.5 SEER2 condenser for complete DIY climate control. This budget-friendly system features a revolutionary 16' pre-charged Fast Connection® line set that eliminates the need for professional installation or special tools, while maintaining impressive 9.3 HSPF2 heating efficiency for year-round performance.
Smart WiFi connectivity puts complete control in your hands via smartphone, with convenient features like Auto Restart after power outages and Whisper Quiet 54 dB(A) operation that won't disrupt work or sleep. The system excels in extreme conditions with Low Ambient Cooling down to 5°F - perfect for server rooms or greenhouses - while Active Clean Technology and washable filters ensure fresh air with minimal maintenance. Energy-saving Sleep Mode automatically optimizes nighttime temperatures for comfort and efficiency.
Backed by MRCOOL's reliable warranty (2-year parts, 1-year compressor with registration), this complete mini-split solution proves premium comfort doesn't require professional installation or premium pricing. Whether upgrading a bedroom, home office, or specialty space, the EASY PRO™ Series delivers professional results with true DIY simplicity - making advanced climate control accessible to everyone.
What's Included
- Indoor Units (MRCOOL® DIY Easy Pro® 12k BTU Ductless Mini-Split Heat Pump Air Handler)
- Outdoor Unit (MRCOOL® DIY Easy Pro® 12k BTU Ductless Mini-Split Heat Pump Condenser)
- 16FT Pre-Charged Installation Kit Included
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 1 year compressor limited warranty
- 2 year parts limited warranty
Warranty Inquiries are handled through MRCOOL at
Technical Information
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-12-HP-C-11516D-O |
|
GTIN |
00840255586733 |
|
UPC |
840255586733 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 12k BTU 115V Condenser |
|
LONG DESCRIPTION |
If you want easy comfort that won’t break the bank, you need the MRCOOL® Easy Pro™ Series 12k BTU Mini-Split Heat Pump Condenser! This efficient system, designed to heat and cool spaces that are up to 550 square feet, is so easy to install, you don’t even need an HVAC professional! This durable and capable condenser, which has a SEER2 of 19.5 and an HSPF2-4 of 9.3, can be installed by a homeowner due to the 16’ pre-charged Fast Connection® line set. This innovative line set essentially allows you to easily link the fittings to the condenser without needing professional assistance, saving you time and money thanks to the innovation of the Easy Pro™ condenser. If you want ultimate control over your comfort, look no further. You’ll be able to connect your system to Wi-Fi, opening a whole world of convenience, controls, and features with the touch of a button on your smart phone. You can also enjoy immediate comfort after a power outage or similar situation thanks to the system’s Auto Restart feature, and you’ll be able to rest easily no matter what due to the whisper-quiet operation of this system. This Easy Pro™ condenser has a noise level of 54 dB(A), meaning that comfort won’t startle you or disrupt a conversation, and its Low Ambient cooling feature means that you can cool your greenhouse or server room or similar environment when it’s just 5°F outside. MRCOOL® won’t leave you out in the cold thanks to the 2 year parts warranty and the 1 year compressor warranty you’ll receive once you register this unit. For ideal comfort at an ideal price, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
SEER2 |
19.5 |
|
EER2 |
9 |
|
HSPF2-4 |
9.3 |
|
HSPF2-5 |
7 |
|
TONNAGE |
1 |
|
COOLING CAPACITY (BTU) |
12000 |
|
HEATING CAPACITY (BTU) |
12000 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
19.5 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
21.52 |
|
DECIBEL RATING HIGH (DBA) |
54 |
|
INVERTER |
DC |
|
MIN AMBIENT COOL (F) |
5 |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
16ft |
|
MAX LINESET LENGTH (FT) |
82 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
10.63 |
|
NET HEIGHT (IN) |
19.49 |
|
NET WIDTH (IN) |
28.35 |
|
NET WEIGHT (LBS) |
54.89 |
|
GROSS DEPTH (IN) |
10.63 |
|
GROSS HEIGHT (IN) |
21.26 |
|
GROSS WIDTH (IN) |
32.87 |
|
GROSS WEIGHT (LBS) |
67.24 |
|
INSTALL MANUAL |
|
|
REMOTE MANUAL |
