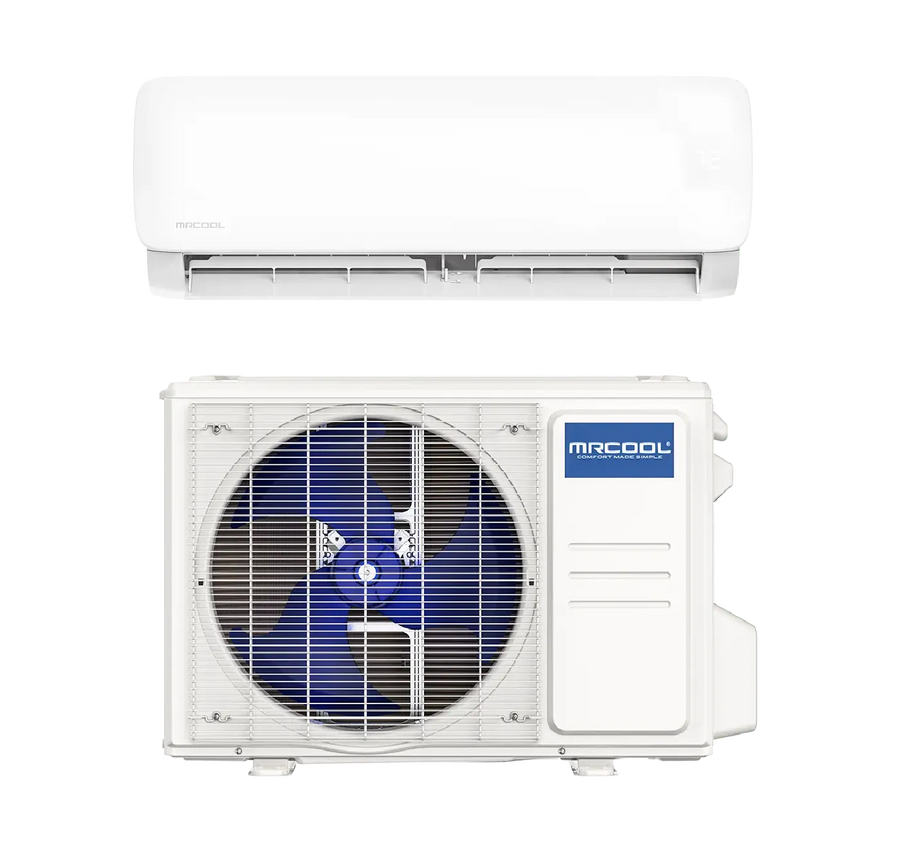

MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 9,000 BTU (0.75TON) 20.2 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O
MRCOOL DIY Mini Split - EZPRO 5th Gen 9,000 BTU (0.75TON) 20 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O
Summary
The MRCOOL® EASY Pro™ Series 9k BTU Mini-Split Systemdelivers affordable, professional-grade comfort for spaces up to 400 sq. ft., combining easy DIY installation with impressive 20.2 SEER2 efficiency. The condenser features a 16' pre-charged Fast Connection® line set for quick, tool-free setup without needing an HVAC technician, while the matching air handler offers sleek, space-saving design with user-friendly smart controls. Together, they create a complete climate solution that's perfect for bedrooms, offices, or specialty spaces like server rooms and greenhouses.
Smart features elevate your comfort with WiFi connectivity for smartphone control, Auto Restart after power outages, and whisper-quiet 54 dB(A) operation. The system excels in extreme conditions with Low Ambient Cooling down to 5°F, while Active Clean Technology and washable filters maintain air quality. Energy-saving Sleep Mode automatically adjusts temperatures overnight, and the 9.2 HSPF2 rating ensures efficient heating performance. Installation is simplified with the pre-charged line set and straightforward electrical connections.
Backed by MRCOOL's reliable warranty coverage (2-year parts, 1-year compressor with registration), this budget-friendly system proves you don't need to sacrifice quality for value. Whether you need year-round comfort for a small space or specialized cooling for sensitive environments, the EASY Pro™ Series delivers professional results with DIY simplicity – making premium comfort truly accessible.
What's Included
- Indoor Units (MRCOOL® DIY Easy Pro® 09k BTU Ductless Mini-Split Heat Pump Air Handler)
- Outdoor Unit (MRCOOL® DIY Easy Pro® 09k BTU Ductless Mini-Split Heat Pump Condenser)
- 16FT Pre-Charged Installation Kit Included
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 1 year compressor limited warranty
- 2 year parts limited warranty
Warranty Inquiries are handled through MRCOOL at
Technical Information
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-09-HP-C-11516D-O |
|
GTIN |
00840255586726 |
|
UPC |
840255586726 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 9k BTU 115V Condenser |
|
LONG DESCRIPTION |
The MRCOOL® EASY Pro™ Series 9k BTU Mini-Split Heat Pump Condenser is a budget friendly, convenient and impressive heating and cooling solution for spaces around 400 square feet. Due to the innovative nature of the unit’s do-it-yourself installation, you can have this system operating and bringing you comfort in no time. This capable and durable 20.2 SEER2 and 9.2 HSPF2-4 condenser comes with a 16’ pre-charged Fast Connection® line set, enabling you to install this system in a matter of hours without the assistance of an HVAC professional. You can save time and money with this Easy Pro™ condenser’s accommodating and ingenious design. The Easy Pro™ condenser comes with a variety of features that will help you make the comfort you experience from this system the best heating and air you’ve ever felt. You can connect your system to Wi-Fi, which lets you operate your system from your phone. The system also features an Auto Restart function, allowing you to get right back to enjoying the comfort you want after a power outage. This whisper-quiet unit will deliver comfort to your space without making a racket, as it only reaches 54 dB(A), and due to its Low Ambient Cooling feature, it can provide cooling even when it’s 5°F outside, making it perfect for use in a greenhouse or server room. MRCOOL® has got your back with a 2 year warranty for parts and 1 year warranty for the compressor once you register this condenser online. For a system to enhance your comfort without breaking the bank, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
SEER2 |
20.2 |
|
EER2 |
11.3 |
|
HSPF2-4 |
9.2 |
|
HSPF2-5 |
7.1 |
|
TONNAGE |
0.75 |
|
COOLING CAPACITY (BTU) |
9000 |
|
HEATING CAPACITY (BTU) |
10000 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
17 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
17.28 |
|
DECIBEL RATING HIGH (DBA) |
54 |
|
INVERTER |
DC |
|
MIN AMBIENT COOL (F) |
5 |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
16ft |
|
MAX LINESET LENGTH (FT) |
82 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
10.63 |
|
NET HEIGHT (IN) |
19.49 |
|
NET WIDTH (IN) |
28.35 |
|
NET WEIGHT (LBS) |
54.67 |
|
GROSS DEPTH (IN) |
10.63 |
|
GROSS HEIGHT (IN) |
21.26 |
|
GROSS WIDTH (IN) |
32.87 |
|
GROSS WEIGHT (LBS) |
66.58 |
|
