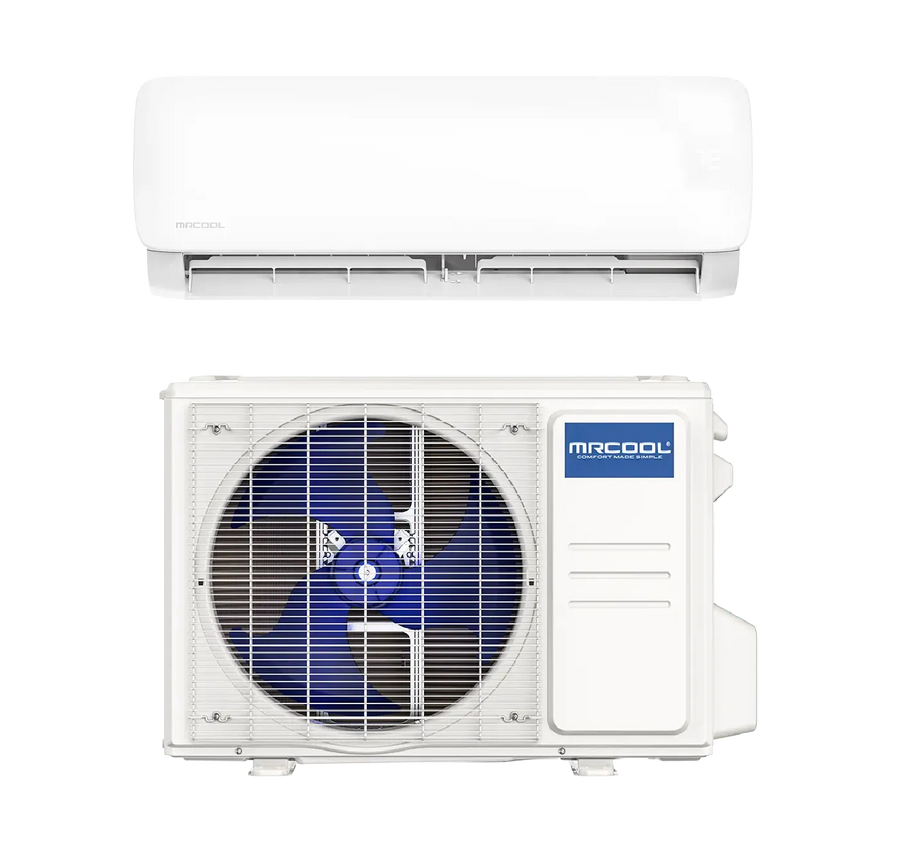

MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 24,000 BTU (2 TON) 18.9 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-24-HP-23016D-O
MRCOOL DIY Mini Split - EZPRO 5th Gen 24,000 BTU (2 TON) 18.9 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-24-HP-23016D-O
Summary
The MRCOOL® EASY PRO™ 24k BTU Mini-Split Systemdelivers powerful, efficient heating and cooling for spaces up to 1,050 sq. ft. with true DIY installation. Featuring a complete air handler and condenser set with 18.9 SEER2 and 8.7 HSPF2-4 ratings, this system includes a 16' pre-charged Fast Connection® line set (R-454B refrigerant) for professional-grade performance without professional installation costs. The corrosion-resistant Gold Fin® condenser ensures durability in coastal environments.
Control your comfort effortlessly through multiple options: the SmartHVAC app for iOS/Android, voice commands via Alexa/Google Assistant, or the included remote. Smart features include Auto Restart after power outages, Sleep Mode for energy-efficient nighttime operation, and Dry Mode for humidity control. With Low Ambient Cooling down to 5°F and whisper-quiet 61 dB(A) operation, it's ideal for large living spaces, offices, or specialty applications like server rooms and greenhouses.
Backed by MRCOOL's reliable 2-year parts and 1-year compressor warranty (with registration), this complete system combines premium features with budget-friendly value. The air handler's Active Clean Technology with washable filters ensures easy maintenance, while the complete DIY installation package eliminates the need for special tools or HVAC expertise. Experience whole-room comfort with professional performance at an unbeatable price point.
What's Included
- Indoor Units (MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Air Handler)
- Outdoor Unit (MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Condenser)
- 16FT Pre-Charged Installation Kit Included
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 1 year compressor limited warranty
- 2 year parts limited warranty
Warranty Inquiries are handled through MRCOOL at
Technical Information
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-24-HP-C-23016D-O |
|
GTIN |
00840255586757 |
|
UPC |
840255586757 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 24k BTU 230V Condenser |
|
LONG DESCRIPTION |
For the best comfort you’ve ever felt at a price that’s perfect, choose the MRCOOL® Easy Pro™ Series 24k BTU Mini-Split Heat Pump Condenser. This unit will heat or cool a space that is up to 1050 square feet with efficient, effective comfort. On top of the money you’ll save in the long run, this unit has a do-it-yourself installation, so you’ll save money before you even turn the system on. This unit doesn’t require the services of an HVAC professional to install because it comes with a 16’ pre-charged Fast Connection® line set. The fittings easily link together, making the installation process quick, easy, and safe. On top of immediate savings, the 18.9 SEER2 rating and 8.7 HSPF2-4 rating mean that this unit will save you money in the long run. Ultimate convenience and control is what the Easy Pro™ is all about. The unit’s ability to connect to Wi-Fi enables operation through your smart phone with just the touch of a button. If you are cooling a space all year long, the unit’s Low Ambient Cooling feature allows the system to cool even when it’s 5°F outside. No matter what temperature you choose, though, your comfort will be whisper-quiet, as this system will only ever attain a volume level of 61 dB(A). Even if the power falters, this unit won’t, because the Auto Restart function will ensure your system will go right back to your previous settings once the power turns back on. You deserve total peace of mind, which is why you can register your system to enjoy its 2 year parts warranty and its 1 year compressor warranty. For efficient, reliable comfort that’s easy on your wallet, choose the MRCOOL® Easy Pro™condenser. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
SEER2 |
18.9 |
|
EER2 |
9.7 |
|
HSPF2-4 |
8.7 |
|
HSPF2-5 |
6.9 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
25000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
19 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
50.44 |
|
DECIBEL RATING HIGH (DBA) |
61 |
|
INVERTER |
DC |
|
MIN AMBIENT COOL (F) |
5 |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
16ft |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
13.46 |
|
NET HEIGHT (IN) |
26.5 |
|
NET WIDTH (IN) |
35.04 |
|
NET WEIGHT (LBS) |
95.9 |
|
GROSS DEPTH (IN) |
15.67 |
|
GROSS HEIGHT (IN) |
29.13 |
|
GROSS WIDTH (IN) |
39.17 |
|
GROSS WEIGHT (LBS) |
117.73 |
|
INSTALL MANUAL |
|
|
REMOTE MANUAL |
