12,000 BTU 115V Through-the-Wall Air OLMO Conditioner w/ Remote, Smart Kit, Cooling Only
OLMO1-Yr WarrantySKU: OW-A12AC115WF
Product specifications
- Voltage
- 115V
- WiFi
- Included
- Zone
- Single Zone
- Type
- Through-the-Wall
- Freon
R32
Choose Your Configuration
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
OLMO · STANDARD
Built for year-round comfort
OW-A12AC115WF
System Specs
| Cooling Capacity | 12000 BTU/h |
|---|---|
| Voltage | 115V |
| Refrigerant | R32 |
| Compressor | Rotary |
|---|---|
| Sound Level (indoor) | 59 / 56.8 / 55.3 dB(A) |
| Warranty | 1-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight |
|---|---|
| 24.21 × 20.28 × 14.53 in | 72.97 / 85.05 lb |
Product Description
The OLMO 12,000 BTU Through-the-Wall Air Conditioner (115V) is a self-contained room unit that mounts through an exterior wall — no outdoor condenser and no line sets. It delivers cooling only (no heating) for a single room such as an apartment, addition, sunroom, or office. Running on R32 refrigerant with a rotary compressor, it includes a remote and built-in Wi-Fi (Smart Connect). A wall sleeve is required and sold separately.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE

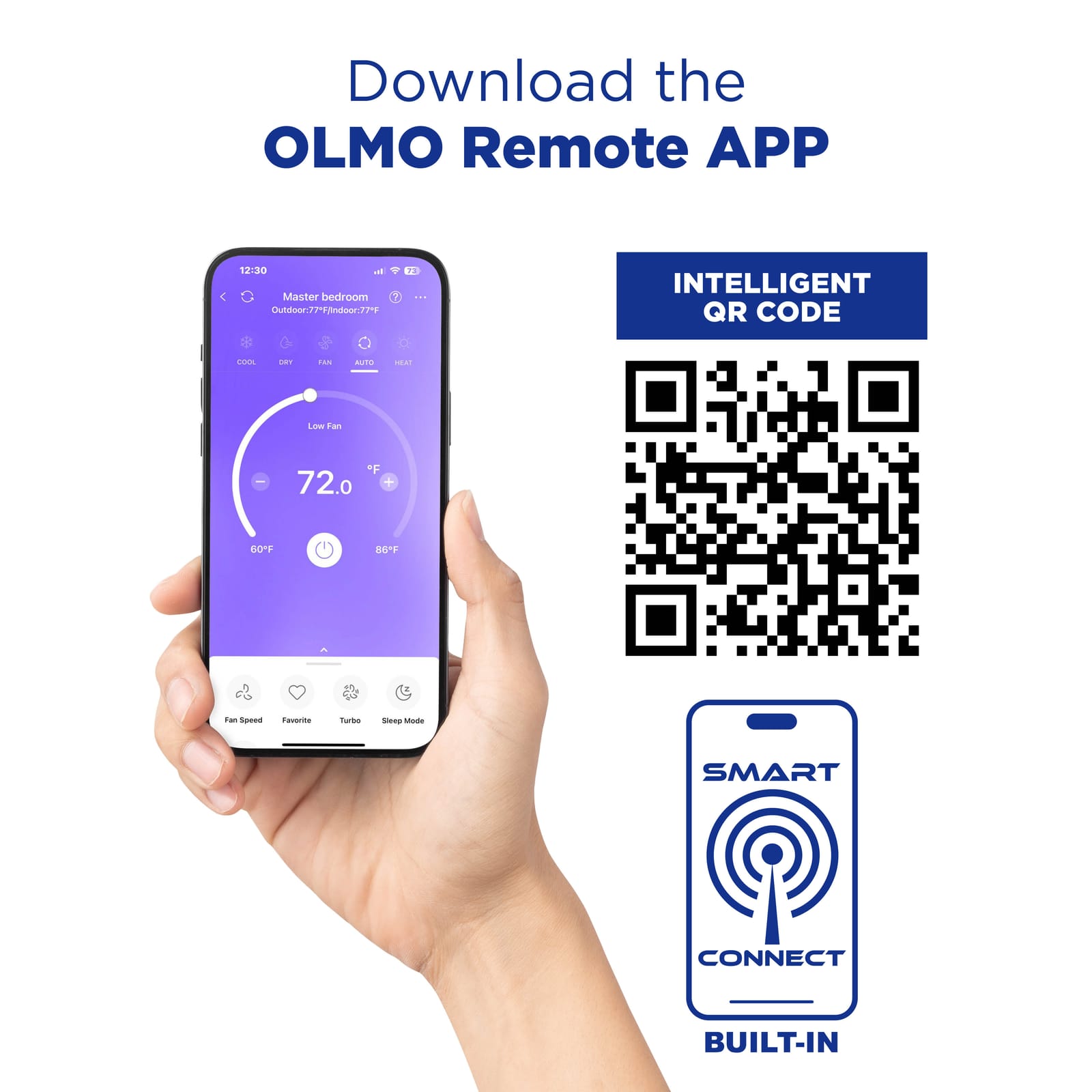

Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 1-year coverage
With product registration after professional installation.
Parts & components: 1-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— OW-A12AC115WF
| Model | OW-A12AC115WF |
|---|---|
| Unit Dimensions (WxDxH) | 24.21x20.28x14.53 in |
| Net/Gross Weight | 72.97/85.05 lb |
| Packing Dimensions (WxDxH) | 27.95x26.57x16.93 in |
| Power Supply | 115V, 1Ph, 60Hz |
| Noise Level | 68.7/65.3/62 dB |
| Airflow | 925/825/721 CFM |
| Dehumidification | 82.17 pt/h |
System Specs
| Cooling Capacity | 12000 Btu/h |
|---|---|
| Heating | Cooling only |
| CEER / EER | 9.5 / 3.08 |

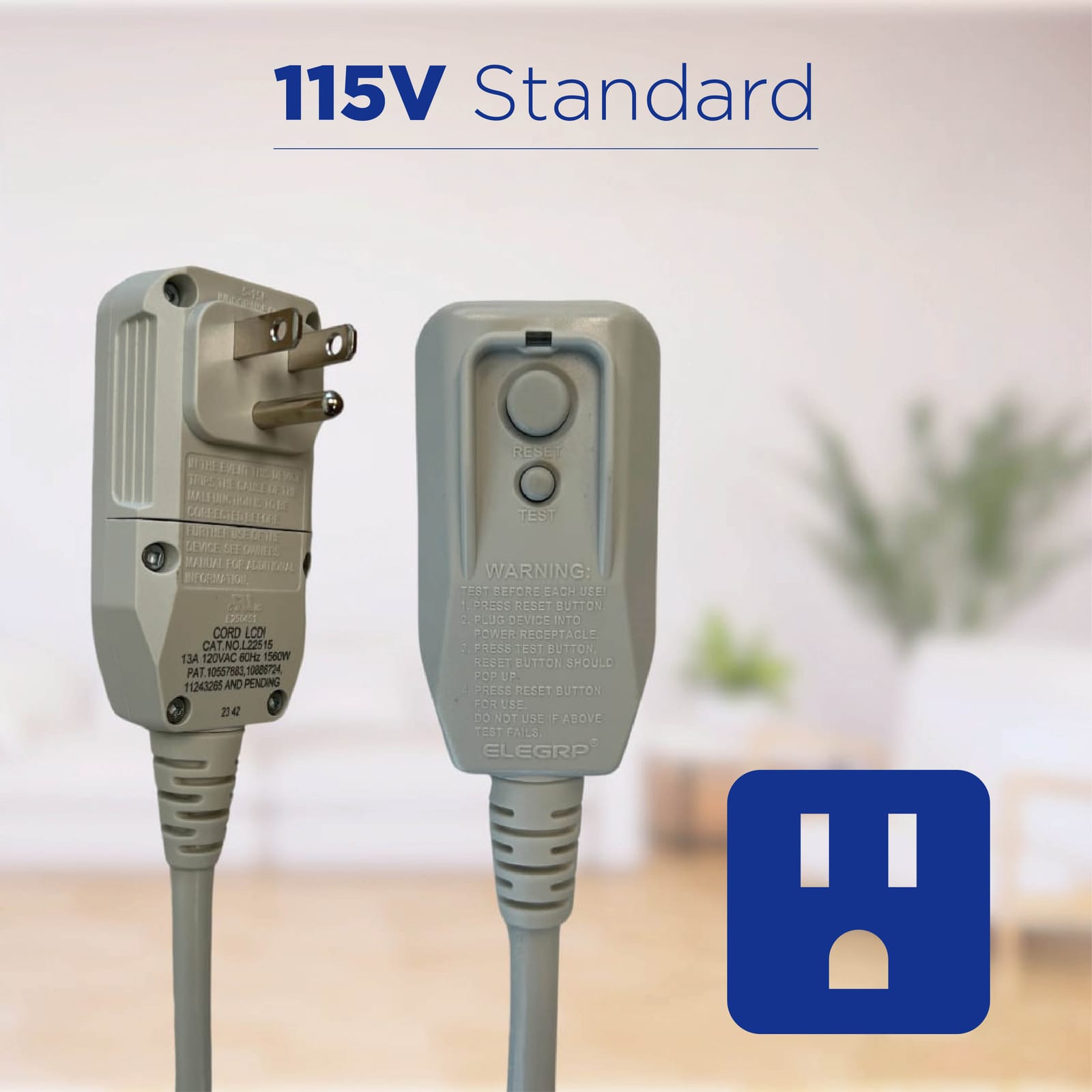

| Plug Type | LCDI (115V) |
| Running Current (cool) | 11.04 (A-series); 11.3 (HS/HP leaflet) A |
| Refrigerant / Charge | R32 / 17.63 (A-series); 17.28 (HS/HP leaflet) oz |
| Indoor Noise (Hi/Mid/Lo) | 59 / 56.8 / 55.3 dB(A) |
| Unit Dimensions (W×D×H) | 24.21 x 20.28 x 14.53 in |
| Net / Gross Weight | 72.97 / 85.05 lbs |
| Filter | Compound filter |

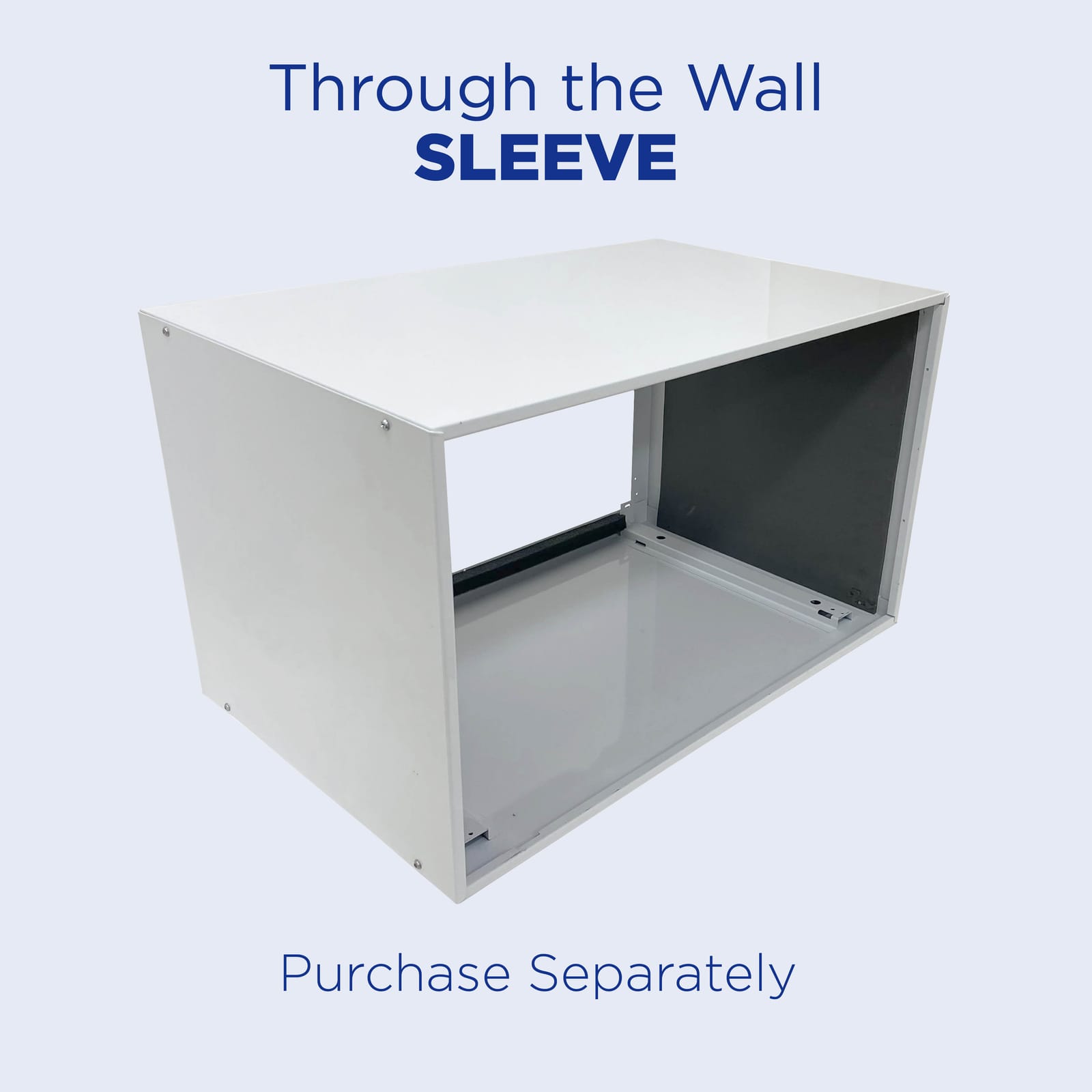

| Wall Sleeve | OW-TTWSLV — sold separately (required for install) |
| Recommended Coverage | up to ~550 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Model
| Specification | OW-P08AC115WF | OW-P08HS115WF | OW-P12AC115WF | OW-P12AC230WF | OW-P14AC230WF | OW-P12HS230WF | OW-P14HS230WF |
|---|---|---|---|---|---|---|---|
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Cooling | Capacity | 8300 Btu/h | 8000 Btu/h | 12000 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h | 12000/11700 Btu/h |
| EER | 3.11 W/W | 3.13 W/W | 3.08 W/W | 3.08 W/W | 2.78 W/W | 2.98/2.95 W/W | 2.86/2.84 W/W |
| CEER | 10.6 Btu/h/W | 9.6 Btu/h/W | 10.5 Btu/h/W | 10.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W |
| Input | 760 W | 750 W | 1140 W | 1140/1110 W | 1400/1360 W | 1180/1160 W | 1430/1400 W |
| Current | 7.8 A | 9.4 A | 11.3 A | 5.6/6.3 A | 7.0/7.7 A | 6.5/7.0 A | 7.9/8.5 A |
| Standby Power | 1.25 W | 1.34 W | 1.25 W | 1.435 W | 1.435 W | 1.34 W | - |
| Heating | Rated Capacity | - | 4200 Btu/h | - | - | - | 10600/8600 Btu/h |
| Rated Input (Heater) | - | 1220 W | - | - | - | 3450/2821 W | 3450/2821 W |
| Rated Current | - | 11 A | - | - | - | 15/13.5 A | 15.0/14.0 A |
| Compressor | Type | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY |
| Rated Current (RLA) | 5.10 A | 5.10 A | 7.30 A | 4.18/3.85±3% A | 6.00/5.55±3% A | 4.18/3.85±3% A | 6.00/5.55±3% A |
| Locked Rotor Amp (LRA) | 36 A | 36 A | 49 A | 28.5±10% A | 34.5±10% A | 28.5±10% A | 34.5±10% A |
| Refrigerant Type | R32 | R32 | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Charge (oz) | 10.93 | 11.99 | 17.28 | 16.58 | 17.99 | 17.28 | 19.40 |
| Indoor Air Flow (Hi/Mi/Lo) | 270.0/232.9/202.9 ft3/min | 258.8/227.1/192.4 ft3/min | 276.5/250.6/220.0 ft3/min | 274.7/259.4/237.1 ft3/min | 280.0/264.7/245.3 ft3/min | 273.5/251.8/230.6 ft3/min | 272.4/251.8/232.9 ft3/min |
| Indoor Noise Level (Hi/Mi/Lo) | 55.6/52.4/49.5 dB(A) | 58.7/55.4/52 dB(A) | 59/56.8/55.3 dB(A) | 60.2/59/57.5 dB(A) | 60.5/59.5/58 dB(A) | 61.8/60/58 dB(A) | 62.3/61.2/59.8 dB(A) |
| Outdoor Air Flow (Hi/Med/Lo) | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | 532.9/497.1/452.9 ft3/min | 554.1/526.5/487.1 ft3/min | 451.2/408.8/366.5 ft3/min | 480.0/439.4/400.0 ft3/min |
| Outdoor Side Noise Level (Hi/Med/Lo) | 63.6/59.4/55.9 dB(A) | 63.5/59.7/55.9 dB(A) | 68.7/65.3/62 dB(A) | 68.3/66.7/63.9 dB(A) | 69.9/68/65.9 dB(A) | 65.4/63.2/61.1 dB(A) | 69.8/67.2/64.8 dB(A) |
| Power Cord Length | 7.02 ft | 5.58 ft | 7.02 ft | 6.50 ft | 6.50 ft | 5.58 ft | 5.58 ft |
| Control Type | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect |
| Operation Temp | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F |
| Outdoor (cooling/heating) | 64-109 °F | 64-109/23-75 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109/23-75 °F | 64-109/23-75 °F |
| Dimension (WxDxH) | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in |
| Packing (WxDxH) | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in |
| Net/Gross Weight | 65.48/77.16 lbs | 66.80/77.16 lbs | 74.96/87.52 lbs | 74.52/86.86 lbs | 75.40/87.74 lbs | 74.96/85.76 lbs | 77.38/87.74 lbs |
Frequently asked questions.
What size mini split do I need for my room?
For optimal cooling, the Olmo 12,000 BTU unit is suitable for spaces up to 550 sq ft. This makes it ideal for small to medium-sized rooms like bedrooms or living areas.
Can I install the Olmo mini split myself?
Yes, you can install the Olmo mini split yourself if you have basic HVAC knowledge. However, it’s recommended to use a professional for optimal performance, especially since it involves connecting refrigerant lines and electrical work.
Does the Olmo mini split come pre-charged with refrigerant?
Yes, the Olmo mini split arrives pre-charged with R32 refrigerant for up to 25 ft of line set. This allows for a straightforward installation process without needing additional refrigerant on initial setup.
What voltage does the Olmo mini split require?
The Olmo 12,000 BTU mini split operates on a 115V electrical system. Ensure your electrical setup matches this requirement for proper functionality.
What warranty does the Olmo mini split offer?
The Olmo mini split comes with a 5-year parts and compressor warranty, providing peace of mind regarding the durability and reliability of your investment.
What SEER rating does the Olmo mini split have?
The Olmo 12,000 BTU mini split boasts an impressive SEER rating of 21+, making it highly efficient. This efficiency helps reduce energy costs while providing effective cooling.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 24,000 BTU Single Zone Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R32Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 12,000 BTU Single Zone Wall Mount, 115V, R32 - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R32Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 12,000 BTU Single Zone Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R32Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 9,000 BTU Single Zone Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The OLMO 12,000 BTU Through-the-Wall Air Conditioner (115V) is a self-contained room unit that mounts through an exterior wall — no outdoor condenser and no line sets. It delivers cooling only (no heating) for a single room such as an apartment, addition, sunroom, or office. Running on R32 refrigerant with a rotary compressor, it includes a remote and built-in Wi-Fi (Smart Connect). A wall sleeve is required and sold separately.
Key Features
- 12,000 Btu/h cooling (cooling only)
- Through-the-wall design — self-contained, no outdoor unit, no refrigerant lines to run
- 9.5 CEER efficiency; R32 refrigerant
- R32 refrigerant, rotary compressor, self-evaporative condensate system
- Remote control + built-in Wi-Fi (Smart Connect); Auto Restart, Sleep Mode, multiple fan speeds, timer, self-evaporative system, LED display, fresh air input
- Power: 115V-1Ph-60Hz, plug LCDI (115V)
