Cooper & Hunter 2 Zone 36,000 BTU OLIVIA Ductless Mini Split AC Ceiling Cassette 12k+24k
Cooper & Hunter7-Yr WarrantySKU: CH-R36MES-230VO/M12CC+M24CC-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.9
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Ceiling Cassette
- Freon
R454B
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · CEILING CASSETTE
Built for year-round comfort
CH-R36MES-230VO/M12CC+M24CC-NO/NO
System Specs
| Cooling Capacity | 36,000 BTU/h |
|---|---|
| Heating Capacity | 37,000 BTU/h |
| SEER2 | 24 |
| EER2 | 12 |
| Voltage | 230V |
| Refrigerant | R454B |
|---|---|
| Compressor | Inverter |
| Climate Range | -13–122°F / -13–75°F outdoor ambient |
| Sound Level (indoor) | 43.5/40.5/27.5 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 22.44 × 22.44 × 9.65 in | 35.27 / 41.89 lb | Wire controller + remote controller available |
Product Description
The Cooper & Hunter 2-Zone Mini Split System features 2 ceiling cassette zones rated at 12,000 Btu/h and 24,000 Btu/h, paired with an outdoor unit rated for 36,000 BTU nominal cooling and capable of operation down to -13°F ambient temperature. It includes built-in Wi-Fi control, uses R454B refrigerant, and achieves a SEER2 efficiency rating of 24.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

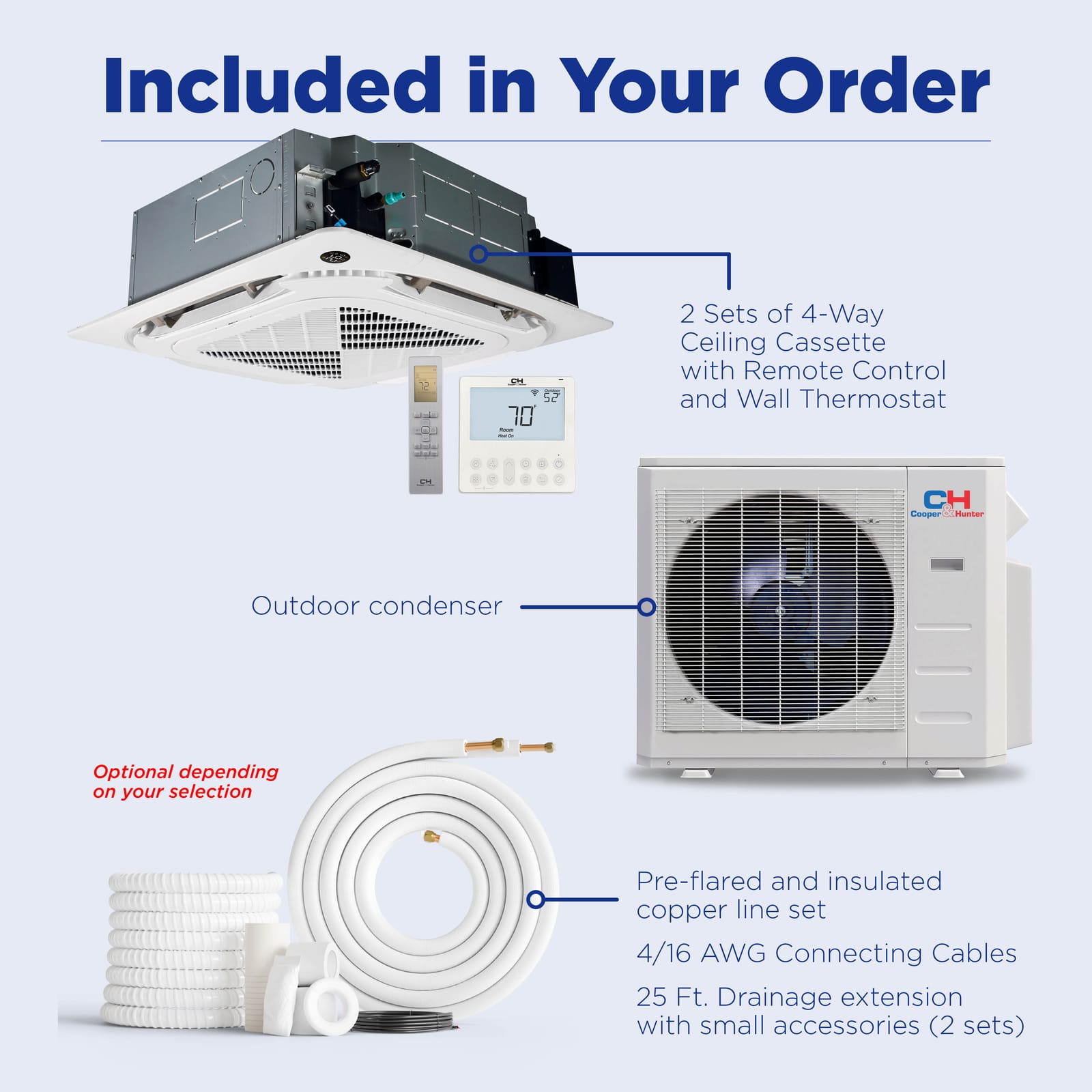

IN THE BOX
Everything included with this system
- Cooper & Hunter MES 36,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump
- Indoor Ceiling Cassette — CH-RH12MCT
- Indoor Ceiling Cassette — CH-NPNL09-18CT
- Indoor Ceiling Cassette — CH-RH24MCT
- Indoor Ceiling Cassette — CH-NPNL24-48CT
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

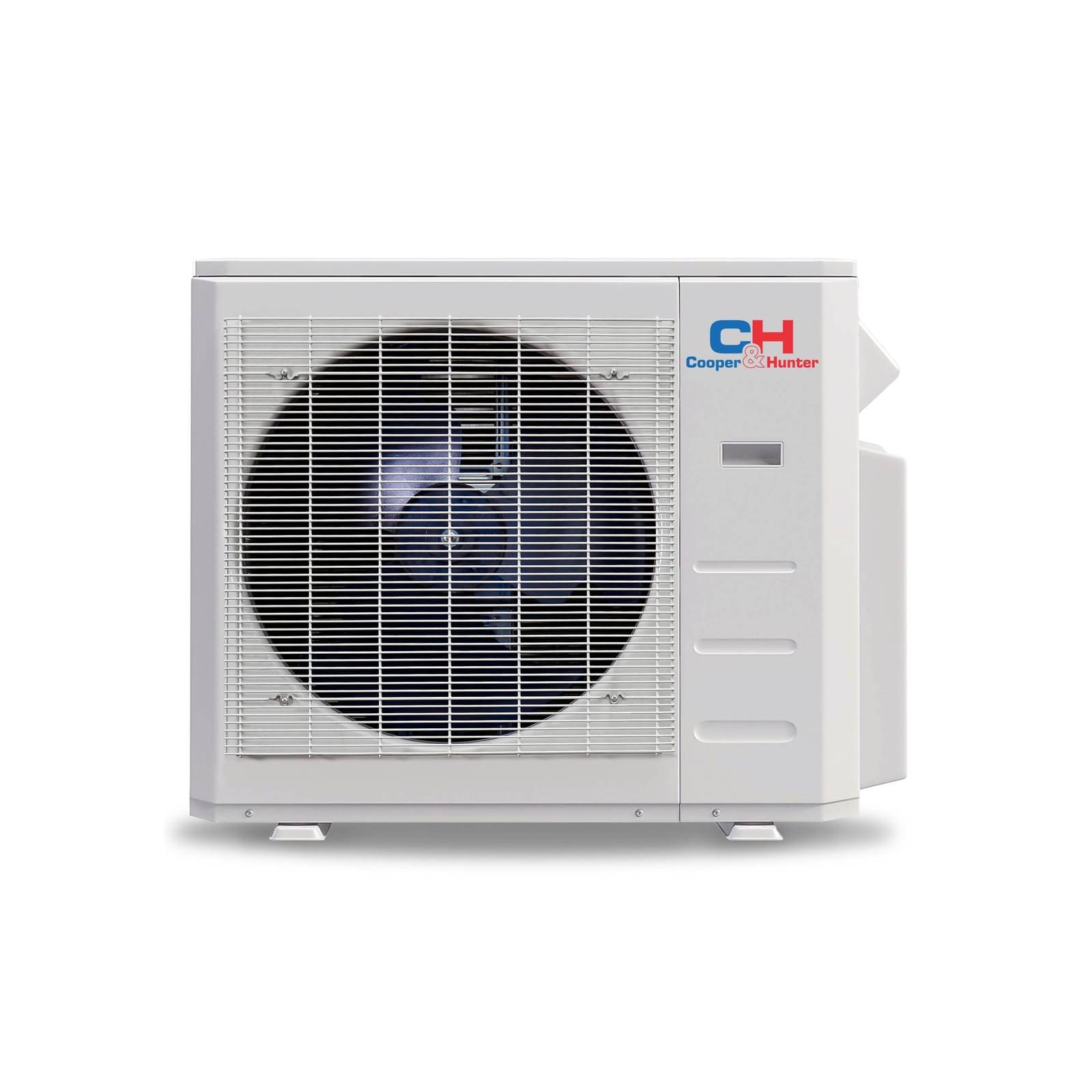

Outdoor Unit Specs— CH-R36MES-230VO
| Model | CH-R36MES-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Net/Gross Weight | 168.87/180.12 lb |
| Packing Dimensions (WxDxH) | 42.91 x 19.68 x 34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 35 A |
| Min. Circuit Ampacity | 30.5 A |
| Copper Line Size (Liquid/Gas) | 5x1/4" - 4x3/8"+1x1/2" |
| Noise Level | 64.5 dB |
| Airflow | 2,148.4 CFM |
| Dehumidification | 2.11 pt/h |
Indoor Unit Specs
| Model | CH-RH12MCT | CH-RH24MCT |
|---|---|---|
| Unit Dimensions (WxDxH) | 22.44 x 22.44 x 9.65 in | 32.68 x 32.68 x 8.07 in |
| Net/Gross Weight | 35.27/41.89 lb | 47.18/59.08 lb |
| Packing Dimensions (WxDxH) | 28.15 x 25.20 x 11.61 in | 35.83 x 35.83 x 9.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A | 15 A |
| Min. Circuit Ampacity | 3 A | 3 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" | 3/8"/5/8" |
| Noise Level (Hi/Med/Lo) | 43.5/40.5/27.5 dB | 45/42.5/33.5 dB |
| Dehumidification | 3.07 pt/h | 4.99 pt/h |
| Drain Pipe Diameter | 1" | 1" |
| Controller | wire controller + remote controller available | wire controller + remote controller available |
System Specs
| Cooling — Rated Capacity (Range) | 36,000 Btu/h (9,000–42,000) |
|---|---|
| Heating at 47°F — Rated Capacity (Range) | 37,000 Btu/h (10,000–42,500) |
| Rated Heating at 5°F | 26,000 Btu/h |
| SEER2 / EER2 | 24 / 12 |
| HSPF4 / HSPF5 / COP (47°F) | 9.5 / 7 / 3.5 |
| Outdoor Unit MCA / Max. Fuse | 30.5 A / 35 A |
| Max. Connectable Indoor Units | 5 |
| Outdoor Noise Level | 64.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.24 × 16.14 × 31.89 in |
| Outdoor Unit Net / Gross Weight | 168.87 / 180.12 lbs |
| Refrigerant Type / Charge | R454B / 120.63 oz |
| Pre-charged Line Length | 125 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor | 262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) | 49.2 ft / 33 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
System Type
| Specification | Hyper | Regular |
|---|---|---|
| Ceiling Cassette PRO | CH-RSH09-12MCT(Dip Switch for 9K) | CH-RSH09-12MCT(Dip Switch for 12K) |
| Ceiling Cassette | CH-RH09MCT | CH-RH12MCT |
| Panel Model Number | CH-NPNL09-18CT | CH-NPNL09-18CT |
| Power Supply (V,Ph,Hz) | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity (Btu/h) | 9,000 | 12,000 |
| Minimum Circuit Ampacity (A) | 3 | 3 |
| Max. Fuse (A) | 15 | 15 |
| Indoor Air Flow - Turbo/Hi/Mi/Lo (CFM) | 417.9/364.9/306.1/194.2/147.2 | 417.9/364.9/306.1/194.2/147.2 |
| Indoor Noise Level - Hi/Mi/Lo (dB(A)) | 42.5/40/37.5/26/24 | 46/43.5/40.5/27.5/26 |
| Dimension (WxDxH) (inch) | 22.44x22.44x9.65 | 22.44x22.44x9.65 |
| Packing (WxDxH) (inch) | 28.15x25.20x11.61 | 28.15x25.20x11.61 |
| Net/Gross Weight (lbs.) | 35.27/41.89 | 35.27/41.89 |
| Cooling (°F) | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 |
Outdoor Regular
| Specification | CH-R36MES-230VOThis model | CH-R18MES-230VO | CH-R28MES-230VO | CH-R48MES-230VO | CH-R60MES-230VO |
|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Rated Capacity (range) (Btu/h) | 9,000~42,000 | 5,400~21,600 | 7,200~32,000 | 12,000~55,000 | 19,000~62,000 |
| Cooling Rated Current (A) | 13.5 | 6 | 9.2 | 16.6 | 26.2 |
| EER2 | 12 | 14 | 13 | 12.5 | 10 |
| SEER2 | 24 | 25.1 | 25 | 24 | 22 |
| Heating Rated Capacity (range) (Btu/h) | 10,000~42,500 | 5,700~21,600 | 8,400~29,000 | 13,000~53,000 | 20,000~60,000 |
| Heating Rated Current (A) | 14 | 6.8 | 9.2 | 16.3 | 21 |
| Heating at 47°F COP (W/W) | 3.5 | 3.8 | 3.8 | 3.8 | 3.7 |
| HSPF4 | 9.5 | 9.8 | 9.5 | 10.3 | 9.5 |
| HSPF5 | 7 | 7.8 | 7 | 8 | 7.4 |
| Heating at 5°F Rated Capacity (Btu/h) | 26,000 | 13,500 | 19,000 | 36,000 | 39,000 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 30.5 | 16 | 23 | 40 | 40 |
| Max. Fuse (Outdoor unit) (A) | 35 | 20 | 25 | 45 | 45 |
| Outdoor Air Flow (Max) (CFM) | 2,148.4 | 1,765.8 | 2,130.7 | 4,502.8 | 4,502.8 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 64.5 | 59.5 | 61 | 63 | 65 |
| Dimension (W×D×H) (inch) | 37.24x16.14x31.89 | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (W×D×H) (inch) | 42.91x19.68x34.84 | 40.55x17.24x29.53 | 42.91x19.68x34.84 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
| Net/Gross Weight (lbs) | 168.87/180.12 | 100.53/109.35 | 138.89/149.69 | 222.00/254.19 | 237.88/270.28 |
| Refrigerant Type/Charged (oz) | R454B/120.63 | R454B/61.73 | R454B/84.66 | R454B/148.15 | R454B/151.68 |
| Refrigerant Precharge (ft) | 125 | 75 | 100 | 150 | 150 |
| Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft) | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side (inch) | 5 x 1/4" | 3 x 1/4" | 4 x 1/4" | 6 x 1/4" | 6 x 1/4" |
| Refrigerant Piping Gas Side (inch) | 4 x 3/8" + 1 x 1/2" | 3 x 3/8" | 3 x 3/8" + 1 x 1/2" | 4 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" |
| Max. Pipe Length (ft) | 262.4 | 196.8 | 262.4 | 262.4 | 262.4 |
| Max. Length for One Indoor Unit (ft) | 114.8 | 98.4 | 114.8 | 114.8 | 114.8 |
| Max. Height Difference in Level (ft) | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 | 33 | 33 | 33 | 33 |
| Ambient Temperature Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -13~122 |
| Ambient Temperature Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
| Certification: AHRI | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: Energy Star | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: NEEP | ✔ | ✔ | ✔ | ✔ | ✔ |
| Certification: ETL | ✔ | ✔ | ✔ | ✔ | ✔ |
Outdoor Hyper
| Specification | CH-RVHP19M-230VO | CH-RVHP28M-230VO | CH-RVHP36M-230VO | CH-RVHP48M-230VO | CH-RVHP55M-230VO |
|---|---|---|---|---|---|
| Power Supply (V/Ph/Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Operating Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Capacity (BTU/h) | 5,400~28,000 | 7,200~37,000 | 9,000~43,000 | 12,000~57,000 | 19,000~59,000 |
| SEER2 | 5.6 | 9.5 | 12 | 17.3 | 18.5 |
| EER | 15 | 12.5 | 13 | 12 | 12 |
| IEER | 25 | 23 | 23 | 23 | 22.2 |
| Heating Capacity (BTU/h) | 5,700~27,000 | 8,400~36,000 | 10,000~44,000 | 13,000~57,000 | 20,000~59,000 |
| HSPF2 | 6.5 | 9.1 | 11.5 | 17.3 | 20.1 |
| COP | 4 | 3.8 | 4 | 3.7 | 3.5 |
| SCOP | 10.4 | 10.5 | 10.7 | 11 | 10.5 |
| Power Input (W) | 8.5 | 8.5 | 8.5 | 9 | 8.5 |
| Air Flow (CFM) | 19,000 | 27,000 | 36,000 | 47,000 | 47,000 |
| Sound Level Indoor (dBA) | 17.5 | 30 | 37 | 37 | 39.5 |
| Sound Level Outdoor (dBA) | 20 | 35 | 40 | 40 | 40 |
| Weight Indoor (lbs) | 2,130.7 | 2,148.4 | 3,037.2 | 4,502.8 | 4,502.8 |
| Weight Outdoor (lbs) | 61.5 | 61 | 65 | 65 | 65 |
| Dimensions Indoor (in) | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 38.58x16.34x38.39 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Dimensions Outdoor (in) | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 45.08x19.68x42.52 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
| Shipping Weight Indoor/Outdoor (lbs) | 137.35/148.15 | 168.43/179.67 | 211.86/244.71 | 246.47/276.68 | 246.47/276.68 |
| Refrigerant Type/Amount (lbs) | R454B/78.31 | R454B/120.63 | R454B/134.04 | R454B/151.68 | R454B/151.68 |
| Fuse Size (A) | 75 | 100 | 125 | 150 | 150 |
| Wire Size (AWG) | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 | 0.16 / 0.32 |
| Control Voltage (V) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Liquid Line | 3 x 1/4" | 4 x 1/4" | 5 x 1/4" | 6 x 1/4" | 6 x 1/4" |
| Suction Line | 3 x 3/8" | 3 x 3/8" + 1 x 1/2" | 3 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" | 4 x 3/8" + 2 x 1/2" |
| Max Line Length (ft) | 196.8 | 262.4 | 262.4 | 262.4 | 262.4 |
| Max Elevation Diff (ft) | 98.4 | 114.8 | 114.8 | 114.8 | 114.8 |
| Max Head Pressure (ft) | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Max Suction Pressure (ft) | 33 | 33 | 33 | 33 | 33 |
| Operating Range Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Operating Range Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| Feature 1 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 2 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 3 | ✓ | ✓ | ✓ | ✓ | ✓ |
| Feature 4 | ✓ | ✓ | ✓ | ✓ | ✓ |
Which system is right for you?
| Your selectionCooper & HunterCooper & Hunter 2 Zone 36,000 BTU OLIVIA Ductless Mini Split AC Ceiling Cassette 12k+24k$5,096.16 |  Cooper & HunterCooper & Hunter 36,000 BTU 2-Zone 9k+9k Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$4,881.60 |  Cooper & HunterCooper & Hunter 36,000 BTU 3-Zone 9k+9k+9k Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump$5,641.92 |  Cooper & HunterCooper & Hunter 4 Zone 36,000 BTU OLIVIA Ductless Mini Split AC Ceiling Cassette 9k+9k+9k+9k$6,402.24 | |
|---|---|---|---|---|
| Cooling Capacity | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h |
| SEER2 Rating | 23.9 | 24.0 | 24.0 | 24.0 |
| Refrigerant | R454B | R454B | R454B | R454B |
| Zones | Dual Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Cooper & Hunter 36,000 BTU mini split cool?
The Cooper & Hunter 2 Zone 36,000 BTU system is designed to cover up to 1,500 square feet, which typically means it can effectively cool two rooms, depending on their size and layout.
Can I mix BTU sizes with the Cooper & Hunter mini split system?
Yes, you can mix BTU sizes in a multi-zone setup, but it’s essential to ensure that the total capacity does not exceed the system's 36,000 BTU rating for optimal performance.
Do all zones run simultaneously in the Cooper & Hunter mini split system?
In a dual zone system like the Cooper & Hunter 36,000 BTU, both zones can operate simultaneously, allowing you to customize comfort in different areas of your home.
Is the Cooper & Hunter mini split pre-charged with refrigerant?
Yes, the Cooper & Hunter mini split comes pre-charged with R454B refrigerant for up to 25 ft of line set, making installation more straightforward.
What warranty does the Cooper & Hunter Olivia offer?
The Cooper & Hunter Olivia mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided that registration is completed within 30 days of installation.
What is the efficiency of the Cooper & Hunter 36,000 BTU mini split compared to multiple single-zone units?
With a SEER rating of 23.9, the Cooper & Hunter 36,000 BTU system is highly efficient, often outperforming multiple single-zone units in energy consumption and overall cost savings.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 21.6HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
BravoBravo Pisa 12,000 BTU Single Zone Ceiling Cassette, 230V, R32 - Ductless Mini Split Heat PumpFree Shipping
- R454BSEER2 21.1HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 12,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
The Cooper & Hunter 2-Zone Mini Split System features 2 ceiling cassette zones rated at 12,000 Btu/h and 24,000 Btu/h, paired with an outdoor unit rated for 36,000 BTU nominal cooling and capable of operation down to -13°F ambient temperature. It includes built-in Wi-Fi control, uses R454B refrigerant, and achieves a SEER2 efficiency rating of 24.
Key Features
- 2-zone system — the CH-R36MES-230VO outdoor unit supports up to 5 indoor units, each individually controlled; port adapters included, no branch boxes required
- 36,000 Btu/h rated cooling / 37,000 Btu/h rated heating — inverter range 9,000–42,000 cooling, 10,000–42,500 heating (Btu/h)
- 24 SEER2 / 12 EER2 / 9.5 HSPF4 — current R454B-generation efficiency
- Heats down to -13°F outdoor ambient — 26,000 Btu/h rated heating at 5°F; cooling operation -13–122°F
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; remote control included with each indoor unit; compatible with C&H 12V wall thermostat (sold separately)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed
