2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12K
Bravo7-Yr WarrantySKU: BRV-M18-230VO/M12DT+M12DT-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 22.0
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Concealed Duct
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · ROMA
Built for year-round comfort
BRV-M18-230VO/M12DT+M12DT-NO/NO
System Specs
| Cooling Capacity | 18,000 BTU/h |
|---|---|
| SEER2 | 22.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 32/31/29 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 27.56 × 17.72 × 7.8 in | 27.6 / 33.1 lb | Wired controller |
Roma Series Description
The Bravo Milano 2-Zone Ducted Mini Split System features an outdoor unit model BRV-R18-230VO, providing 18,000 nominal total BTU with two slim duct zones, each capable of 12,000 cooling BTU, and uses R32 refrigerant for efficient performance. It includes smart app control via WiFi and operates down to a minimum heating ambient temperature of -13°F.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

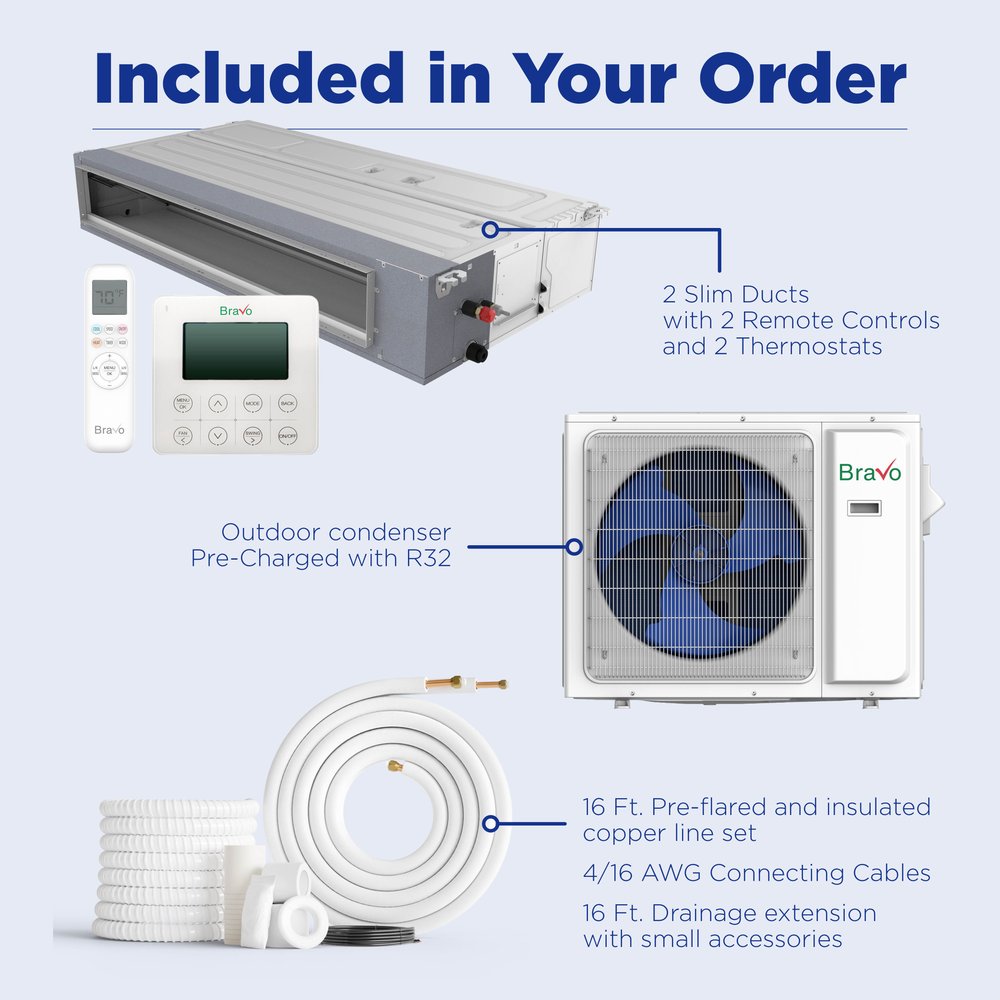

IN THE BOX
Everything included with this system

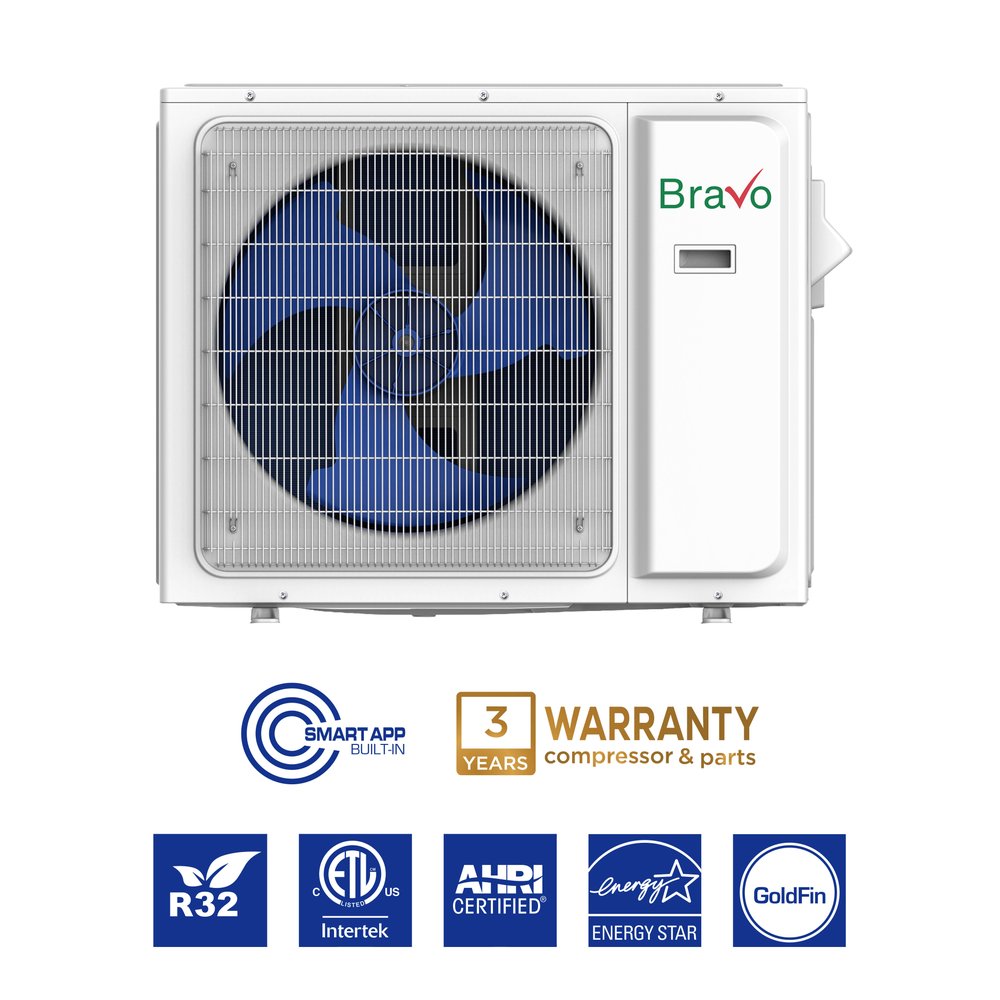

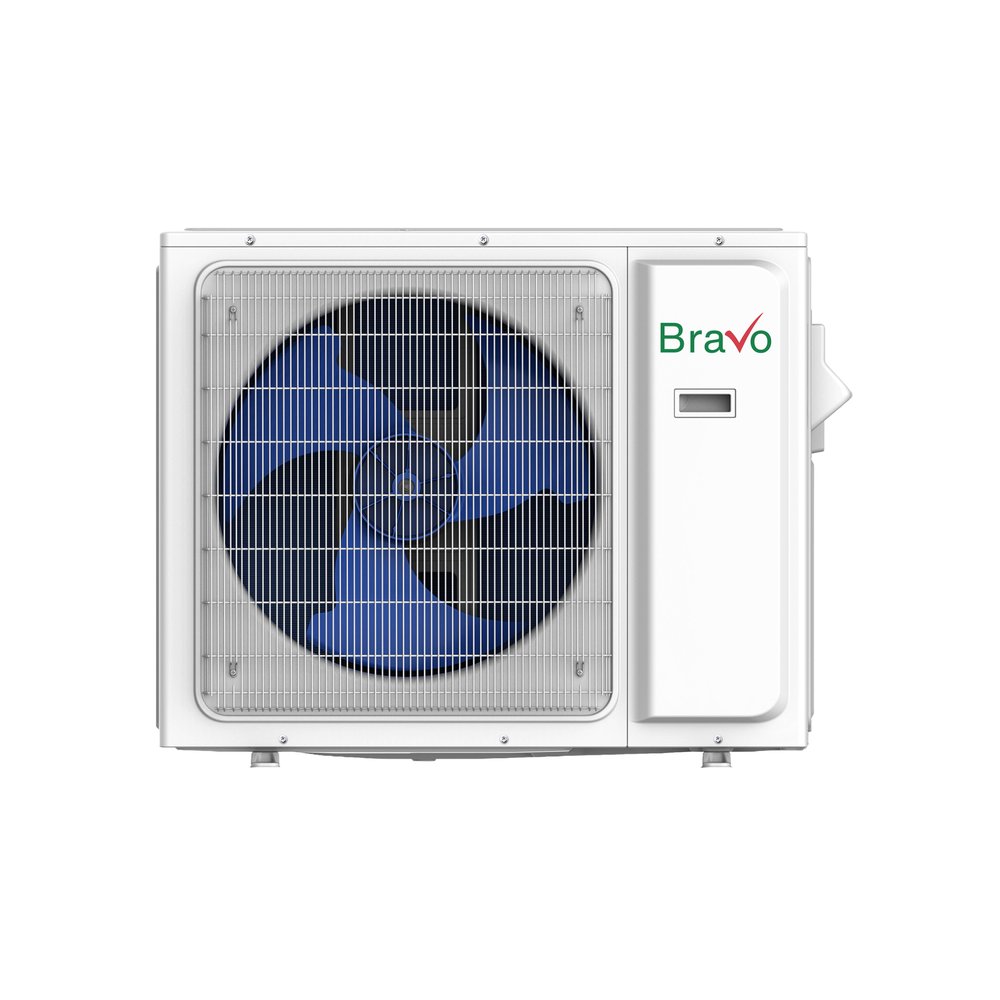

- Bravo Milano 18,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 12,000 BTU Indoor Slim Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump × 2
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M18-230VO
| Model | BRV-M18-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 34.65×13.90×21.93 in |
| Net/Gross Weight | 75.0/80.5 lb |
| Packing Dimensions (WxDxH) | 35.55×15.04×24.21 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 20 A |
| Min. Circuit Ampacity | 15 A |
| Copper Line Size (Liquid/Gas) | 2x1/4"- 2x3/8" |
| Noise Level | 54 dB |
| Airflow | 1,529 CFM |
Indoor Unit Specs— BRV-M12DT-230VI
| Model | BRV-M12DT-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 27.56×17.72×7.8 in |
| Net/Gross Weight | 27.6/33.1 lb |
| Packing Dimensions (WxDxH) | 34.25×21.3×10.24 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 32/31/29 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 353 CFM |
| Dehumidification | 2.11 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | wired controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M09DT-230VI | BRV-M12DT-230VI | BRV-M18DT-230VI | BRV-M24DT-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | Rated Capacity | 10,000 | 12,000 | 19,000 |
| Btu/h | 10,000 | 12,000 | 19,000 | 24,600 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 353 | 353 | 530 | 795 |
| Indoor Noise Level | 34 | 34 | 39 | 42 |
| Indoor Unit | Dimensions (WxDxH) | 27.56×17.72×7.8 | 27.56×17.72×7.8 | 27.56×27.56×9.65 |
| Packing (WxDxH) | 34.25×21.3×10.24 | 34.25×21.3×10.24 | 36.61×32.68×11.81 | 48.43×32.68×11.81 |
| Net/Gross Weight | 27.6/33.1 | 27.6/33.1 | 47.4/56.2 | 59.5/70.5 |
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | ◊ 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12K$1,685.44 |  Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+9K$1,634.04 |  BravoBravo 24,000 BTU 2-Zone 9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$1,861.70 |  BravoBravo 30,000 BTU 2-Zone 9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$2,407.60 | |
|---|---|---|---|---|
| Cooling Capacity | 18,000 BTU/h | 18,000 BTU/h | 24,000 BTU/h | 30,000 BTU/h |
| SEER2 Rating | 22.0 | 22.0 | 23.0 | 23.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Dual Zone | Dual Zone | Dual Zone | Dual Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 2 zone 18,000 BTU mini split cool?
The Bravo 2 zone 18,000 BTU mini split system can effectively cool up to two separate rooms, making it ideal for dual-zone applications. With its coverage capacity of up to 850 sq ft, you can enjoy efficient climate control in both spaces.
Can I mix BTU sizes with the Bravo mini split system?
Yes, you can mix BTU sizes with the Bravo mini split system, but it’s important to ensure that the total BTU capacity matches your cooling needs for the zones. For instance, you could pair a 12,000 BTU unit with the 18,000 BTU system to achieve optimal performance across different areas.
Do all zones run simultaneously in the Bravo multi-zone mini split?
In the Bravo multi-zone mini split system, all zones can run simultaneously, allowing for independent temperature control in each zone. This feature is especially beneficial in maximizing comfort throughout your home.
What is the efficiency of the Bravo 18,000 BTU mini split compared to using multiple single-zone units?
The Bravo 18,000 BTU mini split has a SEER rating of 22.0, which provides excellent energy efficiency compared to operating multiple single-zone units. Utilizing a multi-zone system can lead to lower energy bills and more streamlined installation.
What are the warranty terms for the Bravo mini split system?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system comes pre-charged with R32 refrigerant for up to 25 ft of line set, simplifying the installation process. This means you can start enjoying efficient cooling right away without the need for additional refrigerant charging.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+9KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+12KFree Shipping
The Bravo Milano 2-Zone Ducted Mini Split System features an outdoor unit model BRV-R18-230VO, providing 18,000 nominal total BTU with two slim duct zones, each capable of 12,000 cooling BTU, and uses R32 refrigerant for efficient performance. It includes smart app control via WiFi and operates down to a minimum heating ambient temperature of -13°F.
Key Features
- 2-zone concealed-duct system — the BRV-R18-230VO outdoor unit powers 2 independently controlled ducted indoor units, hidden above the ceiling or in a soffit
- 18,000 BTU nominal capacity across 2 zones, each room on its own remote
- Inverter heat pump — efficient variable-speed cooling and heating from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
- Discreet ducted air delivery — central-air comfort with mini-split efficiency
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M12DT-230VI | 12,000 Btu/h | Slim Duct |
| 2 | BRV-M12DT-230VI | 12,000 Btu/h | Slim Duct |
