2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12k
Bravo7-Yr WarrantySKU: BRV-M18-230VO/M12WM+M12WM-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 22.0
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Wall Mount
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M18-230VO/M12WM+M12WM-NO/NO
System Specs
| Cooling Capacity | 17,700 (range 3,800-19,800) BTU/h |
|---|---|
| Heating Capacity | 18,000 (range 4,200-22,000) BTU/h |
| SEER2 | 22.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Sound Level (indoor) | 40/36/32 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 34.49 × 11.73 × 7.64 in | 19.80 / 24.27 lb | Remote controller |
Milano Series Description
The Bravo Milano 2-Zone Ductless Mini Split System features two wall-mounted zones, each with 12,000 cooling BTU, and uses R32 refrigerant for efficient operation with a SEER2 rating of 22. It includes smart app control via Wi-Fi and is designed to function in outdoor conditions as low as -13°F.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

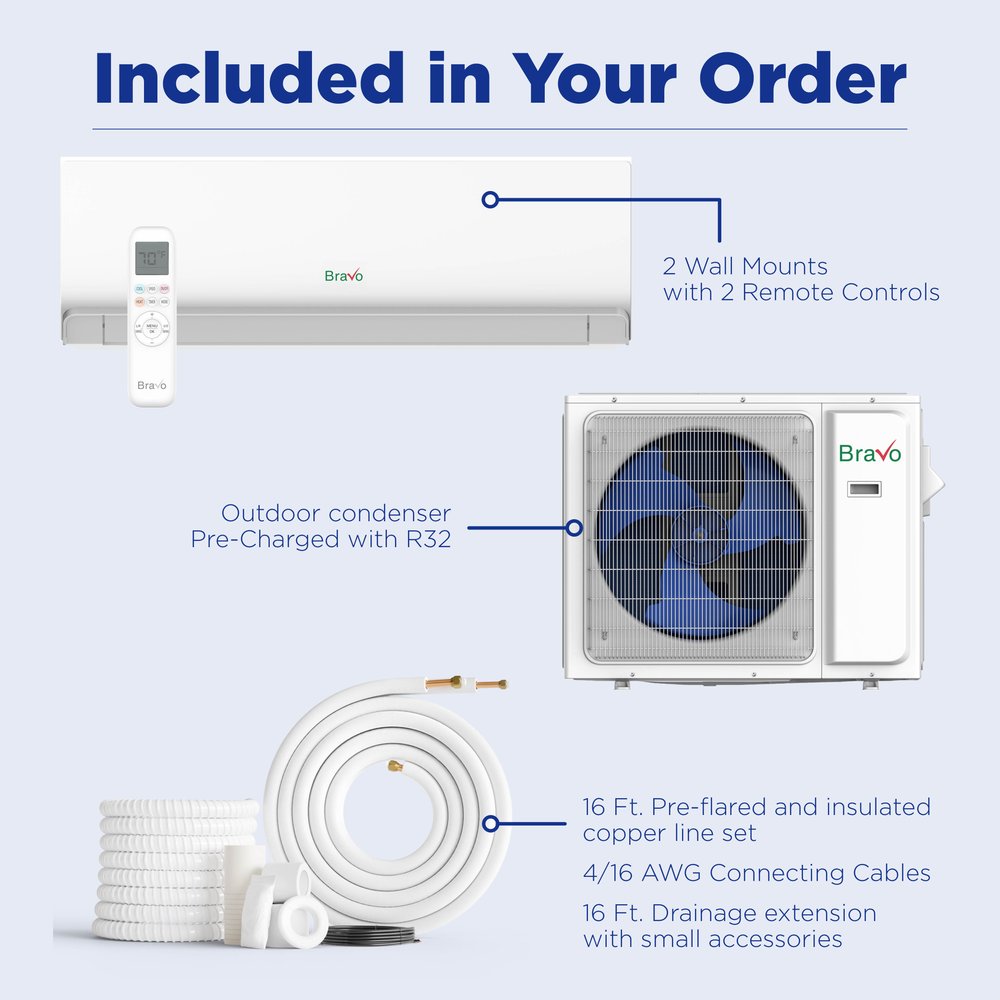

IN THE BOX
Everything included with this system
- Bravo Milano 18,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 2
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

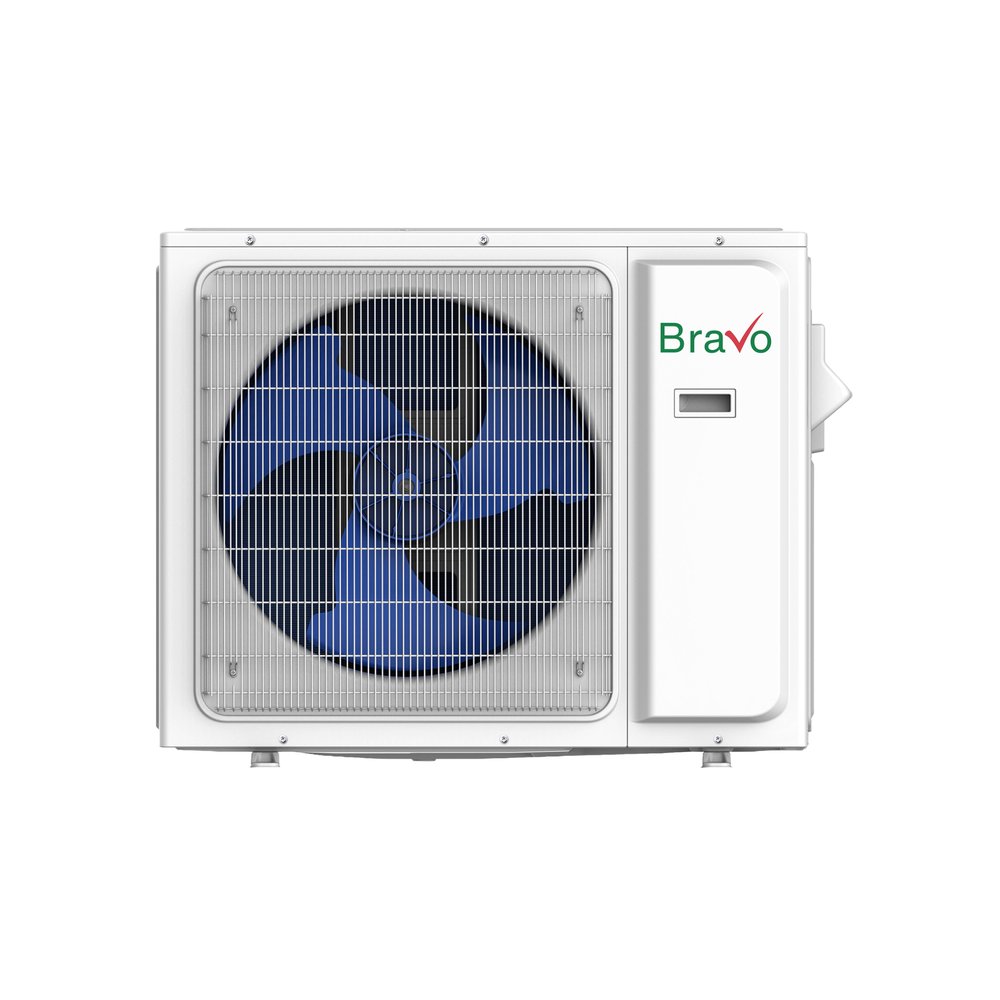

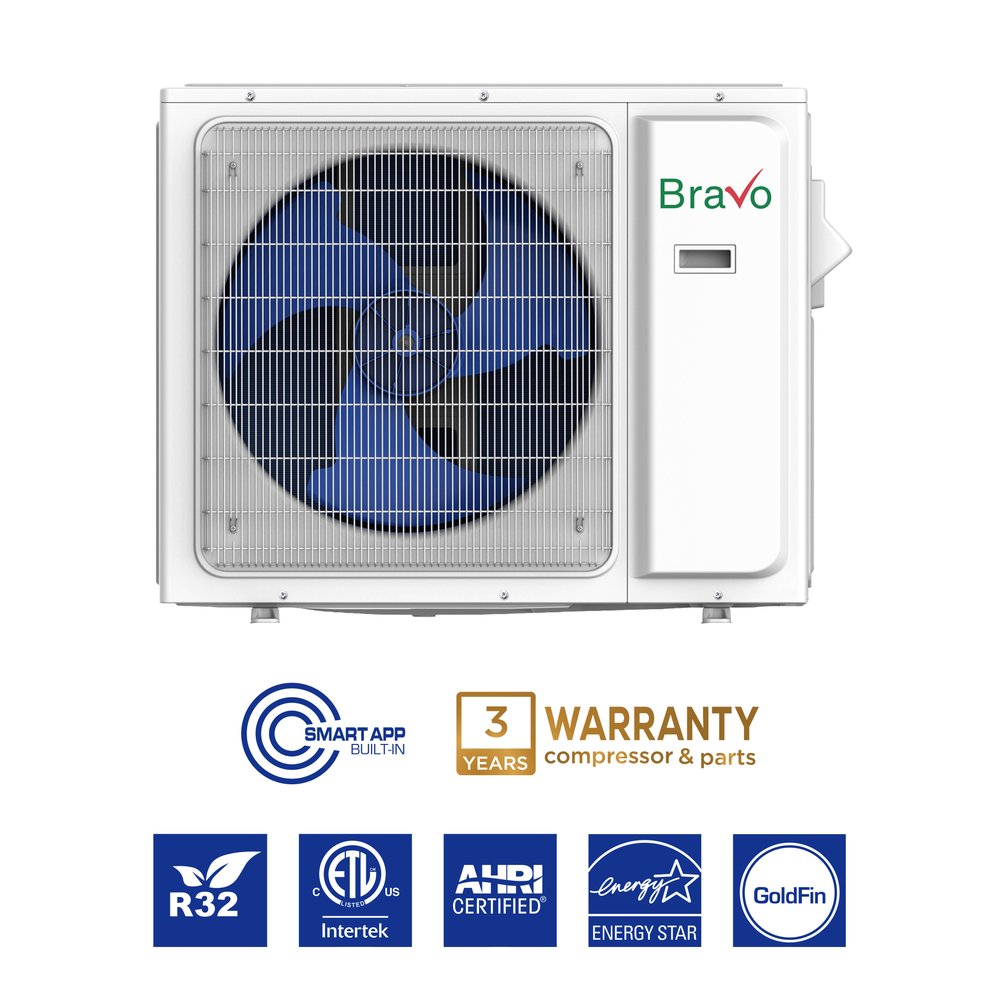

Outdoor Unit Specs— BRV-M18-230VO
| Model | BRV-M18-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 34.65×13.90×21.93 in |
| Net/Gross Weight | 75.0/80.5 lb |
| Packing Dimensions (WxDxH) | 35.55×15.04×24.21 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 20 A |
| Min. Circuit Ampacity | 15 A |
| Copper Line Size (Liquid/Gas) | 2x1/4"- 2x3/8" |
| Noise Level | 54 dB |
| Airflow | 1,529 CFM |
Indoor Unit Specs— BRV-M12WM-230VI
| Model | BRV-M12WM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 34.49×11.73×7.64 in |
| Net/Gross Weight | 19.80/24.27 lb |
| Packing Dimensions (WxDxH) | 37.99×14.57×11.1 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 40/36/32 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 353 CFM |
| Dehumidification | 2.11 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | Remote controller |
System Specs
| Cooling Capacity (Range) | 17,700 (range 3,800-19,800) Btu/h |
|---|---|
| Heating Capacity (Range) | 18,000 (range 4,200-22,000) Btu/h |
| SEER2 | 22 |
| HSPF2 (Region IV) | 10 |
| COP | 3.8 |
| Refrigerant | R32 / 38.8 oz |
| Outdoor MCA / Max. Fuse | 15 A / 20 A |
| Max. Connectable Indoor Units | up to 2 |
| Outdoor Airflow | 1,529 CFM |
| Outdoor Noise Level | 54 dB(A) |
| Pre-charged Line Length | 24.6 ft |
| Max. Line Length — Total / Per Indoor | 131 ft / 82 ft |
| Operating Range — Cooling / Heating | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Outdoor Dimensions (W×D×H) | 34.65 × 13.90 × 21.93 in |
| Outdoor Net / Gross Weight | 75.0 / 80.5 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling Rated CapacityBtu/h | 7,000 |
| Heating Rated CapacityBtu/h | 7,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 353 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 31.02x7.80x11.50 |
| Indoor Unit Packing (WxDxH)in | 34.65x14.57x11.42 |
| Indoor Unit Net/Gross Weightlbs. | 17.60/22.00 |
| Refrigerant Piping Liquid / Gas Sidein | 1/4’’ / 3/8’’ |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12k$1,292.11 |  Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9k$1,263.60 |  BravoBravo 24,000 BTU 2-Zone 9k+9k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$1,504.65 |  BravoBravo 30,000 BTU 2-Zone 9k+9k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$2,082.67 | |
|---|---|---|---|---|
| Cooling Capacity | 18,000 BTU/h | 18,000 BTU/h | 24,000 BTU/h | 30,000 BTU/h |
| SEER2 Rating | 22.0 | 22.0 | 23.0 | 23.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Dual Zone | Dual Zone | Dual Zone | Dual Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the 18,000 BTU Bravo mini split cool?
The 2 zone 18,000 BTU Bravo ductless mini split is designed to effectively cool up to two rooms, providing coverage for areas up to 850 sq ft. This makes it an ideal solution for homes with multiple small to medium-sized spaces.
Can I mix BTU sizes when using the Bravo mini split system?
Yes, you can mix BTU sizes in a multi-zone system, but it’s crucial to ensure that the total capacity does not exceed the system's rating. For the 18,000 BTU Bravo unit, you can pair it with another unit, such as a 12,000 BTU, to achieve optimal performance.
Do all zones in the Bravo ductless mini split run simultaneously?
In the Bravo multi-zone mini split system, all zones can operate independently, allowing you to cool or heat specific areas as needed. This flexibility is beneficial for energy savings and comfort.
What is the efficiency of the 18,000 BTU Bravo mini split compared to multiple single-zone units?
The Bravo mini split boasts a SEER rating of 22.0, making it highly efficient compared to operating multiple single-zone units. This efficiency not only lowers your energy bills but also reduces the overall environmental impact.
What are the warranty terms for the Bravo ductless mini split system?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo ductless mini split system is pre-charged with R32 refrigerant and can accommodate up to 25 ft of line set. This feature simplifies installation and ensures optimal performance right out of the box.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+12kFree Shipping
The Bravo Milano 2-Zone Ductless Mini Split System features two wall-mounted zones, each with 12,000 cooling BTU, and uses R32 refrigerant for efficient operation with a SEER2 rating of 22. It includes smart app control via Wi-Fi and is designed to function in outdoor conditions as low as -13°F.
Key Features
- 2-zone system — the BRV-M18-230VO outdoor unit powers 2 independently controlled Bravo Milano indoor units (up to 2 max)
- 18,000 BTU nominal capacity across 2 zones, each room on its own remote
- 22 SEER2 inverter efficiency — cools and heats from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M12WM-230VI | 12,000 Btu/h | Wall Mount |
| 2 | BRV-M12WM-230VI | 12,000 Btu/h | Wall Mount |
