Bravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M12WM-230VI
Product specifications
- Voltage
- 230V
- WiFi
- Not Included
- Type
- Wall Mount
- Freon
R32
Choose Your Configuration

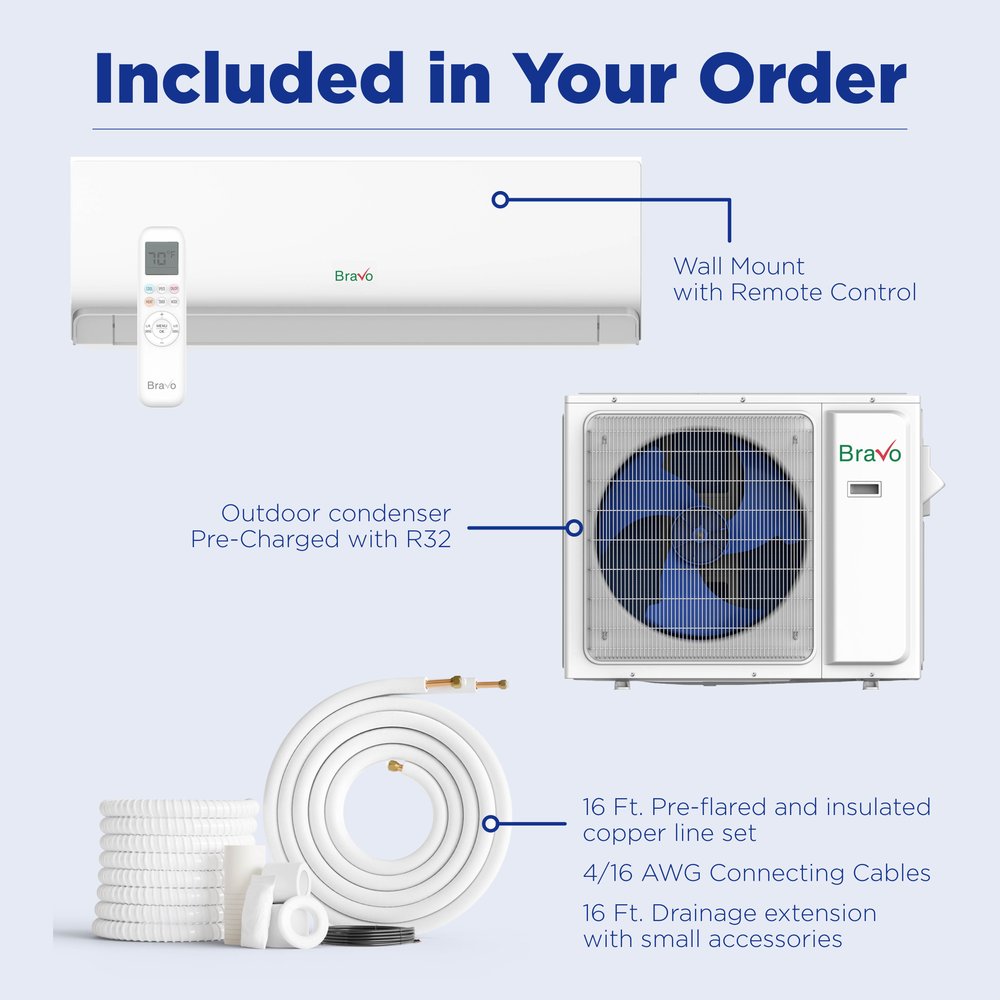

“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M12WM-230VI
System Specs
| Cooling Capacity | 12,000 BTU/h |
|---|---|
| Heating Capacity | 12,000 / 12,300 BTU/h |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 40/36/32 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 34.49 × 11.73 × 7.64 in | 19.80 / 24.27 lb | Remote controller |
Milano Series Description
The Bravo Milano 12,000 BTU indoor wall mount (model BRV-M12WM-230VI) provides cooling at 12,000 BTU and heating at 12,300 BTU, using R32 refrigerant. It is designed as a wall mount indoor unit for multi-zone ductless mini-split systems.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Indoor Unit Specs— BRV-M12WM-230VI
| Model | BRV-M12WM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 34.49×11.73×7.64 in |
| Net/Gross Weight | 19.80/24.27 lb |
| Packing Dimensions (WxDxH) | 37.99×14.57×11.1 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 40/36/32 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 353 CFM |
| Dehumidification | 2.11 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | Remote controller |
System Specs
| Cooling / Heating Capacity | 12,000 / 12,300 Btu/h |
|---|---|
| Indoor Airflow | 353 CFM |
| Indoor Noise Level | 42 dB(A) |
| Refrigerant | R32 |
| Line Connections (Liquid / Gas) | 1/4 in / 3/8 in |
| Dimensions (W×D×H) | 34.49 × 11.73 × 7.64 in |
| Net / Gross Weight | 19.80 / 24.27 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling Rated CapacityBtu/h | 7,000 |
| Heating Rated CapacityBtu/h | 7,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 353 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 31.02x7.80x11.50 |
| Indoor Unit Packing (WxDxH)in | 34.65x14.57x11.42 |
| Indoor Unit Net/Gross Weightlbs. | 17.60/22.00 |
| Refrigerant Piping Liquid / Gas Sidein | 1/4’’ / 3/8’’ |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Frequently asked questions.
What size mini split do I need for my room?
For optimal cooling and heating, the Bravo Milano 12,000 BTU mini split is suitable for spaces up to 550 sq ft. Ensure your room is within this coverage area for effective temperature control.
Can I install the Bravo Milano mini split myself?
While it is possible to install the Bravo Milano mini split yourself, professional installation is recommended for best results, especially since it requires proper handling of refrigerant and electrical connections at 230V. DIY installation can void the warranty if not done correctly.
Does the Bravo Milano mini split come pre-charged with refrigerant?
Yes, the Bravo Milano mini split is pre-charged with R32 refrigerant for up to 25 ft of line set, allowing for a straightforward installation process. However, longer line sets may require additional refrigerant.
What voltage does the Bravo Milano mini split require?
The Bravo Milano mini split operates on a 230V electrical system, making it suitable for most residential applications. Ensure your electrical setup matches this requirement for proper functionality.
What warranty does the Bravo Milano offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
What SEER rating does the Bravo Milano mini split have?
The Bravo Milano boasts an impressive SEER rating of 21+, indicating high energy efficiency. This rating helps reduce energy costs while maintaining optimal performance in cooling and heating.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 26.4Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter Midnight Black 6,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump - R410ASEER2 22.0Heats & Cools
5-Yr Warranty
OLMOOLMO Sierra 18,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump - R32Heats & Cools
7-Yr Warranty
BravoBravo Milano 18,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
The Bravo Milano 12,000 BTU indoor wall mount (model BRV-M12WM-230VI) provides cooling at 12,000 BTU and heating at 12,300 BTU, using R32 refrigerant. It is designed as a wall mount indoor unit for multi-zone ductless mini-split systems.
Key Features
- Wall Mount indoor unit for Bravo Milano multi-zone systems
- 12,000 Btu/h cooling / 12,300 Btu/h heating
- 42 dB(A) indoor sound level
- R32 refrigerant; individually controlled with included remote
Works With
Connects to any Bravo Milano multi-zone outdoor condenser (BRV-M18 through BRV-M42), sized for the number of indoor units in your system. Choose a copper line-set kit per zone at checkout, or supply your own.
