Bravo Pisa 24,000 BTU Indoor Single Zone Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-P24DT230VI
Choose Your Configuration
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

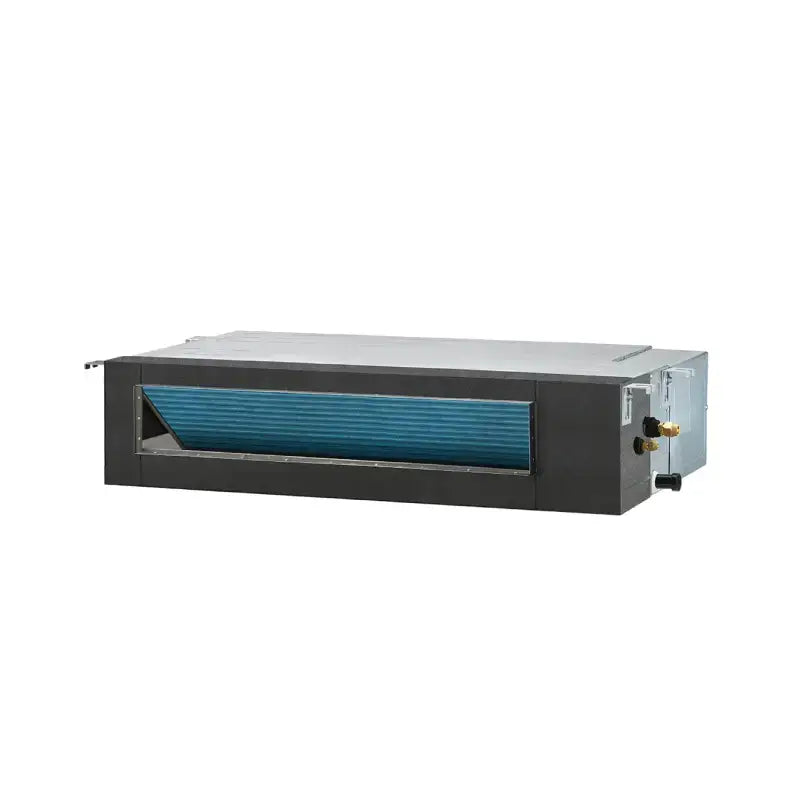

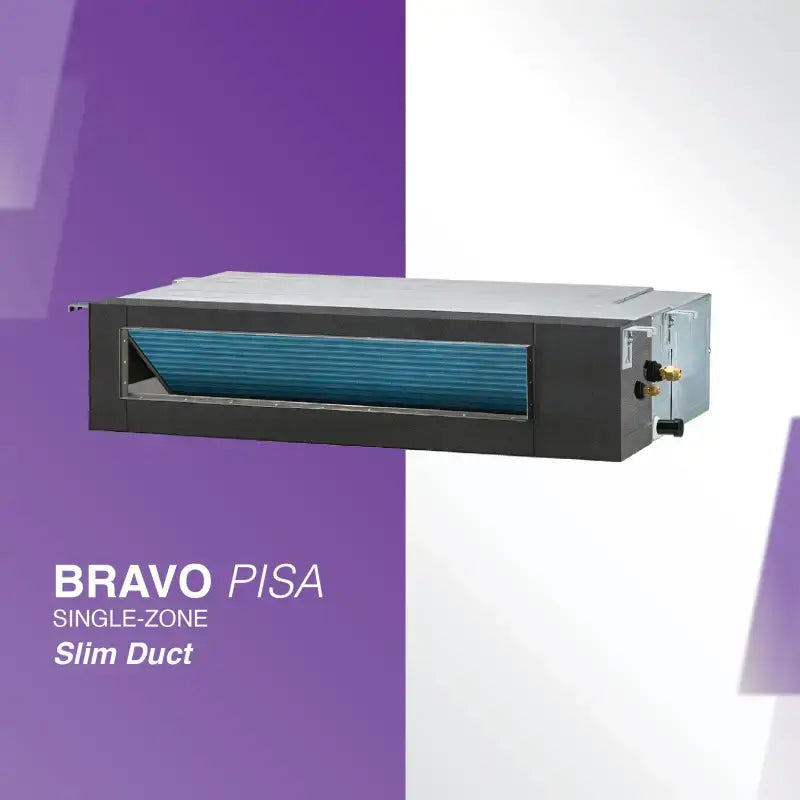

The Bravo Pisa 24,000 BTU indoor concealed duct (model BRV-P24DT230VI) provides both cooling and heating with a 24,000 BTU capacity, using R32 refrigerant for efficient performance on 230V power. Designed as a concealed duct indoor unit, it pairs with its matching Bravo Pisa BRV-P24LS-230VO single-zone outdoor condenser for a complete single-zone system.
Key Features
- Concealed Duct indoor unit for Bravo Pisa single-zone systems
- 24,000 Btu/h cooling / 24,000 Btu/h heating — inverter compressor, 208-230V
- 22.0 SEER2 efficiency

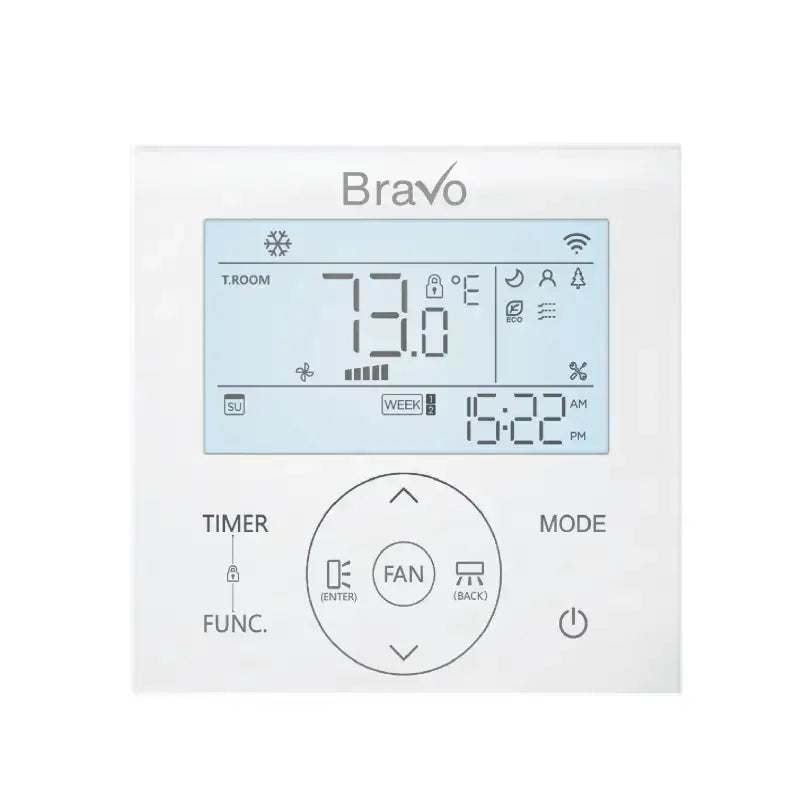

- Wi-Fi Smart control included + wireless remote
- R32 refrigerant; individually controlled
Key Specifications — BRV-P24DT230VI
- Capacity: 24,000 BTU/h (2 Ton)
- SEER2: 22.0
- Voltage: 208-230V/60Hz
- Refrigerant: R32
- Compressor: Inverter
- WiFi: Included
Works With
Connects specifically to the matching Bravo Pisa BRV-P24LS-230VO single-zone outdoor condenser (sold separately) — Pisa indoor/outdoor units are a fixed matched pair, not interchangeable across a shared multi-zone system the way Bravo Milano indoor units are. A 16 ft line set ships standard with the paired outdoor unit; choose the 25 ft or 50 ft kit at checkout for longer runs.
Frequently Asked Questions
Is the outdoor unit included with this indoor unit?
No — this listing is the concealed duct indoor unit only. It connects specifically to the matching Bravo Pisa BRV-P24LS-230VO outdoor condenser, which is sold separately.
What size room does it suit?
It is rated at 24,000 Btu/h cooling, suited to spaces around 800-1200 sq ft. For an exact match, size to your room's square footage and insulation.
Does it heat as well as cool?
Yes — paired with its matching Bravo Pisa outdoor condenser it both cools and heats.
What refrigerant does it use?
R32, matching the Bravo Pisa outdoor condenser it connects to.
Who should install it?
A licensed HVAC professional — required for refrigerant, electrical, and startup work, and to keep the manufacturer warranty valid.
What warranty does it come with?
Bravo Pisa is backed by a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
Warranty & Support
Backed by the Bravo Pisa 7-year compressor / 5-year parts limited warranty. Installation by a licensed HVAC professional and product registration are required to keep coverage valid.
