Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9K

Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9K — photo 1
Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9K — photo 2
Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9K — photo 3
Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9K — photo 4
1 / 4
Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9K — photo 1
SEER2 22.0HEATS down to −13°FCOOLS up to 122°FR454B

Cooper & Hunter7-Yr WarrantySKU: CH-R48MES-230VO-NO

$6,703.20
As low as $559/mo withaffirm
Product specifications
Voltage
230V
SEER
22.0
WiFi
Included
Zone
Six Zone
Type
Multi-Zone
Freon
R454B
See full Tech Specs

Choose Your Configuration

Default: Default Title

Save 10% on these accessories

  • ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
  • ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs CapacityARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
  • ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC SystemsARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
  • ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power ConnectionARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
1

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included
30-Day Returns

COOPER & HUNTER · OLIVIA MIDNIGHT

Built for year-round comfort

Indoor unit

CH-R48MES-230VO-NO

System Specs

Cooling Capacity47,000 BTU/h
Heating Capacity48,000 BTU/h
SEER224
EER212.5
Voltage230V
RefrigerantR454B
CompressorInverter
Climate Range-13–122°F / -13–75°F outdoor ambient
Sound Level (indoor)39.5/33/24 dB
Warranty7-Yr Compressor

Indoor Unit Specs

Unit Dimensions (WxDxH)Net / Gross WeightRemote Control
31.57 × 7.87 × 11.61 in18.96 / 24.25 lbRemote controller

Olivia Midnight Series Description

The Cooper & Hunter 6-Zone Mini Split System features a 48,000 BTU capacity, 24 SEER2 efficiency, and built-in Wi-Fi control for seamless temperature management across six zones. It utilizes R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in colder climates.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

WHEREVER YOU ARE

Control your comfort, your way

  • Easy scheduling & timer
  • Multiple ways to control your comfort
  • Smart geo location
  • In-app support & assistance
  • Voice control
Easy scheduling & timer

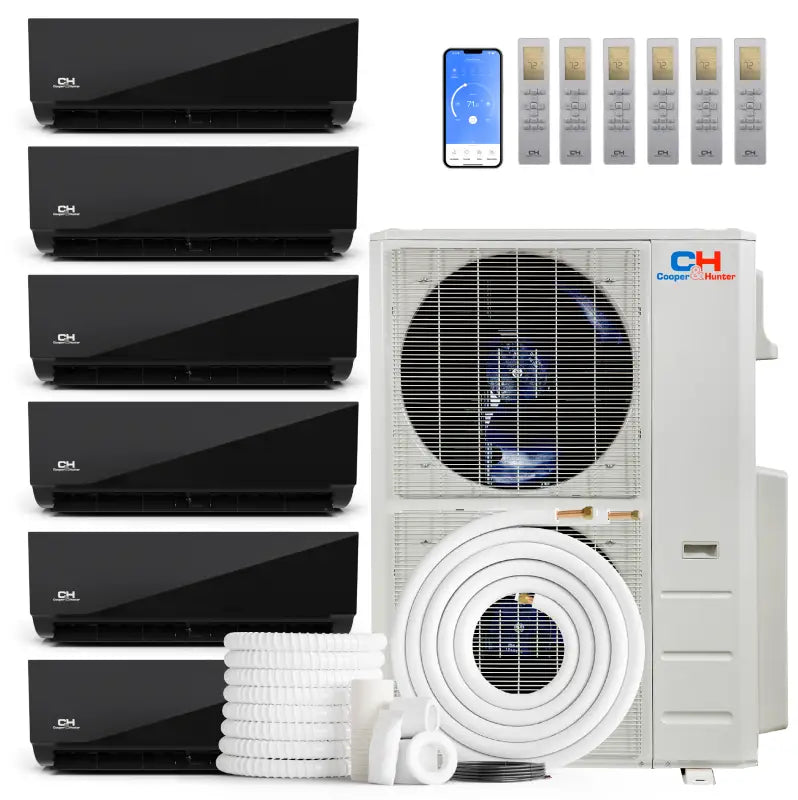

IN THE BOX

Everything included with this system

  1. Cooper & Hunter MES 48,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump
  2. Indoor Multi-Zone — CH-R09MOLVWM-230VI × 6
7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

  • Compressor: 7-year coverage

    With product registration after professional installation.

  • Parts & components: 5-year coverage

    All major components and refrigerant circuit parts.

Technical Specifications

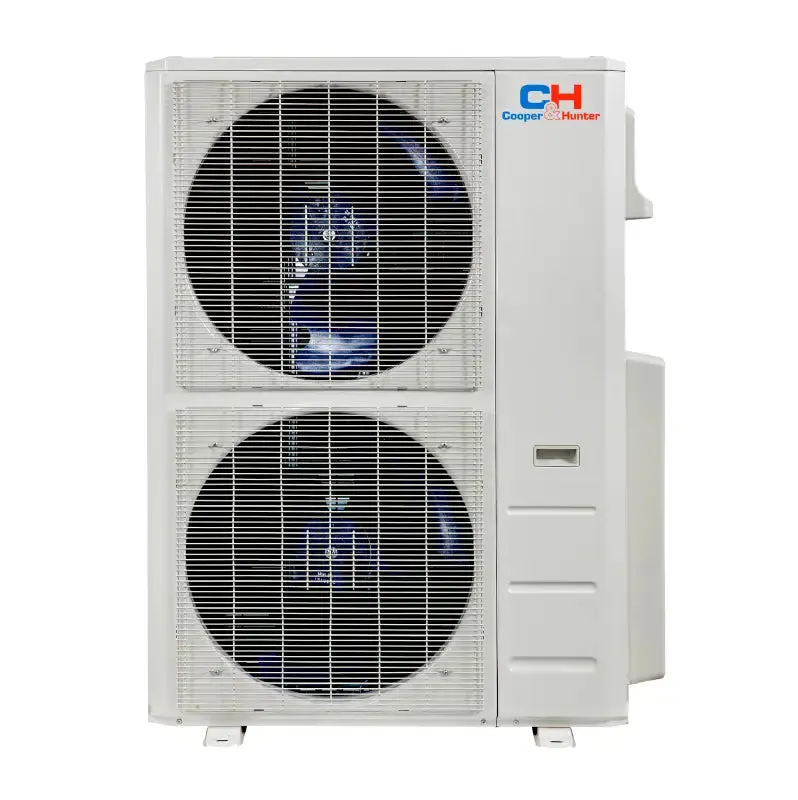

Outdoor Unit Specs— CH-R48MES-230VO

Outdoor Unit — CH-R48MES-230VO
ModelCH-R48MES-230VO
Unit Dimensions (WxDxH)37.48 x 16.34 x 52.48 in
Net/Gross Weight222.00/254.19 lb
Packing Dimensions (WxDxH)43.11 x 19.49 x 58.27 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size40 A
Min. Circuit Ampacity34 A
Copper Line Size (Liquid/Gas)6x1/4" - 4x3/8"+2x1/2"
Noise Level63 dB
Airflow4,502.8 CFM
Dehumidification6.98 pt/h

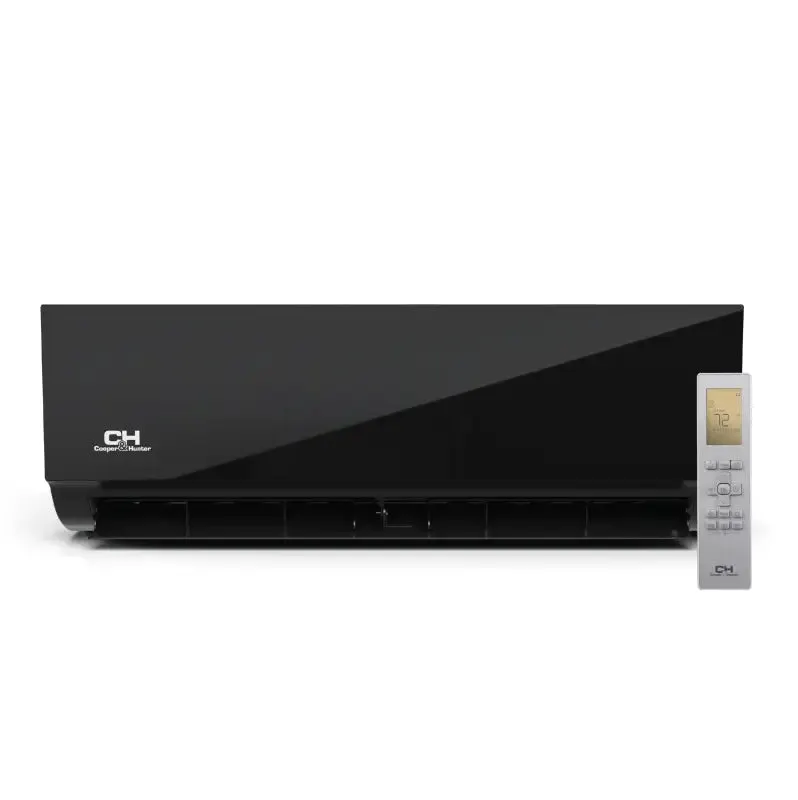

Indoor Unit Specs— CH-R09MOLVWM-230VI

Indoor Unit — CH-R09MOLVWM-230VI
ModelCH-R09MOLVWM-230VI
Unit Dimensions (WxDxH)31.57 x 7.87 x 11.61 in
Net/Gross Weight18.96/24.25 lb
Packing Dimensions (WxDxH)34.45 x 11.22 x 14.96 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size15 A
Min. Circuit Ampacity3 A
Copper Line Size (Liquid/Gas)1/4"/3/8"
Noise Level (Hi/Med/Lo)39.5/33/24 dB
Dehumidification1.27 pt/h
Drain Pipe Diameter5/8"
Controllerremote controller

System Specs

System
Cooling — Rated Capacity (Range)47,000 Btu/h (12,000–55,000)
Heating at 47°F — Rated Capacity (Range)48,000 Btu/h (13,000–53,000)
Rated Heating at 5°F36,000 Btu/h
SEER2 / EER224 / 12.5
HSPF4 / HSPF5 / COP (47°F)10.3 / 8 / 3.8
Outdoor Unit MCA / Max. Fuse34 A / 40 A
Max. Connectable Indoor Units6
Outdoor Noise Level63 dB(A)
Outdoor Unit Dimensions (W×D×H)37.48 × 16.34 × 52.48 in
Outdoor Unit Net / Gross Weight222.00 / 254.19 lbs
Refrigerant Type / ChargeR454B / 148.15 oz
Pre-charged Line Length150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)49.2 ft / 33 ft
Operating Range — Cooling / Heating-13–122°F / -13–75°F outdoor ambient

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor and Outdoor Hyper

SpecificationCH-R06MOLVWM-115VICH-R09MOLVWM-230VICH-R12MOLVWM-230VICH-R18MOLVWM-230VICH-R24MOLVWM-230VICH-R33HEMLVWM-230VI
Power Supply Rated208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Rated Capacity Btu/h6,0009,00012,00018,00023,00033,000
Minimum Circuit Ampacity (MCA) A333333
Max. Fuse A333333
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM294.3/225.4/176.8/141.3/NA382.6/293.1/194.2/153.0/NA382.6/293.1/194.2/153.0/NA759.3/530.4/419.1/382.6/NA759.3/586.5/419.1/382.6/NA829.6/716.6/592.7/447.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)42.0/37.0/32.0/24.0/NA42.0/37.0/32.0/24.0/NA43.0/37.0/32.0/24.0/NA52.5/44.0/40.5/35.2/25.054.5/49.0/45.3/41.3/27.056.0/49.5/45.3/41.3/27.0
Dimension (WxDxH) inch28.7x7.87x11.8131.5x7.87x11.6131.5x7.87x11.6145.47x12.01x16.1445.47x12.01x16.1452.76x15.16x17.72
Packing (WxDxH) inch31.10x10.63x14.7634.45x11.22x14.9634.45x11.22x14.9645.47x12.01x16.1445.47x12.01x16.1452.76x15.16x17.72
Net/Gross Weight lbs.17.64/21.3518.64/22.0518.64/22.0545.47/21.0645.47/21.0667.16/17.72
Room temperature Cooling °F60~9060~9060~9060~9060~9060~90
Room temperature Heating °F32~8632~8632~8632~8632~8632~86
Liquid Side/Gas Side inch1/4" / 3/8"1/4" / 3/8"1/4" / 3/8"1/4" / 1/2"3/8" / 5/8"3/8" / 3/4"

Specification

SpecificationCH-RVHP19M-230VOCH-RVHP28M-230VOCH-RVHP36M-230VOCH-RVHP48M-230VOCH-RVHP55M-230VO
Power Supply (V/Ph/Hz)208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Operating Range (V)187-253187-253187-253187-253187-253
Cooling Capacity (BTU/h)5,400~28,0007,200~37,0009,000~43,00012,000~57,00019,000~59,000
Rated Current5.69.51217.318.5
EER21512.5131212
SEER22523232322.2
Heating Capacity (BTU/h)5,700~27,0008,400~36,00010,000~44,00013,000~57,00020,000~59,000
HSPF26.59.111.517.320.1
COP43.843.73.5
SCOP10.410.510.71110.5
Power Input (W)8.58.58.598.5
Air Flow (CFM)19,00027,00036,00047,00047,000
Sound Level Indoor (dBA)17.530373739.5
Sound Level Outdoor (dBA)2035404040
Weight Indoor (lbs)2,130.72,148.43,037.24,502.84,502.8
Weight Outdoor (lbs)61.561656565
Dimensions Indoor (in)37.24x16.14x31.8937.24x16.14x31.8938.58x16.34x38.3937.48x16.34x52.4837.48x16.34x52.48
Dimensions Outdoor (in)42.91x19.68x34.8442.91x19.68x34.8445.08x19.68x42.5243.11x19.49x58.2743.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)137.35/148.15168.43/179.67211.86/244.71246.47/276.68246.47/276.68
Refrigerant Type/Amount (lbs)R454B/78.31R454B/120.63R454B/134.04R454B/151.68R454B/151.68
Fuse Size (A)75100125150150
Wire Size (AWG)0.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.32
Control Voltage (V)550/340550/340550/340550/340550/340
Liquid Line3 x 1/4"4 x 1/4"5 x 1/4"6 x 1/4"6 x 1/4"
Suction Line3 x 3/8"3 x 3/8" + 1 x 1/2"3 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"
Max Line Length (ft)196.8262.4262.4262.4262.4
Max Elevation Diff (ft)98.4114.8114.8114.8114.8
Max Head Pressure (ft)49.249.249.249.249.2
Max Suction Pressure (ft)3333333333
Operating Range Cooling (°F)-22~122-22~122-22~122-22~122-22~122
Operating Range Heating (°F)-22~75-22~75-22~75-22~75-22~75
Feature 1✓✓✓✓✓
Feature 2✓✓✓✓✓
Feature 3✓✓✓✓✓
Feature 4✓✓✓✓✓

Indoor and Outdoor Regular

SpecificationCH-R060LVWM-115VICH-R09OLVWM-115VICH-R120LVWM-115VICH-RO9MOLVWM-230VICH-R12MOLVWM-230VICH-R18MOLVWM-230VICH-R24MOLVWM-230VICH-R30MELVWM-230VICH-R36MELVWM-230VI
Power Supply Rated115V, 1, 60115V, 1, 60115V, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Rated Capacity Btu/h7,0009,00012,0009,00012,00018,00024,00030,00036,000
Minimum Circuit Ampacity (MCA) A333333333
Max. Fuse A333333333
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM370/340/265/174/-378/340/265/174/-378/340/265/174/-382/294/194/153/-382/294/194/153/-759/530/419/382/-759/586/419/382/-871/716/547/447/-871/716/547/447/-
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)44/40/35/26/-44/40/35/26/-44/40/35/26/-45/41/32/24/-45/41/32/24/-54/49/45/41/2754/49/45/41/2756/52/45/38/2256/52/45/38/22
Dimension (WxDxH) inch31.57x7.87x11.9531.57x7.87x11.9531.57x7.87x11.9531.57x7.87x11.9531.57x7.87x11.9545.47x12.01x16.3445.47x12.01x16.3449.57x11.14x14.2549.57x11.14x14.25
Packing (WxDxH) inch34.92x13.27x24.0234.92x13.27x24.0234.92x13.27x24.0234.92x13.27x24.0234.92x13.27x24.0242.91x19.09x34.8442.91x19.09x34.8442.91x19.09x34.8442.91x19.09x34.84
Net/Gross Weight lbs.18.64/22.0518.64/22.0518.64/22.0518.64/22.0518.64/22.0545.47/21.0645.47/21.0667.16/17.7267.16/17.72
Room temperature Cooling °F60~9060~9060~9060~9060~9060~9060~9060~9060~90
Room temperature Heating °F32~8632~8632~8632~8632~8632~8632~8632~8632~86
Liquid Side/Gas Side inch1/4" / 3/8"1/4" / 3/8"1/4" / 3/8"1/4" / 3/8"1/4" / 3/8"1/4" / 1/2"3/8" / 5/8"3/8" / 5/8"3/8" / 5/8"

Specification

SpecificationCH-R48MES-230VOThis modelCH-R18MES-230VOCH-R28MES-230VOCH-R36MES-230VOCH-R60MES-230VO
Power Supply (V, Ph, Hz)208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Voltage Range (V)187-253187-253187-253187-253187-253
Cooling Rated Capacity (range) (Btu/h)12,000~55,0005,400~21,6007,200~32,0009,000~42,00019,000~62,000
Cooling Rated Current (A)16.669.213.526.2
EER212.514131210
SEER22425.1252422
Heating Rated Capacity (range) (Btu/h)13,000~53,0005,700~21,6008,400~29,00010,000~42,50020,000~60,000
Heating Rated Current (A)16.36.89.21421
Heating at 47°F COP (W/W)3.83.83.83.53.7
HSPF410.39.89.59.59.5
HSPF587.8777.4
Heating at 5°F Rated Capacity (Btu/h)36,00013,50019,00026,00039,000
Minimum Circuit Ampacity (Outdoor unit) (A)40162330.540
Max. Fuse (Outdoor unit) (A)4520253545
Outdoor Air Flow (Max) (CFM)4,502.81,765.82,130.72,148.44,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))6359.56164.565
Dimension (W×D×H) (inch)37.48x16.34x52.4835.04x13.46x26.5037.24x16.14x31.8937.24x16.14x31.8937.48x16.34x52.48
Packing (W×D×H) (inch)43.11x19.49x58.2740.55x17.24x29.5342.91x19.68x34.8442.91x19.68x34.8443.11x19.49x58.27
Net/Gross Weight (lbs)222.00/254.19100.53/109.35138.89/149.69168.87/180.12237.88/270.28
Refrigerant Type/Charged (oz)R454B/148.15R454B/61.73R454B/84.66R454B/120.63R454B/151.68
Refrigerant Precharge (ft)15075100125150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)0.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.32
Design Pressure (PSIG)550/340550/340550/340550/340550/340
Refrigerant Piping Liquid Side (inch)6 x 1/4"3 x 1/4"4 x 1/4"5 x 1/4"6 x 1/4"
Refrigerant Piping Gas Side (inch)4 x 3/8" + 2 x 1/2"3 x 3/8"3 x 3/8" + 1 x 1/2"4 x 3/8" + 1 x 1/2"4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)262.4196.8262.4262.4262.4
Max. Length for One Indoor Unit (ft)114.898.4114.8114.8114.8
Max. Height Difference in Level (ft)49.249.249.249.249.2
Max. Height Difference Between Indoor Units (ft)3333333333
Ambient Temperature Cooling (°F)-13~122-13~122-13~122-13~122-13~122
Ambient Temperature Heating (°F)-13~75-13~75-13~75-13~75-13~75
Certification: AHRI✔✔✔✔✔
Certification: Energy Star✔✔✔✔✔
Certification: NEEP✔✔✔✔✔
Certification: ETL✔✔✔✔✔

Which system is right for you?

Your selectionCooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9KCooper & HunterCooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+9K$6,703.20Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+12KCooper & HunterCooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+12K$6,719.04Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+18KCooper & HunterCooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+9K+18K$6,766.56Cooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+12K+12KCooper & HunterCooper & Hunter 6 Zone 48,000 BTU Wall Mounted Mini Split AC R454B 9K+9K+9K+9K+12K+12K$6,734.88
Cooling Capacity48,000 BTU/h48,000 BTU/h48,000 BTU/h48,000 BTU/h
SEER2 Rating22.022.022.022.0
RefrigerantR454BR454BR454BR454B
ZonesSix ZoneSix ZoneSix ZoneSix Zone
Voltage230V230V230V230V
Shop Now →Shop Now →Shop Now →

Frequently asked questions.

How many rooms can the Cooper & Hunter 6 Zone 48,000 BTU mini split cool?

The Cooper & Hunter 6 Zone mini split, with a capacity of 48,000 BTU, can effectively cool up to six separate rooms, making it ideal for multi-zone applications in larger spaces.

Can I mix BTU sizes with the Cooper & Hunter mini split system?

Yes, you can mix BTU sizes with the Cooper & Hunter mini split system, but it is recommended to maintain a balanced load across the zones to ensure optimal performance and efficiency.

Do all zones run simultaneously in the Cooper & Hunter multi-zone system?

In the Cooper & Hunter multi-zone system, all zones can operate simultaneously, allowing for customized climate control in each area based on individual comfort needs.

Is it more efficient to use the Cooper & Hunter multi-zone system over multiple single-zone units?

The Cooper & Hunter 48,000 BTU mini split has a high SEER rating of 22.0, offering superior efficiency compared to multiple single-zone units, reducing overall energy consumption and installation costs.

What are the warranty terms for the Cooper & Hunter mini split system?

The Cooper & Hunter mini split system comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register within 30 days of installation.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter mini split system is pre-charged with R454B refrigerant for up to 25 ft of line set, simplifying installation and ensuring efficient operation right from the start.

Talk to a Sales Specialist

Not sure which system is right for your space? Our experts help with sizing and installation questions.

Mon – Fri, 8 AM – 5 PM (PST)

Get Support

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

You may also like

The Cooper & Hunter 6-Zone Mini Split System features a 48,000 BTU capacity, 24 SEER2 efficiency, and built-in Wi-Fi control for seamless temperature management across six zones. It utilizes R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in colder climates.

Key Features

  • 6-zone system — the CH-R48MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
  • 48,000 BTU nominal system capacity across 6 zones, each on its own remote
  • 24 SEER2 inverter efficiency — current R454B generation
  • Heat pump — heats down to -13°F outdoor ambient
  • R454B refrigerant, factory pre-charged; built-in Wi-Fi control
  • Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
Cart

Add $300.00 more for FREE shipping!

Your cart is empty

Looks like you haven't added anything yet.
