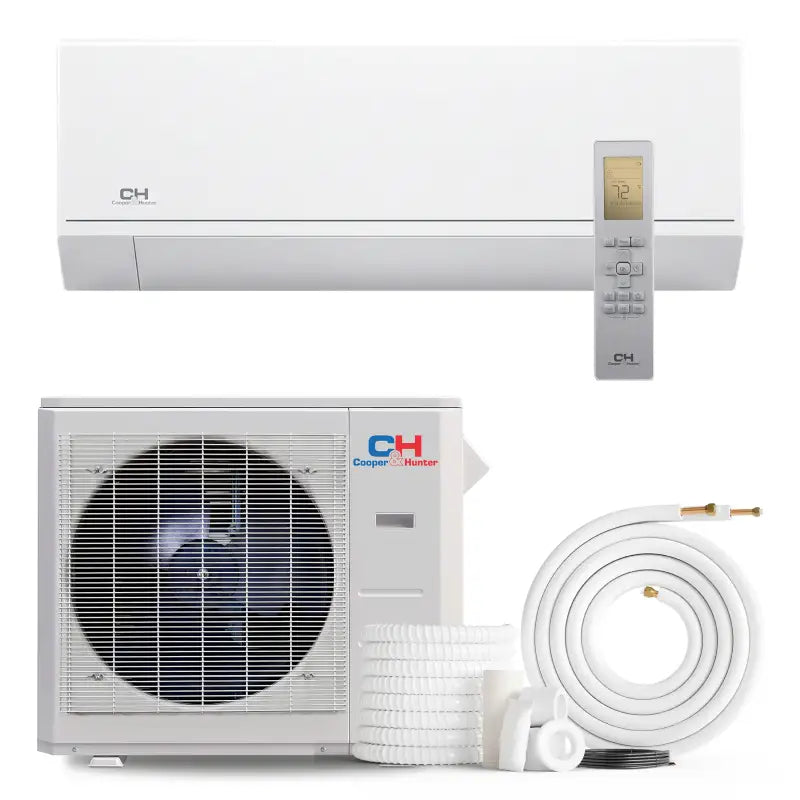

Cooper & Hunter Astoria 30,000 BTU Single Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-EL30-230VO30AST
Product specifications
- Voltage
- 230V
- SEER
- 20.0
- WiFi
- Included
- Zone
- Single Zone
- Type
- Wall Mount
- Freon
R410A
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · ASTORIA
Built for year-round comfort
CH-EL30-230VO30AST
System Specs
| Cooling Capacity | 30,000 BTU/h |
|---|---|
| SEER2 | 20.0 |
| Voltage | 230V |
| Refrigerant | R410A |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 46/40.5/33 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 44.88 × 10.83 × 14.57 in | 43.65 / 54.89 lb | RG10K-exclusive remote |
Astoria Series Description
The Cooper & Hunter Astoria Series 30,000 BTU single-zone wall mount system brings efficient year-round comfort with inverter technology, WiFi-ready smart control, and whisper-quiet operation. This R410A system pairs the CH-30ASTWM-230VI indoor unit with the CH-EL30-230VO outdoor condenser.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
IN THE BOX
Everything included with this system
- Outdoor Condenser Unit — CH-EL30-230VO
- Cooper & Hunter Astoria 30,000 BTU Indoor Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— CH-EL30-230VO
| Model | CH-EL30-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.24x16.14x31.89 in |
| Net/Gross Weight | 141.76/151.90 lb |
| Packing Dimensions (WxDxH) | 42.91x19.69x34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 30 A |
| Min. Circuit Ampacity | 23 A |
| Copper Line Size (Liquid/Gas) | 3/8"/5/8" |
| Noise Level | 61.5 dB |
| Airflow | 2,235.29 CFM |
| Dehumidification | 7.65 pt/h |
Indoor Unit Specs— CH-30ASTWM-230VI
| Model | CH-30ASTWM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 44.88x10.83x14.57 in |
| Net/Gross Weight | 43.65/54.89 lb |
| Packing Dimensions (WxDxH) | 48.43x17.91x13.98 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 3/8"/5/8" |
| Noise Level (Hi/Med/Lo) | 46/40.5/33 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 842.94/646.47/505.29/382.35 CFM |
| Dehumidification | 7.65 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | RG10K-exclusive remote |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Models Hyper
| Specification | Astoria 30K Single Zone |
|---|---|
| Indoor Model | CH-30ASTWM-230VI |
| Outdoor Model | CH-EL30-230VO |
| Power Supply (V-Hz-Ph) | 208-230/60/1 |
| Cooling Capacity (Btu/h) | 30,000 |
| SEER2 (up to) | 20 |
| Indoor Noise Level (Hi/Mi/Lo) dB(A) | 46/40.5/33 |
| Indoor Unit Dimension (WxDxH) in | 44.88x10.83x14.57 |
| Indoor Net/Gross Weight (lb) | 43.65/54.89 |
| Refrigerant Piping (Liquid/Gas) | 3/8" / 5/8" |
| Refrigerant | R410A |
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R410ASEER2 22.9Heats & Cools
7-Yr Warranty
Cooper & HunterCooper & Hunter 2 Zone 18,000 BTU Ducted Mini Split AC Concealed Duct 9k+9kFree Shipping
The Cooper & Hunter Astoria Series 30,000 BTU single-zone wall mount system brings efficient year-round comfort with inverter technology, WiFi-ready smart control, and whisper-quiet operation. This R410A system pairs the CH-30ASTWM-230VI indoor unit with the CH-EL30-230VO outdoor condenser.
- Inverter compressor — heats and cools with precision, saving energy
- Smart Kit & Remote App control included
- No-kink rubberized drainage extension included
- Covered by Cooper & Hunter's 7-year compressor limited warranty
Installation by a licensed HVAC professional is required to keep the warranty valid.
