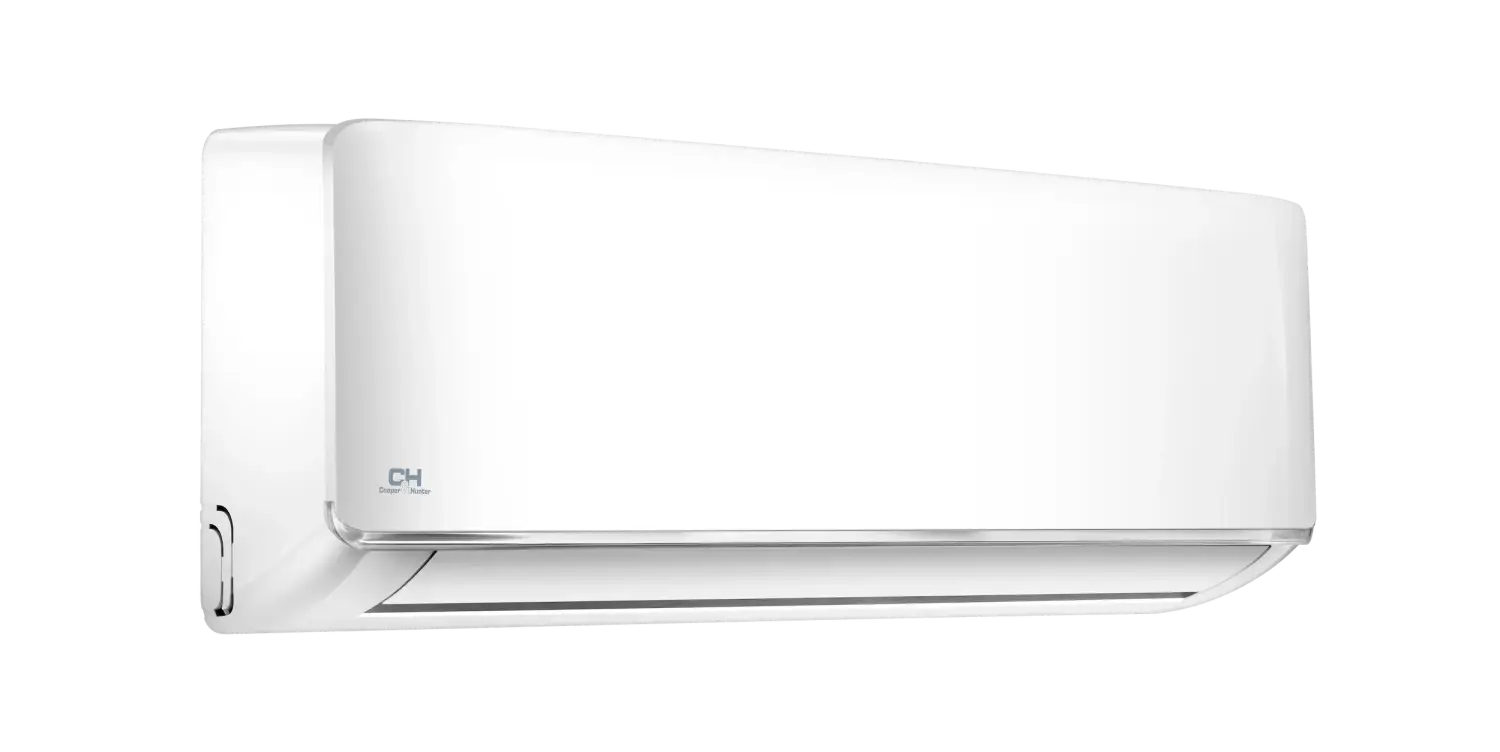

Cooper & Hunter Olivia 36,000 BTU Indoor Single/Multi Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump

Summary

The Olivia Series Multi Zone Ductless Mini Split Systems we offer have options of 16ft, 25ft, and 50ft kits. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 26.4 SEER2. This system will both heat and cool your home or office effectively down to -13°F for Standard units, and even down to -22°F for Hyper units.
The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection. The Olivia indoor wall-mounted series is an incredible option as a single or multi-zone mini split unit!

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

What's Included

• Indoor Unit CH-36MOLVWM-230VI (36,000 BTU Olivia Indoor Wall Mount Unit)
• Wi-Fi Adapter (17310900A05963)
• Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
• Wireless Remote Controls

• Installation Manual
• User’s Manual
• Manufacturer Warranty

Compatible Standard Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	18,000 BTU	CH-18MES-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-28MES-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-36MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-48MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-55MES-230VO

Compatible Hyper Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	19,000 BTU	CH-HPR19M-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-HPR28M-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-HPR36M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-HPR48M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-HPR55M-230VO

Sizing and Compatability:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Warranty

• 7 year compressor limited warranty
• 5 year parts limited warranty (must be installed by a licensed HVAC technician)
• 1 year remote control

Technical Information

Model Number: CH-36MOLVWM-230VI

Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Rated Capacity	36,000 BTU/h
EER2	9.5
SEER 2	18
Refrigerant Type	R410A
Suitable Area	1500 AND UP SQ FT
Indoor Air Flow (Turbo/Hi/Mi/Lo)	794.12/652.94/447.06/329.41
Sound Level (Hi/Lo)	54/45/40
Dimensions	49.57x11.14x14.25
Net/Gross Weight	42.77/55.56
Cooling	60 ~ 90°F
Heating	32 ~ 86°F
Drainage water pipe diameter	5/8"

Certifications

Performance Data/Features

• Auto-Swing for horizontal
  louvers
• Genius Core ultra-low
  compressor speed of 12Hz
• 46° Freeze Protection
• Turbo Mode
• Self-Clean Function
  (Single-Zone only)
• Eco Mode (Single-Zone only)
• Follow Me Mode

• Remote Control included
• Smart Kit ready with downloadable C&H remote app
