Cooper & Hunter Olivia Midnight Hyper Heat 12,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-RHP12-230VO12OLV
Product specifications
- Voltage
- 230V
- SEER
- 24.0
- WiFi
- Included
- Zone
- Single Zone
- Type
- Wall Mount
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · OLIVIA MIDNIGHT
Built for year-round comfort
CH-RHP12-230VO12OLV
System Specs
| Cooling Capacity | 12,000 BTU/h |
|---|---|
| Heating Capacity | 3,800–16,000 BTU/h |
| SEER2 | 24.0 |
| EER2 | 13.2 |
| Voltage | 230V |
| Refrigerant | R454B |
|---|---|

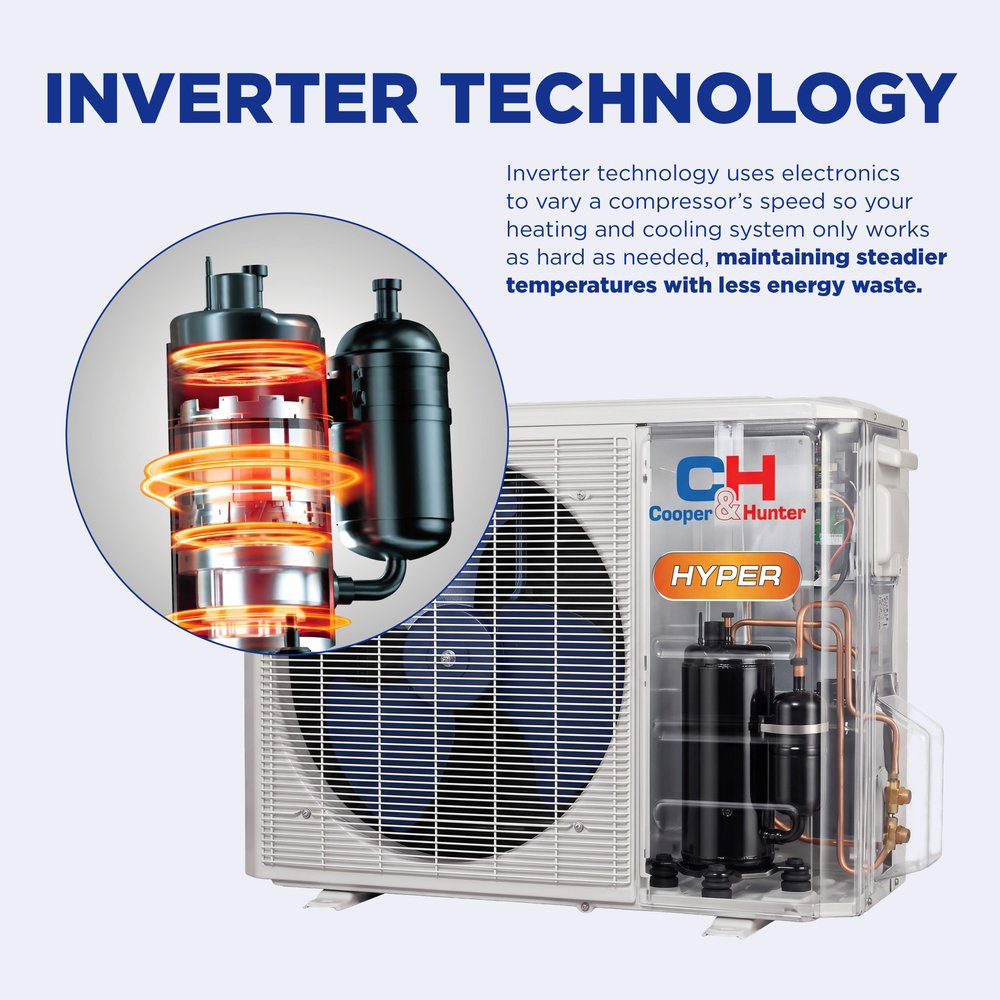

| Compressor | Inverter |
| Climate Range | -22–122°F / -22–75°F outdoor ambient |
| Sound Level (indoor) | 42 / 35.5 / 22.5 dB(A) |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 31.57 × 7.87 × 11.61 in | 18.74 / 24.25 lb | RG10K-exclusive remote |
Olivia Midnight Series Description
The Cooper & Hunter Olivia Midnight Hyper Heat 12,000 BTU (1 Ton) wall mount mini split is a single-zone ductless air conditioner and heat pump on next-generation R454B refrigerant. This is the Olivia Midnight Edition with a jet-black casing — the same engineering as the classic Olivia. The slim wall-mounted air handler suits bedrooms, living rooms, home offices, additions, and garages. With a 24.0 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 550 sq ft and keeps heating in outdoor temperatures as low as -22°F. Wi-Fi control is built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

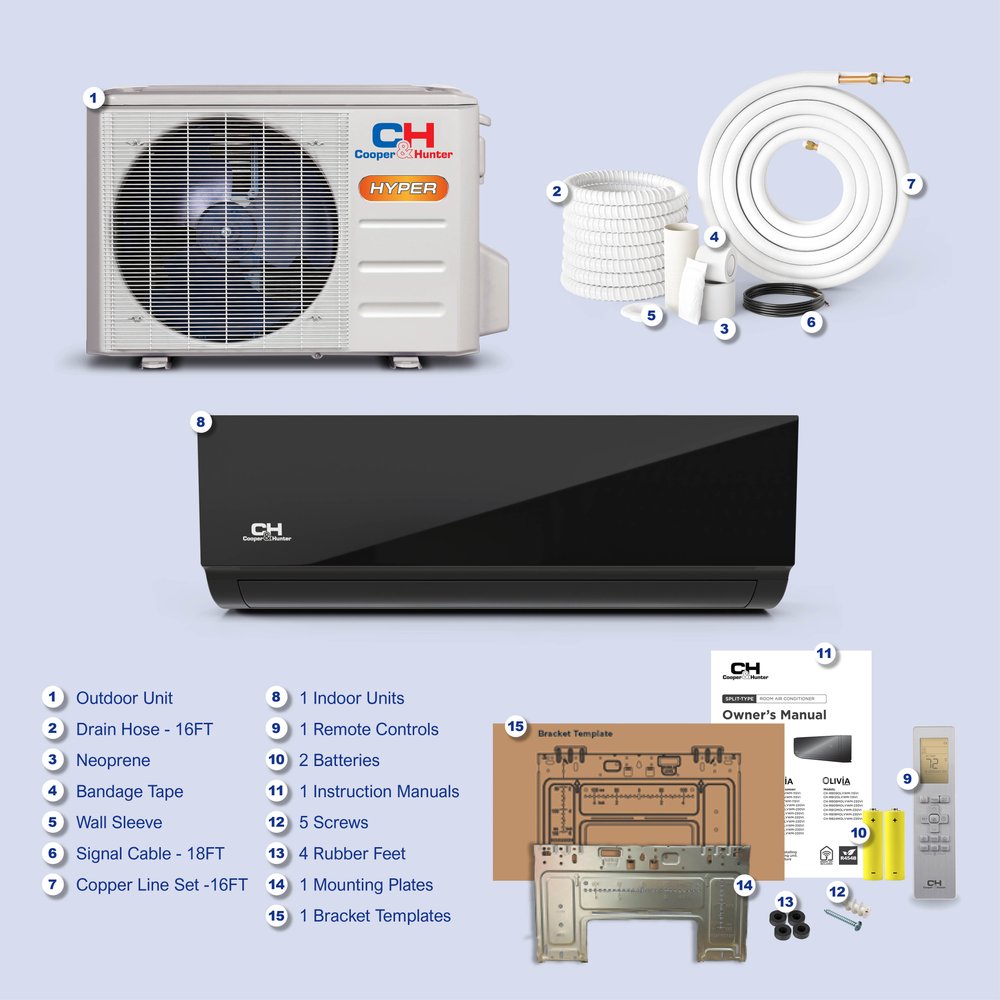

IN THE BOX
Everything included with this system
- Cooper & Hunter Hyper 12,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump

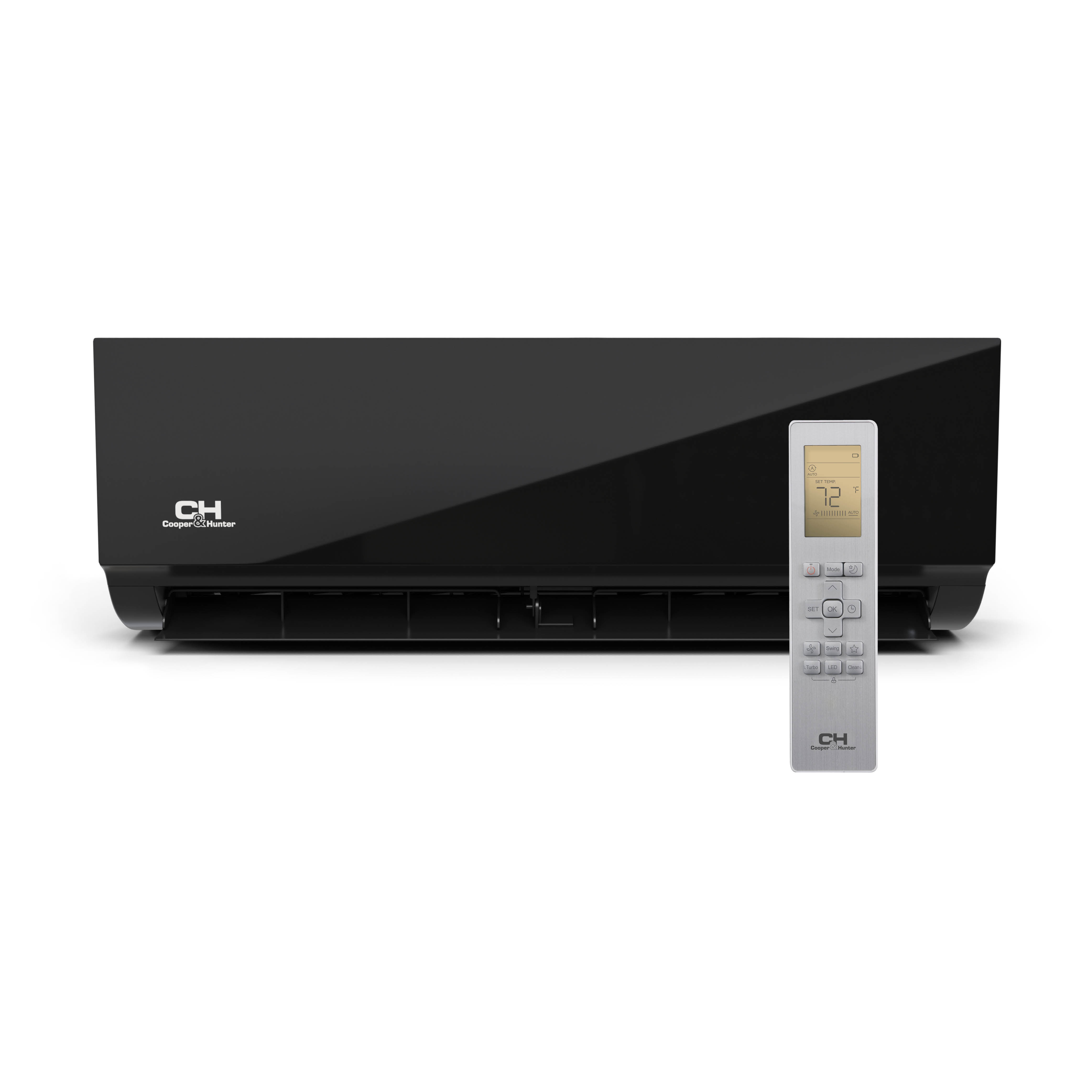

- Indoor Wall Mount — CH-RB12MOLVWM-230VI
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

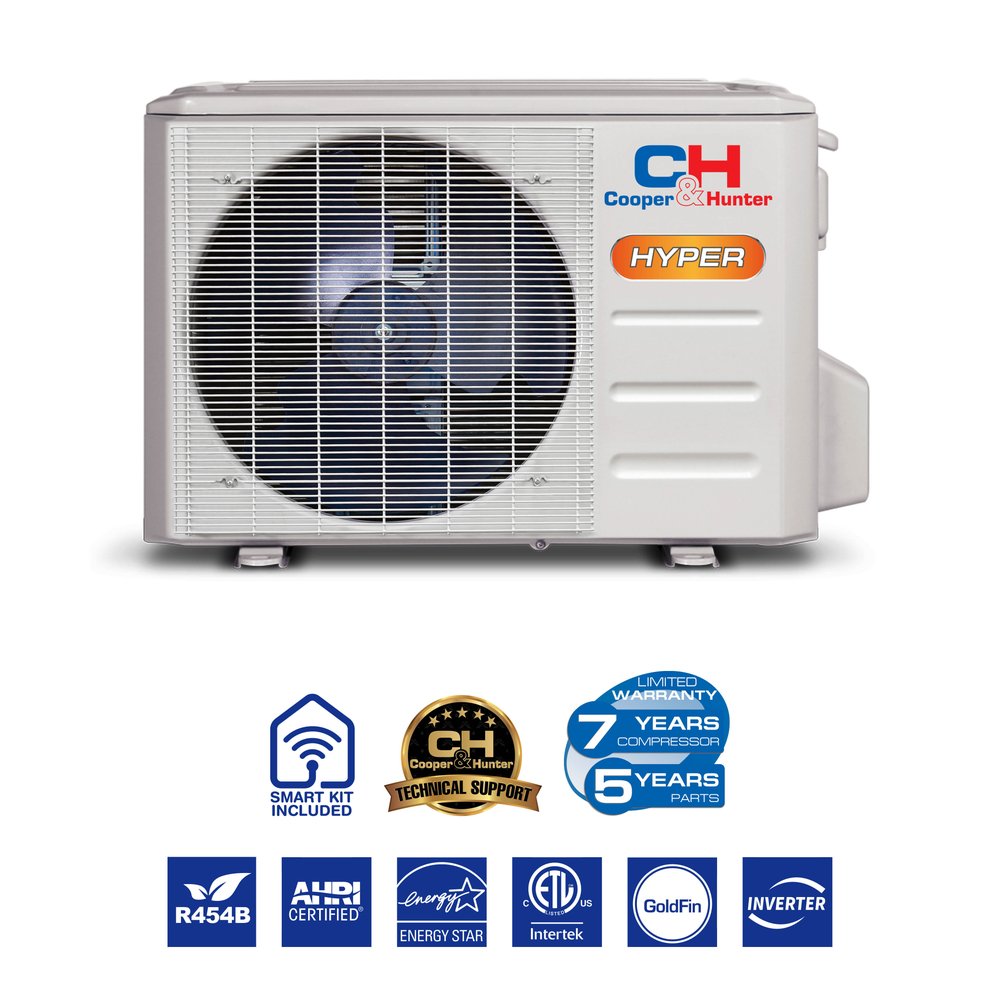

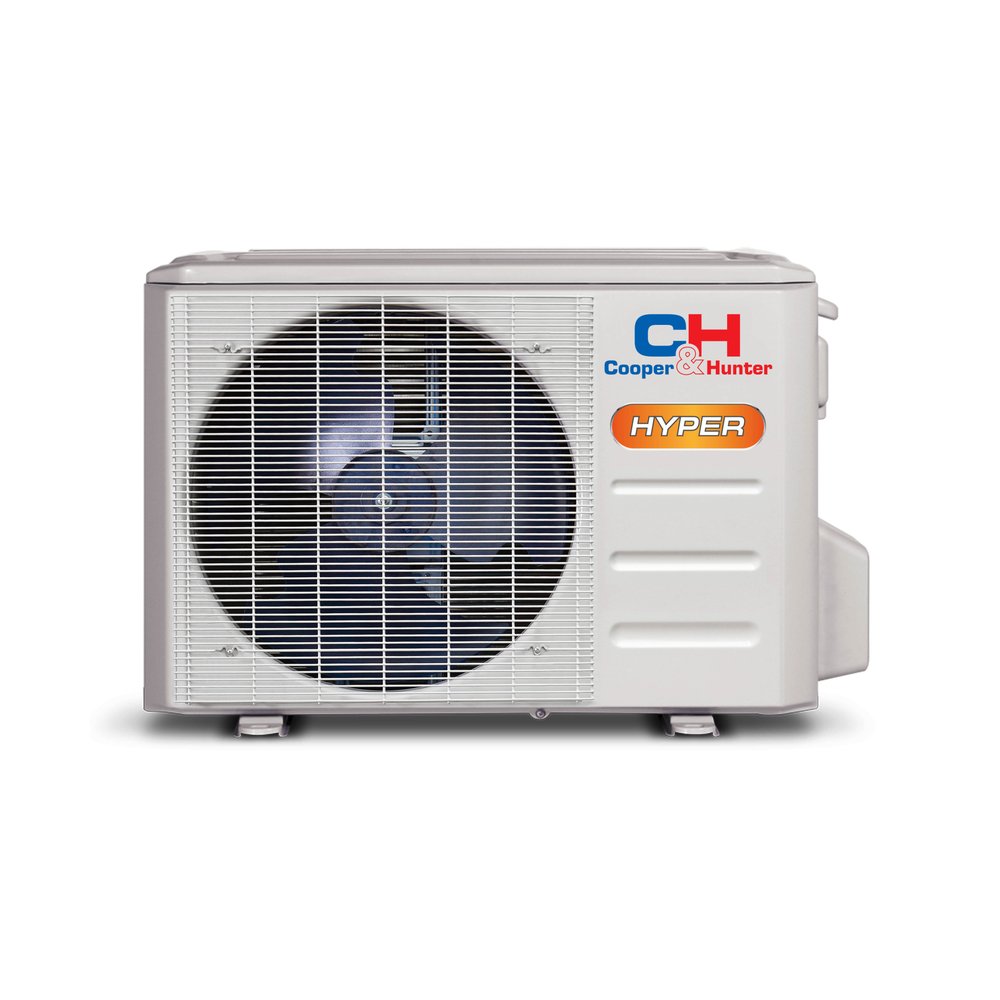

Outdoor Unit Specs— CH-RHP12-230VO
| Model | CH-RHP12-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 31.69 x 12.99 x 21.81 in |
| Net/Gross Weight | 72.75/78.70 lb |
| Packing Dimensions (WxDxH) | 36.02 x 14.57 x 24.21 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 15 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level | 56 dB |
| Airflow | 1,470.6 CFM |
| Dehumidification | 2.96 pt/h |
Indoor Unit Specs— CH-RB12MOLVWM-230VI
| Model | CH-RB12MOLVWM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 31.57x7.87x11.61 in |
| Net/Gross Weight | 18.74/24.25 lb |
| Packing Dimensions (WxDxH) | 34.45x11.22x14.96 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 42/36/25 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 341.18/291.18/194.12/152.94 CFM |
| Dehumidification | 2.83 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | RG10K-exclusive remote |
System Specs
| Cooling — Rated Capacity (Range) | 12,000 Btu/h (3,600–13,500) |
|---|---|
| Heating Capacity Range (47°F) | 3,800–16,000 Btu/h |
| Rated Heating at 17°F (AHRI) | 12,800 Btu/h |
| SEER2 / EER2 | 24.0 / 13.2 |
| HSPF4 / HSPF5 / COP (47°F) | 10.5 / 8.0 / 3.63 |
| Outdoor Unit MCA / Max. Fuse | 15 A / 15 A |
| Indoor Unit MCA / Max. Fuse | 3 A / 15 A |
| Indoor Air Flow (Turbo/Hi/Mid/Lo) | 382.6 / 294.3 / 194.2 / 153.0 CFM |
| Indoor Noise Level (Hi/Mid/Lo) | 42 / 35.5 / 22.5 dB(A) |
| Indoor Unit Dimensions (W×D×H) | 31.57 × 7.87 × 11.61 in |
| Indoor Unit Net / Gross Weight | 18.96 / 24.25 lbs |
| Outdoor Noise Level | 56.0 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 31.69 × 12.99 × 21.81 in |
| Outdoor Unit Net / Gross Weight | 72.75 / 78.70 lbs |
| Refrigerant Type / Charge | R454B / 35.27 oz |
| Pre-charged Line Length | 25 ft (add 0.16 oz per additional ft) |
| Line Set (Liquid / Gas) | 1/4" / 3/8" |
| Max. Pipe Length | 82 ft |
| Max. Elevation Difference | 49.2 ft |

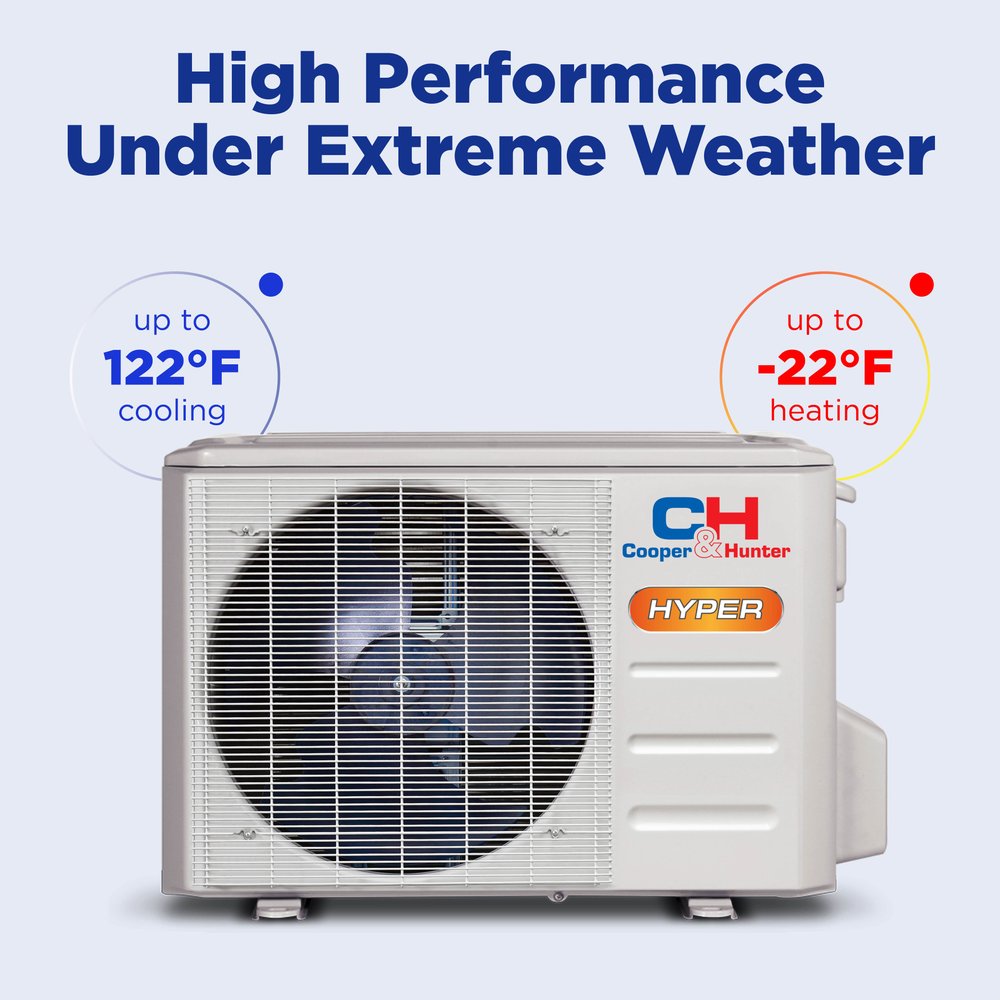

| Operating Range — Cooling / Heating | -22–122°F / -22–75°F outdoor ambient |
| Recommended Coverage | up to 550 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor HYPER
| Specification | CH-RB06MOLVWM-230VI | CH-RB09MOLVWM-230VI | CH-RB12MOLVWM-230VI | CH-RB18MOLVWM-230VI | CH-RB24MOLVWM-230VI |
|---|---|---|---|---|---|
| Rated | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity | 6,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 18,000 Btu/h | 23,000 Btu/h |
| Minimum Circuit Ampacity (MCA) | 3 A | 3 A | 3 A | 3 A | 3 A |
| Max. Fuse | 15 A | 15 A | 15 A | 15 A | 15 A |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 294.3/235.4/176.6/141.3/ \A | 382.6/294.3/194.2/153.0/NA | 382.6/294.3/194.2/153.0 / / | 759.3/500.3/441.4/ 370.8 / / | 799.3/588.6/459.1/ 382.6 / / |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | 42/37/32/24/20 dB(A) | N\A/38.5/33/24/20.5 dB(A) | N\A/42/35.5/22.5/20 dB(A) | 54.5/45/40/24.5/20 dB(A) | 54.5/45.5/43.5/34.5/20.5 dB(A) |
| Dimension (WxDxH) | 28.70x7.87x11.50 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 42.60x9.21x13.27 inch | 42.60x9.21x13.27 inch |
| Packing (WxDxH) | 31.10x10.63x14.76 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 45.47x12.40x16.34 inch | 45.47x12.40x16.34 inch |
| Net/Gross Weight | 17.64/23.15 lbs. | 18.96/24.25 lbs. | 18.96/24.25 lbs. | 30.42/39.68 lbs. | 30.86/40.56 lbs. |
| Cooling | 60 ~ 90 °F | 60 ~ 90 °F | 60 ~ 90 °F | 60 ~ 90 °F | 60 ~ 90 °F |
| Heating | 32 ~ 86 °F | 32 ~ 86 °F | 32 ~ 86 °F | 32 ~ 86 °F | 32 ~ 86 °F |
Outdoor HYPER
| Specification | CH-RHP12-230VOThis model | CH-RHP06F9-230VO | CH-RHP09-230VO | CH-RHP18-230V0 | CH-RHP24-230VO |
|---|---|---|---|---|---|
| Rated (V, Ph, Hz) | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Capacity (range) (Btu/h) | 3,600~13,500 | 2,500~11,500 | 3,600~13,500 | 8,400~20,200 | 16,800~24,500 |
| Rated Current (A) | 4.1 | 3.1 | 4.0 | 9.0 | 8.4 |
| EER2 (Btu/h) | 13.2 | 16.0 | 15.0 | 13.0 | 12.5 |
| SEER2 (Btu/h) | 24.0 | 25.3 | 26.0 | 21.7 | 22.3 |
| Rated Capacity (range) (Btu/h) | 3,800~16,000 | 3,200~10,700 | 3,800~16,000 | 10,900~23,000 | 11,800~28,100 |
| Rated current (A) | 4.3 | 4.0 | 4.3 | 9.5 | 11.2 |
| COP (W/W) | 3.83 | 3.80 | 3.83 | 3.54 | 3.05 |
| HSPF4 | 10.5 | 14.6 | 12.5 | 10.8 | 13.3 |
| HSPF5 | 8.0 | 11.2 | 10.1 | 8.8 | 9.6 |
| Rated capacity (Btu/h) | 12,800 | 8,600 | 12,800 | 19,800 | 24,400 |
| Minimum Circuit Ampacity (A) | 15 | 12 | 15 | 19 | 24.9 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 15 | 20 | 25 |
| Outdoor Air Flow (Max.) (CFM) | 1,470.6 | 1,235.3 | 1,470.6 | 1,764.7 | 2,235.3 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 56.0 | 53.0 | 56.0 | 59.0 | 61.0 |
| Dimension (WxDxH) (inch) | 31.69x12.99x21.81 | 30.12x11.93x21.85 | 31.69x12.99x21.81 | 35.04x13.46x26.50 | 37.24x16.14x31.89 |
| Packing (WxDxH) (inch) | 36.02x14.57x24.21 | 34.92x13.27x24.02 | 36.02x14.57x24.21 | 39.17x15.67x29.13 | 42.91x19.66x34.84 |
| Net/Gross Weight (lbs.) | 72.75/78.70 | 62.17/67.68 | 72.75/78.70 | 98.87/107.80 | 130.29/141.31 |
| Refrigerant Type / Charge (oz.) | R4548/35.27 | R4548/32.45 | R4548/35.27 | R4548/55.38 | R4548/63.49 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max. Pipe Length (ft.) | 82 | 82 | 82 | 98.4 | 164 |
| Max. Difference in Level (ft.) | 49.2 | 49.2 | 49.2 | 65.6 | 82 |
| Cooling (-*F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Heating (*F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| ETL | ✓ | ✓ | ✓ | ✓ | ✓ |
| AHRI | ✓ | ✓ | ✓ | ✓ | ✓ |
| Energy Star | ✓ | ✓ | ✓ | ✓ | ✓ |
| NEEP | ✓ | ✓ | ✓ | ✓ | ✓ |
Indoor REGULAR
| Specification | CH-RB090LVWM-115VI | CH-RB120LVWM-115VI | CH-RB09MOLVWM-230VI | CH-RB12MOLVWM-230VI | CH-RB18MOLVWM-230VI | CH-RB24MOLVWM-230VI |
|---|---|---|---|---|---|---|
| Power Supply | 115,1, 60 | 115,1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| MCA | 3 | 3 | 3 | 3 | 3 | 3 |
| Max. Fuse | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 370.8/306.1/235.4/188.4/141.3 | 370.8/306.1/235.4/188.4/141.3 | 382.6/294.3/194.2/153.0/ N/A | 382.6/294.3/194.2/153.0 / / | 759.3/500.3/441.4/ 370.8 / / | 759.3/588.6/459.1/382.6 / / |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | 44.0/40.5/35.0/26.5/17.5 | 44.0/40.5/35.0/26.5/17.5 | 45.5/42/36/21/19.5 | 46/43/37/20/19 | 54/45/40/26/20 | 54.0/48.5/43.5/27.5/20.5 |
| Dimension (WxDxH) | 31.57x7.87x11.61 | 31.57x7.87x11.61 | 31.57x7.87x11.61 | 31.57x7.87x11.61 | 42.64x9.61x13.23 | 42.60x9.21x13.27 |
| Packing (WxDxH) | 34.45x11.22x14.96 | 34.45x11.22x14.96 | 34.45x11.22x14.96 | 34.45x11.22x14.96 | 45.47x12.40x16.34 | 45.47x12.40x16.34 |
| Net/Gross Weight | 18.96/24.47 | 18.96/24.47 | 18.96/24.25 | 18.96/24.25 | 30.42/39.68 | 30.86/40.56 |
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
Outdoor REGULAR
| Specification | CH-RES09-115VO | CH-RES12-115VO | CH-RES09-230VO | CH-RES12-230VO | CH-RES18-230VO | CH-RES24-230VO |
|---|---|---|---|---|---|---|
| Power Supply | 115,1, 60 | 115,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Voltage Range | 103.5~126.5 | 103.5~126.5 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Capacity (Btu/h) | 2,600~13,000 | 3,100~10,900 | 2,600~13,000 | 2,600~13,700 | 3,600~20,000 | 9,700~27,000 |
| Rated Current (A) | 6.9 | 10.0 | 4.6 | 4.5 | 6.0 | 8.0 |
| Max. Fuse (A) | 15.0 | 15.0 | 15.0 | 15.0 | 20.0 | 25.0 |
| EER2 | 24.5 | 23.2 | 24.6 | 24.1 | 23.0 | 23.5 |
| SEER2 | 24.5 | 24.6 | 24.6 | 23.1 | 24.0 | 23.5 |
| Rated Capacity (Heating, Btu/h) | 4,500~12,800 | 4,500~12,800 | 4,200~14,200 | 4,100~14,400 | 7,600~22,000 | 11,300~32,700 |
| Rated Current (Heating, A) | 7.6 | 10.3 | 3.6 | 4.3 | 6.2 | 10.4 |
| COP (W/W) | 3.6 | 3.6 | 3.6 | 3.9 | 3.8 | 3.8 |
| HSPF4 | 8.2 | 7.6 | 9.5 | 8.5 | 8.3 | 7.7 |
| HSPF5 | 8,900 | 10,200 | 8,900 | 9,900 | 14,500 | 21,300 |
| Minimum Circuit Ampacity (A) | 18 | 18 | 12 | 12 | 18 | 24 |
| Max. Fuse (Outdoor Unit) (A) | 20 | 20 | 15 | 15 | 20 | 25 |
| Outdoor Air Flow (Max.) (CFM) | 1,235.3 | 1,235.3 | 1,235.3 | 1,235.3 | 1,764.7 | 2,235.3 |
| Outdoor Noise Level (dB(A)) | 53.0 | 53.0 | 52.5 | 54.0 | 59.0 | 60.0 |
| Dimension (WxDxH) (inch) | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 35.04x13.46x26.50 | 37.24x16.14x31.89 |
| Packing (WxDxH) (inch) | 34.92x13.27x24.02 | 34.92x13.27x24.02 | 34.92x13.27x24.02 | 34.92x13.27x24.02 | 39.17x15.67x29.13 | 42.91x19.69x34.84 |
| Net/Gross Weight (lbs.) | 64.59/70.11 | 64.59/70.11 | 62.17/67.68 | 62.17/67.68 | 92.59/100.31 | 122.13/132.28 |
| Refrigerant Type / Charge (oz.) | R454B/33.51 | R454B/33.51 | R454B/32.45 | R454B/32.45 | R454B/47.97 | R454B/70.55 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4\" / 3/8\" | 1/4\" / 3/8\" | 1/4\" / 3/8\" | 1/4\" / 3/8\" | 1/4\" / 1/2\" | 3/8\" / 5/8\" |
| Max. Pipe Length (ft.) | 82 | 82 | 82 | 82 | 98.4 | 164 |
| Max. Difference in Level (ft.) | 49.2 | 49.2 | 49.2 | 49.2 | 65.6 | 82 |
| Ambient Temp Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | -13~122 | -13~122 |
| Ambient Temp Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
| ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Frequently asked questions.
What’s included in this system?
A complete single-zone system: the indoor unit and its matching outdoor condenser. Choose a line-set kit length at checkout, or supply your own.
What size room does it suit?
It is rated at 12,000 BTU — size it to your room’s square footage and insulation for the best match.
Does it heat as well as cool?
Yes — it is an inverter heat pump that both cools and heats down to -22°F outdoor ambient (Hyper Heat). See the specifications for this model’s heating range.
What refrigerant does it use?
R454B. The system ships factory pre-charged; a licensed installer adjusts the charge for your line length.
Who should install it?
A licensed HVAC professional — required for the refrigerant, electrical, and startup work, and to keep the manufacturer warranty valid. Many customers buy the equipment here and hire a local installer.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 25.1HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 2 Zone 18,000 BTU OLIVIA Midnight Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R454BSEER2 22.9HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 2 Zone 18,000 BTU OLIVIA Midnight Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R454BSEER2 25.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Olivia Midnight 19,000 BTU 2-Zone 9k+9k Wall Mount, 230V, R454BFree Shipping
- R454BSEER2 25.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Olivia Midnight 19,000 BTU 2-Zone 9k+12k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter Olivia Midnight Hyper Heat 12,000 BTU (1 Ton) wall mount mini split is a single-zone ductless air conditioner and heat pump on next-generation R454B refrigerant. This is the Olivia Midnight Edition with a jet-black casing — the same engineering as the classic Olivia. The slim wall-mounted air handler suits bedrooms, living rooms, home offices, additions, and garages. With a 24.0 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 550 sq ft and keeps heating in outdoor temperatures as low as -22°F. Wi-Fi control is built in.
Key Features
- 12,000 Btu/h rated cooling — inverter cooling range 3,600–13,500 Btu/h; heating capacity range 3,800–16,000 Btu/h at 47°F
- 12,800 Btu/h AHRI rated heating at 17°F — certified low-ambient heat output
- 24.0 SEER2 / 13.2 EER2 / 10.5 HSPF4 — current R454B-generation efficiency
- Hyper Heat: heats down to -22°F outdoor ambient; cooling operation -22–122°F
- Auto-swing horizontal louvers with Turbo Mode, Follow Me mode, Sleep Mode, and Timer On/Off
- Self-Cleaning and Eco modes (active on single-zone systems); 46°F freeze-protection function
- Quiet: indoor unit from 22.5 dB(A) with Genius Core ultra-low 12Hz compressor speeds; outdoor unit 56.0 dB(A)
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; remote control included; compatible with C&H 12V wall thermostat (sold separately)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed
Cooper & Hunter Olivia Wall Mount (R454B) Lineup
| Capacity | Outdoor + Indoor Unit | SEER2 | Heats down to | Coverage* |
| 6,000 BTU Hyper Heat | CH-RHP06F9-230VO + CH-R06MOLVWM-230VI | 25.3 | -22°F | up to 300 sq ft |
| 9,000 BTU | CH-RES09-230VO + CH-R09MOLVWM-230VI | 24.6 | -13°F | up to 400 sq ft |
| 9,000 BTU Hyper Heat | CH-RHP09-230VO + CH-R09MOLVWM-230VI | 26.0 | -22°F | up to 400 sq ft |
| 12,000 BTU | CH-RES12-230VO + CH-R12MOLVWM-230VI | 23.1 | -13°F | up to 550 sq ft |
| 12,000 BTU (115V) | CH-RES12-115VO + CH-R12OLVWM-115VI | 23.2 | -13°F | up to 550 sq ft |
| 12,000 BTU Hyper Heat | CH-RHP12-230VO + CH-R12MOLVWM-230VI | 24.0 | -22°F | up to 550 sq ft |
| 18,000 BTU | CH-RES18-230VO + CH-R18MOLVWM-230VI | 24.0 | -13°F | up to 1,000 sq ft |
| 18,000 BTU Hyper Heat | CH-RHP18-230VO + CH-R18MOLVWM-230VI | 21.7 | -22°F | up to 1,000 sq ft |
| 24,000 BTU | CH-RES24-230VO + CH-R24MOLVWM-230VI | 23.5 | -13°F | up to 1,500 sq ft |
| 24,000 BTU Hyper Heat | CH-RHP24-230VO + CH-R24MOLVWM-230VI | 22.3 | -22°F | up to 1,400 sq ft |
| 30,000 BTU | CH-REL30-230VO + CH-R30MELVWM-230VI | 22.3 | -13°F | up to 1,800 sq ft |
| 36,000 BTU | CH-REL36-230VO + CH-R36MELVWM-230VI | 19.5 | -13°F | up to 2,200 sq ft |
*Coverage is sizing guidance; actual load depends on insulation, ceiling height, sun exposure, and climate.
