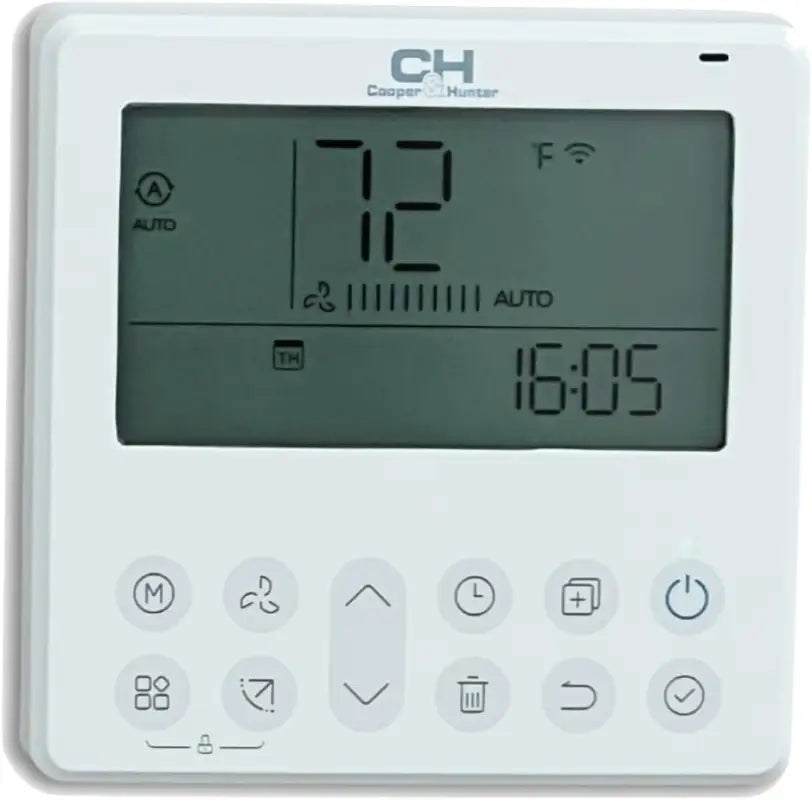

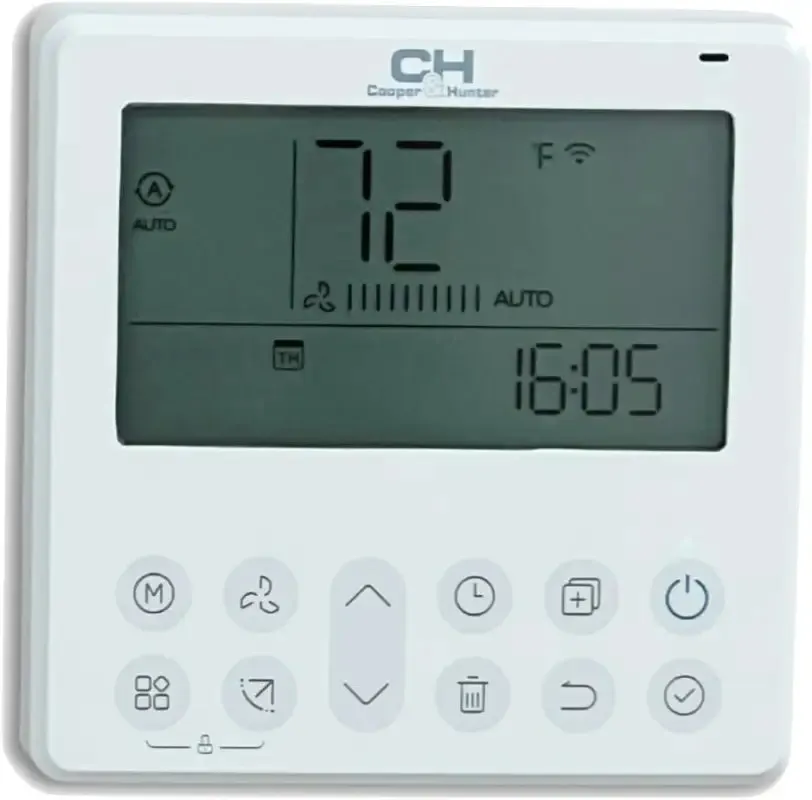

Cooper & Hunter Wired Wall Thermostat Controller with a Built-in Smart Kit for Ceilings Cassettes, Universal Floor and Ceiling, and Multi Position Air Handlers
Cooper & HunterSKU: 120NWiredcontroller(17317100A41016)
Product specifications
- Voltage
- 230V
- WiFi
- Included
- Type
- Thermostat
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · THERMOSTAT
Built for year-round comfort
120NWiredcontroller(17317100A41016)
Product Description
Cooper&Hunter Wired Wall Thermostat Controller with a Built-in Smart Kit. This Cooper&Hunter wired thermostat controller is compatible with brand's 4-way Cassettes, 1-way Cassettes, Slim Duct, Universal Floor Ceiling, and Multi-Position Air Handlers units. Please note that other mini split brands, or wall mounted units are not supported by this wired controller. Control your Cooper&Hunter mini split air conditioner using NetHome Plus or Cooper&Hunter Remote application. Easily turn your units ON and OFF, set the temperature, alternate between C° and F°, switch modes, and adjust the fan…
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor unit model
| Specification | CH-NY06MIA-115VI | CH-NY09MIA-115VI | CH-NY12MIA-115VI | CH-NY09MIA-230VI | CH-NY12MIA-230VI | CH-NY18MIA-230VI | CH-NY24MIA-230VI |
|---|---|---|---|---|---|---|---|
| Power supply, V, Ph, Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 115V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz | 208/230V,1Ph,60Hz |
| Cooling Capacity, Btu/h | 6,000 | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| MAX. FUSE (Indoor unit), A | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
| Indoor air flow (Hi/Mi/Lo), CFM | 282/247/182/129 | 282/247/182/129 | 341/308/205/176 | 309/258/192/135 | 358/317/192/135 | 450/388/258/217 | 705/588/450/352 |
| Indoor noise level (Hi/Mi/Lo), dB(A) | 36/31/22 | 36/31/22 | 41/30/26 | 40/30/24 | 37/30/22 | 43/34/30 | 45/39/35 |
| Unit Dimensions (W*D*H), inch | 28.4x7.3x11.4 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 28.4x7.3x11.4 | 31.5x7.4x11.6 | 37.9x8.4x12.5 | 42.5x8.9x13.1 |
| Packing Dimensions (W*D*H), inch | 31x10x14 | 31x10x14 | 34x11x14 | 31x10x14 | 34x11x14 | 41x12x16 | 45x16x12 |
| Net/Gross weight, lbs. | 16.98/22.2 | 16.98/22.2 | 19.84/24.2 | 16.98/22.2 | 18.96/22.2 | 23.81/31.5 | 29.98/38.5 |
| Design Pressure, PSIG | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Room Temperature, °F | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 |
Outdoor unit model
| Specification | CH-NY06MIA-115VO | CH-NY09MIA-115VO | CH-NY12MIA-115VO | CH-NY09MIA-230VO | CH-NY12MIA-230VO | CH-NY18MIA-230VO | CH-NY24MIA-230VO |
|---|---|---|---|---|---|---|---|
| Cooling Capacity, Btu/h | 6,000 (2,650-10,300) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| SEER | 21.5 | 21.5 | 20.8 | 21.7 | 21.4 | 19 | 18 |
| EER | 12.5 | 12.5 | 10.3 | 12.6 | 12.6 | 10.5 | 9 |
| Heating Capacity, Btu/h | 7,000 (2,700-10,500) | 10,000 (2,700-10,500) | 12,000 (4,000-12,500) | 10,000 (2,400-10,900) | 12,000 (2,730-12,500) | 18,800 (6,300-19,400) | 24,000 (6,900-28,100) |
| COP | 2.93 | 2.93 | 3.13 | 3.29 | 3.23 | 2.93 | 3.03 |
| HSPF4 | 9 | 9 | 8.2 | 9.1 | 9.1 | 8.7 | 8.6 |
| HSPF5 | 6.9 | 6.9 | 6.6 | 6.9 | 6.9 | 6.8 | 6.6 |
| MINIMUM CIRCUIT AMPACTY (MCA), A | 20 | 20 | 18.5 | 12 | 15 | 15 | 19 |
| MAX. FUSE, A | 30 | 30 | 25 | 15 | 15 | 20 | 30 |
| Air Flow (Max), CFM | 1,294 | 1,294 | 1,235 | 1,294 | 1,235 | 1,235 | 1,764 |
| Outdoor Noise, [dB(A)] | 54 | 55 | 53 | 54 | 53 | 57 | 60 |
| Dimension (WxDxH), (inch) | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 30.1x11.9x21.9 | 31.7x12.9x21.8 | 35x13.5x26.5 |
| Packing (WxDxH), (inch) | 34.9x13x24 | 34.9x13x24 | 34.9x13x24 | 34.9x13.27x24 | 34.9x13.27x24 | 36.02x14.57x24.21 | 39.17x15.67x29.13 |
| Net/ Gross weight, (lbs.) | 57/63 | 57/63 | 62/67 | 55/60 | 59/64 | 73/79 | 97/104 |
| Refrigerant precharge, (ft) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional charge for each ft, (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design pressure, (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid side/ Gas side, (inch) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max. refrigerent pipe length,(ft) | 82 | 82 | 82 | 82 | 82 | 98 | 164 |
| Max. diffrence in level,(ft) | 32.8 | 32.8 | 32.8 | 32.8 | 32.8 | 66 | 82 |
| Ambient temperature Cooling, (°F) | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 |
| Heating, (°F) | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 | 5~86 |
Frequently asked questions.
What size mini split do I need for my room?
To effectively cool or heat a room up to 350 sq ft, the Cooper & Hunter Wired Wall Thermostat Controller with a 9,000 BTU capacity is ideal. This size ensures optimal temperature control while maintaining efficiency.
Can I install a mini split myself?
While the Cooper & Hunter system can be installed by a skilled DIYer, it's important to note that professional installation is recommended for optimal performance and compliance with local codes. The system comes with various installation kit options, including a 16ft, 25ft, or 50ft line set.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter mini split is pre-charged with R454B refrigerant for up to 25 ft of line set, which simplifies installation. This allows for immediate use once properly set up.
What voltage does a mini split require?
The Cooper & Hunter Wired Wall Thermostat Controller operates on a standard 230V power supply. Ensure your installation area is equipped with the appropriate voltage to support the unit's performance.
What warranty does Cooper & Hunter offer?
The Cooper & Hunter mini split system comes with a comprehensive warranty of 5-year parts and a 7-year compressor warranty, provided you register within 30 days of purchase. This coverage gives you peace of mind regarding your investment.
What SEER rating do I need for energy efficiency?
The Cooper & Hunter system boasts a SEER rating of 21+, which is highly efficient and exceeds typical industry standards. For optimal energy savings and comfort, look for systems with a SEER rating of 16 or higher, making this unit an excellent choice.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- Cooper&Hunter Wired Wall Thermostat Controller with a Built-in Smart Kit.
- This Cooper&Hunter wired thermostat controller is compatible with brand's 4-way Cassettes, 1-way Cassettes, Slim Duct, Universal Floor Ceiling, and Multi-Position Air Handlers units.
- Please note that other mini split brands, or wall mounted units are not supported by this wired controller.
- Control your Cooper&Hunter mini split air conditioner using NetHome Plus or Cooper&Hunter Remote application. Easily turn your units ON and OFF, set the temperature, alternate between C° and F°, switch modes, and adjust the fan speed.
- The C&H Remote App Schedule allows you to set daily or weekly controls on your unit so it can automatically turn ON and OFF, as well as adjust to set temperatures and modes, according to your customizations.
- If you experience any malfunctions or issues with your C&H unit, the Check Function feature in the App will scan for error codes, which will help to pinpoint the problem when troubleshooting and/or maintenance are required.
