9,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and Remote
OLMO1-Yr WarrantySKU: OS-MBW-09HS
Product specifications
- Voltage
- 230V
- Type
- PTAC/PTHP
- Freon
R32
Choose Your Configuration
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

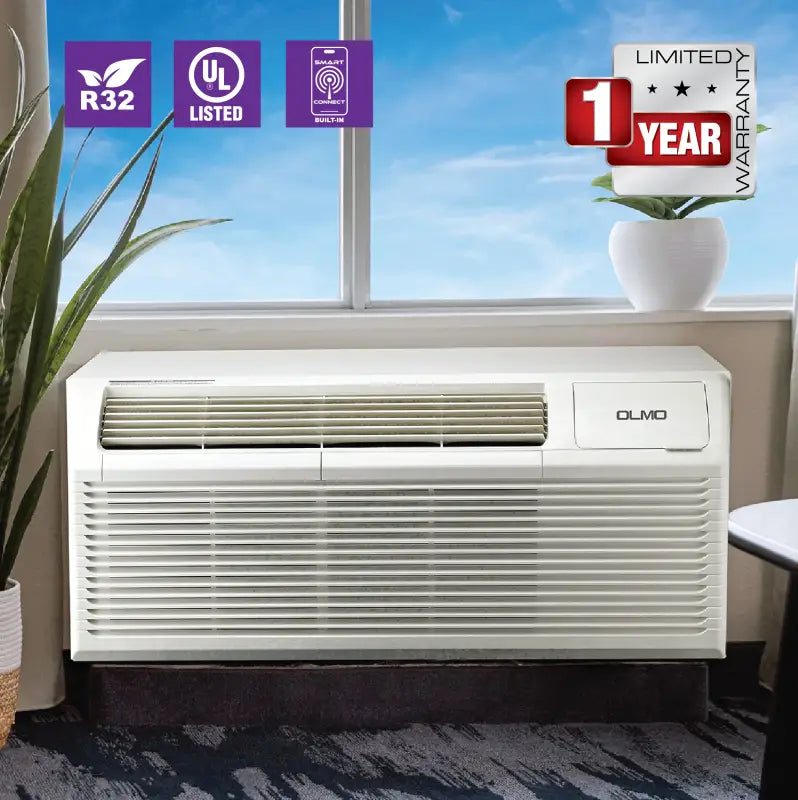

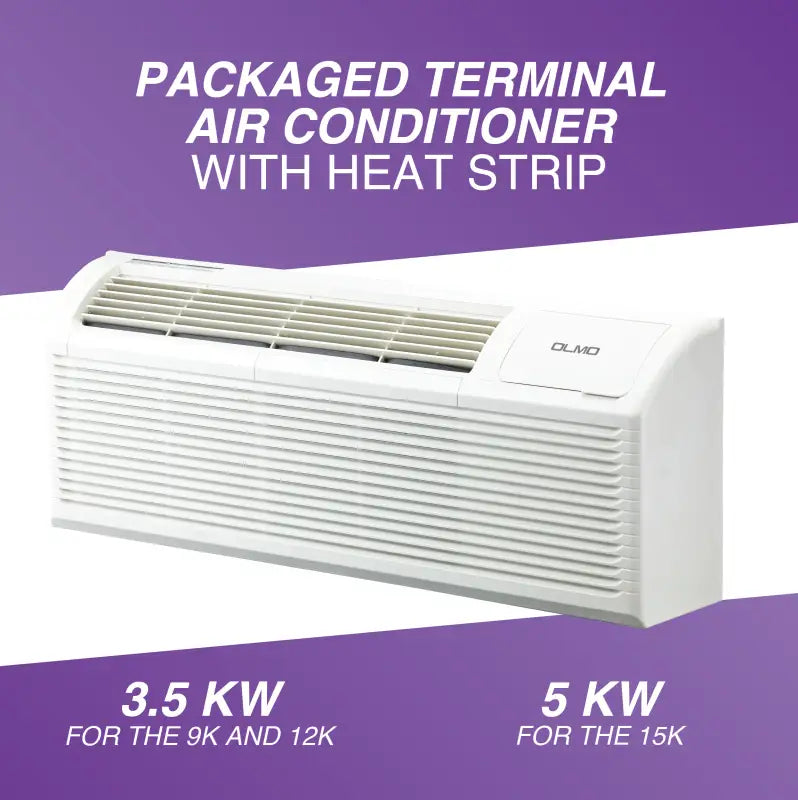

The OLMO 9,200 BTU PTAC is a packaged terminal air conditioner — the self-contained, hotel-style unit that mounts through the wall in a standard 42-inch PTAC sleeve. It cools and adds electric heat-strip heating for a single room, with no outdoor condenser or line sets. Runs on 208-230V-1Ph-60Hz R32 refrigerant, with a remote and built-in Wi-Fi.
Key Features
- 9,200 Btu/h cooling + electric heat-strip heating for year-round single-room comfort
- Packaged terminal (PTAC) design — fits the standard 42" hotel/apartment sleeve; self-contained
- R32 refrigerant; Auto Defrost, Dual Fan Speed, Auto Restart, LED Display, Fresh Air Input

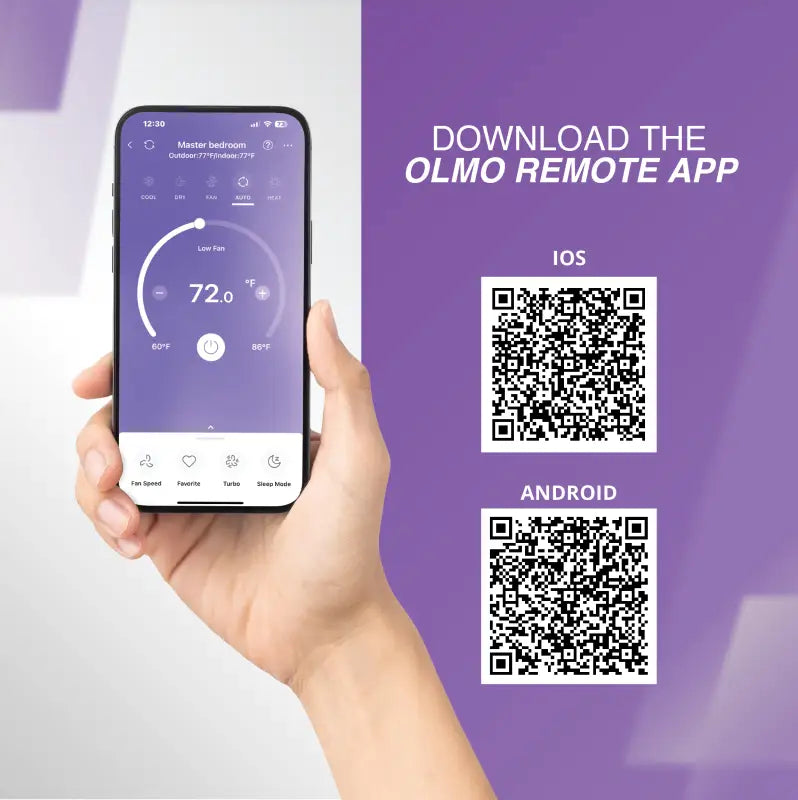

- Remote + built-in Wi-Fi (Smart Connect); compatible with a 24V thermostat
- Power: 208-230V-1Ph-60Hz
Specifications — OS-MBW-09HS
| Cooling Capacity | 9200 / 9000 (208/230V) Btu/h |
| Heating | Electric heat strip — 10900 / 8900 |
| Power Supply | 208-230V-1Ph-60Hz |
| Refrigerant | R32 |
| Unit Dimensions (W×H×D) | 42 x 21 x 16 in |
| Net / Gross Weight | 97.0 / 105.8 lbs |

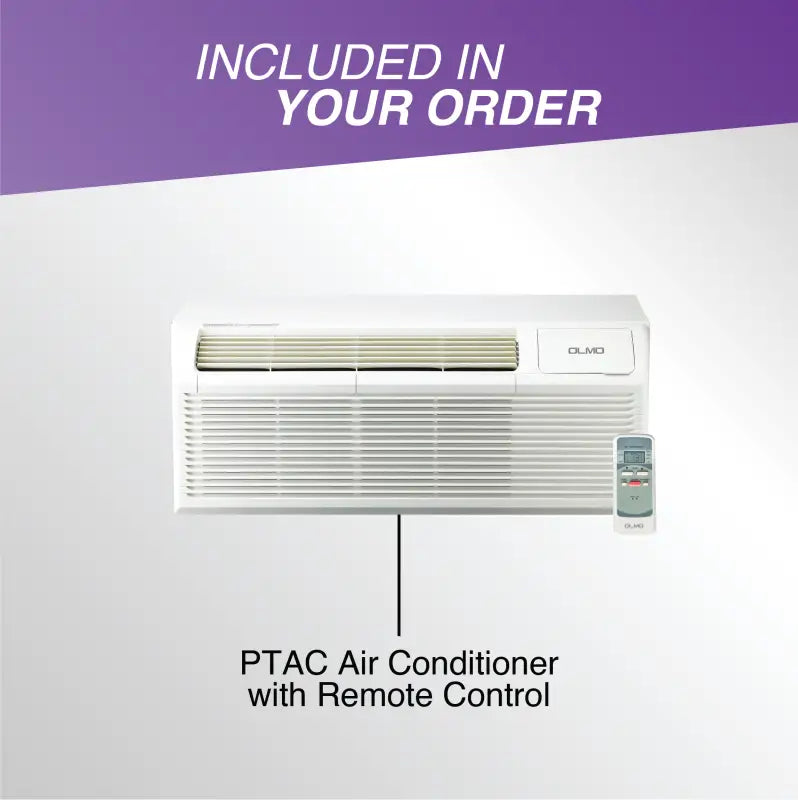

| Controls | Remote control included + Smart Connect built-in (WiFi); compatible with 24V thermostat |
| Wall Sleeve / Grille | 42" PTAC sleeve + grille — sold separately (base unit excludes them) |
| Recommended Coverage | up to ~? sq ft (guidance) |
Frequently Asked Questions
What size room is this for?
As a guideline, up to about ? sq ft. Actual sizing depends on insulation, ceiling height, sun, and climate.
Does it heat?
Yes — it cools and heats via a built-in electric heat strip (10900 / 8900). This is electric resistance heat, not a heat pump.
Do I need a sleeve and grille?
Yes. A standard 42-inch PTAC wall sleeve and exterior grille are required and sold separately unless you order a bundle that includes them.

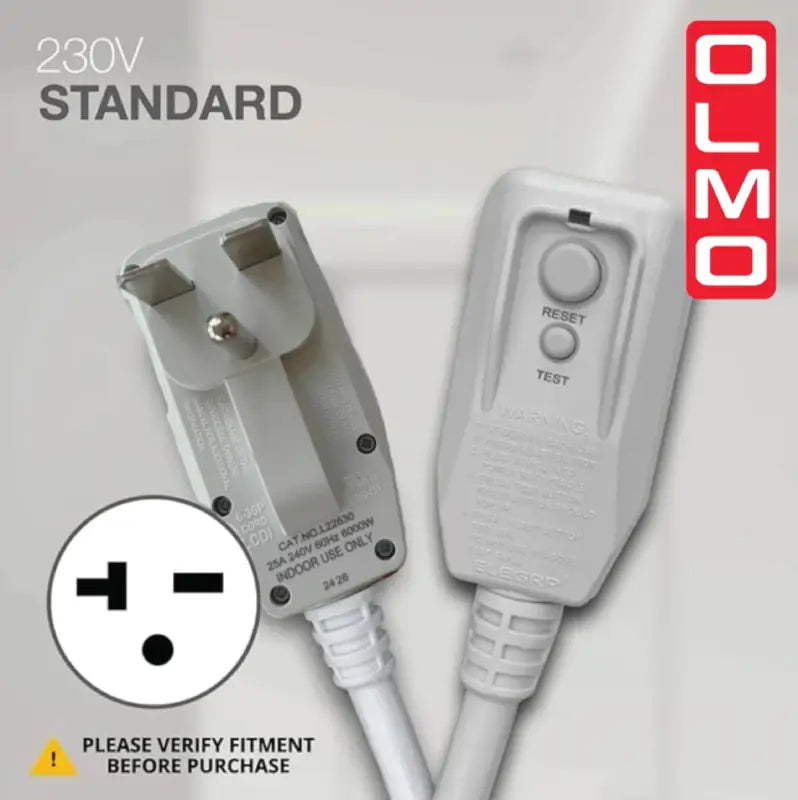

What electrical does it need?
208-230V-1Ph-60Hz on a dedicated circuit. Confirm the plug/breaker with a licensed electrician before install.
What's the warranty?
Register within 60 days and keep your receipt; see the included warranty card for full terms.
Warranty & Support
Backed by a manufacturer limited warranty — register your unit within 60 days of purchase and keep your receipt. See the included warranty card for full terms. U.S.-based parts and support.
