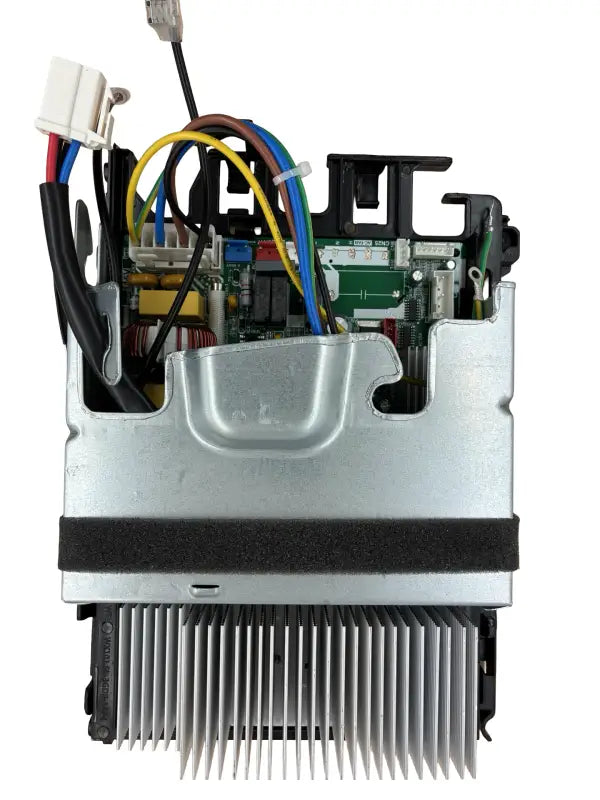

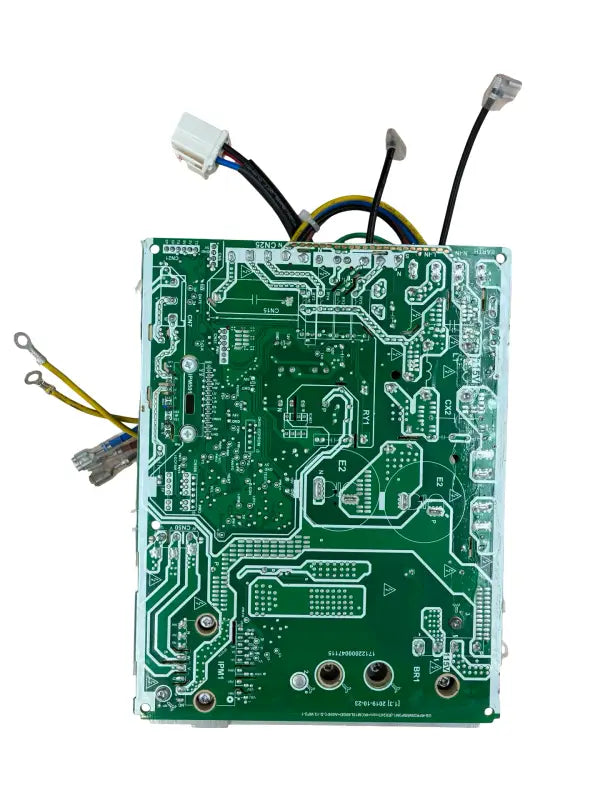

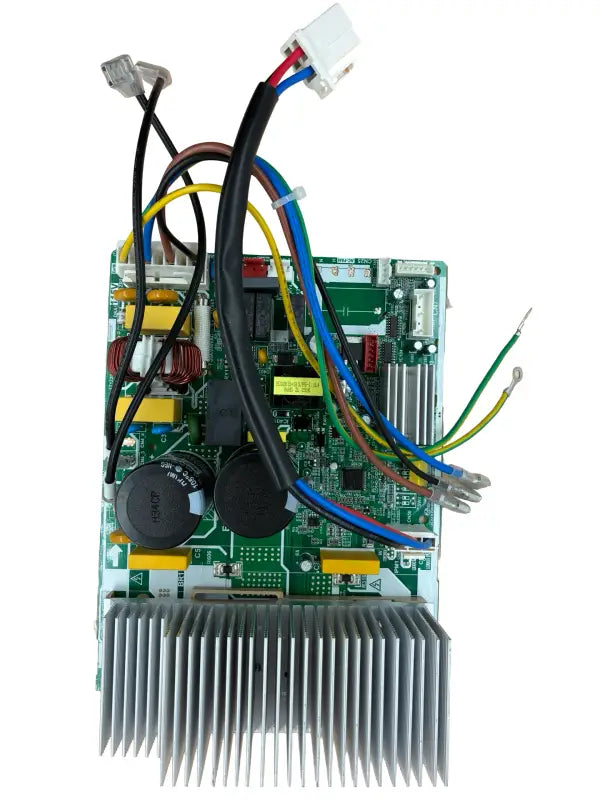

17222000039289 Electric control box subassembly US-KFR35W/BP3N1-X230 / 17122000047115
HVAC Express Parts7-Yr WarrantySKU: 17222000039289
Choose Your Configuration
Fast Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
HVAC Control Board - Electric control box subassembly
This professional-grade electric control box subassembly is engineered to meet the exact specifications of your HVAC system, ensuring optimal performance and long-lasting reliability. Our control boards are manufactured using high-quality components and undergo rigorous testing to guarantee compatibility and durability.
Designed as a direct OEM replacement, this control board offers seamless integration with your existing system while maintaining the same high standards of performance you expect. The precision-engineered circuitry provides accurate control and monitoring of your HVAC unit's critical functions.
Each board comes with comprehensive technical specifications and is backed by our commitment to quality, making it the ideal choice for both professional technicians and facility maintece teams.
Product Specifications
| Part Number | 17222000039289 |
| Compatible Model | US-KFR35W/BP3N1-X230 |
| Unit Type | Outdoor |
| Application | Outdoor Unit |
| Voltage | 115V |
| Zone Configuration | Singlezone |
| Dimensions | 10 5/8*7 1/2*3 |
| PCB Reference | 17122000047115 |
| Shipping Package Dimensions | 12x10x8, weight 4lb. |
Features & Benefits
- OEM quality replacement part
- Direct fit installation
- Manufactured to original specifications
- Comprehensive quality testing
- Professional grade reliability
Compatibility Chart
| AIC |
|
| Airlux |
|
| BOSCH |
|
| Comfortstar |
|
| Cooper&Hunter |
|
| EUREKA |
|
| ICONIC AIR SOLUTION |
|
| KADEN |
|
| KANION |
|
| MIDEA |
|
| NG Trade |
|
| OLIMPO |
|
| PULAIR |
|
| STAR AIR KONTROL |
|
| TRUST AIR CONDITIONERS |
|
Quality Assurance
Every control board undergoes comprehensive testing including electrical functionality, environmental stress testing, and quality control inspection to ensure it meets or exceeds original manufacturer specifications.
Technical Specifications
| part number | 17222000039289 |
| compatible model | US-KFR35W/BP3N1-X230 |
| unit type | Outdoor |
| application | Outdoor Unit |
| voltage | 115V |
| zone configuration | Singlezone |
| dimensions | 10 5/8*7 1/2*3 |
| pcb reference | 17122000047115 |
| shipping package dimensions | 12x10x8, weight 4lb. |
| sku | 17222000039289 |
| width: (packaged size) | 12.00 (in) |
| height: (packaged size) | 10.00 (in) |
| depth: (packaged size) | 8.00 (in) |
Frequently Asked Questions
Will this fit my system?
This is a replacement/accessory part. Match it to your unit’s model number and specifications before ordering; if you are unsure, contact us with your system model and we will confirm compatibility.
Is this part included with a mini split system, or sold separately?
This listing is for the part on its own. Complete mini split systems list their included components separately on each system’s page.
Do you offer support choosing the right part?
Yes — contact us with your system model number and what you need, and we will help you pick the correct part.
What warranty does it come with?
It is backed by the manufacturer’s limited warranty; professional installation and registration are required to keep coverage valid.
