30138000504 Main Board W8302V1.0
HVAC Express Parts7-Yr WarrantySKU: 30138000504
Choose Your Configuration
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

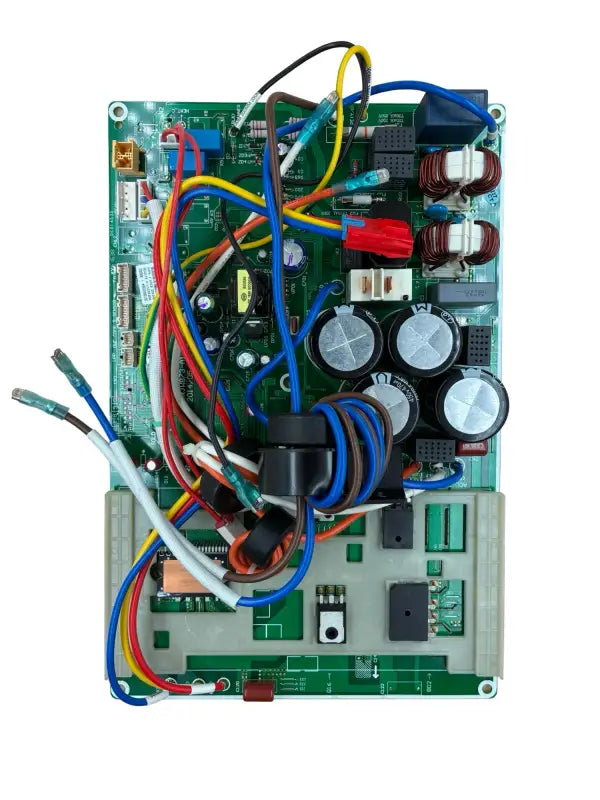

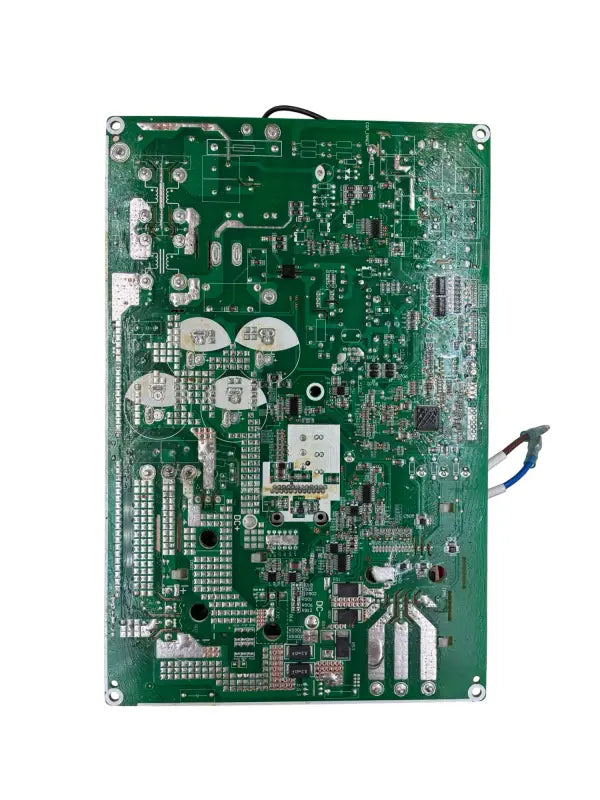

HVAC Control Board - 30138000504
The Main Board (Part #30138000504) is an OEM-replacement main control board designed for W8302V1.0 HVAC systems. This board ensures reliable operation and accurate control of your outdoor unit.
Product Specifications
| Part Number | 30138000504 |
| Compatible Model | W8302V1.0 |
| Unit Type | Outdoor |
| Application | Mini-Split HVAC Systems |
| Voltage | 230.0 |
| Zone Configuration | multi-zone |
| PCB Reference | 30138000504 |
| Shipping Package Dimensions | N/A |
Features & Benefits
- Direct Replacement: OEM-equivalent board for W8302V1.0
- Plug-and-Play: Designed for easy installation
- Reliable Performance: Tested to meet OEM specifications
- Full System Control: Manages all key functions of your HVAC unit
Installation & Compatibility
This control board is a direct replacement for W8302V1.0 outdoor units. It connects to all factory harnesses without modification. Follow your unit's service manual for installation instructions.
Quality Assurance
All boards are tested against OEM specifications before shipping, ensuring reliable performance and longevity in your HVAC system.
Technical Specifications
| part number | 30138000504 |
| compatible model | W8302V1.0 |
| unit type | Outdoor |
| application | Mini-Split HVAC Systems |
| voltage | 230.0 |
| zone configuration | multi-zone |
| pcb reference | 30138000504 |
| shipping package dimensions | N/A |
| sku | 30138000504 |
| condition | New |
| width: (packaged size) | 16.00 (in) |
| height: (packaged size) | 8.00 (in) |
| depth: (packaged size) | 12.00 (in) |
