2 zone 42,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 18k+24K
Bravo7-Yr WarrantySKU: BRV-M42-230VO/M24UFC+M18UFC-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.0
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Universal Floor/Ceiling
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · ROMA
Built for year-round comfort
BRV-M42-230VO/M24UFC+M18UFC-NO/NO
System Specs
| Cooling Capacity | 42,000 BTU/h |
|---|---|
| SEER2 | 23.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 44/40/37 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |

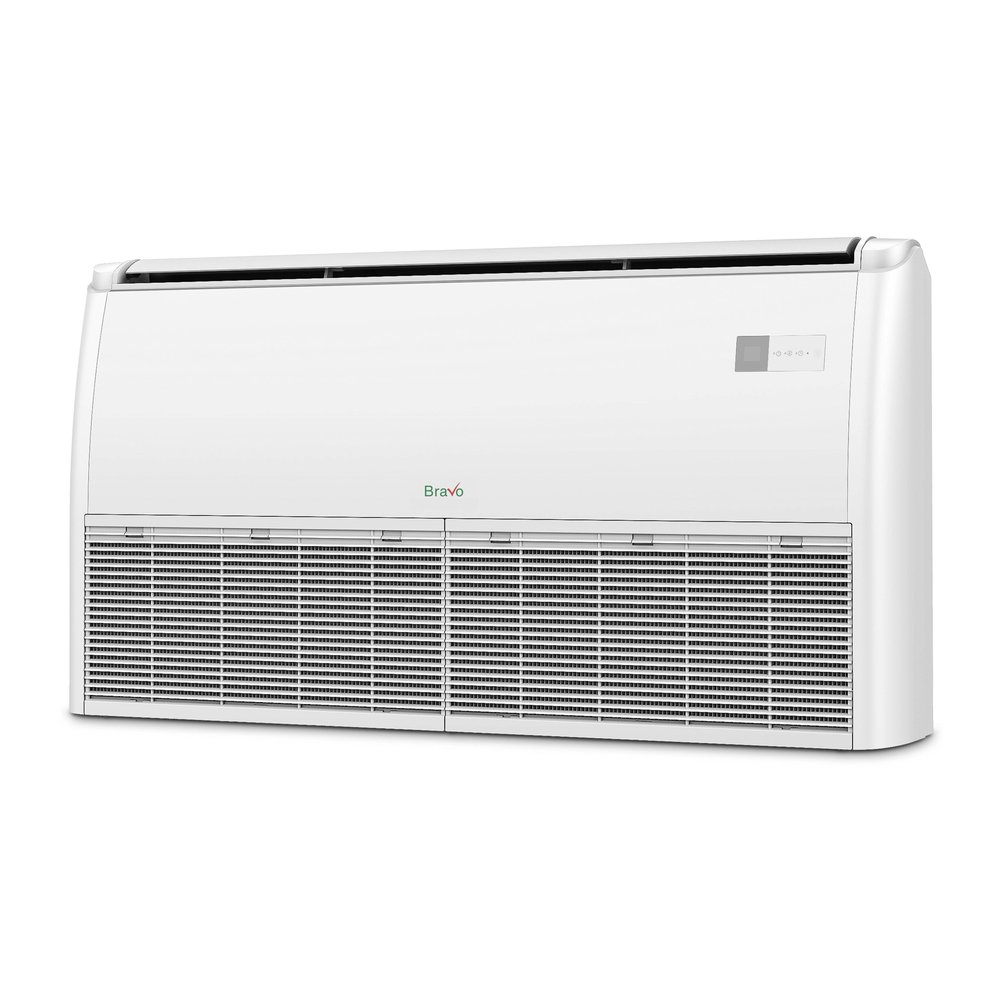

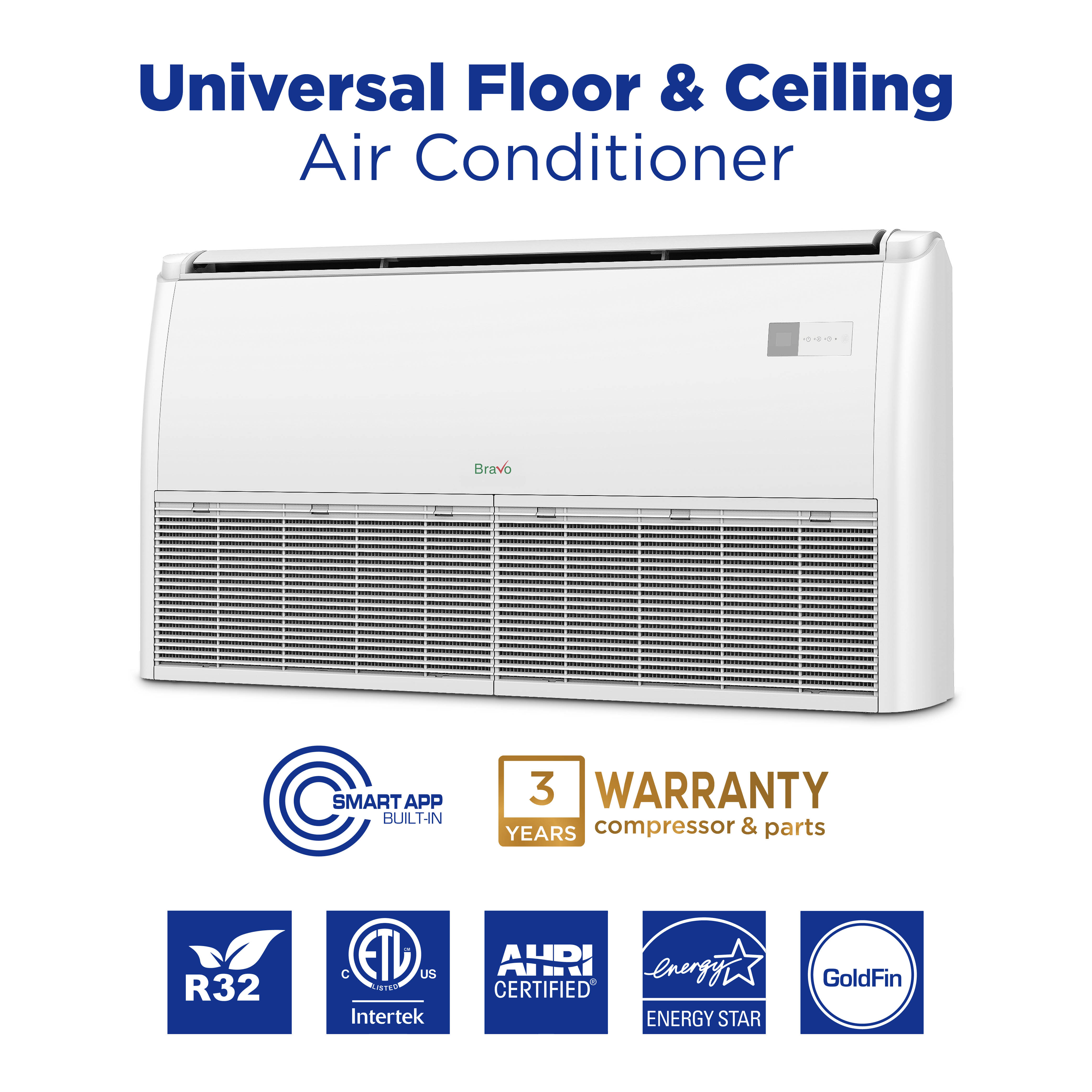

Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 50.39 × 9.25 × 27.17 in | 71.7 / 83.8 lb | Remote controller |
Roma Series Description
The Bravo Milano 2-Zone Ducted Mini Split System features an outdoor unit model BRV-R42-230VO with a nominal total cooling capacity of 42,000 BTU, supporting two zones each with universal floor/ceiling console units. It uses R32 refrigerant, offers smart app control via Wi-Fi, and provides heating down to -13°F ambient temperature.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

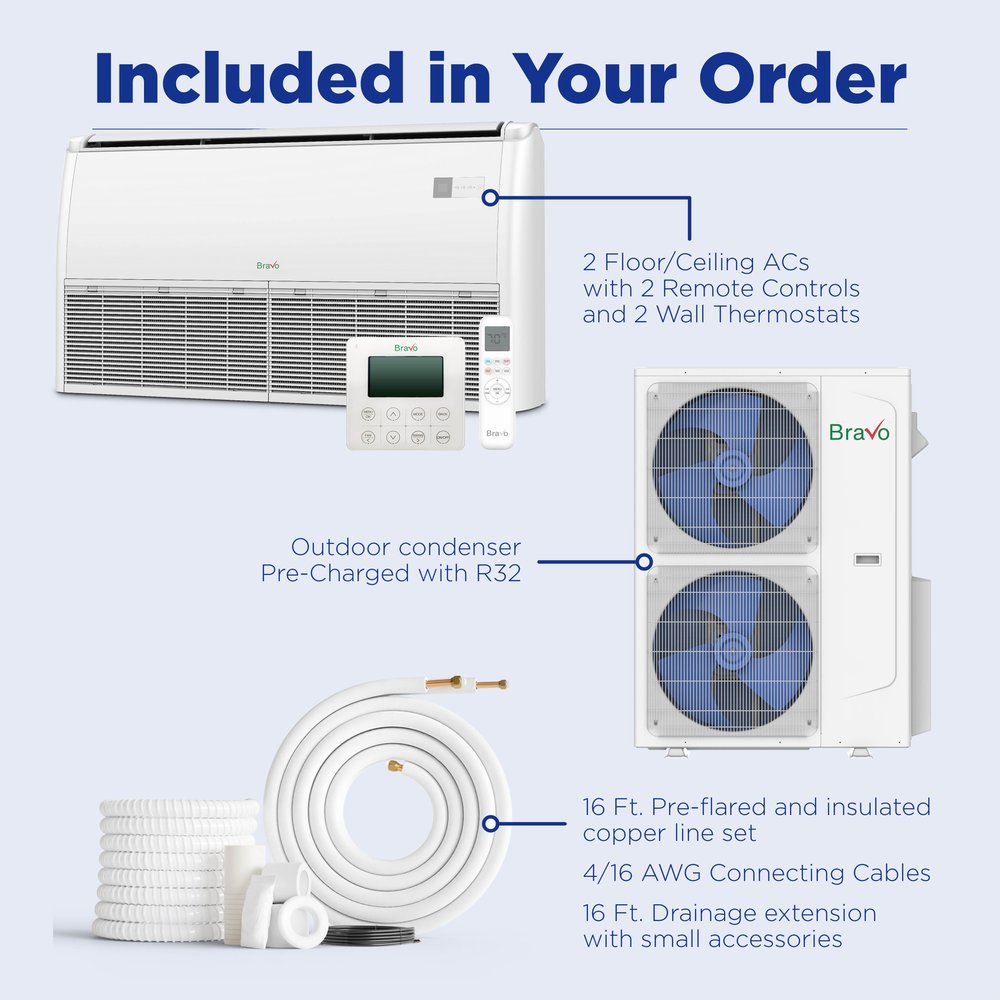

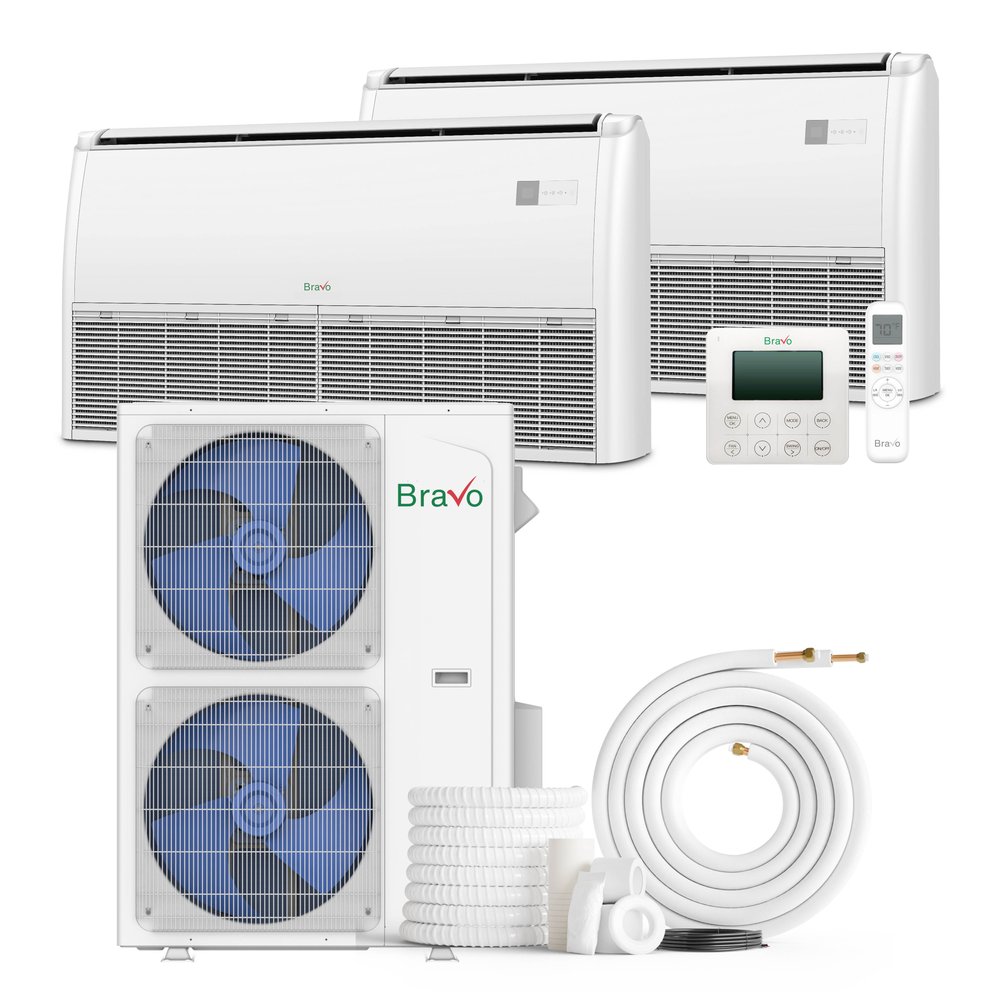

IN THE BOX
Everything included with this system
- Bravo Milano 42,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 24,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
- Bravo Milano 18,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M42-230VO
| Model | BRV-M42-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 39.80x15.75x51.97 in |
| Net/Gross Weight | 205.0/224.9 lb |
| Packing Dimensions (WxDxH) | 42.52x16.93x56.69 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 32 A |
| Copper Line Size (Liquid/Gas) | 5x1/4"- 5x3/8" |
| Noise Level | 60 dB |
| Airflow | 4,235 CFM |
Indoor Unit Specs
| Model | BRV-M24FC-230VI | BRV-M18FC-230VI |
|---|---|---|
| Unit Dimensions (WxDxH) | 50.39×9.25×27.17 in | 39.37×9.25×27.17 in |
| Net/Gross Weight | 71.7/83.8 lb | 59.5/69.5 lb |
| Packing Dimensions (WxDxH) | 53.54×12.80×30.32 in | 42.52×12.80×30.32 in |
| Power Supply | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/5/8" | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 44/40/37 dB | 39/35/31 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 824 CFM | 559 CFM |
| Dehumidification | 5.43 pt/h | 3.38 pt/h |
| Filter Dimensions | 23.03*10.3*0.374inch in | 17.64*10.3*0.374inch in |
| Drain Pipe Diameter | 1" | 1" |
| Controller | Remote controller | Remote controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M09FC-230VI | BRV-M12FC-230VI | BRV-M18FC-230VI | BRV-M24FC-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | Rated Capacity | 11,000 | 12,000 | 18,000 |
| Btu/h | 11,000 | 12,000 | 18,000 | 24,000 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 500 | 500 | 530 | 824 |
| Indoor Noise Level | 39 | 39 | 41 | 44 |
| Indoor Unit | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 39.37×27.17×9.25 |
| Packing (WxDxH) | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 53.54×30.32×12.80 |
| Net/Gross Weight | 57.3/67.2 | 57.3/67.2 | 59.5/69.5 | 71.7/83.8 |
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravo2 zone 42,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 18k+24K$3,934.08 |  BravoBravo 42,000 BTU 2-Zone 9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$3,661.92 |  BravoBravo 42,000 BTU 3-Zone 9k+9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$4,253.76 |  BravoBravo 42,000 BTU 4-Zone 9k+9k+9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$4,845.60 | |
|---|---|---|---|---|
| Cooling Capacity | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h |
| SEER2 Rating | 23.0 | 23.0 | 23.0 | 23.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Dual Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 2 zone 42,000 BTU mini split cool?
The Bravo 2 zone mini split system, with a total capacity of 42,000 BTU, can effectively cool multiple rooms depending on their size and insulation. Typically, it can handle two rooms, allowing for flexible zoning and tailored comfort.
Can I mix different BTU sizes in a mini split system?
Yes, with the Bravo 42,000 BTU mini split, you can mix different BTU sizes for the indoor units, such as an 18,000 BTU and a 24,000 BTU unit. This allows you to optimize cooling and heating based on the specific needs of each room.
Do all zones in the Bravo mini split run simultaneously?
In the Bravo 2 zone mini split system, you have the flexibility to run each zone independently. This means you can choose to cool or heat one zone while the other remains off, providing energy efficiency and personalized comfort.
What is the warranty on the Bravo mini split system?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant for up to 25 ft of line set, simplifying installation and ensuring optimal performance right from the start. This feature helps save installation time and costs.
How does the SEER rating of 23.0 for the Bravo mini split compare to multiple single-zone units?
The Bravo mini split system's impressive SEER rating of 23.0 offers superior energy efficiency compared to operating multiple single-zone units. This high efficiency not only reduces energy costs but also minimizes environmental impact, making it a smart choice for cooling larger spaces.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+9KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9KFree Shipping
The Bravo Milano 2-Zone Ducted Mini Split System features an outdoor unit model BRV-R42-230VO with a nominal total cooling capacity of 42,000 BTU, supporting two zones each with universal floor/ceiling console units. It uses R32 refrigerant, offers smart app control via Wi-Fi, and provides heating down to -13°F ambient temperature.
Key Features
- 2-zone concealed-duct system — the BRV-R42-230VO outdoor unit powers 2 independently controlled ducted indoor units, hidden above the ceiling or in a soffit
- 42,000 BTU nominal capacity across 2 zones, each room on its own remote
- Inverter heat pump — efficient variable-speed cooling and heating from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
- Discreet ducted air delivery — central-air comfort with mini-split efficiency
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M24FC-230VI | 24,000 Btu/h | Universal Floor/Ceiling Console |
| 2 | BRV-M18FC-230VI | 18,000 Btu/h | Universal Floor/Ceiling Console |
