3 zone 42,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12K+24K
Bravo7-Yr WarrantySKU: BRV-M42-230VO12DT12DT24DT+25x3
Product specifications
- Voltage
- 230V
- SEER
- 24.0
- WiFi
- Included
- Zone
- Three Zone
- Type
- Concealed Duct
- Freon
R32
Choose Your Configuration
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M42-230VO12DT12DT24DT+25x3
System Specs
| Cooling Capacity | 42,000 BTU/h |
|---|---|
| SEER2 | 24.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 32/31/29 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 27.56 × 17.72 × 7.8 in | 27.6 / 33.1 lb | Wired controller |
Milano Series Description
BRAVO 42,000 BTU Multi Zone Outdoor Condenser 24 SEER2, 230V, with (3) Concealed Duct Air Handlers 12,000 + 12,000 + 24,000 BTU Includes smart port adapters to individually control each air handler from anywhere using your smartphone and a BRAVO Remote app. Includes Hi-Grade Installation Kit with 25ft Pre-Flared and Insulated Copper Line Sets, Communication Wires, Small Accessories and a 16ft Drainage Extension. Uses 208-230V, ETL Intertek Approved, AHRI Certified. Works for heating with ambient temperature up to -13F°. Whisper Technology for Quiet Operation, Great for Bedrooms, Additions,…
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
IN THE BOX
Everything included with this system
- Bravo Milano 42,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump

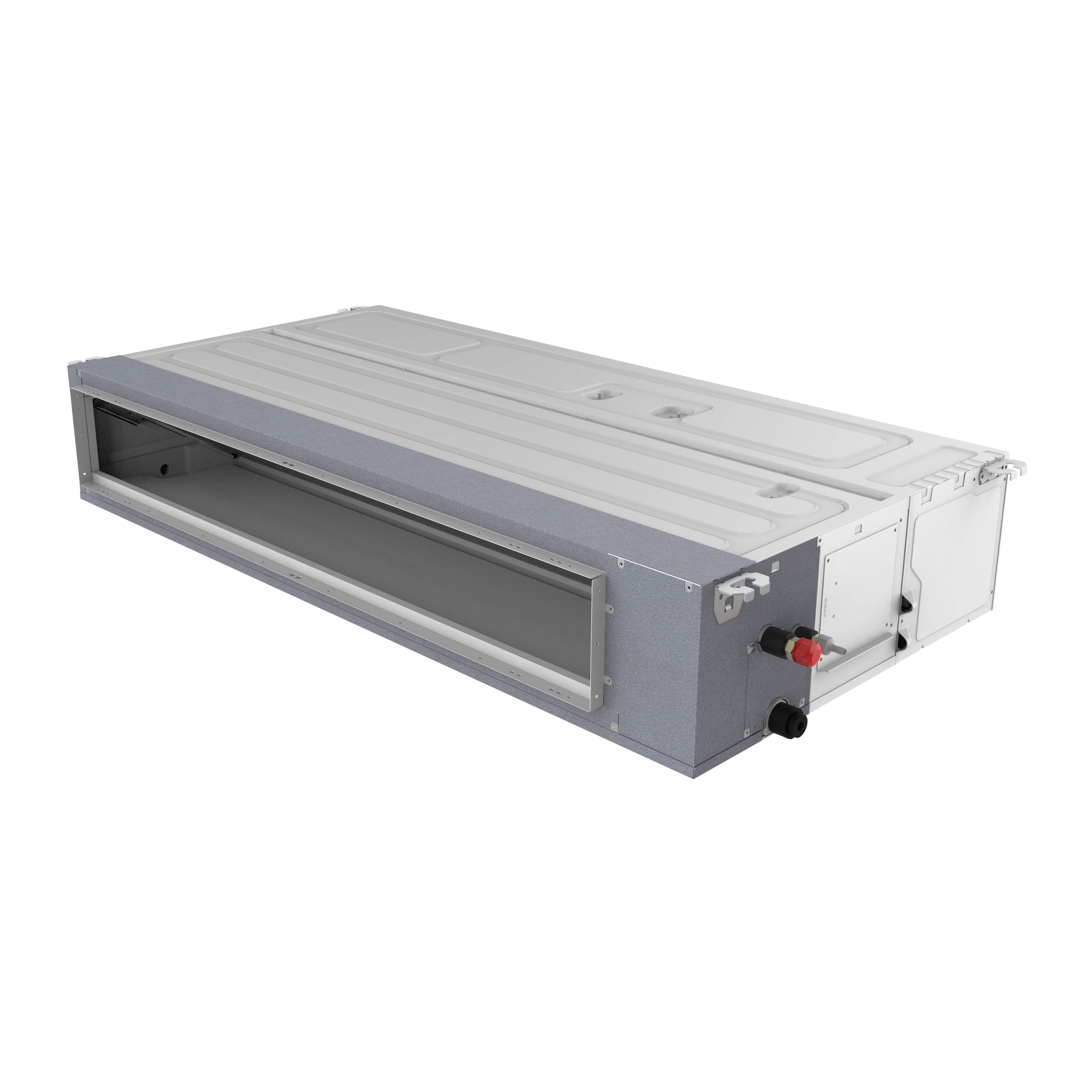

- Bravo Milano 12,000 BTU Indoor Slim Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump × 2
- Bravo Milano 24,000 BTU Indoor Slim Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump
- 25 ft Line Set × 3
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M42-230VO
| Model | BRV-M42-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 39.80x15.75x51.97 in |
| Net/Gross Weight | 205.0/224.9 lb |
| Packing Dimensions (WxDxH) | 42.52x16.93x56.69 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 32 A |
| Copper Line Size (Liquid/Gas) | 5x1/4"- 5x3/8" |
| Noise Level | 60 dB |
| Airflow | 4,235 CFM |
Indoor Unit Specs
| Model | BRV-M12DT-230VI | BRV-M24DT-230VI |
|---|---|---|
| Unit Dimensions (WxDxH) | 27.56×17.72×7.8 in | 39.37×27.56×9.65 in |
| Net/Gross Weight | 27.6/33.1 lb | 59.5/70.5 lb |
| Packing Dimensions (WxDxH) | 34.25×21.3×10.24 in | 48.43×32.68×11.81 in |
| Power Supply | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" | 1/4"/5/8" |
| Noise Level (Hi/Med/Lo) | 32/31/29 dB | 42/40/37 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 353 CFM | 795 CFM |
| Dehumidification | 2.11 pt/h | 5.43 pt/h |
| Drain Pipe Diameter | 5/8" | 5/8" |
| Controller | wired controller | wired controller |
System Specs
| Brand Name | BRAVO |
|---|---|
| Product Dimensions | 48 x 40 x 40 inches |
| Installation Type | Split System |
| Part Number | BRV42-SD-12+12+24 |
| Color | White |
| Voltage | 230 Volts (AC) |
| Compatible Device | iOS App, Android App |
| Included Components | Comes as a Combo Set |
| ASIN | B0F9LT2H9Q |
| Date First Available | May 22, 2025 |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M09DT-230VI | BRV-M12DT-230VI | BRV-M18DT-230VI | BRV-M24DT-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | Rated Capacity | 10,000 | 12,000 | 19,000 |
| Btu/h | 10,000 | 12,000 | 19,000 | 24,600 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 353 | 353 | 530 | 795 |
| Indoor Noise Level | 34 | 34 | 39 | 42 |
| Indoor Unit | Dimensions (WxDxH) | 27.56×17.72×7.8 | 27.56×17.72×7.8 | 27.56×27.56×9.65 |
| Packing (WxDxH) | 34.25×21.3×10.24 | 34.25×21.3×10.24 | 36.61×32.68×11.81 | 48.43×32.68×11.81 |
| Net/Gross Weight | 27.6/33.1 | 27.6/33.1 | 47.4/56.2 | 59.5/70.5 |
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | ◊ 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravo3 zone 42,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12K+24K$4,319.49 |  BravoBravo 42,000 BTU 2-Zone 9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$2,948.61 |  BravoBravo 42,000 BTU 3-Zone 9k+9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$3,369.67 |  BravoBravo 42,000 BTU 4-Zone 9k+9k+9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$3,790.72 | |
|---|---|---|---|---|
| Cooling Capacity | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h |
| SEER2 Rating | 24.0 | 23.0 | 24.0 | 24.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Three Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 3 zone 42,000 BTU mini split cool?
The Bravo 3 zone 42,000 BTU mini split system is capable of cooling up to three rooms effectively, depending on the size of each space. With a total capacity of 42,000 BTU, it can provide sufficient cooling for medium to large areas.
Can I mix BTU sizes with the Bravo mini split system?
Yes, you can mix BTU sizes in the Bravo 3 zone mini split setup, as long as the total does not exceed the system's capacity of 42,000 BTU. For example, you could pair a 12K unit with a 24K unit to balance the cooling needs of different rooms.
Do all zones run simultaneously in the Bravo multi-zone mini split?
In the Bravo 3 zone mini split system, you can choose to run all zones simultaneously or operate them independently based on your cooling requirements. This flexibility allows for customized comfort and energy efficiency.
Why is the Bravo mini split more efficient than multiple single-zone units?
The Bravo 3 zone mini split boasts a SEER rating of 24.0, which indicates higher efficiency compared to multiple single-zone units. Utilizing one system for multiple zones minimizes energy consumption and installation complexity.
What is the warranty for the Bravo mini split AC system?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo 3 zone mini split system comes pre-charged with R32 refrigerant for up to 25 ft of line set, making installation straightforward. This feature helps save time and ensures optimal performance from the get-go.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
Product Overview
- Brand: BRAVO
- Product Dimensions: 48"D x 40"W x 40"H
- Seasonal Energy Efficiency Ratio (SEER): 24.0
- Color: White
- Voltage: 230 Volts (AC)
- Power Source: Corded Electric
- Controller Type: Remote Control
- Installation Type: Split System
- Included Components: Comes as a Combo Set
- Global Trade Identification Number: 00810068957969
Product Features
- BRAVO 42,000 BTU Multi Zone Outdoor Condenser 24 SEER2, 230V, with (3) Concealed Duct Air Handlers 12,000 + 12,000 + 24,000 BTU Includes smart port adapters to individually control each air handler from anywhere using your smartphone and a BRAVO Remote app.
- Includes Hi-Grade Installation Kit with 25ft Pre-Flared and Insulated Copper Line Sets, Communication Wires, Small Accessories and a 16ft Drainage Extension.
- Uses 208-230V, ETL Intertek Approved, AHRI Certified. Works for heating with ambient temperature up to -13F°. Whisper Technology for Quiet Operation, Great for Bedrooms, Additions, Living Rooms and Commercial Applications.
- Free US-based technical support available should you ever need assistance. This is not a DIY system, professional installation is required.
- This item ships via freight due to its size and weight. It will be delivered to the nearest accessible point outside your home. The carrier will reach out to coordinate delivery.
