3 zone 42,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+18K+18K
Bravo7-Yr WarrantySKU: BRV-M42-230VO/M12DT+M18DT+M18DT-NO/NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 24.0
- WiFi
- Included
- Zone
- Three Zone
- Type
- Concealed Duct
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · ROMA
Built for year-round comfort
BRV-M42-230VO/M12DT+M18DT+M18DT-NO/NO/NO
System Specs
| Cooling Capacity | 42,000 BTU/h |
|---|---|
| SEER2 | 24.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 32/31/29 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 27.56 × 17.72 × 7.8 in | 27.6 / 33.1 lb | Wired controller |
Roma Series Description
The Bravo Milano 3-Zone Ducted Mini Split System features an outdoor unit model BRV-R42-230VO, providing a nominal total cooling capacity of 42,000 BTU across three slim duct zones, and utilizes R32 refrigerant for efficient performance. With a minimum heating ambient temperature of -13°F and smart app control via WiFi, this system offers reliable climate control in a variety of environments.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

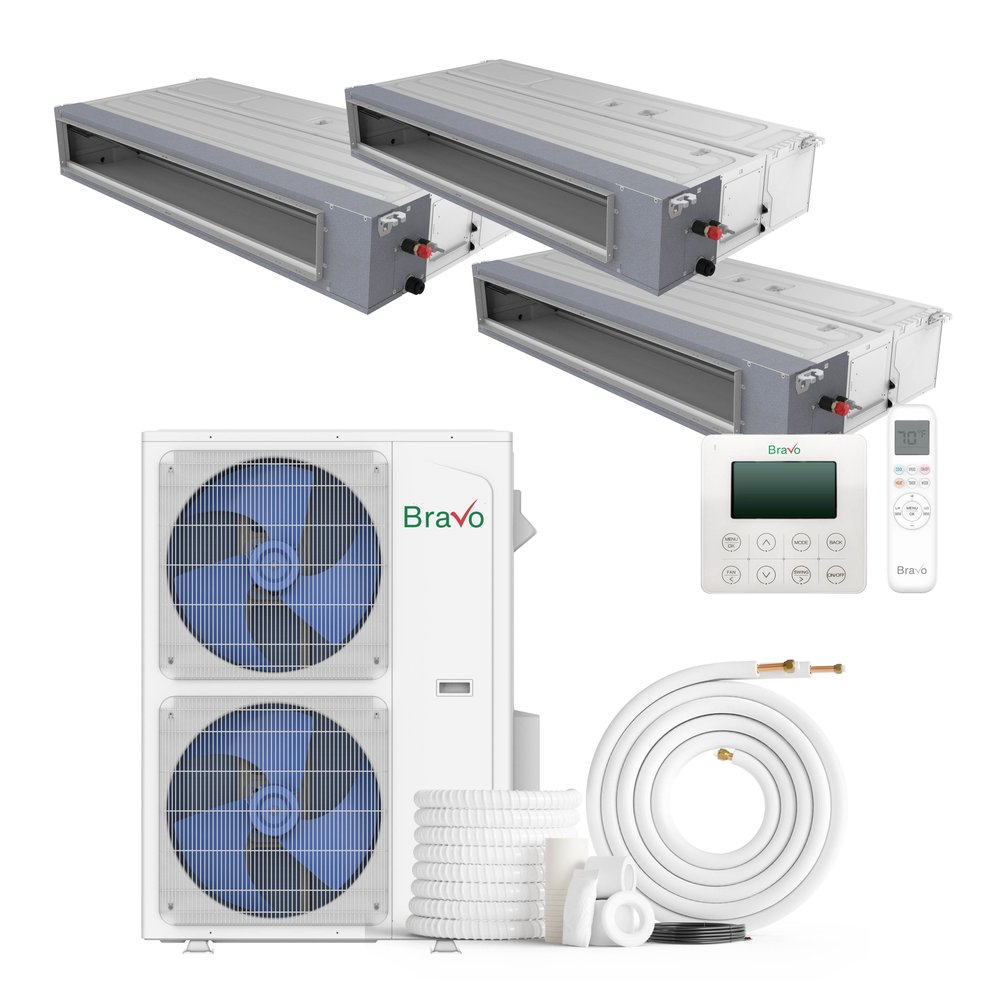

IN THE BOX
Everything included with this system
- Bravo Milano 42,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 12,000 BTU Indoor Slim Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump
- Bravo Milano 18,000 BTU Indoor Slim Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump × 2
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M42-230VO
| Model | BRV-M42-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 39.80x15.75x51.97 in |
| Net/Gross Weight | 205.0/224.9 lb |
| Packing Dimensions (WxDxH) | 42.52x16.93x56.69 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 32 A |
| Copper Line Size (Liquid/Gas) | 5x1/4"- 5x3/8" |
| Noise Level | 60 dB |
| Airflow | 4,235 CFM |

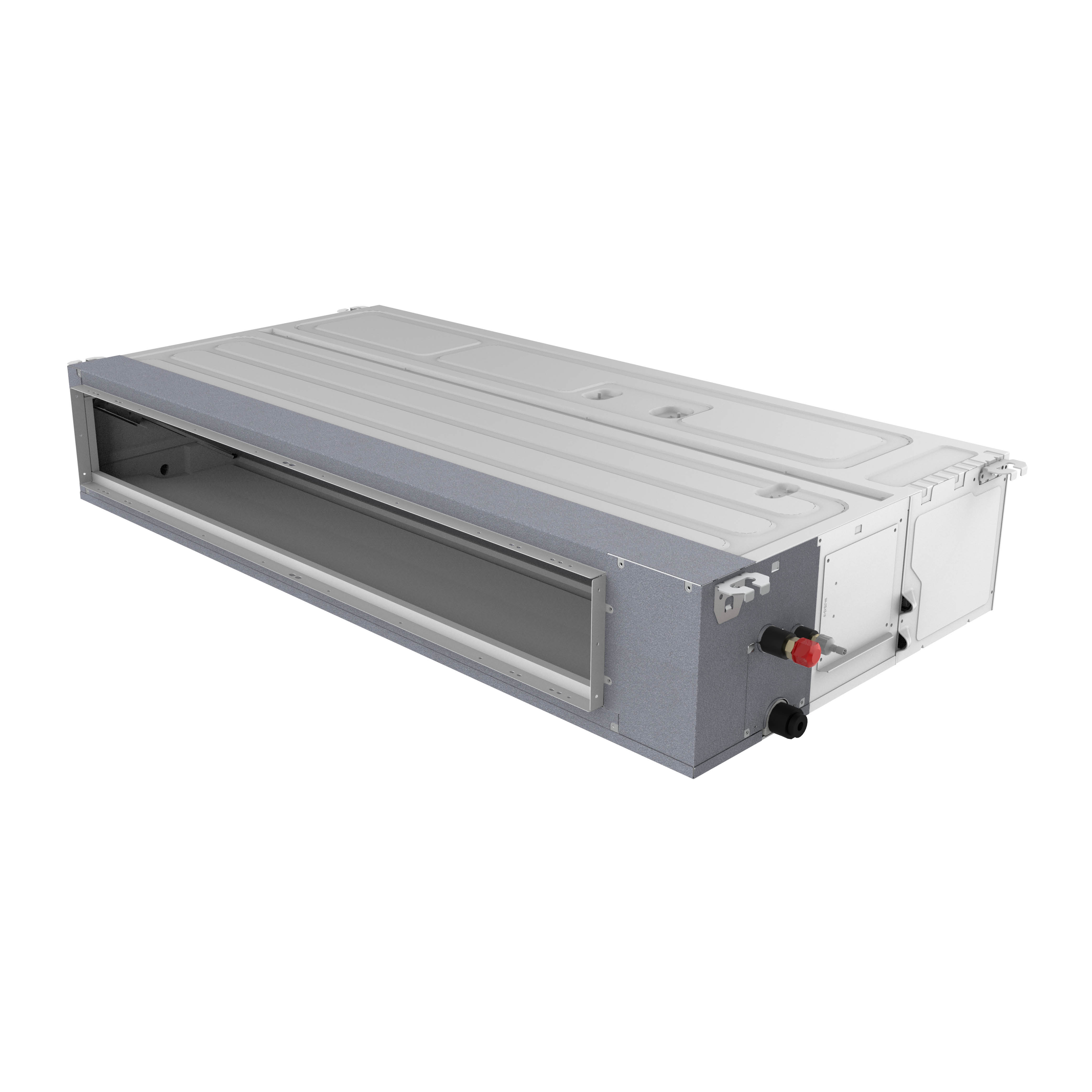

Indoor Unit Specs
| Model | BRV-M12DT-230VI | BRV-M18DT-230VI |
|---|---|---|
| Unit Dimensions (WxDxH) | 27.56×17.72×7.8 in | 27.56×27.56×9.65 in |
| Net/Gross Weight | 27.6/33.1 lb | 47.4/56.2 lb |
| Packing Dimensions (WxDxH) | 34.25×21.3×10.24 in | 36.61×32.68×11.81 in |
| Power Supply | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 32/31/29 dB | 39/36/33 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 353 CFM | 530 CFM |
| Dehumidification | 2.11 pt/h | 3.38 pt/h |
| Drain Pipe Diameter | 5/8" | 5/8" |
| Controller | wired controller | wired controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M09DT-230VI | BRV-M12DT-230VI | BRV-M18DT-230VI | BRV-M24DT-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | Rated Capacity | 10,000 | 12,000 | 19,000 |
| Btu/h | 10,000 | 12,000 | 19,000 | 24,600 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 353 | 353 | 530 | 795 |
| Indoor Noise Level | 34 | 34 | 39 | 42 |
| Indoor Unit | Dimensions (WxDxH) | 27.56×17.72×7.8 | 27.56×17.72×7.8 | 27.56×27.56×9.65 |
| Packing (WxDxH) | 34.25×21.3×10.24 | 34.25×21.3×10.24 | 36.61×32.68×11.81 | 48.43×32.68×11.81 |
| Net/Gross Weight | 27.6/33.1 | 27.6/33.1 | 47.4/56.2 | 59.5/70.5 |
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | ◊ 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravo3 zone 42,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+18K+18K$3,498.19 |  BravoBravo 42,000 BTU 2-Zone 9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$2,948.61 |  BravoBravo 42,000 BTU 3-Zone 9k+9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$3,369.67 |  BravoBravo 42,000 BTU 4-Zone 9k+9k+9k+9k Concealed Duct, 230V, R32 - Ducted Mini Split Air Conditioner Heat Pump$3,790.72 | |
|---|---|---|---|---|
| Cooling Capacity | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h | 42,000 BTU/h |
| SEER2 Rating | 24.0 | 23.0 | 24.0 | 24.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Three Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can a 42,000 BTU mini split like the Bravo cover?
The 42,000 BTU Bravo Ducted Mini Split is designed to effectively cover multiple rooms, typically accommodating up to three zones, making it suitable for homes with varying space requirements.
Can I mix BTU sizes in a multi-zone mini split system?
Yes, the Bravo system allows for mixing BTU sizes across its zones, such as combining 12,000 BTU, 18,000 BTU, and another 18,000 BTU unit, as long as the total does not exceed the system's 42,000 BTU capacity.
Do all zones in the Bravo mini split run simultaneously?
In the Bravo 3 zone mini split, while all zones can operate simultaneously, they can also be configured to run independently based on your heating and cooling needs, providing flexibility and efficiency.
Is it more efficient to use a multi-zone mini split like Bravo compared to multiple single-zone units?
The Bravo 42,000 BTU system with a 24.0 SEER rating offers higher efficiency than multiple single-zone units, as it reduces energy consumption and installation costs while providing consistent comfort across different areas.
What are the warranty terms for the Bravo mini split system?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo Ducted Mini Split is pre-charged with R32 refrigerant for up to 25 ft of line set, ensuring a simpler installation process and immediate cooling performance.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+9KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9KFree Shipping
The Bravo Milano 3-Zone Ducted Mini Split System features an outdoor unit model BRV-R42-230VO, providing a nominal total cooling capacity of 42,000 BTU across three slim duct zones, and utilizes R32 refrigerant for efficient performance. With a minimum heating ambient temperature of -13°F and smart app control via WiFi, this system offers reliable climate control in a variety of environments.
Key Features
- 3-zone concealed-duct system — the BRV-R42-230VO outdoor unit powers 3 independently controlled ducted indoor units, hidden above the ceiling or in a soffit
- 42,000 BTU nominal capacity across 3 zones, each room on its own remote
- Inverter heat pump — efficient variable-speed cooling and heating from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
- Discreet ducted air delivery — central-air comfort with mini-split efficiency
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M12DT-230VI | 12,000 Btu/h | Slim Duct |
| 2 | BRV-M18DT-230VI | 18,000 Btu/h | Slim Duct |
| 3 | BRV-M18DT-230VI | 18,000 Btu/h | Slim Duct |
