Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k

Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 1
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 2
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 3
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 4
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 5
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 6
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 7
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 8
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 9
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 10
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 11
1 / 11
Cooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k — photo 1
SEER2 24.0HEATS down to −13°FCOOLS up to 122°FR454B

Cooper & Hunter7-Yr WarrantySKU: CH-R36MES-230VO/M09DT+M24DT-NO/NO

$5,346.72
As low as $446/mo withaffirm
Product specifications
Voltage
230V
SEER
24.0
WiFi
Not Included
Zone
Dual Zone
Type
Concealed Duct
Freon
R454B
See full Tech Specs

Choose Your Configuration

Indoor unit 1 · 9,000 BTU — installation kit: No Installation Kit
Indoor unit 2 · 24,000 BTU — installation kit: No Installation Kit

Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.

Save 10% on these accessories

  • ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
  • ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs CapacityARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
  • ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC SystemsARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
  • ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power ConnectionARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
1

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included
30-Day Returns

COOPER & HUNTER · CONCEALED DUCT

Built for year-round comfort

Indoor unit

CH-R36MES-230VO/M09DT+M24DT-NO/NO

System Specs

Cooling Capacity36,000 BTU/h
Heating Capacity37,000 BTU/h
SEER224
EER212
Voltage230V
RefrigerantR454B
CompressorInverter
Climate Range-13–122°F / -13–75°F outdoor ambient
Sound Level (indoor)40/37/35 dB
Warranty7-Yr Compressor

Indoor Unit Specs

Unit Dimensions (WxDxH)Net / Gross WeightRemote Control
39.37 × 29.53 × 9.65 in54.45 / 66.14 lbWire controller + remote controller available

Product Description

The Cooper & Hunter 2-Zone Mini Split System offers efficient cooling with a nominal total BTU of 36,000, a SEER2 rating of 24, and uses eco-friendly R454B refrigerant for optimal performance. It features built-in Wi-Fi control, a -13°F minimum heating ambient capability, and includes the CH-R36MES-230VO outdoor unit for reliable two-zone climate management.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

Package contents

IN THE BOX

Everything included with this system

  1. Cooper & Hunter MES 36,000 BTU Outdoor Condenser, 230V, R454B - Mini Split Air Conditioner Heat Pump

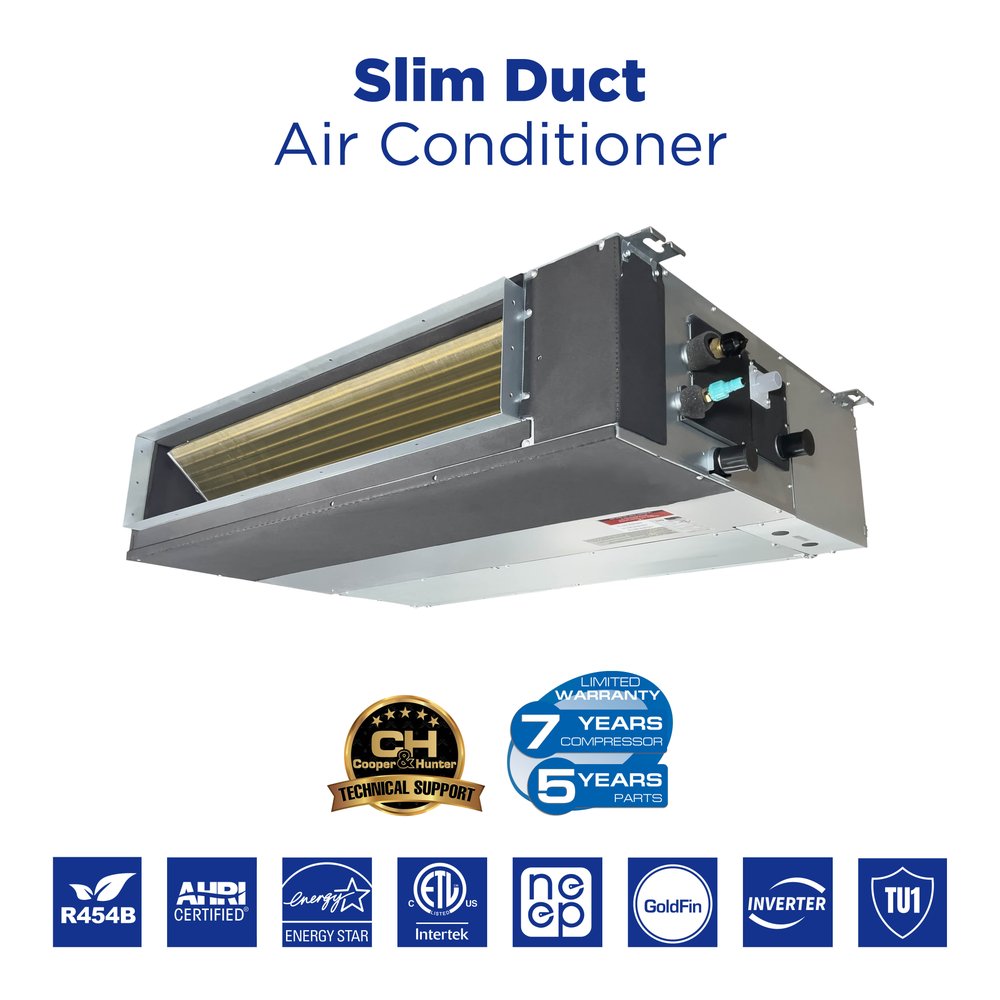

  2. Indoor Concealed Duct — CH-RS06-12MDT- MS
  3. Indoor Concealed Duct — CH-RS24MDT-HS
7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

  • Compressor: 7-year coverage

    With product registration after professional installation.

  • Parts & components: 5-year coverage

    All major components and refrigerant circuit parts.

Technical Specifications

Outdoor Unit Specs— CH-R36MES-230VO

Outdoor Unit — CH-R36MES-230VO
ModelCH-R36MES-230VO
Unit Dimensions (WxDxH)37.24 x 16.14 x 31.89 in
Net/Gross Weight168.87/180.12 lb
Packing Dimensions (WxDxH)42.91 x 19.68 x 34.84 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size35 A
Min. Circuit Ampacity30.5 A
Copper Line Size (Liquid/Gas)5x1/4" - 4x3/8"+1x1/2"
Noise Level64.5 dB
Airflow2,148.4 CFM
Dehumidification2.11 pt/h

Indoor Unit Specs

Indoor Unit — CH-RS24MDT-HS, CH-RS06-12MDT- MS
ModelCH-RS24MDT-HSCH-RS06-12MDT- MS
Unit Dimensions (WxDxH)39.37 x 29.53 x 9.65 in27.56 x 19.92 x 7.87 in
Net/Gross Weight54.45/66.14 lb39.46/46.74 lb
Packing Dimensions (WxDxH)42.13 x 28.54 x 11.02 in33.86 x 21.26 x 11.22 in
Power Supply208-230V, 1Ph, 60Hz208-230V, 1Ph, 60Hz
Maximum Fuse Size15 A15 A
Min. Circuit Ampacity3 A3 A
Copper Line Size (Liquid/Gas)3/8"/5/8"1/4"/3/8"
Noise Level (Hi/Med/Lo)40/37/35 dB36/34.5/32.5 dB
Dehumidification4.29 pt/h2.66 pt/h
Filter Dimensions17.28x7.95 in23.3x7.24 in
Drain Pipe Diameter1"1"
Controllerwire controller + remote controller availablewire controller + remote controller available

System Specs

System
Cooling — Rated Capacity (Range)36,000 Btu/h (9,000–42,000)
Heating at 47°F — Rated Capacity (Range)37,000 Btu/h (10,000–42,500)
Rated Heating at 5°F26,000 Btu/h
SEER2 / EER224 / 12
HSPF4 / HSPF5 / COP (47°F)9.5 / 7 / 3.5
Outdoor Unit MCA / Max. Fuse30.5 A / 35 A
Max. Connectable Indoor Units5
Outdoor Noise Level64.5 dB(A)
Outdoor Unit Dimensions (W×D×H)37.24 × 16.14 × 31.89 in
Outdoor Unit Net / Gross Weight168.87 / 180.12 lbs
Refrigerant Type / ChargeR454B / 120.63 oz
Pre-charged Line Length125 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors)49.2 ft / 33 ft
Operating Range — Cooling / Heating-13–122°F / -13–75°F outdoor ambient

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor

SpecificationCH-RS06MDT-MSCH-RS06-12MDT-MS (Dip Switch 6)CH-RS09MDT-MSCH-RS06-12MDT-MS (Dip Switch 9)CH-RS12MDT-MSCH-RS06-12MDT-MS (Dip Switch 12)CH-RS18MDT-MSCH-RS24MDT-HSCH-RS36LCDT-HSCH-RS48LCDT-HSCH-RS60LCDT-HS
Power Supply208/230,1, 60208/230,1, 60208/230,1, 60208/230,1, 60208/230,1, 60208/230,1, 60208/230,1, 60208/230,1, 60
Rated Capacity6,500/8,0009,000/10,00012,000/12,50017,000/19,00024,000/26,00036,000/42,00048,000/52,00055,000/60,000
Minimum Circuit Ampacity (MCA)33333455
Max. Fuse1515151515151515
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM323.7/264.9/206.0/147.2/117.7323.7/264.9/206.0/147.2/117.7400.2/323.7/264.9/176.6/117.7600.4/559.2/500.3/441.4/NA853.5/706.3/618.0/500.3/NA1236.1/1059.5/941.8/766.5/NA1648.1/1471.5/1294.9/1059.5/NA2001.2/1706.9/1412.6/1118.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)NA/32.5/30.5/29.5/22NA/32.5/31/29.5/23NA/36/34.5/32.5/25.5NA/40/39/38/32NA/40/37/35/29.5NA/45/40/34/31NA/51/46/42/40NA/52/48/42/41
Dimension (WxDxH) inch27.56 x 19.92 x 7.8727.56 x 19.92 x 7.8727.56 x 19.92 x 7.8734.65 x 26.54 x 8.2739.37 x 29.53 x 9.6547.24 x 29.53 x 11.8147.24 x 29.53 x 11.8155.12 x 31.50 x 14.96
Packing (WxDxH) inch33.86 x 21.26 x 11.2233.86 x 21.26 x 11.2233.86 x 21.26 x 11.2242.13 x 28.54 x 11.0248.23 x 33.86 x 11.9756.10 x 33.86 x 14.1356.10 x 33.86 x 14.1362.99 x 36.02 x 17.52
Net/Gross Weight lbs.39.46/46.7439.46/46.7439.46/46.7454.45/66.1480.47/91.93106.26/120.37111.33/124.78161.38/178.13
Room Temperature Cooling °F60~9060~9060~9060~9060~9060~9060~9060~90
Room Temperature Heating °F32~8632~8632~8632~8632~8632~8632~8632~86
Liquid Side/Gas Side inch1/4"/3/8"1/4"/3/8"1/4"/3/8"1/4"/1/2"3/8"/5/8"3/8"/3/4"3/8"/3/4"3/8"/3/4"

Outdoor Regular

SpecificationCH-R36MES-230VOThis modelCH-R18MES-230VOCH-R28MES-230VOCH-R48MES-230VOCH-R60MES-230VO
Power Supply (V, Ph, Hz)208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Voltage Range (V)187-253187-253187-253187-253187-253
Cooling Rated Capacity (range) (Btu/h)9,000~42,0005,400~21,6007,200~32,00012,000~55,00019,000~62,000
Cooling Rated Current (A)13.569.216.626.2
EER212141312.510
SEER22425.1252422
Heating Rated Capacity (range) (Btu/h)10,000~42,5005,700~21,6008,400~29,00013,000~53,00020,000~60,000
Heating Rated Current (A)146.89.216.321
Heating at 47°F COP (W/W)3.53.83.83.83.7
HSPF49.59.89.510.39.5
HSPF577.8787.4
Heating at 5°F Rated Capacity (Btu/h)26,00013,50019,00036,00039,000
Minimum Circuit Ampacity (Outdoor unit) (A)30.516234040
Max. Fuse (Outdoor unit) (A)3520254545
Outdoor Air Flow (Max) (CFM)2,148.41,765.82,130.74,502.84,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))64.559.5616365
Dimension (W×D×H) (inch)37.24x16.14x31.8935.04x13.46x26.5037.24x16.14x31.8937.48x16.34x52.4837.48x16.34x52.48
Packing (W×D×H) (inch)42.91x19.68x34.8440.55x17.24x29.5342.91x19.68x34.8443.11x19.49x58.2743.11x19.49x58.27
Net/Gross Weight (lbs)168.87/180.12100.53/109.35138.89/149.69222.00/254.19237.88/270.28
Refrigerant Type/Charged (oz)R454B/120.63R454B/61.73R454B/84.66R454B/148.15R454B/151.68
Refrigerant Precharge (ft)12575100150150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)0.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.32
Design Pressure (PSIG)550/340550/340550/340550/340550/340
Refrigerant Piping Liquid Side (inch)5 x 1/4"3 x 1/4"4 x 1/4"6 x 1/4"6 x 1/4"
Refrigerant Piping Gas Side (inch)4 x 3/8" + 1 x 1/2"3 x 3/8"3 x 3/8" + 1 x 1/2"4 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)262.4196.8262.4262.4262.4
Max. Length for One Indoor Unit (ft)114.898.4114.8114.8114.8
Max. Height Difference in Level (ft)49.249.249.249.249.2
Max. Height Difference Between Indoor Units (ft)3333333333
Ambient Temperature Cooling (°F)-13~122-13~122-13~122-13~122-13~122
Ambient Temperature Heating (°F)-13~75-13~75-13~75-13~75-13~75
Certification: AHRI✔✔✔✔✔
Certification: Energy Star✔✔✔✔✔
Certification: NEEP✔✔✔✔✔
Certification: ETL✔✔✔✔✔

Outdoor Hyper

SpecificationCH-RVHP19M-230VOCH-RVHP28M-230VOCH-RVHP36M-230VOCH-RVHP48M-230VOCH-RVHP55M-230VO
Power Supply (V/Ph/Hz)208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60208/230, 1, 60
Operating Range (V)187-253187-253187-253187-253187-253
Cooling Capacity (BTU/h)5,400~28,0007,200~37,0009,000~43,00012,000~57,00019,000~59,000
SEER25.69.51217.318.5
EER1512.5131212
IEER2523232322.2
Heating Capacity (BTU/h)5,700~27,0008,400~36,00010,000~44,00013,000~57,00020,000~59,000
HSPF26.59.111.517.320.1
COP43.843.73.5
SCOP10.410.510.71110.5
Power Input (W)8.58.58.598.5
Air Flow (CFM)19,00027,00036,00047,00047,000
Sound Level Indoor (dBA)17.530373739.5
Sound Level Outdoor (dBA)2035404040
Weight Indoor (lbs)2,130.72,148.43,037.24,502.84,502.8
Weight Outdoor (lbs)61.561656565
Dimensions Indoor (in)37.24x16.14x31.8937.24x16.14x31.8938.58x16.34x38.3937.48x16.34x52.4837.48x16.34x52.48
Dimensions Outdoor (in)42.91x19.68x34.8442.91x19.68x34.8445.08x19.68x42.5243.11x19.49x58.2743.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)137.35/148.15168.43/179.67211.86/244.71246.47/276.68246.47/276.68
Refrigerant Type/Amount (lbs)R454B/78.31R454B/120.63R454B/134.04R454B/151.68R454B/151.68
Fuse Size (A)75100125150150
Wire Size (AWG)0.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.320.16 / 0.32
Control Voltage (V)550/340550/340550/340550/340550/340
Liquid Line3 x 1/4"4 x 1/4"5 x 1/4"6 x 1/4"6 x 1/4"
Suction Line3 x 3/8"3 x 3/8" + 1 x 1/2"3 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"4 x 3/8" + 2 x 1/2"
Max Line Length (ft)196.8262.4262.4262.4262.4
Max Elevation Diff (ft)98.4114.8114.8114.8114.8
Max Head Pressure (ft)49.249.249.249.249.2
Max Suction Pressure (ft)3333333333
Operating Range Cooling (°F)-22~122-22~122-22~122-22~122-22~122
Operating Range Heating (°F)-22~75-22~75-22~75-22~75-22~75
Feature 1✓✓✓✓✓
Feature 2✓✓✓✓✓
Feature 3✓✓✓✓✓
Feature 4✓✓✓✓✓

Which system is right for you?

Your selectionCooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24kCooper & HunterCooper & Hunter 2 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+24k$5,346.72Cooper & Hunter 36,000 BTU 2-Zone 9k+9k Concealed Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpCooper & HunterCooper & Hunter 36,000 BTU 2-Zone 9k+9k Concealed Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump$4,824.00Cooper & Hunter 36,000 BTU 3-Zone 6k+6k+6k Concealed Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpCooper & HunterCooper & Hunter 36,000 BTU 3-Zone 6k+6k+6k Concealed Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump$5,555.52Cooper & Hunter 4 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+9k+9k+9kCooper & HunterCooper & Hunter 4 Zone 36,000 BTU Ducted Mini Split AC Concealed Duct 9k+9k+9k+9k$6,287.04
Cooling Capacity36,000 BTU/h36,000 BTU/h36,000 BTU/h36,000 BTU/h
SEER2 Rating24.024.020.020.0
RefrigerantR454BR454BR454BR454B
ZonesDual ZoneDual ZoneThree ZoneFour Zone
Voltage230V230V230V230V
Shop Now →Shop Now →Shop Now →

Frequently asked questions.

How many rooms can the Cooper & Hunter 2 Zone 36,000 BTU mini split cool?

The Cooper & Hunter 2 Zone 36,000 BTU mini split is designed to efficiently cool up to 1,500 square feet, which typically covers two medium-sized rooms. Its dual-zone capability allows for effective temperature control in different areas.

Can I mix BTU sizes with the Cooper & Hunter mini split system?

Yes, you can mix BTU sizes in a mini split system, but it's crucial to ensure that the total BTU does not exceed the outdoor unit's capacity, which is 36,000 BTU for the Cooper & Hunter model. Proper sizing will maintain efficiency and performance.

Do all zones run simultaneously in the Cooper & Hunter 2 Zone mini split?

In the Cooper & Hunter 2 Zone mini split system, both zones can run simultaneously, allowing for tailored comfort in different areas. However, the total demand must not exceed the 36,000 BTU capacity.

What is the efficiency of the Cooper & Hunter mini split compared to multiple single-zone units?

The Cooper & Hunter 2 Zone mini split offers a high SEER rating of 24.0, making it more efficient than running multiple single-zone units. This efficiency can lead to lower energy bills while maintaining comfort across two zones.

What warranty does the Cooper & Hunter mini split offer?

The Cooper & Hunter mini split comes with a 5-year parts warranty and a 7-year compressor warranty, but registration is required within 30 days of purchase to activate these warranties. This coverage provides peace of mind for your investment.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter mini split is pre-charged with R454B refrigerant for up to 25 ft of line set, allowing for easier installation. This pre-charging simplifies the process, ensuring optimal performance right out of the box.

Talk to a Sales Specialist

Not sure which system is right for your space? Our experts help with sizing and installation questions.

Mon – Fri, 8 AM – 5 PM (PST)

Get Support

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

You may also like

The Cooper & Hunter 2-Zone Mini Split System offers efficient cooling with a nominal total BTU of 36,000, a SEER2 rating of 24, and uses eco-friendly R454B refrigerant for optimal performance. It features built-in Wi-Fi control, a -13°F minimum heating ambient capability, and includes the CH-R36MES-230VO outdoor unit for reliable two-zone climate management.

Key Features

  • 2-zone system — the CH-R36MES-230VO outdoor unit supports up to 5 independently controlled indoor units; port adapters included, no branch boxes required
  • 36,000 BTU nominal system capacity across 2 zones, each on its own remote
  • 24 SEER2 inverter efficiency — current R454B generation
  • Heat pump — heats down to -13°F outdoor ambient
  • R454B refrigerant, factory pre-charged; built-in Wi-Fi control
  • Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console
Cart

Add $300.00 more for FREE shipping!

Your cart is empty

Looks like you haven't added anything yet.
