Cooper & Hunter Hyper Heat 6,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-RHP06F9-230VO06DT
Product specifications
- Voltage
- 230V
- SEER
- 18.0
- WiFi
- Not Included
- Zone
- Single Zone
- Type
- Concealed Duct
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · HYPER HEAT
Built for year-round comfort
CH-RHP06F9-230VO06DT
System Specs
| Cooling Capacity | 6,500 BTU/h |
|---|---|
| SEER2 | 21.4 |
| EER2 | 14.4 |
| Voltage | 230V |
| Refrigerant | R454B |
| Compressor | Inverter |
|---|---|
| Climate Range | −22–122°F / −22–75°F outdoor ambient |
| Sound Level (indoor) | 36/34.5/32.5 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 27.56 × 19.92 × 7.87 in | 39.46 / 46.74 lb | Wire controller + remote controller available |
Hyper Heat Series Description
The Cooper & Hunter Hyper Heat 6,000 BTU (0.5 Ton) single-zone slim duct mini split is a concealed-duct air conditioner and heat pump built for cold climates: full heating operation down to −22°F outdoor ambient on next-generation R454B refrigerant. The low-profile ducted air handler hides above a ceiling or in a soffit — central-air comfort with 21.4 SEER2 inverter efficiency (208/230V). Energy Star Cold Climate certified.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

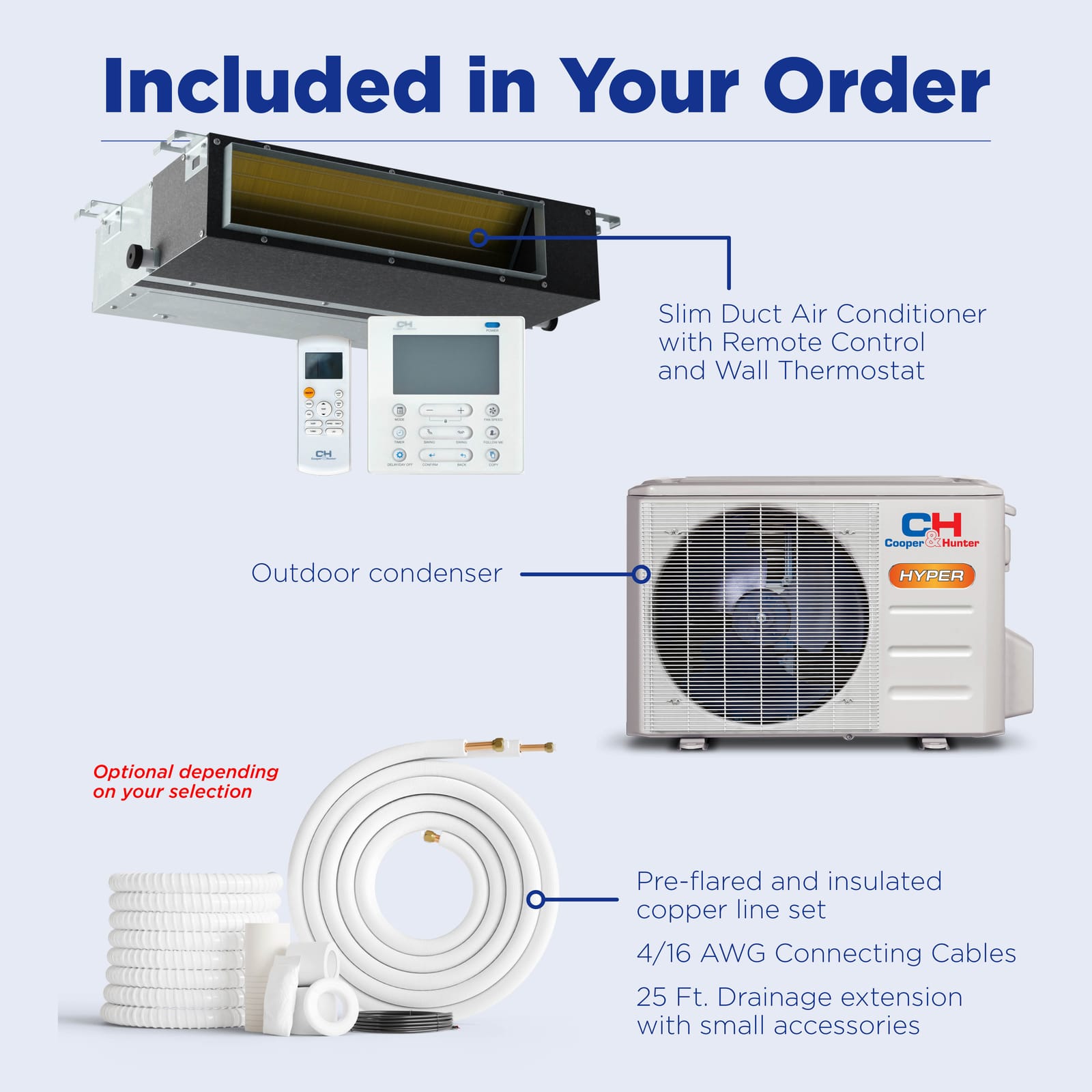

IN THE BOX
Everything included with this system
- Cooper & Hunter Hyper 6,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump
- Indoor Concealed Duct — CH-RS06-12MDT- MS

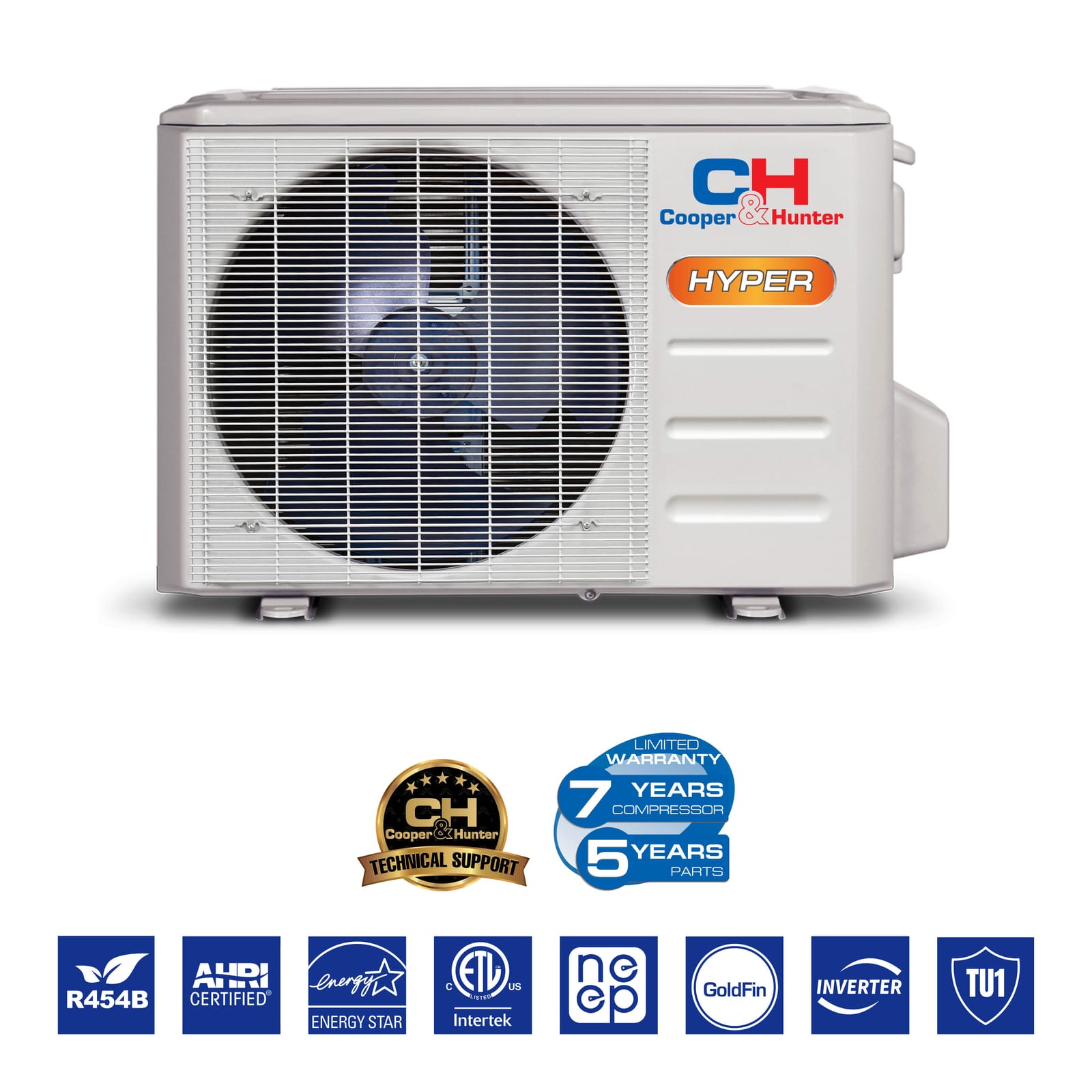

WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

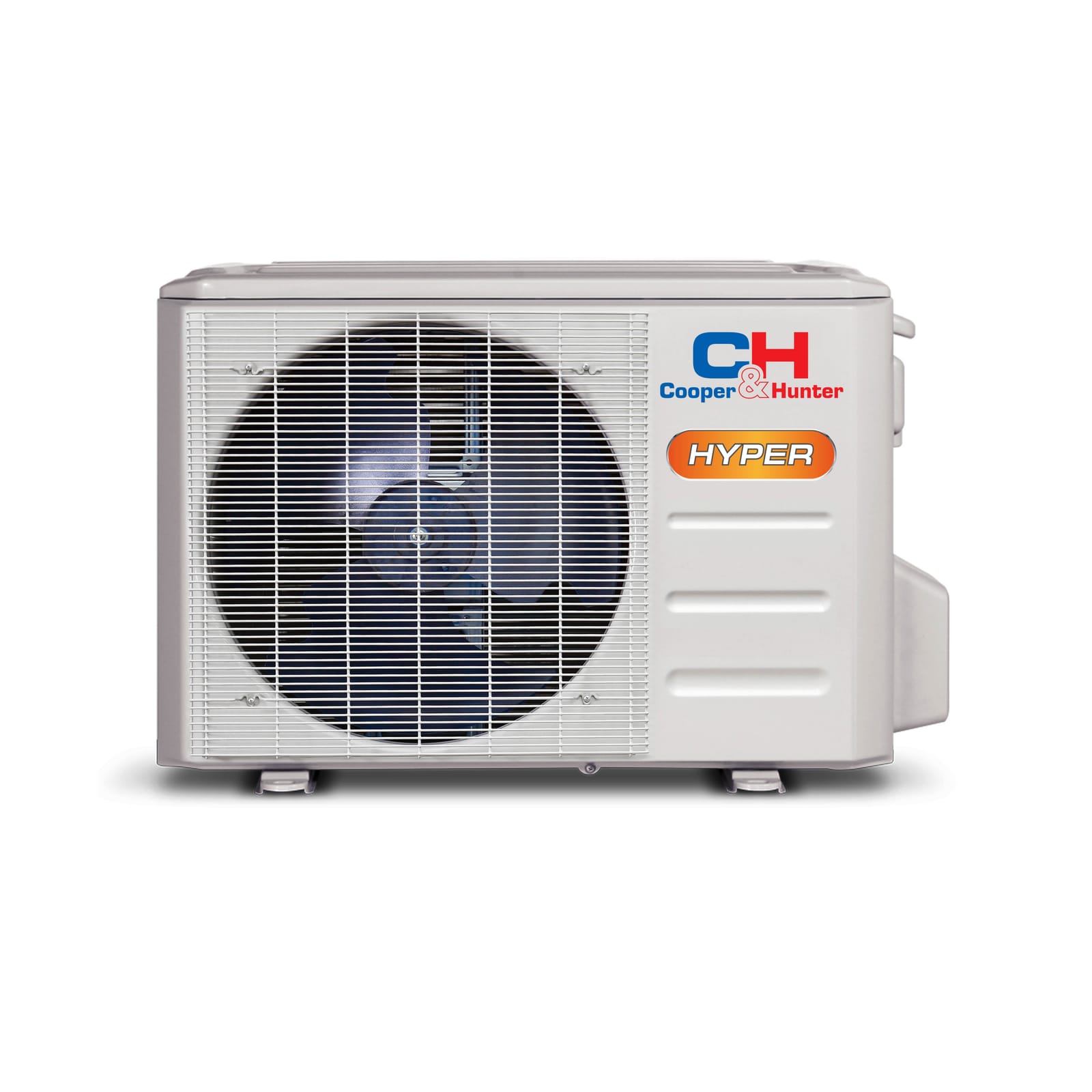

Outdoor Unit Specs— CH-RHP06F9-230VO
| Model | CH-RHP06F9-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 30.12 x 11.93 x 21.85 in |
| Net/Gross Weight | 62.17/67.68 lb |
| Packing Dimensions (WxDxH) | 34.92 x 13.27 x 24.02 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 12 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level | 53 dB |
| Airflow | 1,235.3 CFM |
| Dehumidification | 0.63 pt/h |

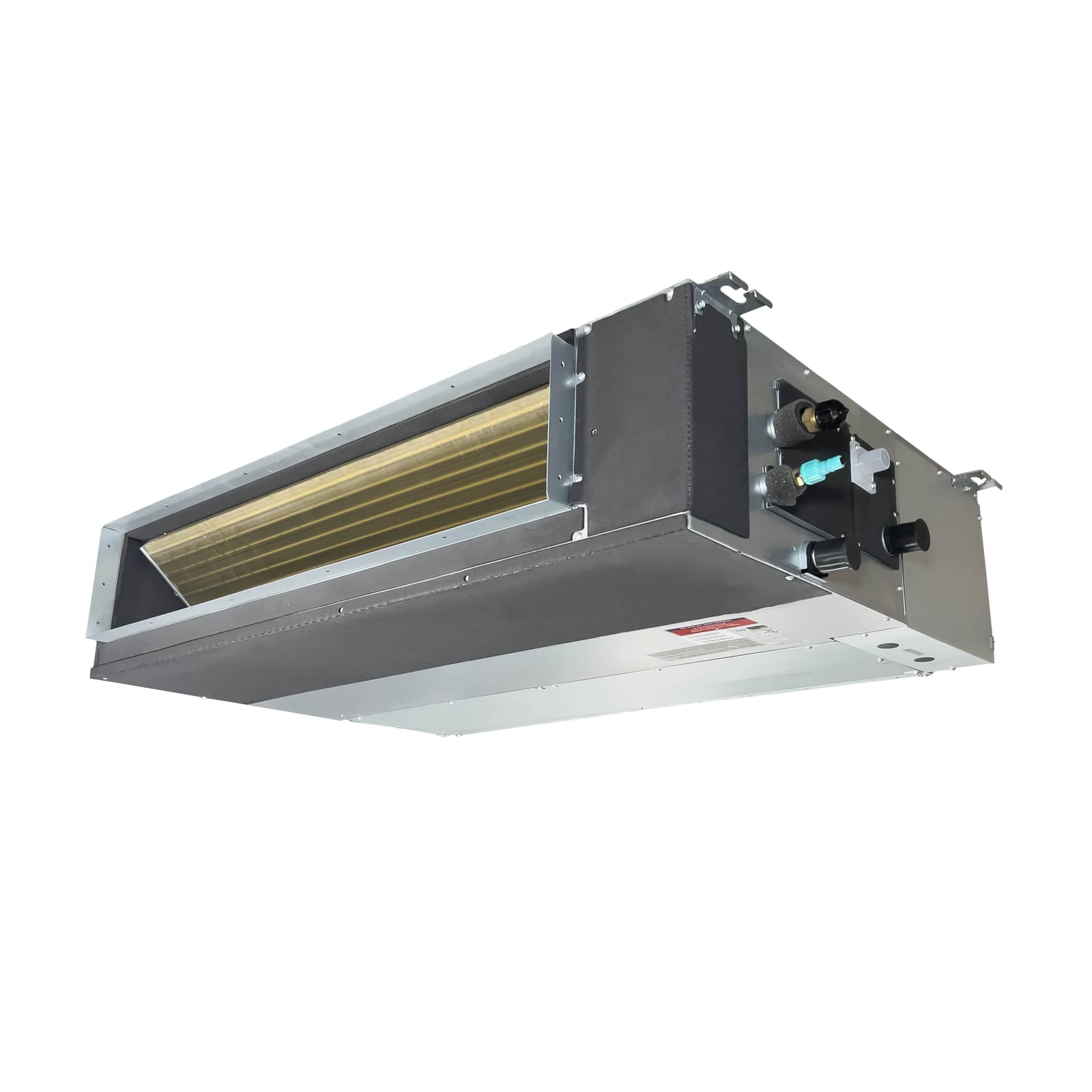

Indoor Unit Specs— CH-RS06-12MDT- MS
| Model | CH-RS06-12MDT- MS |
|---|---|
| Unit Dimensions (WxDxH) | 27.56 x 19.92 x 7.87 in |
| Net/Gross Weight | 39.46/46.74 lb |
| Packing Dimensions (WxDxH) | 33.86 x 21.26 x 11.22 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 36/34.5/32.5 dB |
| Dehumidification | 2.66 pt/h |
| Filter Dimensions | 23.3x7.24 in |
| Drain Pipe Diameter | 1" |
| Controller | wire controller + remote controller available |
System Specs
| Cooling — Rated Capacity (Range) | 6,500 Btu/h (3,300–11,800) |
|---|---|
| Heating — Rated Capacity (Range) | 8,000 Btu/h (3,700–13,100) |
| SEER2 / EER2 | 21.4 / 14.4 |
| HSPF4 / HSPF5 / COP (47°F) | 13.8 / 10.8 / 4.01 |
| Rated Current (Cooling / Heating) | 3.4 A / 4.5 A |
| Minimum Circuit Ampacity — Outdoor / Indoor | 12 A / 3 A |
| Max. Fuse — Outdoor / Indoor | 15 A / 15 A |
| External Static Pressure (ESP) | 0–0.4 in.WG (medium static) |
| Indoor Air Flow (Turbo/Hi/Mid/Lo/Silent) | 324 / 265 / 206 / 147 / 118 CFM |
| Indoor Noise Level | 32.5 / 30.5 / 29.5 / 22 dB(A) (Hi/Mid/Lo/Silent) |
| Indoor Unit Dimensions (W×D×H) | 27.56 × 19.92 × 7.87 in |
| Indoor Unit Net Weight | 39.5 lbs |
| Outdoor Air Flow (Max.) | 1,236 CFM |
| Outdoor Noise Level | 54.0 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 30.12 × 11.93 × 21.85 in |
| Outdoor Unit Net / Gross Weight | 62.2 / 67.7 lbs |
| Refrigerant Type / Charge | R454B / 32.45 oz |
| Pre-charged Line Length | 25 ft (add 0.16 oz per additional ft) |
| Line Set (Liquid / Gas) | 1/4" / 3/8" |
| Max. Pipe Length | 82 ft |
| Max. Elevation Difference | 32.8 ft |
| Operating Range — Cooling / Heating | −22–122°F / −22–75°F outdoor ambient |
| Drain Pump | Built-in |
Frequently asked questions.
What's included in this system?
A complete single-zone system: the indoor unit and its matching outdoor condenser. Choose a line-set kit length at checkout, or supply your own.
What size room does it suit?
It is rated at 6,000 BTU — size it to your room’s square footage and insulation for the best match.
Does it heat as well as cool?
Yes — it is an inverter heat pump that both cools and heats down to -22°F outdoor ambient (Hyper Heat). See the specifications for this model’s heating range.
What refrigerant does it use?
R454B. The system ships factory pre-charged; a licensed installer adjusts the charge for your line length.
Who should install it?
A licensed HVAC professional — required for the refrigerant, electrical, and startup work, and to keep the manufacturer warranty valid. Many customers buy the equipment here and hire a local installer.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 19.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.6HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.6HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 19.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 12,000 BTU Single Zone Slim Duct, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter Hyper Heat 6,000 BTU (0.5 Ton) single-zone slim duct mini split is a concealed-duct air conditioner and heat pump built for cold climates: full heating operation down to −22°F outdoor ambient on next-generation R454B refrigerant. The low-profile ducted air handler hides above a ceiling or in a soffit — central-air comfort with 21.4 SEER2 inverter efficiency (208/230V). Energy Star Cold Climate certified.
Key Features

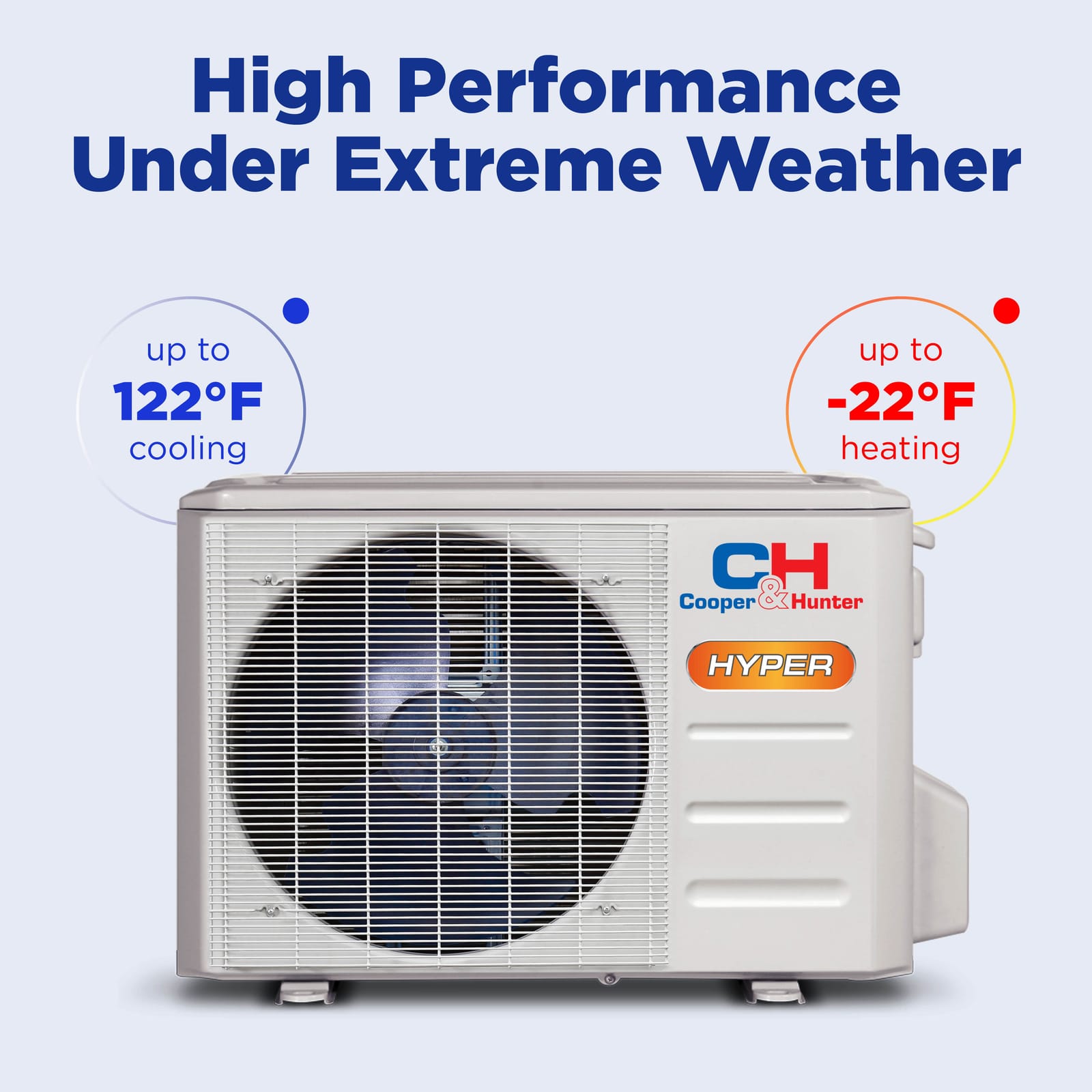

- Hyper Heat: heats at −22°F outdoor ambient (cooling −22–122°F) — built for northern winters
- 6,500 BTU cooling / 8,000 BTU heating — inverter range 3,300–11,800 Btu/h cooling, 3,700–13,100 Btu/h heating
- 21.4 SEER2 / 14.4 EER2 / 13.8 HSPF4 — current R454B-generation ratings
- Concealed installation: external static pressure 0–0.4 in.WG (medium static) — supports real duct runs, grilles and filters
- Built-in condensate drain pump — simplifies above-ceiling installation
- Wired wall thermostat and IR remote included; Smart Kit built in (Wi-Fi via wall thermostat connection)
- 208/230V, 1Ph, 60Hz — MCA 12 A, max fuse 15 A
- ETL listed, AHRI certified, NEEP listed, Energy Star Cold Climate
Cooper & Hunter Hyper Heat Slim Duct (R454B) Lineup
| Capacity | Model (Indoor + Outdoor) | SEER2 |
| 6,000 BTU | CH-RS06-12MDT-MS + CH-RHP06F9-230VO | 21.4 |
| 9,000 BTU | CH-RS06-12MDT-MS + CH-RHP09-230VO | 21.4 |
| 12,000 BTU | CH-RS06-12MDT-MS + CH-RHP12-230VO | 20.0 |
| 18,000 BTU | CH-RS18MDT-MS + CH-RHP18-230VO | 18.0 |
| 24,000 BTU | CH-RS24MDT-HS + CH-RHP24-230VO | 19.0 |
| 36,000 BTU | CH-RS36LCDT-HS + CH-RHP36LCU-230VO | 17.7 |
| 48,000 BTU | CH-RS48LCDT-HS + CH-RHP48LCU-230VO | 16.7 |
| 60,000 BTU | CH-RS60LCDT-HS + CH-RHP60LCU-230VO | 15.8 |
