Cooper & Hunter 36,000 BTU Single Zone Light Commercial Slim Duct, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-R36LCU-230VO36DT
Product specifications
- Voltage
- 230V
- SEER
- 16.5
- WiFi
- Not Included
- Zone
- Single Zone
- Type
- Concealed Duct
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-R36LCU-230VO36DT
System Specs
| Cooling Capacity | 36,000 BTU/h |
|---|---|
| SEER2 | 18.7 |
| EER2 | 10.1 |
| Voltage | 230V |
| Refrigerant | R454B |
| Compressor | Inverter |
|---|---|
| Climate Range | −13–122°F / −13–75°F outdoor ambient |
| Sound Level (indoor) | 45/40/34 dB |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 47.24 × 29.53 × 11.81 in | 106.26 / 120.37 lb | Wire controller + remote controller available |
Product Description
The Cooper & Hunter 36,000 BTU (3 Ton) single-zone Light Commercial slim duct mini split is a concealed-duct air conditioner and heat pump running on next-generation R454B refrigerant. The low-profile ducted air handler hides above a ceiling or in a soffit and distributes air through short duct runs — central-air comfort with mini-split efficiency ( 18.7 SEER2, 208/230V). Heating operation continues down to −13°F outdoor ambient.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

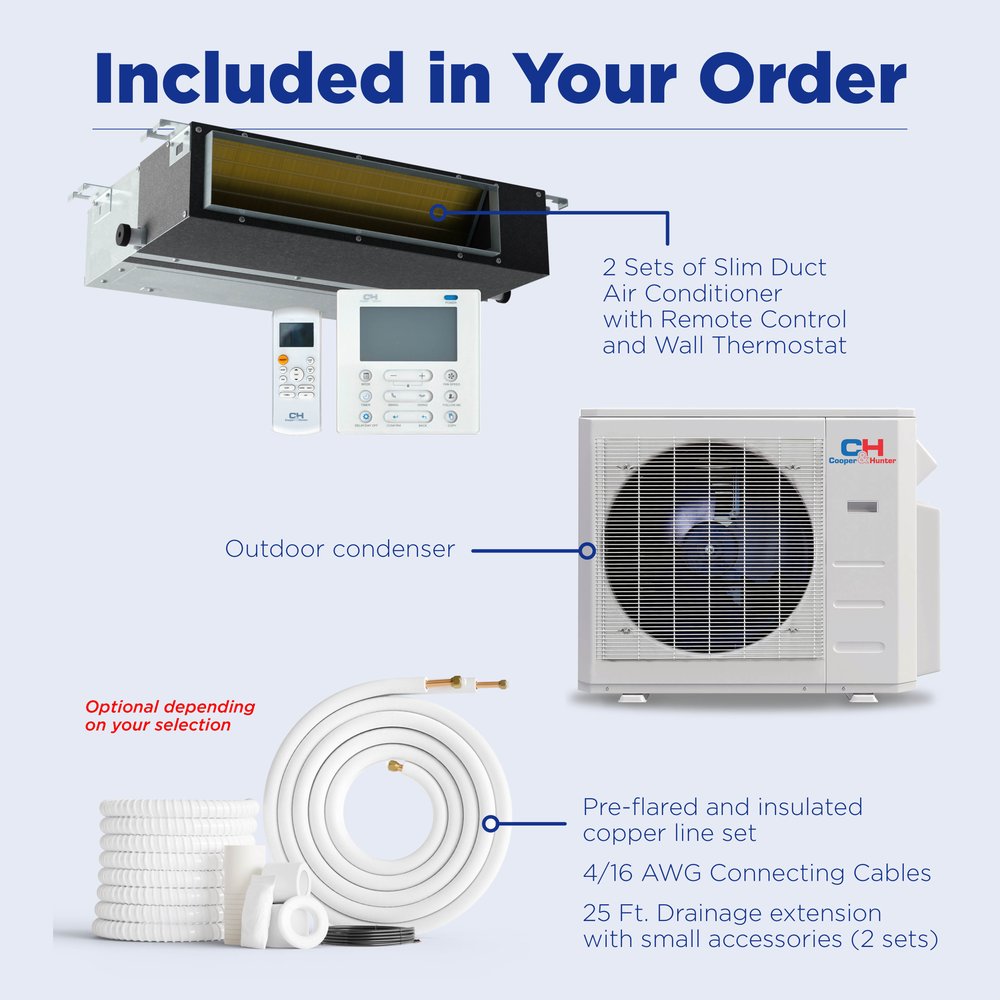

IN THE BOX
Everything included with this system
- Cooper & Hunter 36,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump
- Indoor Concealed Duct — CH-RS36LCDT-HS
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

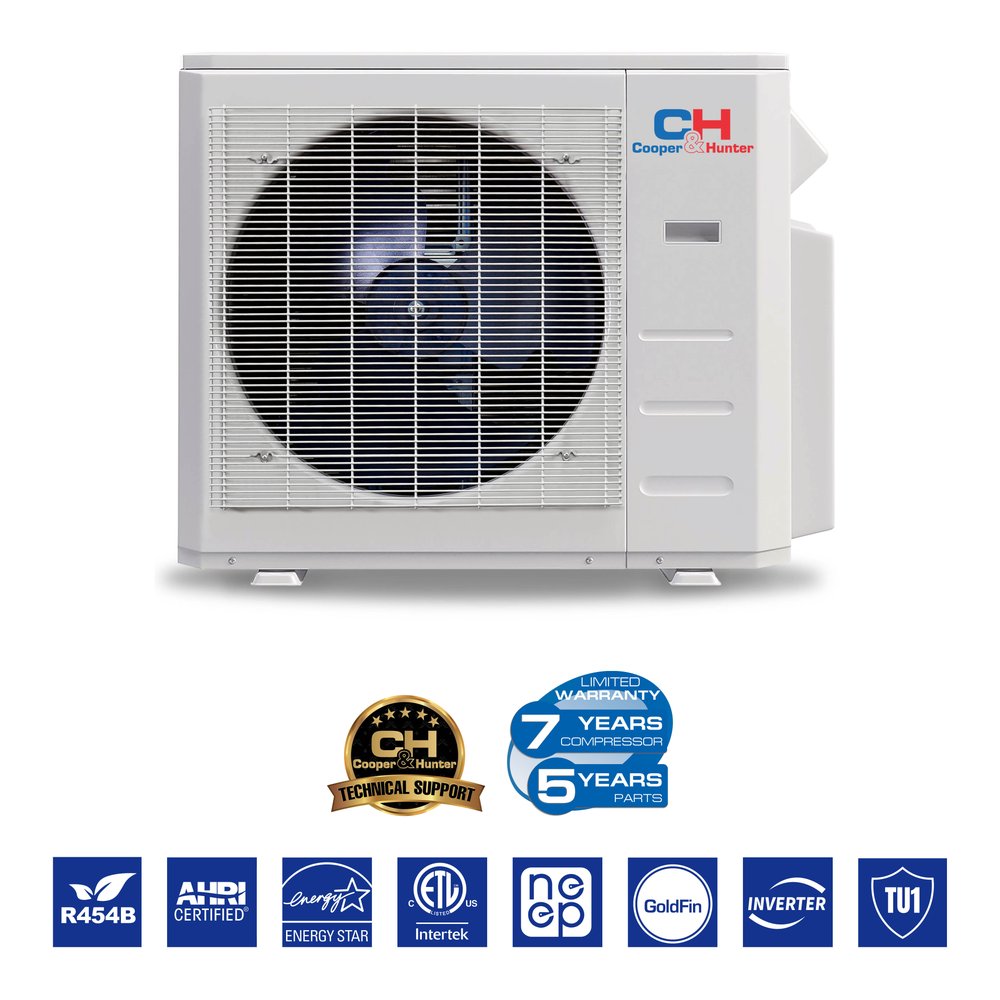

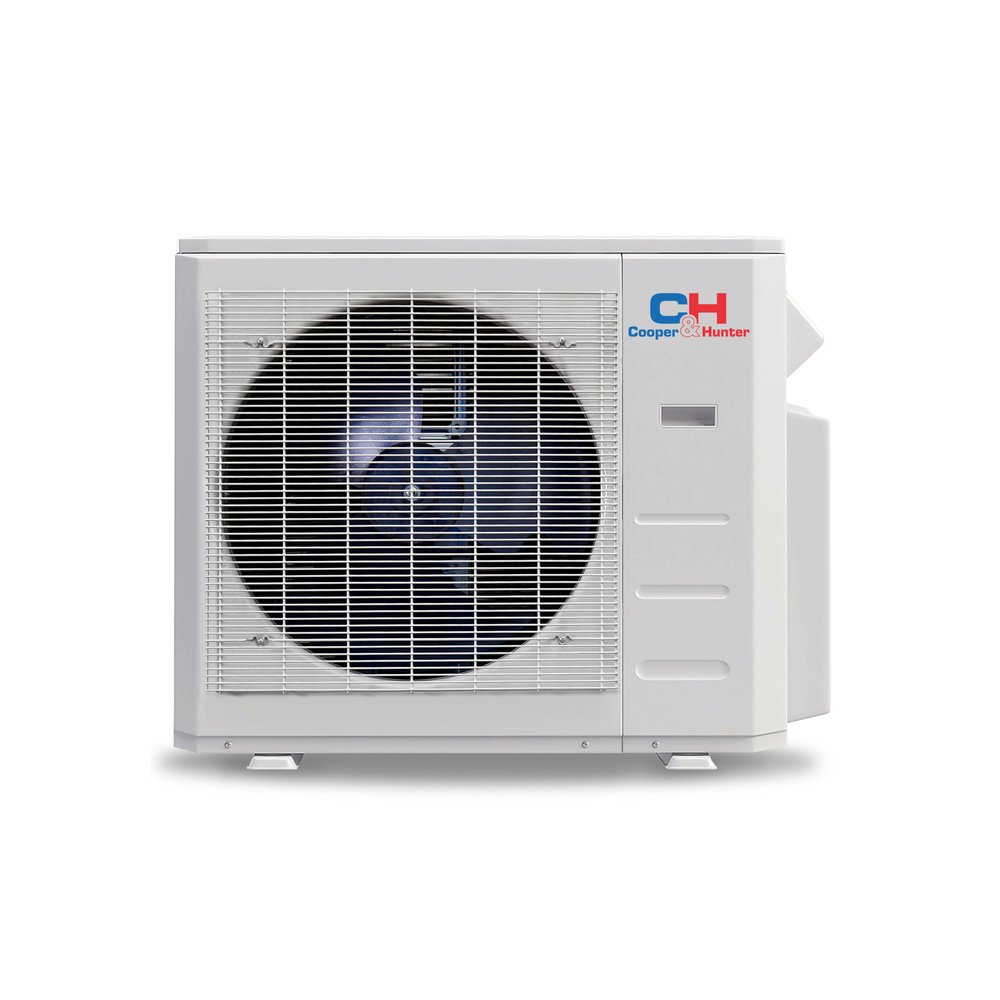

Outdoor Unit Specs— CH-R36LCU-230VO
| Model | CH-R36LCU-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Net/Gross Weight | 152.34/162.48 lb |
| Packing Dimensions (WxDxH) | 42.91 x 19.68 x 34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 35 A |
| Min. Circuit Ampacity | 33 A |
| Copper Line Size (Liquid/Gas) | 3/8"/3/4" |
| Noise Level | 63 dB |
| Airflow | 2,413.3 CFM |
| Dehumidification | 8.94 pt/h |

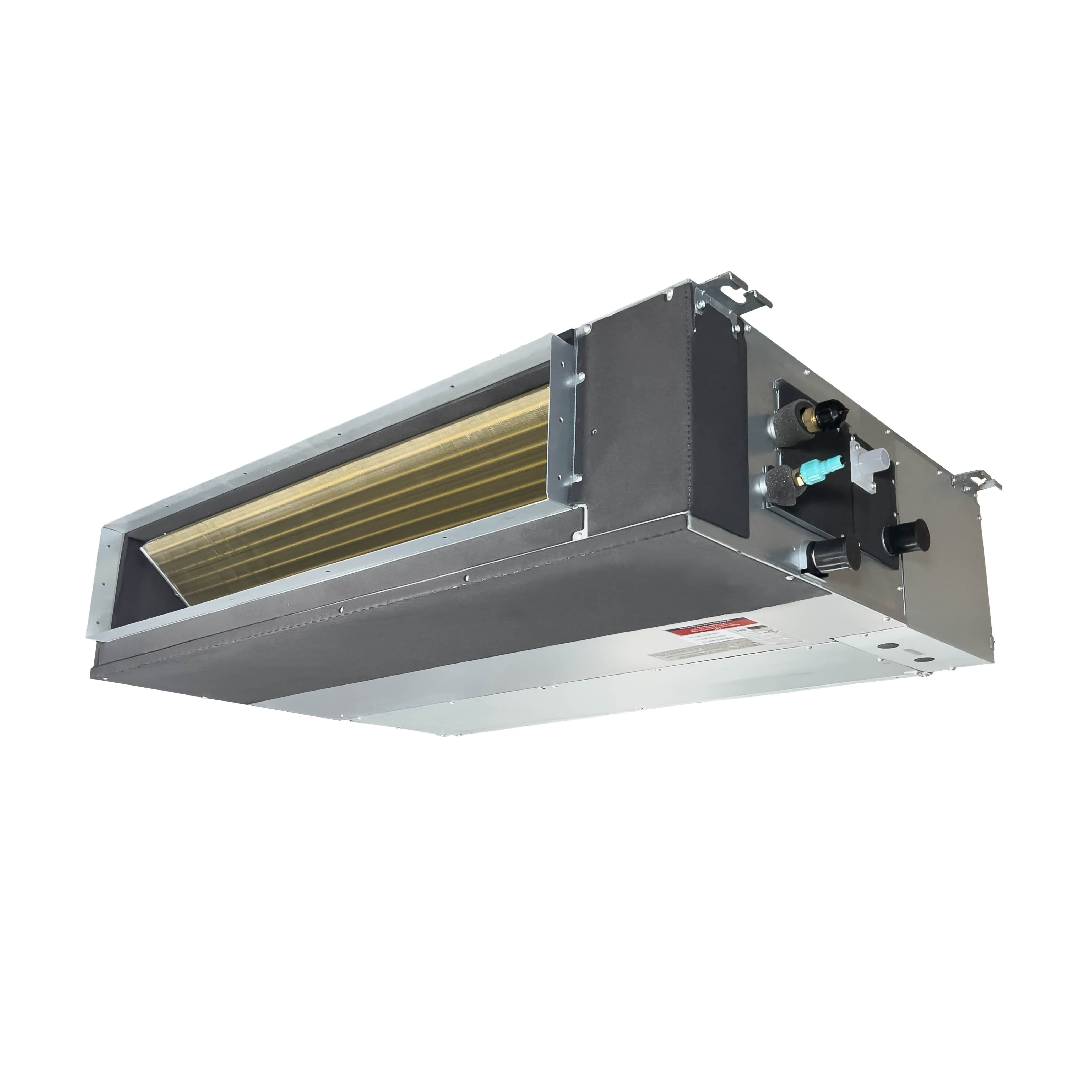

Indoor Unit Specs— CH-RS36LCDT-HS
| Model | CH-RS36LCDT-HS |
|---|---|
| Unit Dimensions (WxDxH) | 47.24 x 29.53 x 11.81 in |
| Net/Gross Weight | 106.26/120.37 lb |
| Packing Dimensions (WxDxH) | 56.10 x 33.86 x 14.13 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 4 A |
| Copper Line Size (Liquid/Gas) | 3/8"/3/4" |
| Noise Level (Hi/Med/Lo) | 45/40/34 dB |
| Dehumidification | 6.34 pt/h |
| Filter Dimensions | 21.26x10.12 in |
| Drain Pipe Diameter | 1" |
| Controller | wire controller + remote controller available |
System Specs
| Cooling — Rated Capacity (Range) | 36,000 Btu/h (7,900–42,500) |
|---|---|
| Heating — Rated Capacity (Range) | 40,000 Btu/h (8,100–43,500) |
| SEER2 / EER2 | 18.7 / 10.1 |
| HSPF4 / HSPF5 / COP (47°F) | 10.2 / 7.8 / 3.70 |
| Rated Current (Cooling) | 15.3 A |
| Minimum Circuit Ampacity — Outdoor / Indoor | 33 A / 3 A |
| Max. Fuse — Outdoor / Indoor | 35 A / 15 A |
| External Static Pressure (ESP) | 0–0.8 in.WG (high static, 8 fan curves) |
| Indoor Air Flow (Turbo/Hi/Mid/Lo) | 1,236 / 1,060 / 942 / 765 CFM |
| Indoor Noise Level | 45 / 39.5 / 33 / 30 dB(A) (Hi/Mid/Lo/Silent) |
| Indoor Unit Dimensions (W×D×H) | 47.24 × 29.53 × 11.81 in |
| Indoor Unit Net Weight | 106.3 lbs |
| Outdoor Air Flow (Max.) | 2,413 CFM |
| Outdoor Noise Level | 63.0 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.24 × 16.14 × 31.89 in |
| Outdoor Unit Net / Gross Weight | 152.3 / 162.5 lbs |
| Refrigerant Type / Charge | R454B / 91.71 oz |
| Pre-charged Line Length | 25 ft (add 0.32 oz per additional ft) |
| Line Set (Liquid / Gas) | 3/8" / 3/4" |
| Max. Pipe Length | 246 ft |
| Max. Elevation Difference | 98.4 ft |
| Operating Range — Cooling / Heating | −13–122°F / −13–75°F outdoor ambient |
| Drain Pump | Built-in |
Frequently asked questions.
What size mini split do I need for my space?
The Cooper & Hunter 36,000 BTU Single Zone Mini Split is ideal for spaces up to 1500 sq ft. If your area falls within this range, this unit will effectively provide both heating and cooling.
Can I install a mini split myself?
While the Cooper & Hunter mini split can be installed by a DIY enthusiast, professional installation is recommended to ensure optimal performance. The unit comes with options for installation kits of 16ft, 25ft, or 50ft, which can simplify the process.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 36,000 BTU unit is pre-charged with R454B refrigerant for line sets up to 25 ft. This feature allows for easier installation and ensures that the unit is ready to operate upon setup.
What voltage does the Cooper & Hunter mini split require?
This model operates on a 230V power supply, making it suitable for most residential and light commercial applications. Ensure your electrical system can accommodate this voltage for proper operation.
What warranty does Cooper & Hunter offer on this mini split?
The Cooper & Hunter 36,000 BTU mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This warranty offers peace of mind regarding the unit's longevity.
What is the SEER rating of this mini split and why is it important?
The Cooper & Hunter mini split boasts a SEER rating of 16.5, indicating high energy efficiency. Choosing a unit with a higher SEER rating can lead to significant savings on your energy bills while ensuring effective climate control.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 6,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 19.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.6HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.6HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter 36,000 BTU (3 Ton) single-zone Light Commercial slim duct mini split is a concealed-duct air conditioner and heat pump running on next-generation R454B refrigerant. The low-profile ducted air handler hides above a ceiling or in a soffit and distributes air through short duct runs — central-air comfort with mini-split efficiency (18.7 SEER2, 208/230V). Heating operation continues down to −13°F outdoor ambient.
Key Features
- 36,000 BTU cooling / 40,000 BTU heating — inverter range 7,900–42,500 Btu/h cooling, 8,100–43,500 Btu/h heating
- 18.7 SEER2 / 10.1 EER2 / 10.2 HSPF4 — current R454B-generation ratings
- Concealed installation: external static pressure 0–0.8 in.WG (high static, 8 fan curves) — supports real duct runs, grilles and filters
- Heats down to −13°F, cooling operation −13–122°F outdoor ambient
- Built-in condensate drain pump — simplifies above-ceiling installation
- Wired wall thermostat and IR remote included; Smart Kit built in (Wi-Fi via wall thermostat connection)
- 208/230V, 1Ph, 60Hz — MCA 33 A, max fuse 35 A
- ETL listed, AHRI certified, NEEP listed
Cooper & Hunter Single-Zone Slim Duct (R454B) Lineup
| Capacity | Model (Indoor + Outdoor) | SEER2 |
| 9,000 BTU | CH-RS06-12MDT-MS + CH-RES09-230VO | 19.5 |
| 12,000 BTU | CH-RS06-12MDT-MS + CH-RES12-230VO | 19.0 |
| 18,000 BTU | CH-RS18MDT-MS + CH-RES18-230VO | 20.0 |
| 24,000 BTU | CH-RS24MDT-HS + CH-RES24-230VO | 19.0 |
| 36,000 BTU | CH-RS36LCDT-HS + CH-R36LCU-230VO | 18.7 |
| 48,000 BTU | CH-RS48LCDT-HS + CH-R48LCU-230VO | 17.1 |
| 60,000 BTU | CH-RS60LCDT-HS + CH-R60LCU-230VO | 17.0 |
