Cooper & Hunter 36,000 BTU Single Zone Light Commercial Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Cooper & Hunter7-Yr WarrantySKU: CH-R36LCU-230VO36CT
Product specifications
- Voltage
- 230V
- SEER
- 16.4
- WiFi
- Not Included
- Zone
- Single Zone
- Type
- Ceiling Cassette
- Freon
R454B
Choose Your Configuration
“No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · STANDARD
Built for year-round comfort
CH-R36LCU-230VO36CT
System Specs
| Cooling Capacity | 36,000 BTU/h |
|---|---|
| SEER2 | 20.0 |
| EER2 | 9.6 |
| Voltage | 230V |
| Refrigerant | R454B |

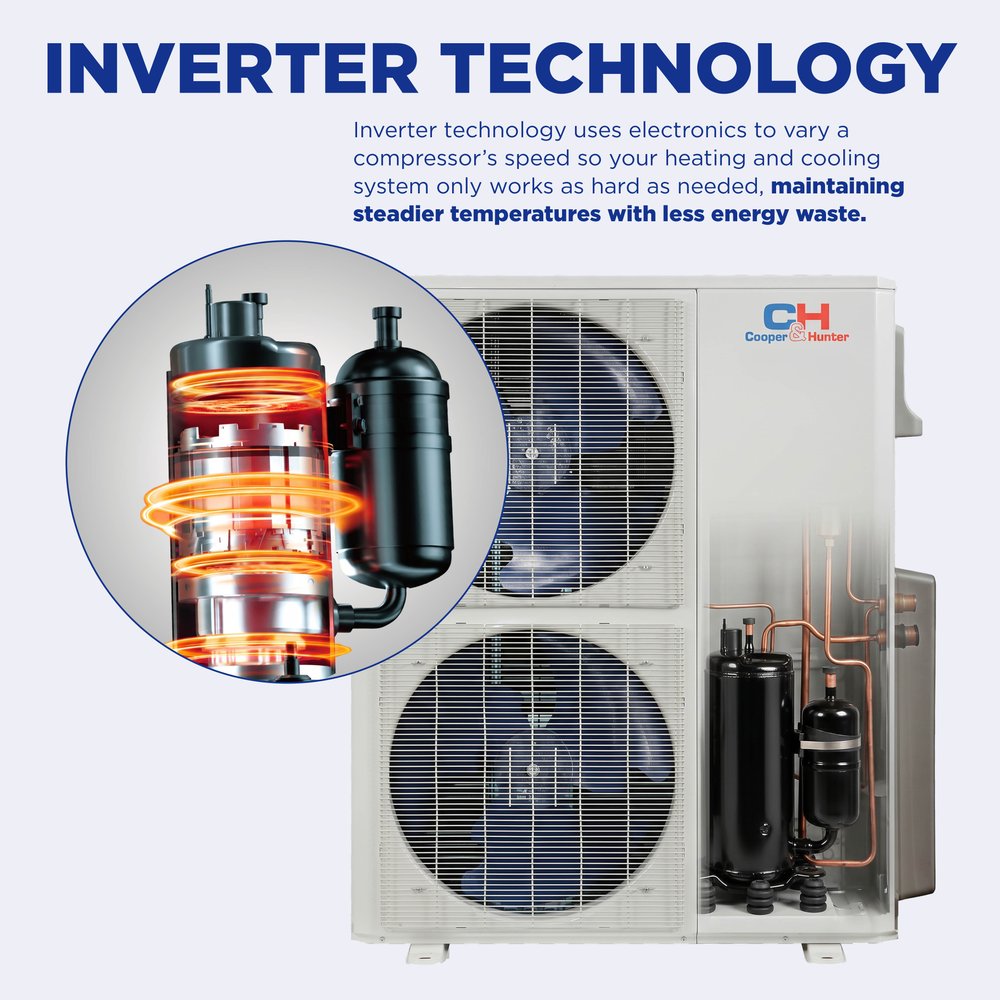

| Compressor | Inverter |
|---|---|
| Climate Range | -13–122°F / -13–75°F outdoor ambient |
| Sound Level (indoor) | 52.0 / 47.5 / 40.0 / 38.0 dB(A) |
| Warranty | 7-Yr Compressor |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 32.68 × 32.68 × 9.65 in | 59.30 / 71.43 lb | Wire controller + remote controller available |
Product Description
The Cooper & Hunter 36,000 BTU (3 Ton) light commercial ceiling cassette is a single-zone flush-mount mini split air conditioner and heat pump on next-generation R454B refrigerant. The cassette recesses fully into the ceiling — only the low-profile panel stays visible — and a built-in condensate pump handles drainage. With a 20.0 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 2,200 sq ft and keeps heating in outdoor temperatures as low as -13°F. Wi-Fi control is built in.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

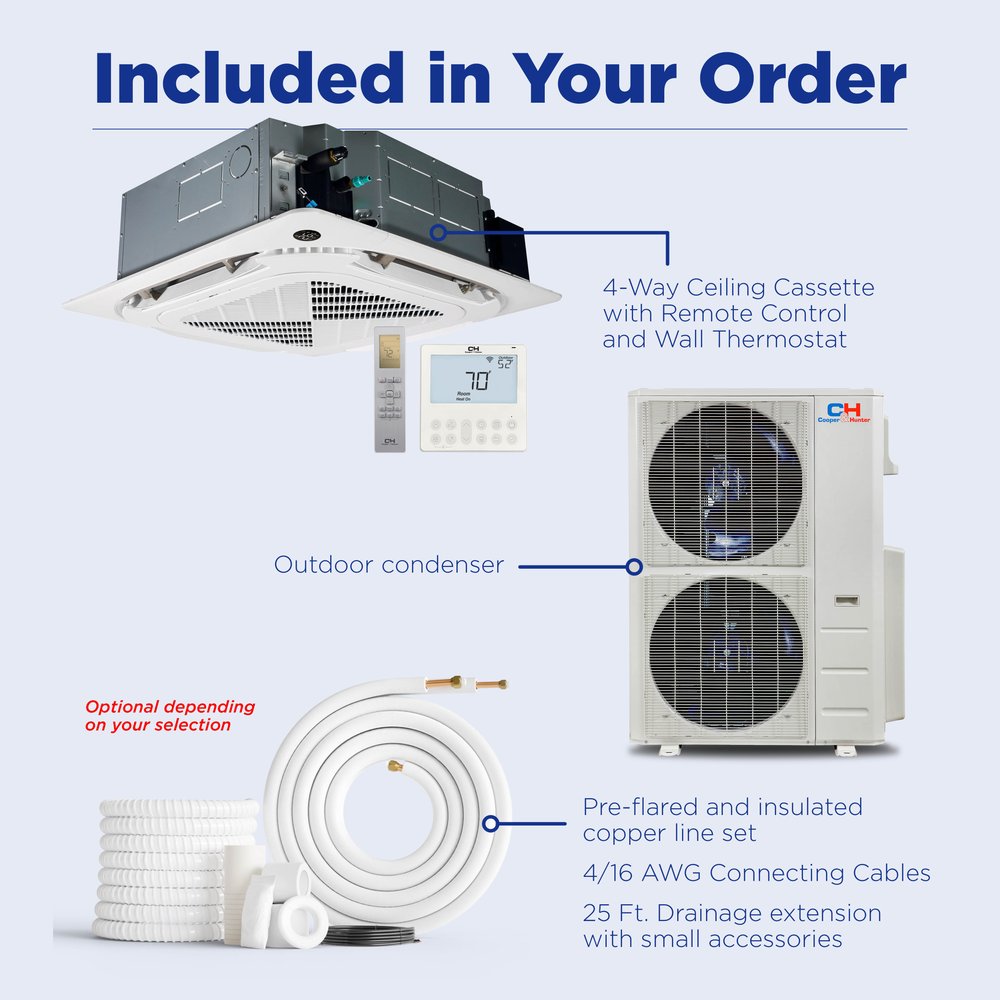

IN THE BOX
Everything included with this system
- Cooper & Hunter 36,000 BTU Outdoor Condenser, 230V, R454B - Single Zone Mini Split Air Conditioner Heat Pump
- Indoor Ceiling Cassette — CH-RH36LCCT
- Indoor Ceiling Cassette — CH-NPNL24-48CT

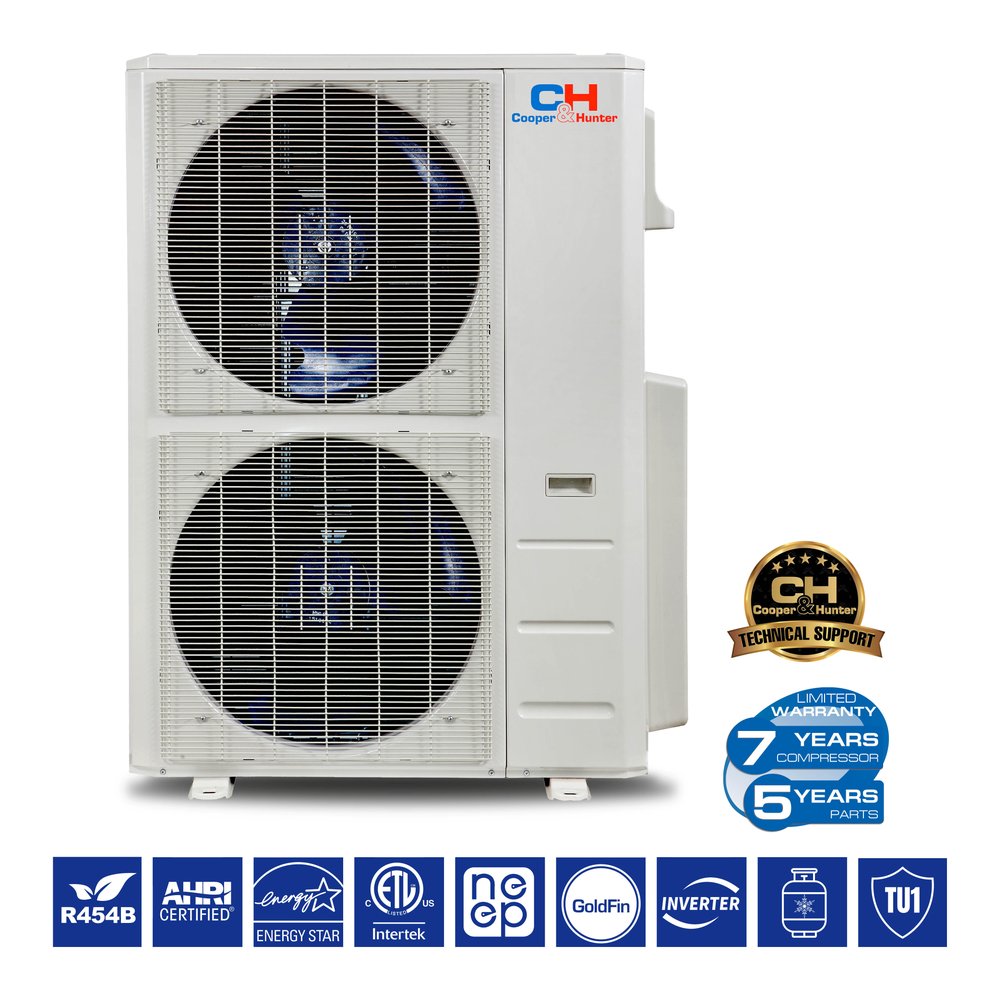

WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications

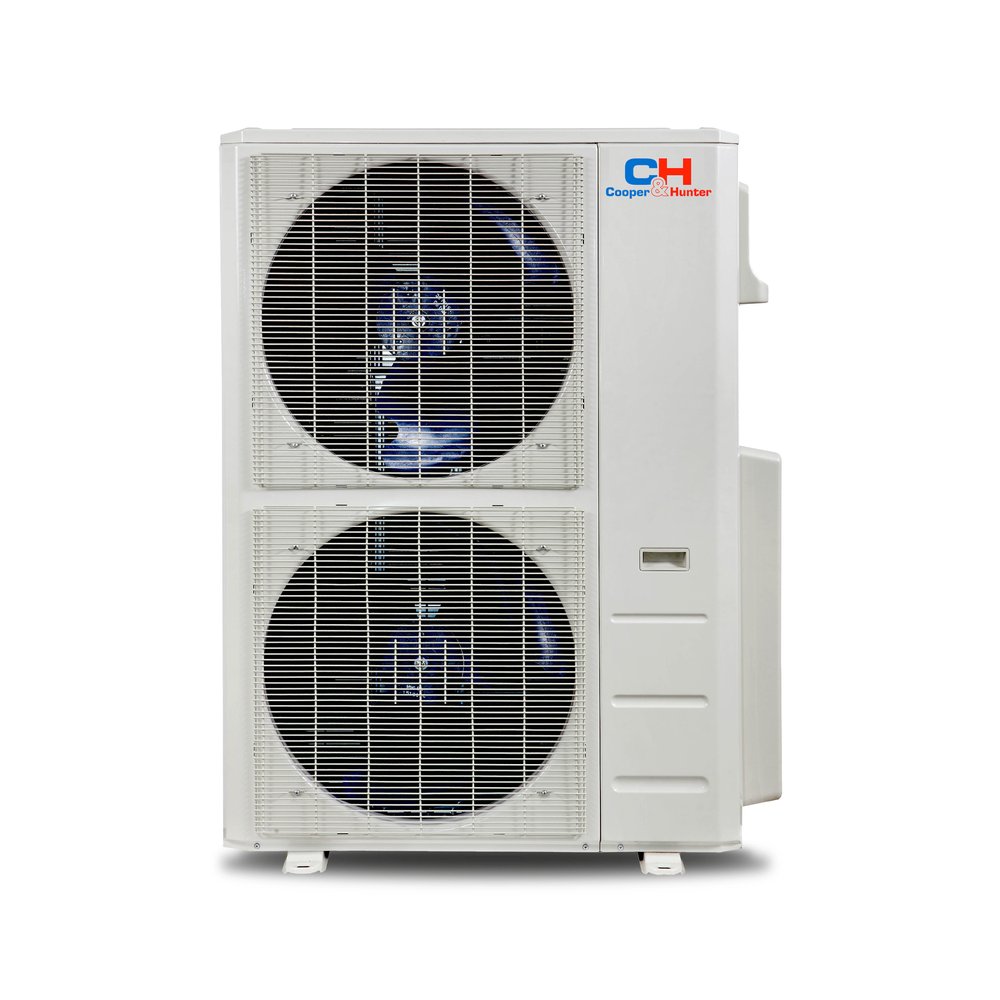

Outdoor Unit Specs— CH-R36LCU-230VO
| Model | CH-R36LCU-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Net/Gross Weight | 152.34/162.48 lb |
| Packing Dimensions (WxDxH) | 42.91 x 19.68 x 34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 35 A |
| Min. Circuit Ampacity | 33 A |
| Copper Line Size (Liquid/Gas) | 3/8"/3/4" |
| Noise Level | 63 dB |
| Airflow | 2,413.3 CFM |
| Dehumidification | 8.94 pt/h |

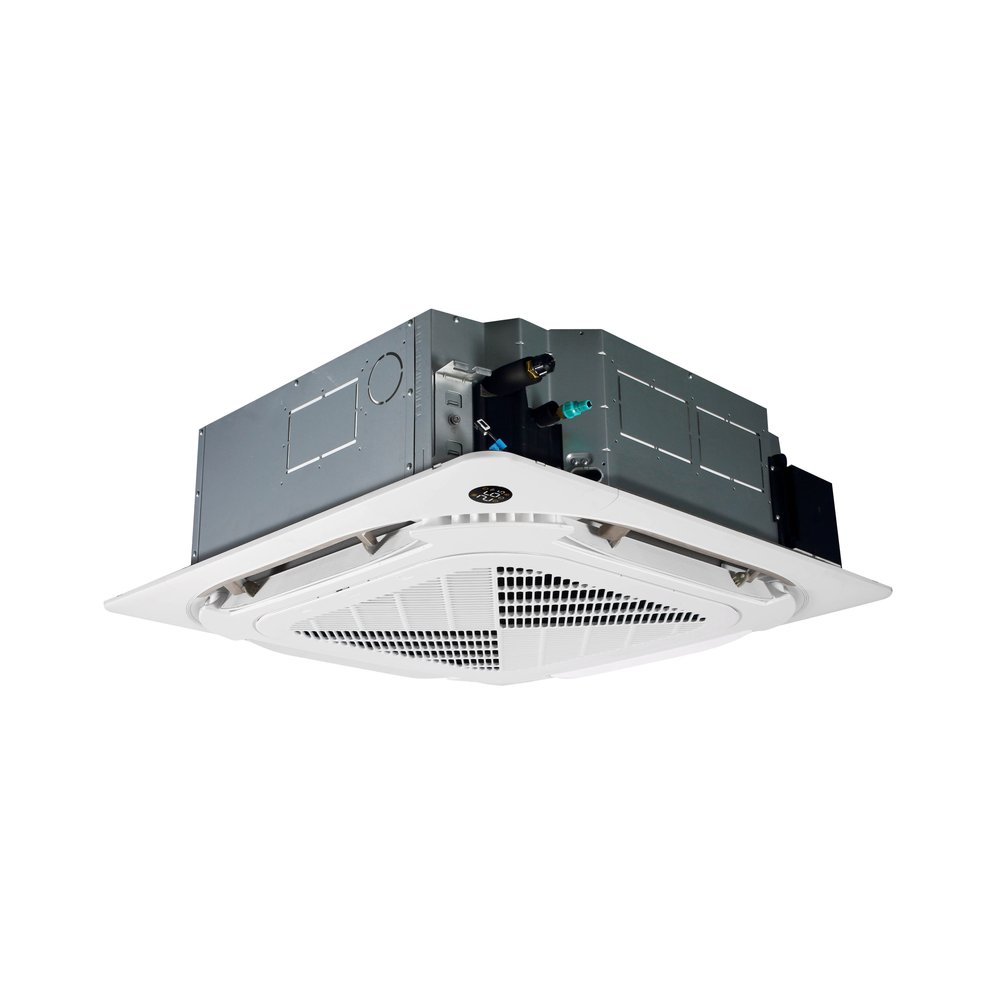

Indoor Unit Specs— CH-RH36LCCT
| Model | CH-RH36LCCT |
|---|---|
| Unit Dimensions (WxDxH) | 32.68 x 32.68 x 9.65 in |
| Net/Gross Weight | 59.30/71.43 lb |
| Packing Dimensions (WxDxH) | 35.83 x 35.83 x 11.42 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 3/8"/3/4" |
| Noise Level (Hi/Med/Lo) | 52/47.5/40 dB |
| Dehumidification | 9.09 pt/h |
| Drain Pipe Diameter | 1" |
| Controller | wire controller + remote controller available |
System Specs
| Cooling — Rated Capacity (Range) | 36,000 Btu/h (6,400–39,800) |
|---|---|
| Heating — Rated Capacity (Range) | 38,000 Btu/h (14,400–42,200) |
| SEER2 / EER2 | 20.0 / 9.6 |
| HSPF4 / HSPF5 / COP (47°F) | 10.3 / 8.8 / 3.31 |
| Outdoor Unit MCA / Max. Fuse | 33 A / 35 A |
| Indoor Unit MCA / Max. Fuse | 3 A / 15 A |
| Indoor Air Flow (Turbo/Hi/Mid/Lo/Silent) | 1042 / 948 / 854 / 753 / 659 CFM |
| Indoor Noise Level (Hi/Mid/Lo/Silent) | 52.0 / 47.5 / 40.0 / 38.0 dB(A) |
| Indoor Cassette Dimensions (W×D×H) | 32.68 × 32.68 × 9.65 in (recessed body) |
| Decorative Panel | CH-NPNL24-48CT — 37.4 × 37.4 × 2.17 in |
| Indoor Unit Net / Gross Weight | 59.3 / 71.4 lbs |
| Condensate Removal | Built-in drain pump; lift pipe up to 29.5 in above ceiling |
| Outdoor Noise Level | 63.0 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.24 × 16.14 × 31.89 in |
| Outdoor Unit Net / Gross Weight | 152.3 / 162.5 lbs |
| Refrigerant Type / Charge | R454B / 91.71 oz |
| Pre-charged Line Length | 25 ft (add 0.32 oz per additional ft) |
| Line Set (Liquid / Gas) | 3/8" / 3/4" |
| Max. Pipe Length | 246 ft |
| Max. Elevation Difference | 98.4 ft |

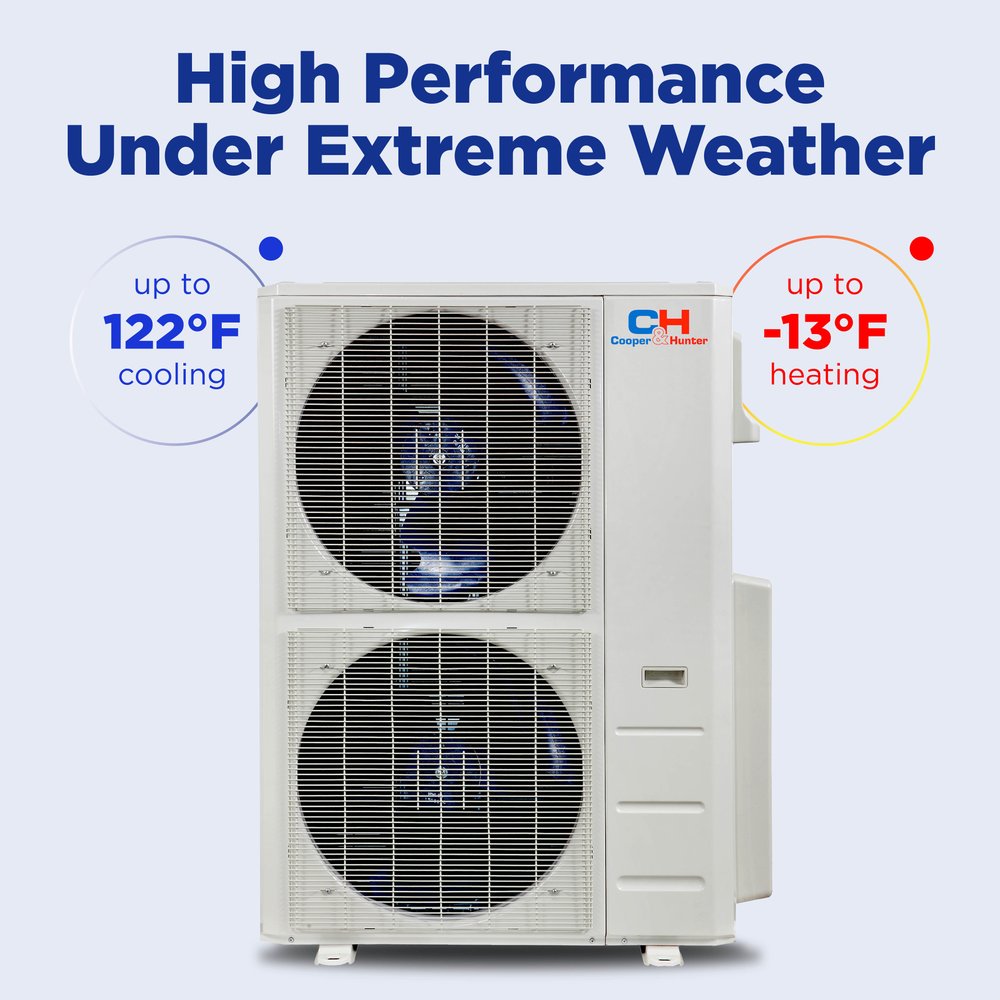

| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
| Recommended Coverage | up to 2,200 sq ft (guidance) |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
System Type
| Specification | Hyper | Regular |
|---|---|---|
| Ceiling Cassette PRO | CH-RSH09-12MCT(Dip Switch for 9K) | CH-RSH09-12MCT(Dip Switch for 12K) |
| Ceiling Cassette | CH-RH09MCT | CH-RH12MCT |
| Panel Model Number | CH-NPNL09-18CT | CH-NPNL09-18CT |
| Power Supply (V,Ph,Hz) | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity (Btu/h) | 9,000 | 12,000 |
| Minimum Circuit Ampacity (A) | 3 | 3 |
| Max. Fuse (A) | 15 | 15 |
| Indoor Air Flow - Turbo/Hi/Mi/Lo (CFM) | 417.9/364.9/306.1/194.2/147.2 | 417.9/364.9/306.1/194.2/147.2 |
| Indoor Noise Level - Hi/Mi/Lo (dB(A)) | 42.5/40/37.5/26/24 | 46/43.5/40.5/27.5/26 |
| Dimension (WxDxH) (inch) | 22.44x22.44x9.65 | 22.44x22.44x9.65 |
| Packing (WxDxH) (inch) | 28.15x25.20x11.61 | 28.15x25.20x11.61 |
| Net/Gross Weight (lbs.) | 35.27/41.89 | 35.27/41.89 |
| Cooling (°F) | 60~90 | 60~90 |
| Heating (°F) | 32~86 | 32~86 |
System Type
| Specification | Hyper | Regular |
|---|---|---|
| Outdoor Model | CH-RHP09-230VO | CH-RHP12-230VO |
| Power Supply (V,Ph,Hz) | 208/230,1,60 | 208/230,1,60 |
| Voltage Range (V) | 187-253 | 187-253 |
| Rated Capacity (range) (Btu/h) | 3,700~13,600 | 3,800~15,100 |
| Rated Current (A) | 4.8 | 4.6 |
| EER2 (Btu/h) | 14 | 12.5 |
| SEER2 (Btu/h) | 22.6 | 22.2 |
| Rated Capacity (range) (Btu/h) | 5,100~15,700 | 5,300~16,200 |
| Rated Current (A) | 3.3 | 4.4 |
| COP (W/W) | 4.00 | 3.70 |
| HSPF4 | 12.1 | 11.6 |
| HSPF5 | 9.3 | 8.9 |
| Minimum Circuit Ampacity (A) | 15 | 15 |
| Max. Fuse (Outdoor Unit) (A) | 15 | 15 |
| Outdoor Air Flow (Max.) (CFM) | 1,471.5 | 1,471.5 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 55 | 57 |
| Dimension (WxDxH) (inch) | 31.69x12.99x21.81 | 31.69x12.99x21.81 |
| Packing (WxDxH) (inch) | 36.02x14.57x24.21 | 36.02x14.57x24.21 |
| Net/Gross Weight (lbs.) | 72.75/78.70 | 72.75/78.70 |
| Refrigerant Type/Charge (oz.) | R454B/35.27 | R454B/35.27 |
| Refrigerant Precharge Length (ft.) | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 |
| Design Pressure (PSIG) | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" |
| Max. Pipe Length (ft.) | 82.00 | 82.00 |
| Max. Difference in Level (ft.) | 49.20 | 49.20 |
| Cooling (°F) | -22~122 | -22~122 |
| Heating (°F) | 22~75 | -22~75 |
Frequently asked questions.
What size mini split do I need for 1500 sq ft?
For a space up to 1500 sq ft, the Cooper & Hunter 36,000 BTU Light Series Single Zone Ceiling Cassette is ideal. Its 36,000 BTU capacity ensures efficient cooling and heating, while the 16.4 SEER rating offers energy efficiency suited for larger areas.
Can I install a mini split myself?
While it's possible to install the Cooper & Hunter 36,000 BTU Ceiling Cassette yourself, it requires electrical work with 230V and handling of R454B refrigerant. Professional installation is recommended to ensure safety and performance.
Does the Cooper & Hunter mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 36,000 BTU Ceiling Cassette comes pre-charged with R454B refrigerant. This modern refrigerant is environmentally friendly and enhances the system's efficiency.
What voltage does a Cooper & Hunter mini split require?
The Cooper & Hunter 36,000 BTU Single Zone Ceiling Cassette requires a 230V power supply. This voltage is standard for light commercial applications and ensures optimal performance.
Is R454B better than R410A?
R454B, used in the Cooper & Hunter 36,000 BTU mini split, offers a lower global warming potential compared to R410A, making it a more environmentally friendly choice without sacrificing cooling efficiency.
What warranty does Cooper & Hunter offer?
Cooper & Hunter provides a warranty for the 36,000 BTU Ceiling Cassette, covering parts and compressor, ensuring peace of mind and reliability for your investment.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 20.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 36,000 BTU Single Zone Light Commercial Universal Floor/Ceiling, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 16.5HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 36,000 BTU Single Zone Light Commercial Slim Duct, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.2HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 36,000 BTU Single Zone Light Commercial Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 20.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 36,000 BTU Single Zone Light Commercial Universal Floor/Ceiling, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
The Cooper & Hunter 36,000 BTU (3 Ton) light commercial ceiling cassette is a single-zone flush-mount mini split air conditioner and heat pump on next-generation R454B refrigerant. The cassette recesses fully into the ceiling — only the low-profile panel stays visible — and a built-in condensate pump handles drainage. With a 20.0 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 2,200 sq ft and keeps heating in outdoor temperatures as low as -13°F. Wi-Fi control is built in.
Key Features
- 36,000 Btu/h cooling / 38,000 Btu/h heating — inverter range 6,400–39,800 cooling, 14,400–42,200 heating
- 20.0 SEER2 / 9.6 EER2 / 10.3 HSPF4 — current R454B-generation efficiency
- Heats down to -13°F outdoor ambient; cooling operation -13–122°F
- Built-in condensate pump — drain lift pipe up to 29.5 in above the ceiling board
- Humidity sensor (active on single-zone systems) and washable fresh-air filter
- Quiet: indoor unit from 38.0 dB(A); outdoor unit 63.0 dB(A)
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; IR remote and 12V wall thermostat included (thermostat connection enables smart features)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed
Cooper & Hunter Ceiling Cassette (R454B) Lineup
| Capacity | Outdoor + Indoor Cassette | SEER2 | Heats down to | Coverage* |
| 9,000 BTU | CH-RES09-230VO + CH-RH09MCT | 21.6 | -13°F | up to 400 sq ft |
| 9,000 BTU Hyper Heat | CH-RHP09-230VO + CH-RH09MCT | 22.6 | -22°F | up to 400 sq ft |
| 12,000 BTU | CH-RES12-230VO + CH-RH12MCT | 21.1 | -13°F | up to 550 sq ft |
| 12,000 BTU Hyper Heat | CH-RHP12-230VO + CH-RH12MCT | 22.2 | -22°F | up to 550 sq ft |
| 18,000 BTU | CH-RES18-230VO + CH-RH18MCT | 20.7 | -13°F | up to 900 sq ft |
| 18,000 BTU Hyper Heat | CH-RHP18-230VO + CH-RH18MCT | 20.0 | -22°F | up to 850 sq ft |
| 24,000 BTU | CH-RES24-230VO + CH-RH24MCT | 22.0 | -13°F | up to 1,500 sq ft |
| 24,000 BTU Hyper Heat | CH-RHP24-230VO + CH-RH24MCT | 20.7 | -22°F | up to 1,400 sq ft |
| 36,000 BTU LC | CH-R36LCU-230VO + CH-RH36LCCT | 20.0 | -13°F | up to 2,200 sq ft |
| 36,000 BTU Hyper Heat LC | CH-RHP36LCU-230VO + CH-RH36LCCT | 21.2 | -22°F | up to 2,200 sq ft |
| 48,000 BTU LC | CH-R48LCU-230VO + CH-RH48LCCT | 19.0 | -13°F | up to 3,000 sq ft |
| 48,000 BTU Hyper Heat LC | CH-RHP48LCU-230VO + CH-RH48LCCT | 18.0 | -22°F | up to 3,000 sq ft |
*Coverage is sizing guidance; actual load depends on insulation, ceiling height, sun exposure, and climate. LC = Light Commercial.
