Cooper & Hunter 3 Zone 55,000 BTU Sophia Series Ductless Mini Split AC Universal Floor/Ceiling 18k+18k+18k
Cooper & Hunter7-Yr Warranty
Product specifications
- Voltage
- 230V
- SEER
- 21.3
- WiFi
- Included
- Zone
- Three Zone
- Type
- Universal Floor/Ceiling
- Freon
R410A
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
COOPER & HUNTER · SOPHIA
Built for year-round comfort
System Specs
| Cooling Capacity | 55,000 BTU/h |
|---|---|
| SEER2 | 21.3 |
| Voltage | 230V |
| Refrigerant | R410A |
|---|---|
| Compressor | Inverter |
| Warranty | 7-Yr Compressor |
Sophia Series Description
With its high efficiency and high SEER compressor, this newest model Cooper & Hunter ductless mini split will both heat and cool your home or office. The DC inverter heat pump pulls heat from the air down to temperatures as low as -13°F! You are well protected by a seven year warranty on the compressor, a five year parts warranty (must be installed by a licensed HVAC technician), abundant parts availability and smart, experienced technicians should you ever need assistance. This model features a safe and rugged Toshiba-GMCC inverter compressor. CAPACITY
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
WARRANTY
BACKED BY COOPER & HUNTER
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | CH-18MSPHFC-230VI | CH-24MSPHFC-230VI | CH-36LCFC/I | CH-48LCFC/I | CH-60LCFC-W |
|---|---|---|---|---|---|
| Power Supply Rated (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity Cooling (Btu/h) | 18,000 | 24,000 | 36,000 | 48,000 | 54,000 |
| Rated Capacity Heating (Btu/h) | 20,000 | 24,000 | 38,000 | 50,000 | 60,000 |
| Minimum Circuit Ampacity (MCA) (A) | 1.9 | 2.5 | 1.9 | 2.3 | 3 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM) | 583/548/485/421 | 795/759/708/598 | 1,075/1,036/917/638 | 1,400/1,353/1,118/1,000 | 1,430/1,384/1,029/795 |
| Indoor Noise Level (Hi/Mi/Lo) (dB(A)) | 47/43.5/40.5 | 51/47/42 | 51.5/48.0/40.5 | 55/49.5/44.5 | 55/48/42 |
| Indoor Dimension (WxDxH) (inch) | 42.05x26.57x9.25 | 42.05x26.57x9.25 | 50.59x26.57x9.25 | 64.96x26.57x9.25 | 64.96x26.57x9.25 |
| Indoor Packing (WxDxH) (inch) | 45.08x29.72x12.52 | 45.08x29.72x12.52 | 53.54x29.72x12.52 | 67.91x29.72x12.52 | 67.91x29.72x12.52 |
| Indoor Net/Gross Weight (lbs.) | 57.10/68.34 | 60.63/72.09 | 69/81.57 | 87.74/102.29 | 96.56/111.99 |
| Room Temperature Cooling (°F) | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 |
| Room Temperature Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas Side (inch) | 1/4"/1/2" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/7/8" |
Outdoor Models Regular
| Specification | ES-Series |
|---|---|
| CH-18MES-230V0 | CH-28MES-230V0 |
| Power Supply (V, Ph, Hz) | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 |
| Cooling Rated Capacity (Btu/h) | 18,000(5,650~22,000) |
| Cooling Rated Current (A) | 6.2 |
| EER2 (Btu/h) | 13.9 |
| SEER2 (Btu/h) | 22.9 |
| Heating Rated Capacity (Btu/h) | 19,000(5,050~24,400) |
| Heating Rated Current (A) | 6.3 |
| Heating at 47°F COP (W/W) | 3.74 |
| HSPF4 | 10.5 |
| HSPF5 | 8 |
| Heating at 5°F Rated Capacity (Btu/h) | 12,600 |
| Heating at 5°F COP (W/W) | 2 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 18 |
| Max. Fuse (Outdoor unit) (A) | 25 |
| Outdoor Air Flow (Max) (CFM) | 1,765 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 58 |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 |
| Packing (WxDxH) (inch) | 40.55x17.24x29.53 |
| Net/Gross Weight | 100/109 |
| Refrigerant Type/Charged (oz) | R410A/65.26 |
| Refrigerant Precharge (ft) | 49 |
| Additional Charge for Each (oz/ft) | 0.16 |
| Design Pressure (PSIG) | 550/340 |
| Refrigerant Piping Liquid Side (inch) | 2 x 1/4" |
| Refrigerant Piping Gas Side (inch) | 2 x 3/8" |
| Max. Pipe Length (ft) | 131 |
| Max. Length for One Indoor Unit (ft) | 82 |
| Max. Height Difference in Level (ft) | 49 |
| Max. Height Difference Between Indoor Units (ft) | 33 |
| Ambient Temperature Cooling (°F) | 5~122 |
| Ambient Temperature Heating (°F) | -13~75 |
| AHRI | ✔ |
| Energy Star | ✔ |
| NEEP | ✔ |
Indoor Models Hyper
| Specification | CH-18MSPHFC-230VI | CH-24MSPHFC-230VI | CH-36LCFC/I | CH-48LCFC/I | CH-60LCFC-W |
|---|---|---|---|---|---|
| Power Supply Rated (V, Ph, Hz) | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Rated Capacity Cooling (Btu/h) | 17,000 | 24,000 | 36,000 | 48,000 | 55,000 |
| Rated Capacity Heating (Btu/h) | 18,000 | 25,000 | 39,000 | 51,000 | 60,000 |
| Minimum Circuit Ampacity (MCA) (A) | 1.9 | 2.5 | 1.9 | 2.3 | 3 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM) | 583/548/485/421 | 795/759/708/598 | 1,075/1,036/917/638 | 1,400/1,353/ 1,118/1,000 | 1,430/1,384/1,029/795 |
| Indoor Noise Level (Hi/Mi/Lo) (dB(A)) | 45.5/43/39 | 51/47.5/42 | 52.5/48.5/42.5 | 55/50/44 | 54/47/44 |
| Indoor Dimension (WxDxH) (inch) | 42.05x26.57x9.25 | 42.05x26.57x9.25 | 50.59x26.57x9.25 | 64.96x26.57x9.25 | 64.96x26.57x9.25 |
| 45.08×29.72x12.52 | 45.08x29.72x12.52 | 53.54x29.72x12.52 | 67.91x29.72x12.52 | 67.91x29.72x12.52 | |
| Indoor Net/Gross Weight (lbs.) | 57.10/68.34 | 60.63/72.09 | 69/81.57 | 87.74/102.29 | 96.56/111.99 |
| Room Temperature (°F) | Cooling: 62~90 | Cooling: 62~90 | Cooling: 62~90 | Cooling: 62 ~ 90 | Cooling: 62~ 90 |
| Heating: 32~86 | Heating: 32~86 | Heating: 32~86 | Heating: 32~86 | Heating: 32~86 | |
| Liquid Side/Gas Side (inch) | 1/4"/1/2" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/5/8" | 3/8"/7/8" |
Outdoor Models Hyper
| Specification | CH-HPR19M-230V0 | CH-HPR28M-230V0 | CH-HPR36M-230V0 | CH-HPR48M-230VO | CH-HPR55M-230V0 |
|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Rated Capacity (Btu/h) | 19,000 (5,500~-25,000) | 28,000(7,995-32,826) | 36,000(17,900~42,000) | 48,000 (19,300-51,000) | 55,000(11,600~58,000) |
| Cooling Rated Current (A) | 9.1 | 12.4 | 11.8 | 18 | 23.5 |
| EER2 (Btu/h) | 12.5 | 12.5 | 13.6 | 11.7 | 10.5 |
| SEER2 (Btu/h) | 22 | 23 | 22.2 | 21.8 | 22 |
| Heating Rated Capacity (Btu/h) | 20,000(8,100~29,700) | 28,000(5,035~38,712) | 36,500(12,500~49,000) | 49,000(11,500~58,000) | 55,000(33,000~63,000) |
| Heating Rated Current (A) | 9.4 | 10.5 | 12.2 | 17.8 | 22.5 |
| Heating at 47°F COP (W/W) | 3.4 | 3.66 | 3.9 | 3.8 | 3.05 |
| HSPF4 | 9.8 | 10.6 | 10.3 | 9.8 | 9.3 |
| HSPF5 | 7.7 | 8.1 | 8.3 | 7.6 | 7.3 |
| Heating at 5°F Rated Capacity (Btu/h) | 19,000 | 24,000 | 36,000 | 48,000 | 37,800 |
| Heating at 5°F COP (W/W) | 1.96 | 1.75 | 1.9 | 2 | 1.8 |
| Minimum Circuit Ampacity (Outdoor unit) (A) | 20 | 25 | 40 | 42 | 40 |
| Max. Fuse (Outdoor unit) (A) | 25 | 40 | 60 | 50 | 60 |
| Outdoor Air Flow (Max) (CFM) | 2,129 | 2,147 | 4,500 | 4,500 | 4,500 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 61 | 63 | 63 | 65 | 62 |
| Dimension (WxDxH) (inch) | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 37.48x16.34x52.48 | 37.48x16.34x52.48 | 37.48x16.34x52.48 |
| Packing (WxDxH) (inch) | 42.91x19.69x34.84 | 42.91x19.69x34.84 | 43.11x19.49x58.27 | 43.11x19.49x58.27 | 43.11x19.49x58.27 |
| Net/Gross Weight | 138/149 | 168/179 | 223/254 | 238/270 | 233/266 |
| Refrigerant Type/Charged (oz) | R410A/91.7 | R410A/134.04 | R410A/162 | R410A/162 | R410A/162 |
| Refrigerant Precharge (ft) | 49 | 74 | 98 | 123 | 123 |
| Additional Charge for Each (oz/ft) | 0.16 | 0.16 - *0.32 | 0.16 - *0.32 | 0.16 - *0.32 | 0.16 -*0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side (inch) | 2 x 1/4" | 3 x 1/4" | 4 x 1/4" | 5 x 1/4" | 5 x 1/4" |
| Refrigerant Piping Gas Side (inch) | 2 x 3/8" | 2 x 3/8" +1 x 1/2" | 3 x 3/8" +1 x 1/2" | 3 x 3/8" + 2 x 1/2" | 3 x 3/8" +2 x 1/2" |
| Max. Pipe Length (ft) | 131 | 197 | 262 | 262 | 262 |
| Max. Length for One Indoor Unit (ft) | 82 | 98 | 115 | 115 | 115 |
| Max. Height Difference in Level (ft) | 49 | 49 | 49 | 49 | 49.21 |
| Max. Height Difference Between Indoor Units (ft) | 33 | 33 | 33 | 33 | 33 |
| Ambient Temperature Cooling (°F) | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 |
| Ambient Temperature Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
Frequently asked questions.
How many rooms can the Cooper & Hunter 3 Zone 55,000 BTU system cool?
The Cooper & Hunter 3 Zone 55,000 BTU system is designed to efficiently cool up to three distinct rooms, with each zone receiving 18,000 BTU of cooling power. This setup is ideal for multi-room applications, allowing you to customize comfort across different spaces.
Can I mix BTU sizes in a multi-zone mini split like the Cooper & Hunter?
While the Cooper & Hunter 3 Zone system comes with three 18,000 BTU units, you can mix BTU sizes within the limits of the system's total capacity of 55,000 BTU. However, it's crucial to maintain the balance to ensure optimal performance and efficiency.
Do all zones run simultaneously in the Cooper & Hunter multi-zone system?
Yes, the Cooper & Hunter 3 Zone system allows all zones to operate simultaneously, providing tailored heating or cooling to each area. This feature enhances comfort and energy efficiency, particularly in homes with varying temperature needs.
Is the Cooper & Hunter 55,000 BTU system more efficient than multiple single-zone units?
With a SEER rating of 21.3, the Cooper & Hunter 3 Zone system offers superior energy efficiency compared to multiple single-zone units. This efficiency not only reduces energy bills but also simplifies installation and maintenance.
What is the warranty on the Cooper & Hunter mini split system?
The Cooper & Hunter 3 Zone system comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of installation. This warranty ensures that your investment is well protected.
Does the Cooper & Hunter mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter system comes pre-charged with R410A refrigerant for up to 25 ft of line set, making installation more straightforward. Just ensure you follow the installation guidelines to maintain the system's efficiency and performance.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R454BSEER2 18.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 6,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 19.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU Single Zone Slim Duct, 230V, R454B - Ducted Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.6HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter 9,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
- R454BSEER2 21.6HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & HunterCooper & Hunter Hyper Heat 9,000 BTU Single Zone Ceiling Cassette, 230V, R454B - Ductless Mini Split Air Conditioner Heat PumpFree Shipping
* ALL OF OUR MULTI ZONE SYSTEMS COME PRE-BUNDLED WITH A 25FT INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT, 25FT, AND 50FT. TO CUSTOMIZE, SEND US A MESSAGE OR GIVE US A CALL!
|
CAPACITY |
POWER |
EFFICIENCY |
|
55,000 BTU |
230V |
21.3 SEER |
- High Density Filter
- Inverter Technology
- Turbo Function
- Silent Function
- Auto Swing Louvers
- Follow Me Function
- Comfortable Sleep Mode
- Multiple Fan Speed Options
- Drain Connection
- Refrigerant Leakage Detection
- Timer

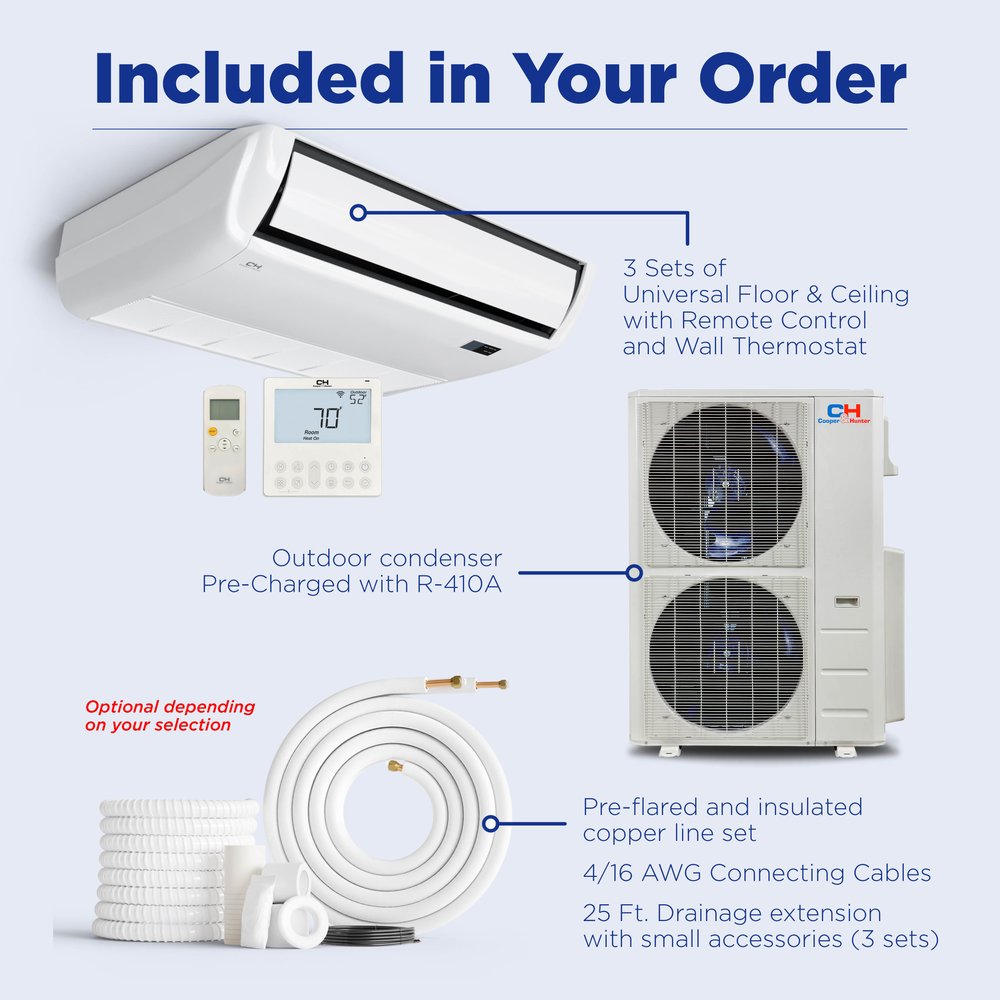

INCLUDED IN YOUR ORDER:
Cooper & Hunter Multi Zone Ductless Mini Split System 48,000 BTU Inverter with Heat Pump

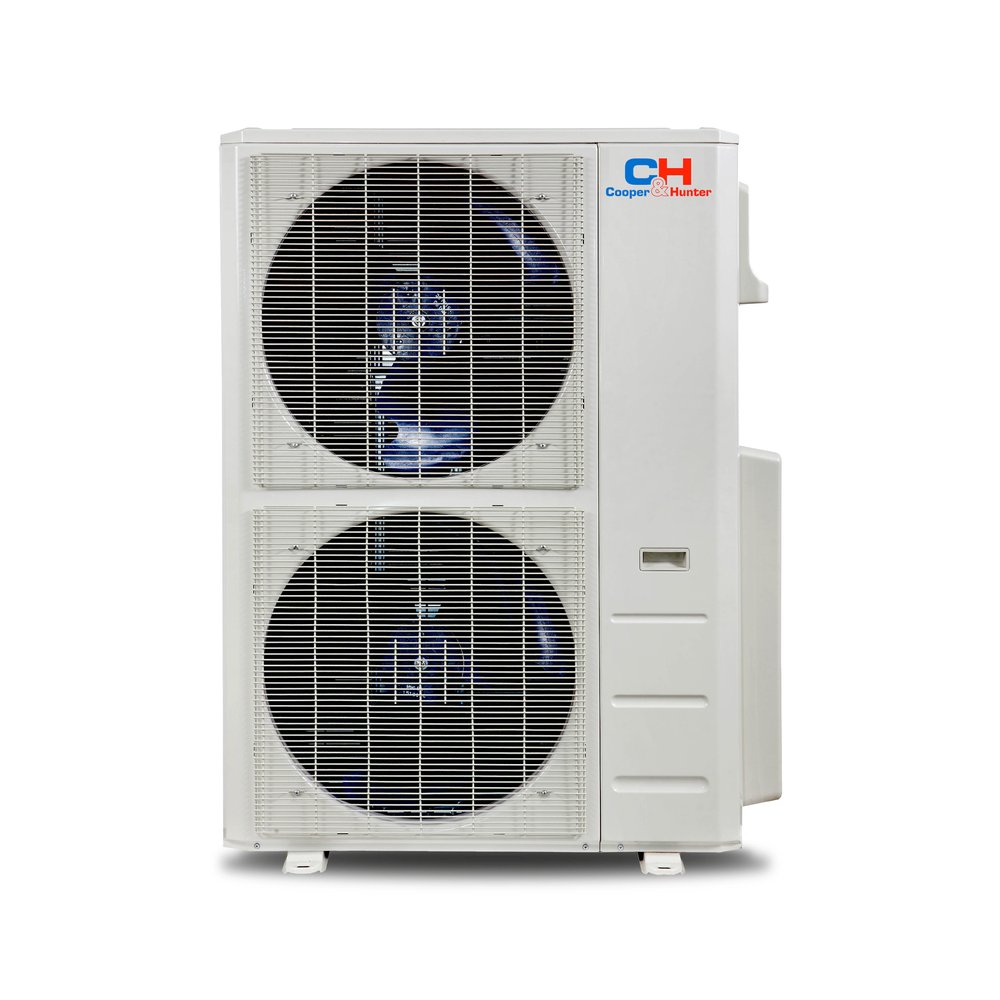

* OUTDOOR UNIT 55,000 BTU (1pc)

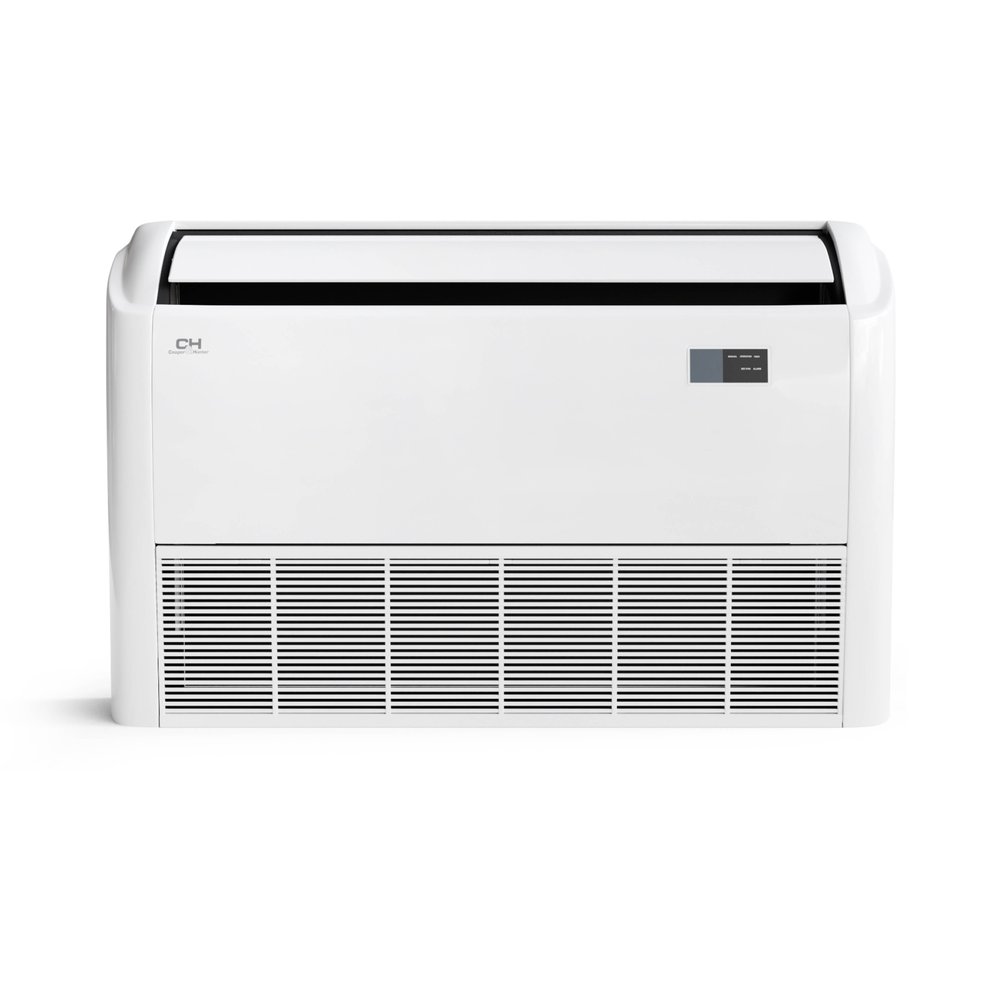

* INDOOR UNIT 18,000 BTU (3pcs) with remotes
Cooper&Hunter Limited Warranty terms are available if the product is registered within 60 days of installation. THE UNIT(S) MUST BE INSTALLED BY A LICENSED HVAC PROFESSIONAL FOR VALID WARRANTY. Registration can be completed online or by phone.
