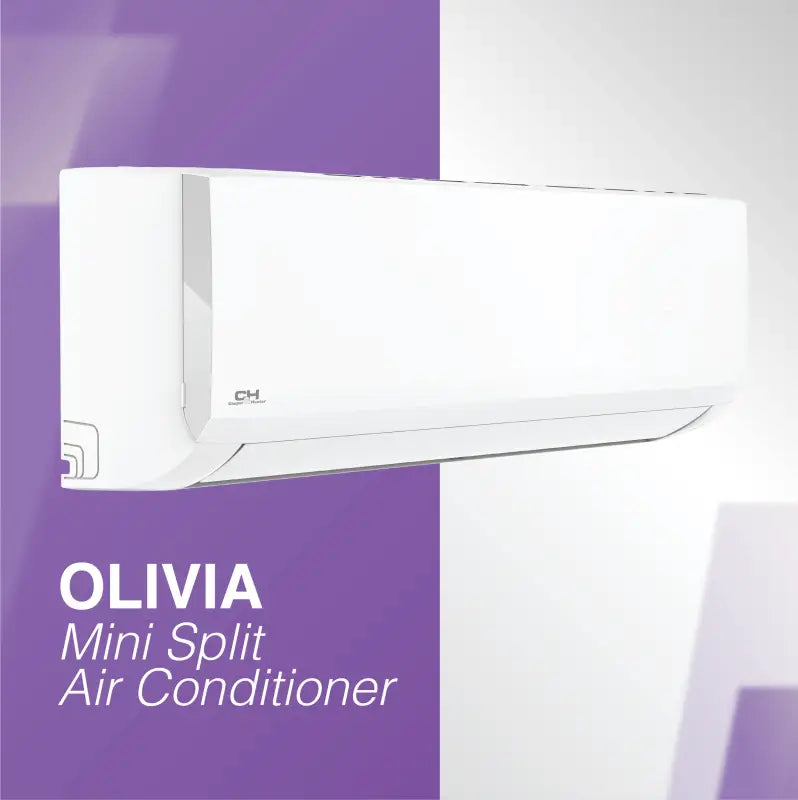

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump

Name: Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Brand: HVAC Mart
SKU: CH-R60MES-230VO06OLV06OLV06OLV36OLV
Price: 6435.36 USD
Availability: InStock

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 1

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 2

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 3

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 4

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 5

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 6

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 7

Cooper & Hunter Olivia 60,000 BTU 4-Zone 6k+6k+6k+36k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump — photo 8

1 / 8

Heats & CoolsR454B

Cooper & Hunter7-Yr WarrantySKU: CH-R60MES-230VO06OLV06OLV06OLV36OLV

$6,435.36

As low as $537/mo withaffirm

Product specifications

Voltage: 230V
Type: Wall Mount
Freon: R454B

Choose Your Configuration

Title: Default Title

Save 10% on these accessories

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

COOPER & HUNTER · WALL MOUNT

Built for year-round comfort

CH-R60MES-230VO06OLV06OLV06OLV36OLV

Product Description

With its high efficiency/high SEER compressor and auto swing louvers, this newest model Cooper & Hunter ductless mini split will both heat and cool your home or office. The DC inverter heat pump pulls heat from the air down to temperatures as low as -13°F! You are well protected by a seven year warranty on the compressor, a five year parts warranty (must be installed by a licensed HVAC technician), abundant parts availability and smart, experienced technicians should you ever need assistance. This model features a safe and rugged Toshiba-GMCC inverter compressor. CAPACITY

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

WHEREVER YOU ARE

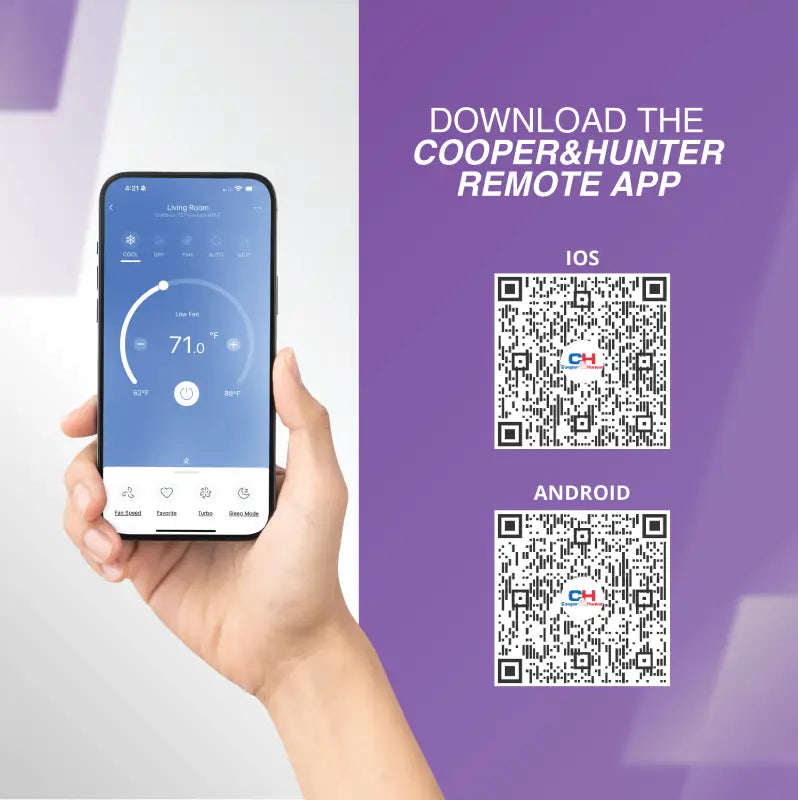

Control your comfort, your way

Easy scheduling & timer
Multiple ways to control your comfort
Smart geo location
In-app support & assistance
Voice control

7YEAR COMPRESSOR
WARRANTY

BACKED BY COOPER & HUNTER

Industry-leading protection on every unit

Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.

Technical Specifications

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor and Outdoor Hyper

Specification	CH-R06MOLVWM-115VI	CH-R09MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R33HEMLVWM-230VI
Power Supply Rated	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	6,000	9,000	12,000	18,000	23,000	33,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	294.3/225.4/176.8/141.3/NA	382.6/293.1/194.2/153.0/NA	382.6/293.1/194.2/153.0/NA	759.3/530.4/419.1/382.6/NA	759.3/586.5/419.1/382.6/NA	829.6/716.6/592.7/447.3/NA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	42.0/37.0/32.0/24.0/NA	42.0/37.0/32.0/24.0/NA	43.0/37.0/32.0/24.0/NA	52.5/44.0/40.5/35.2/25.0	54.5/49.0/45.3/41.3/27.0	56.0/49.5/45.3/41.3/27.0
Dimension (WxDxH) inch	28.7x7.87x11.81	31.5x7.87x11.61	31.5x7.87x11.61	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Packing (WxDxH) inch	31.10x10.63x14.76	34.45x11.22x14.96	34.45x11.22x14.96	45.47x12.01x16.14	45.47x12.01x16.14	52.76x15.16x17.72
Net/Gross Weight lbs.	17.64/21.35	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 3/4"

Specification

Specification	CH-RVHP19M-230VO	CH-RVHP28M-230VO	CH-RVHP36M-230VO	CH-RVHP48M-230VO	CH-RVHP55M-230VO
Power Supply (V/Ph/Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Operating Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Capacity (BTU/h)	5,400~28,000	7,200~37,000	9,000~43,000	12,000~57,000	19,000~59,000
Rated Current	5.6	9.5	12	17.3	18.5
EER2	15	12.5	13	12	12
SEER2	25	23	23	23	22.2
Heating Capacity (BTU/h)	5,700~27,000	8,400~36,000	10,000~44,000	13,000~57,000	20,000~59,000
HSPF2	6.5	9.1	11.5	17.3	20.1
COP	4	3.8	4	3.7	3.5
SCOP	10.4	10.5	10.7	11	10.5
Power Input (W)	8.5	8.5	8.5	9	8.5
Air Flow (CFM)	19,000	27,000	36,000	47,000	47,000
Sound Level Indoor (dBA)	17.5	30	37	37	39.5
Sound Level Outdoor (dBA)	20	35	40	40	40
Weight Indoor (lbs)	2,130.7	2,148.4	3,037.2	4,502.8	4,502.8
Weight Outdoor (lbs)	61.5	61	65	65	65
Dimensions Indoor (in)	37.24x16.14x31.89	37.24x16.14x31.89	38.58x16.34x38.39	37.48x16.34x52.48	37.48x16.34x52.48
Dimensions Outdoor (in)	42.91x19.68x34.84	42.91x19.68x34.84	45.08x19.68x42.52	43.11x19.49x58.27	43.11x19.49x58.27
Shipping Weight Indoor/Outdoor (lbs)	137.35/148.15	168.43/179.67	211.86/244.71	246.47/276.68	246.47/276.68
Refrigerant Type/Amount (lbs)	R454B/78.31	R454B/120.63	R454B/134.04	R454B/151.68	R454B/151.68
Fuse Size (A)	75	100	125	150	150
Wire Size (AWG)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Control Voltage (V)	550/340	550/340	550/340	550/340	550/340
Liquid Line	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"	6 x 1/4"
Suction Line	3 x 3/8"	3 x 3/8" + 1 x 1/2"	3 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"	4 x 3/8" + 2 x 1/2"
Max Line Length (ft)	196.8	262.4	262.4	262.4	262.4
Max Elevation Diff (ft)	98.4	114.8	114.8	114.8	114.8
Max Head Pressure (ft)	49.2	49.2	49.2	49.2	49.2
Max Suction Pressure (ft)	33	33	33	33	33
Operating Range Cooling (°F)	-22~122	-22~122	-22~122	-22~122	-22~122
Operating Range Heating (°F)	-22~75	-22~75	-22~75	-22~75	-22~75
Feature 1	✓	✓	✓	✓	✓
Feature 2	✓	✓	✓	✓	✓
Feature 3	✓	✓	✓	✓	✓
Feature 4	✓	✓	✓	✓	✓

Indoor and Outdoor Regular

Specification	CH-R060LVWM-115VI	CH-R09OLVWM-115VI	CH-R120LVWM-115VI	CH-RO9MOLVWM-230VI	CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI	CH-R24MOLVWM-230VI	CH-R30MELVWM-230VI	CH-R36MELVWM-230VI
Power Supply Rated	115V, 1, 60	115V, 1, 60	115V, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity Btu/h	7,000	9,000	12,000	9,000	12,000	18,000	24,000	30,000	36,000
Minimum Circuit Ampacity (MCA) A	3	3	3	3	3	3	3	3	3
Max. Fuse A	3	3	3	3	3	3	3	3	3
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM	370/340/265/174/-	378/340/265/174/-	378/340/265/174/-	382/294/194/153/-	382/294/194/153/-	759/530/419/382/-	759/586/419/382/-	871/716/547/447/-	871/716/547/447/-
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A)	44/40/35/26/-	44/40/35/26/-	44/40/35/26/-	45/41/32/24/-	45/41/32/24/-	54/49/45/41/27	54/49/45/41/27	56/52/45/38/22	56/52/45/38/22
Dimension (WxDxH) inch	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	31.57x7.87x11.95	45.47x12.01x16.34	45.47x12.01x16.34	49.57x11.14x14.25	49.57x11.14x14.25
Packing (WxDxH) inch	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	34.92x13.27x24.02	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84	42.91x19.09x34.84
Net/Gross Weight lbs.	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	18.64/22.05	45.47/21.06	45.47/21.06	67.16/17.72	67.16/17.72
Room temperature Cooling °F	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90	60~90
Room temperature Heating °F	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side inch	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"

Specification

Specification	CH-R60MES-230VOThis model	CH-R18MES-230VO	CH-R28MES-230VO	CH-R36MES-230VO	CH-R48MES-230VO
Power Supply (V, Ph, Hz)	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253
Cooling Rated Capacity (range) (Btu/h)	19,000~62,000	5,400~21,600	7,200~32,000	9,000~42,000	12,000~55,000
Cooling Rated Current (A)	26.2	6	9.2	13.5	16.6
EER2	10	14	13	12	12.5
SEER2	22	25.1	25	24	24
Heating Rated Capacity (range) (Btu/h)	20,000~60,000	5,700~21,600	8,400~29,000	10,000~42,500	13,000~53,000
Heating Rated Current (A)	21	6.8	9.2	14	16.3
Heating at 47°F COP (W/W)	3.7	3.8	3.8	3.5	3.8
HSPF4	9.5	9.8	9.5	9.5	10.3
HSPF5	7.4	7.8	7	7	8
Heating at 5°F Rated Capacity (Btu/h)	39,000	13,500	19,000	26,000	36,000
Minimum Circuit Ampacity (Outdoor unit) (A)	40	16	23	30.5	40
Max. Fuse (Outdoor unit) (A)	45	20	25	35	45
Outdoor Air Flow (Max) (CFM)	4,502.8	1,765.8	2,130.7	2,148.4	4,502.8
Outdoor Noise Level (Sound Pressure) (dB(A))	65	59.5	61	64.5	63
Dimension (W×D×H) (inch)	37.48x16.34x52.48	35.04x13.46x26.50	37.24x16.14x31.89	37.24x16.14x31.89	37.48x16.34x52.48
Packing (W×D×H) (inch)	43.11x19.49x58.27	40.55x17.24x29.53	42.91x19.68x34.84	42.91x19.68x34.84	43.11x19.49x58.27
Net/Gross Weight (lbs)	237.88/270.28	100.53/109.35	138.89/149.69	168.87/180.12	222.00/254.19
Refrigerant Type/Charged (oz)	R454B/151.68	R454B/61.73	R454B/84.66	R454B/120.63	R454B/148.15
Refrigerant Precharge (ft)	150	75	100	125	150
Additional Charge for Each (0.16 for 1/4 in liquid pipe / *0.32 for 3/8 in liquid pipe) (oz/ft)	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32	0.16 / 0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side (inch)	6 x 1/4"	3 x 1/4"	4 x 1/4"	5 x 1/4"	6 x 1/4"
Refrigerant Piping Gas Side (inch)	4 x 3/8" + 2 x 1/2"	3 x 3/8"	3 x 3/8" + 1 x 1/2"	4 x 3/8" + 1 x 1/2"	4 x 3/8" + 2 x 1/2"
Max. Pipe Length (ft)	262.4	196.8	262.4	262.4	262.4
Max. Length for One Indoor Unit (ft)	114.8	98.4	114.8	114.8	114.8
Max. Height Difference in Level (ft)	49.2	49.2	49.2	49.2	49.2
Max. Height Difference Between Indoor Units (ft)	33	33	33	33	33
Ambient Temperature Cooling (°F)	-13~122	-13~122	-13~122	-13~122	-13~122
Ambient Temperature Heating (°F)	-13~75	-13~75	-13~75	-13~75	-13~75
Certification: AHRI	✔	✔	✔	✔	✔
Certification: Energy Star	✔	✔	✔	✔	✔
Certification: NEEP	✔	✔	✔	✔	✔
Certification: ETL	✔	✔	✔	✔	✔

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

R454B
SEER2 24.6HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & Hunter
Cooper & Hunter Olivia 9,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Free Shipping
From$1,301.76
In Stock
Choose options
R454B
SEER2 23.2HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & Hunter
Cooper & Hunter Olivia 12,000 BTU Single Zone Wall Mount, 115V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Free Shipping
From$1,401.12
In Stock
Choose options
R454B
SEER2 24.0HEATS down to −22°FCOOLS up to 122°F
7-Yr Warranty
Cooper & Hunter
Cooper & Hunter Olivia Hyper Heat 12,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Free Shipping
From$1,597.30
In Stock
Choose options
R454B
SEER2 24.0HEATS down to −13°FCOOLS up to 122°F
7-Yr Warranty
Cooper & Hunter
Cooper & Hunter Olivia 18,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump
Free Shipping
From$1,890.72
In Stock
Choose options

* ALL OF OUR MULTI ZONE SYSTEMS COME PRE-BUNDLED WITH A 25FT INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT, 25FT, AND 50FT. TO CUSTOMIZE, SEND US A MESSAGE OR GIVE US A CALL!

With its high efficiency/high SEER compressor and auto swing louvers, this newest model Cooper & Hunter ductless mini split will both heat and cool your home or office. The DC inverter heat pump pulls heat from the air down to temperatures as low as -13°F!

You are well protected by a seven year warranty on the compressor, a five year parts warranty (must be installed by a licensed HVAC technician), abundant parts availability and smart, experienced technicians should you ever need assistance. This model features a safe and rugged Toshiba-GMCC inverter compressor.

CAPACITY	POWER	EFFICIENCY
60,000 BTU	230V	22 SEER

Key Features:

Flexible Installation
High Density Filter
Inverter Technology
Turbo Function
Wifi Ready
Silent Function
LED Display
Auto Swing Louvers
Follow Me Function
Comfortable Sleep Mode
Multiple Fan Speed Options

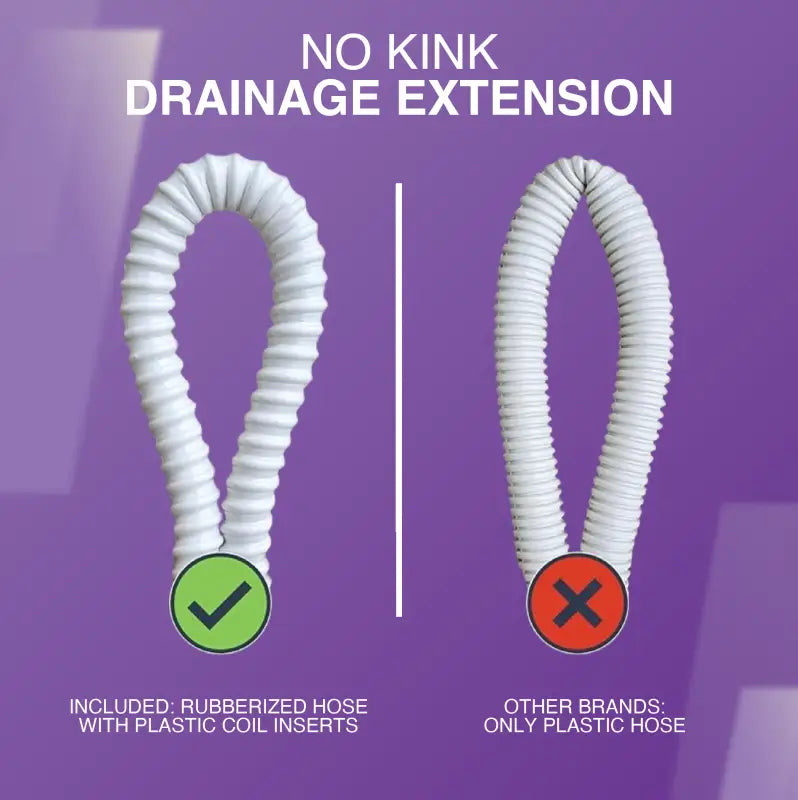

Drain Connection
Refrigerant Leakage Detection
Timer

INCLUDED IN YOUR ORDER:

Cooper & Hunter Multi Zone Wall Mount Ductless Mini Split System 60,000 BTU Inverter with Heat Pump

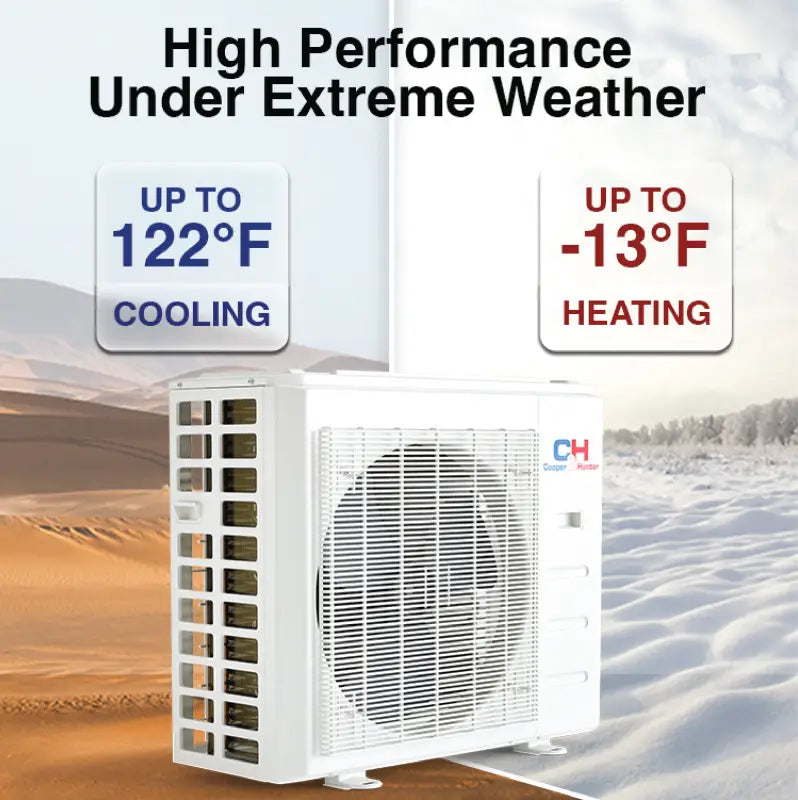

* OUTDOOR UNIT 60,000 BTU (1pc)

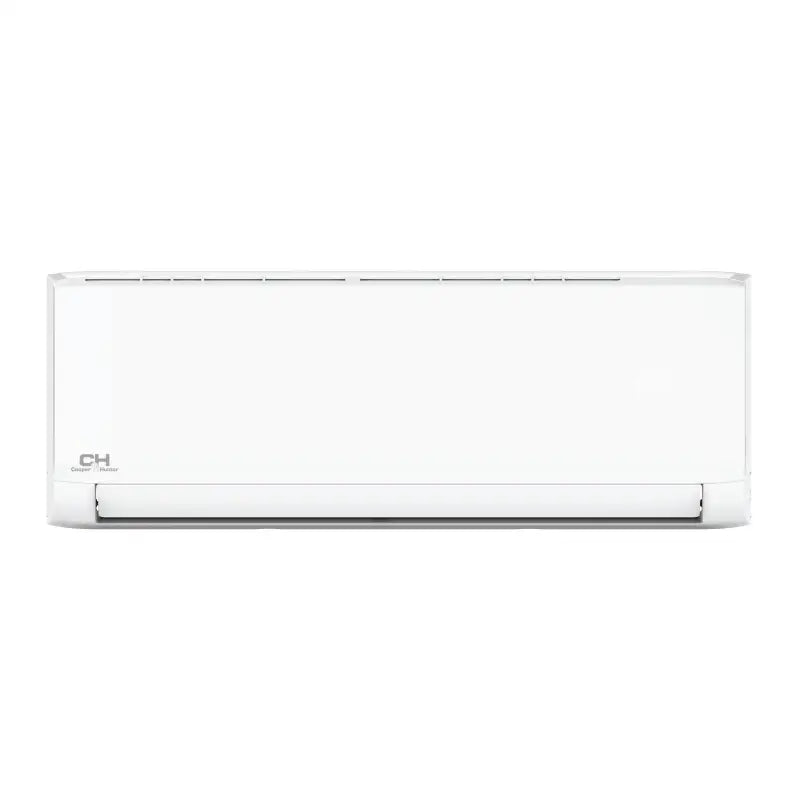

* INDOOR UNIT 6,000 BTU (3pcs) + 36,000 BTU (1pc) with remotes

Cooper&Hunter Limited Warranty terms are available if the product is registered within 60 days of installation. THE UNIT(S) MUST BE INSTALLED BY A LICENSED HVAC PROFESSIONAL FOR VALID WARRANTY. Registration can be completed online or by phone.
