Bravo 24,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M24-230VO/M12UFC+M12UFC+M12UFC-NO/NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.0
- WiFi
- Included
- Zone
- Three Zone
- Type
- Universal Floor/Ceiling
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · ROMA
Built for year-round comfort
BRV-M24-230VO/M12UFC+M12UFC+M12UFC-NO/NO/NO
System Specs
| Cooling Capacity | 24,000 BTU/h |
|---|---|
| SEER2 | 23.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 36/34/31 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 39.37 × 9.25 × 27.17 in | 57.3 / 67.2 lb | Remote controller |
Roma Series Description
The Bravo Milano 3-Zone Ducted Mini Split System features three universal floor/ceiling console zones, providing a total cooling capacity of 24,000 BTU. It uses R32 refrigerant, operates reliably in heating conditions as low as -13°F, and includes smart app control for remote temperature management.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

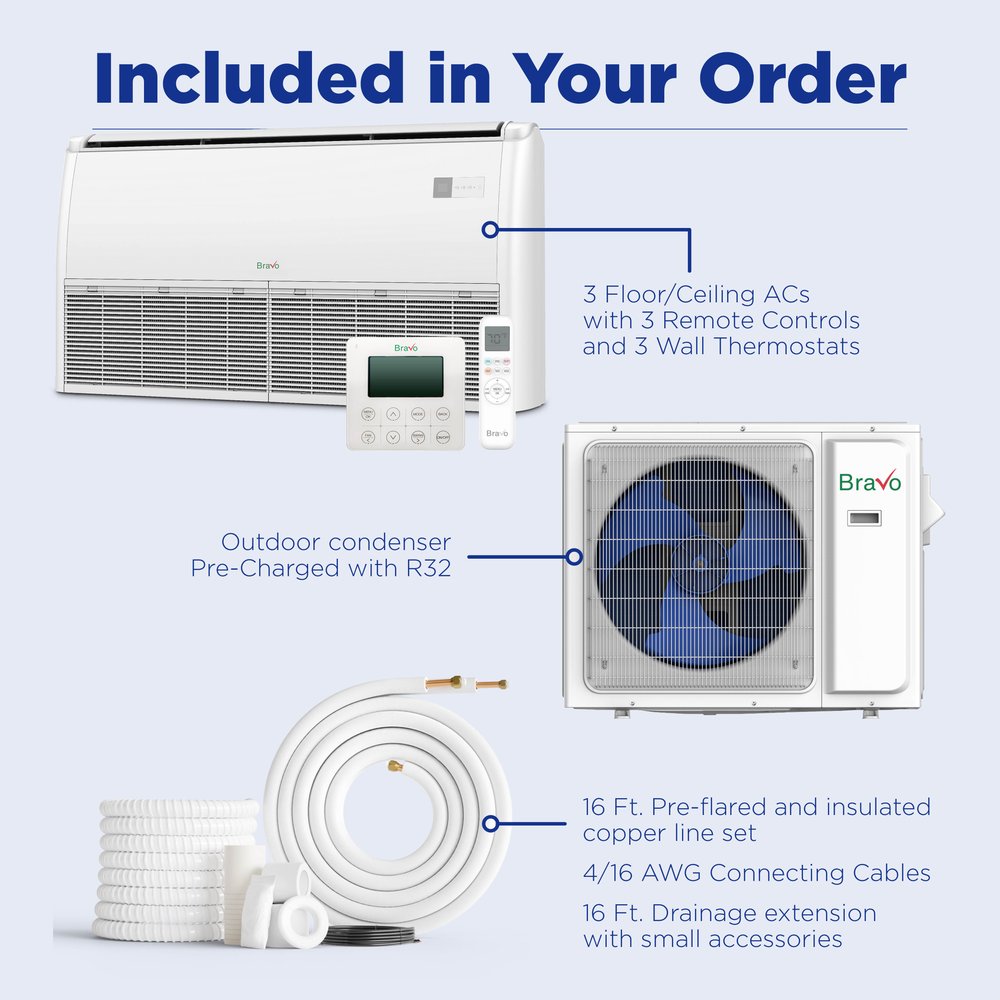

IN THE BOX
Everything included with this system
- Bravo Milano 24,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 12,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 3
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M24-230VO
| Model | BRV-M24-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 38.58×15.28×27.56 in |
| Net/Gross Weight | 102.5/109.1 lb |
| Packing Dimensions (WxDxH) | 39.96×16.73×30.00 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 30 A |
| Min. Circuit Ampacity | 20 A |
| Copper Line Size (Liquid/Gas) | 3x1/4"- 3x3/8" |
| Noise Level | 57 dB |
| Airflow | 2,235 CFM |
Indoor Unit Specs— BRV-M12FC-230VI
| Model | BRV-M12FC-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 39.37×9.25×27.17 in |
| Net/Gross Weight | 57.3/67.2 lb |
| Packing Dimensions (WxDxH) | 42.52×12.80×30.32 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 36/34/31 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 500 CFM |
| Dehumidification | 2.11 pt/h |
| Filter Dimensions | 17.64*10.3*0.374inch in |
| Drain Pipe Diameter | 1" |
| Controller | Remote controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M09FC-230VI | BRV-M12FC-230VI | BRV-M18FC-230VI | BRV-M24FC-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | Rated Capacity | 11,000 | 12,000 | 18,000 |
| Btu/h | 11,000 | 12,000 | 18,000 | 24,000 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 500 | 500 | 530 | 824 |
| Indoor Noise Level | 39 | 39 | 41 | 44 |
| Indoor Unit | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 39.37×27.17×9.25 |
| Packing (WxDxH) | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 53.54×30.32×12.80 |
| Net/Gross Weight | 57.3/67.2 | 57.3/67.2 | 59.5/69.5 | 71.7/83.8 |
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravoBravo 24,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$3,035.52 |  BravoBravo 24,000 BTU 2-Zone 9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$2,383.20 |  Bravo3 zone 24,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9K+9K$2,975.04 |  Bravo3 zone 30,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9K+9K$3,617.28 | |
|---|---|---|---|---|
| Cooling Capacity | 24,000 BTU/h | 24,000 BTU/h | 24,000 BTU/h | 30,000 BTU/h |
| SEER2 Rating | 23.0 | 23.0 | 23.0 | 23.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Three Zone | Dual Zone | Three Zone | Three Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can a Bravo mini split cool?
The Bravo 24,000 BTU mini split system is capable of effectively cooling up to three rooms, thanks to its three-zone configuration with 12k BTU units for each zone. This makes it an excellent choice for multi-room setups in spaces up to 1200 sq ft.
Can I mix BTU sizes with my Bravo mini split?
Yes, you can mix BTU sizes with the Bravo mini split system, but it's essential to ensure that the total BTU does not exceed the system's capacity of 24,000 BTU. Proper sizing helps maintain efficiency and comfort across different zones.
Do all zones run simultaneously with the Bravo mini split?
The Bravo mini split system allows you to control each zone independently, meaning not all zones need to run simultaneously. This flexibility can lead to energy savings and tailored comfort for your living spaces.
What is the efficiency of the Bravo mini split compared to multiple single-zone units?
With a SEER rating of 23.0, the Bravo mini split system offers significant efficiency advantages over running multiple single-zone units. This higher efficiency translates to lower energy costs and improved comfort across multiple zones.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system comes pre-charged with R32 refrigerant for up to 25 ft of line set, simplifying the installation process. This feature helps ensure optimal performance right from the start.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+9KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9KFree Shipping
The Bravo Milano 3-Zone Ducted Mini Split System features three universal floor/ceiling console zones, providing a total cooling capacity of 24,000 BTU. It uses R32 refrigerant, operates reliably in heating conditions as low as -13°F, and includes smart app control for remote temperature management.
Key Features
- 3-zone concealed-duct system — the BRV-R24-230VO outdoor unit powers 3 independently controlled ducted indoor units, hidden above the ceiling or in a soffit
- 24,000 BTU nominal capacity across 3 zones, each room on its own remote
- Inverter heat pump — efficient variable-speed cooling and heating from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
- Discreet ducted air delivery — central-air comfort with mini-split efficiency
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M12FC-230VI | 12,000 Btu/h | Universal Floor/Ceiling Console |
| 2 | BRV-M12FC-230VI | 12,000 Btu/h | Universal Floor/Ceiling Console |
| 3 | BRV-M12FC-230VI | 12,000 Btu/h | Universal Floor/Ceiling Console |
