2 zone 24,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12k
Bravo7-Yr WarrantySKU: BRV-M24-230VO/M12WM+M12WM-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.0
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Wall Mount
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M24-230VO/M12WM+M12WM-NO/NO
System Specs
| Cooling Capacity | 24,000 (range 4,900-31,400) BTU/h |
|---|---|
| Heating Capacity | 24,000 (range 5,200-32,000) BTU/h |
| SEER2 | 23.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Sound Level (indoor) | 40/36/32 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 34.49 × 11.73 × 7.64 in | 19.80 / 24.27 lb | Remote controller |
Milano Series Description
The Bravo Milano 2-Zone Ductless Mini Split System features a BRV-M24-230VO outdoor unit with a nominal total cooling capacity of 24,000 BTU, split evenly across two wall-mounted zones. It uses R32 refrigerant, delivers a SEER2 rating of 23, and supports smart app control for Wi-Fi-enabled operation down to -13°F ambient heating conditions.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

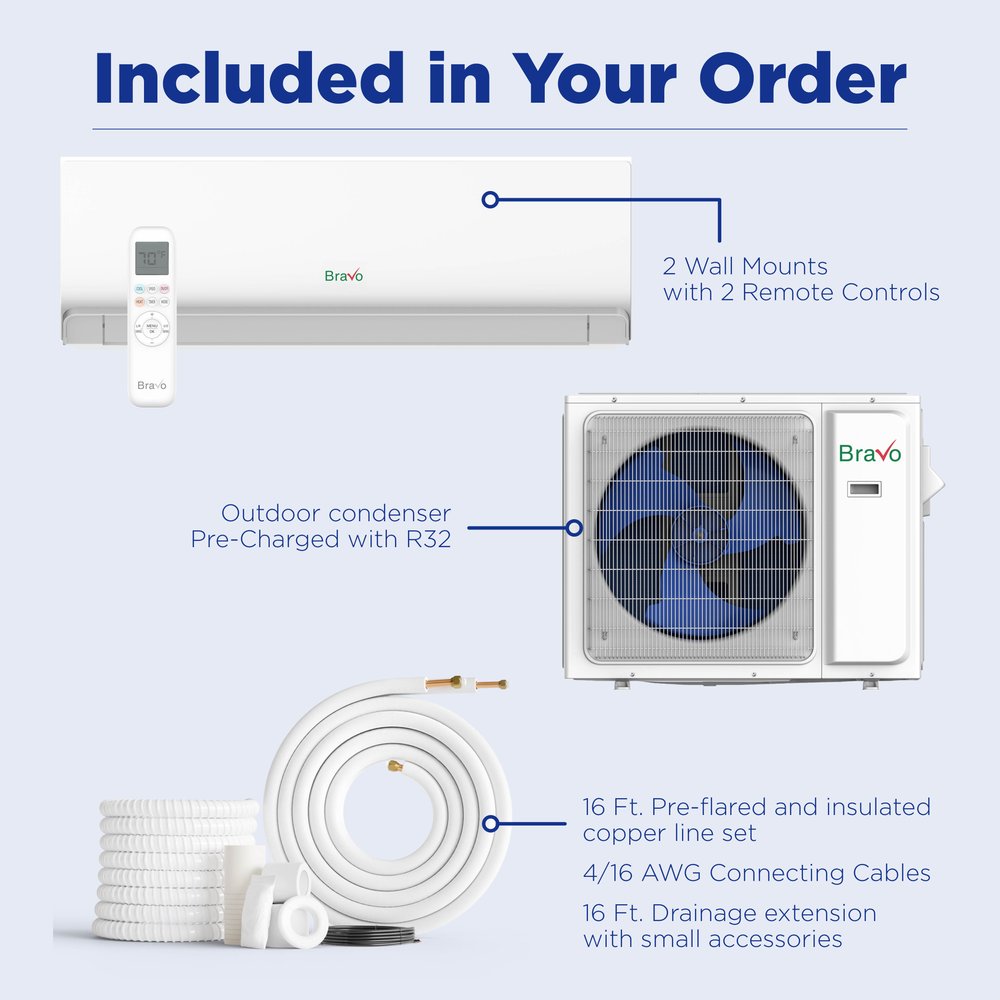

IN THE BOX
Everything included with this system
- Bravo Milano 24,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 12,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 2
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M24-230VO
| Model | BRV-M24-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 38.58×15.28×27.56 in |
| Net/Gross Weight | 102.5/109.1 lb |
| Packing Dimensions (WxDxH) | 39.96×16.73×30.00 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 30 A |
| Min. Circuit Ampacity | 20 A |
| Copper Line Size (Liquid/Gas) | 3x1/4"- 3x3/8" |
| Noise Level | 57 dB |
| Airflow | 2,235 CFM |
Indoor Unit Specs— BRV-M12WM-230VI
| Model | BRV-M12WM-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 34.49×11.73×7.64 in |
| Net/Gross Weight | 19.80/24.27 lb |
| Packing Dimensions (WxDxH) | 37.99×14.57×11.1 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" |
| Noise Level (Hi/Med/Lo) | 40/36/32 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 353 CFM |
| Dehumidification | 2.11 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | Remote controller |
System Specs
| Cooling Capacity (Range) | 24,000 (range 4,900-31,400) Btu/h |
|---|---|
| Heating Capacity (Range) | 24,000 (range 5,200-32,000) Btu/h |
| SEER2 | 23 |
| HSPF2 (Region IV) | 10 |
| COP | 4.0 |
| Refrigerant | R32 / 51.2 oz |
| Outdoor MCA / Max. Fuse | 20 A / 30 A |
| Max. Connectable Indoor Units | up to 3 |
| Outdoor Airflow | 2,235 CFM |
| Outdoor Noise Level | 57 dB(A) |
| Pre-charged Line Length | 24.6 ft |
| Max. Line Length — Total / Per Indoor | 197 ft / 98 ft |
| Operating Range — Cooling / Heating | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Outdoor Dimensions (W×D×H) | 38.58 × 15.28 × 27.56 in |
| Outdoor Net / Gross Weight | 102.5 / 109.1 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling Rated CapacityBtu/h | 7,000 |
| Heating Rated CapacityBtu/h | 7,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 353 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 31.02x7.80x11.50 |
| Indoor Unit Packing (WxDxH)in | 34.65x14.57x11.42 |
| Indoor Unit Net/Gross Weightlbs. | 17.60/22.00 |
| Refrigerant Piping Liquid / Gas Sidein | 1/4’’ / 3/8’’ |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravo2 zone 24,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12k$1,533.16 |  BravoBravo 24,000 BTU 2-Zone 9k+9k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$1,504.65 |  Bravo3 zone 24,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9k+9k$1,717.20 |  Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9k$1,263.60 | |
|---|---|---|---|---|
| Cooling Capacity | 24,000 BTU/h | 24,000 BTU/h | 24,000 BTU/h | 18,000 BTU/h |
| SEER2 Rating | 23.0 | 23.0 | 23.0 | 22.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Dual Zone | Dual Zone | Three Zone | Dual Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 24,000 BTU mini split cool?
The Bravo 24,000 BTU mini split is designed to effectively cool up to 1,200 square feet, making it suitable for multiple rooms depending on their size and layout. This dual-zone system can efficiently handle two separate areas within that coverage.
Can I mix BTU sizes with the Bravo mini split system?
Yes, you can mix BTU sizes in a multi-zone setup, but it's important to ensure that the total BTU does not exceed the system's capacity, which is 24,000 BTU for the Bravo model. However, maintaining balanced sizing for each zone can enhance efficiency and performance.
Do all zones run simultaneously in the Bravo mini split system?
In the Bravo mini split system, you have the flexibility to operate each zone independently or simultaneously, allowing for customized heating and cooling in different areas. This feature is particularly beneficial for managing energy consumption and comfort.
What is the efficiency of the Bravo mini split compared to multiple single-zone units?
The Bravo mini split boasts a SEER rating of 23.0, which is significantly higher than many single-zone units, making it a more energy-efficient choice for cooling multiple zones. This efficiency can lead to lower energy bills and reduced environmental impact.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system comes pre-charged with R32 refrigerant for up to 25 feet of line set, making installation simpler. This pre-charge allows for quicker setup and ensures optimal performance right from the start.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
The Bravo Milano 2-Zone Ductless Mini Split System features a BRV-M24-230VO outdoor unit with a nominal total cooling capacity of 24,000 BTU, split evenly across two wall-mounted zones. It uses R32 refrigerant, delivers a SEER2 rating of 23, and supports smart app control for Wi-Fi-enabled operation down to -13°F ambient heating conditions.
Key Features
- 2-zone system — the BRV-M24-230VO outdoor unit powers 2 independently controlled Bravo Milano indoor units (up to 3 max)
- 24,000 BTU nominal capacity across 2 zones, each room on its own remote
- 23 SEER2 inverter efficiency — cools and heats from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M12WM-230VI | 12,000 Btu/h | Wall Mount |
| 2 | BRV-M12WM-230VI | 12,000 Btu/h | Wall Mount |
