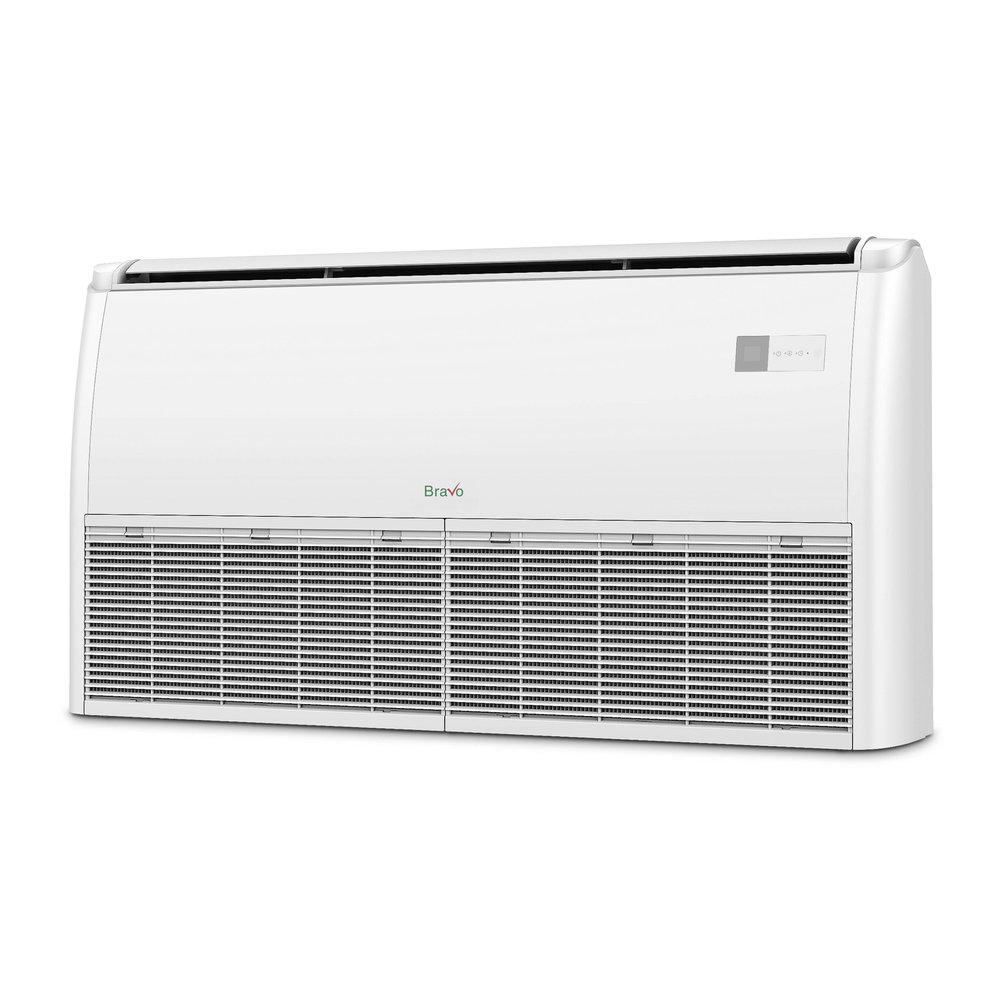

Bravo 36,000 BTU 2-Zone 24k+24k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M36-230VO/M24UFC+M24UFC-NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.0
- WiFi
- Included
- Zone
- Dual Zone
- Type
- Universal Floor/Ceiling
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · ROMA
Built for year-round comfort
BRV-M36-230VO/M24UFC+M24UFC-NO/NO
System Specs
| Cooling Capacity | 36,000 BTU/h |
|---|---|
| SEER2 | 23.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Sound Level (indoor) | 44/40/37 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 50.39 × 9.25 × 27.17 in | 71.7 / 83.8 lb | Remote controller |
Roma Series Description
The Bravo Milano 2-Zone Ducted Mini Split System features an outdoor unit model BRV-R36-230VO, providing a nominal total cooling capacity of 36,000 BTU across two zones, each equipped with a universal floor/ceiling console capable of 24,000 BTU cooling. It uses R32 refrigerant, operates reliably in heating mode down to -13°F ambient temperatures, and includes smart app control for WiFi-enabled management.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
IN THE BOX
Everything included with this system
- Bravo Milano 36,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 24,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 2
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M36-230VO
| Model | BRV-M36-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 41.18×17.91×31.81 in |
| Net/Gross Weight | 154.3/163.1 lb |
| Packing Dimensions (WxDxH) | 43.50×19.49×34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 29 A |
| Copper Line Size (Liquid/Gas) | 4x1/4"- 4x3/8" |
| Noise Level | 59 dB |
| Airflow | 2,353 CFM |
Indoor Unit Specs— BRV-M24FC-230VI
| Model | BRV-M24FC-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 50.39×9.25×27.17 in |
| Net/Gross Weight | 71.7/83.8 lb |
| Packing Dimensions (WxDxH) | 53.54×12.80×30.32 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/5/8" |
| Noise Level (Hi/Med/Lo) | 44/40/37 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 824 CFM |
| Dehumidification | 5.43 pt/h |
| Filter Dimensions | 23.03*10.3*0.374inch in |
| Drain Pipe Diameter | 1" |
| Controller | Remote controller |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Indoor Model
| Specification | BRV-M09FC-230VI | BRV-M12FC-230VI | BRV-M18FC-230VI | BRV-M24FC-230VI |
|---|---|---|---|---|
| Power Supply | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling | Rated Capacity | 9,000 | 12,000 | 18,000 |
| Btu/h | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | Rated Capacity | 11,000 | 12,000 | 18,000 |
| Btu/h | 11,000 | 12,000 | 18,000 | 24,000 |
| Max Fuse | 5 | 5 | 5 | 5 |
| Indoor Air Flow | 500 | 500 | 530 | 824 |
| Indoor Noise Level | 39 | 39 | 41 | 44 |
| Indoor Unit | Dimensions (WxDxH) | 39.37×27.17×9.25 | 39.37×27.17×9.25 | 39.37×27.17×9.25 |
| Packing (WxDxH) | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 42.52×30.32×12.80 | 53.54×30.32×12.80 |
| Net/Gross Weight | 57.3/67.2 | 57.3/67.2 | 59.5/69.5 | 71.7/83.8 |
| Refrigerant Piping | Liquid Side / Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" |
| Operation Temperature Range | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravoBravo 36,000 BTU 2-Zone 24k+24k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$3,460.32 |  BravoBravo 36,000 BTU 2-Zone 9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$3,146.40 |  BravoBravo 36,000 BTU 3-Zone 9k+9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$3,738.24 |  Bravo4 zone 36,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9K+9K+9K$4,330.08 | |
|---|---|---|---|---|
| Cooling Capacity | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h |
| SEER2 Rating | 23.0 | 23.0 | 23.0 | 23.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Dual Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 36,000 BTU mini split cool?
The Bravo 36,000 BTU mini split system can efficiently cool up to two rooms, given its dual zone capability. With a coverage area of up to 1500 sq ft, it’s ideal for medium to large spaces.
Can I mix different BTU sizes with the Bravo mini split system?
While the Bravo 36,000 BTU mini split is designed for dual zone operation, mixing BTU sizes is not recommended without proper load calculations. It's best to use compatible units to ensure optimal performance and efficiency.
Do all zones run simultaneously in the Bravo 36,000 BTU multi-zone system?
Yes, the Bravo 36,000 BTU system allows both zones to run simultaneously, providing balanced heating and cooling. This feature maximizes comfort across your space while maintaining efficiency.
Is the Bravo mini split system efficient compared to multiple single-zone units?
The Bravo 36,000 BTU unit boasts a SEER rating of 23.0, making it highly efficient for cooling two zones. This efficiency often surpasses that of multiple single-zone units, saving you energy costs in the long run.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant for up to 25 ft of line set, making installation smoother. This feature helps you save time and ensures optimal cooling efficiency right from the start.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+9KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 9k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ducted Mini Split AC Concealed Duct 12k+12KFree Shipping
- R32SEER2 22.0Heats & Cools
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Non-Ducted Mini Split AC Universal Floor & Ceiling Console 9k+9KFree Shipping
The Bravo Milano 2-Zone Ducted Mini Split System features an outdoor unit model BRV-R36-230VO, providing a nominal total cooling capacity of 36,000 BTU across two zones, each equipped with a universal floor/ceiling console capable of 24,000 BTU cooling. It uses R32 refrigerant, operates reliably in heating mode down to -13°F ambient temperatures, and includes smart app control for WiFi-enabled management.
Key Features
- 2-zone concealed-duct system — the BRV-R36-230VO outdoor unit powers 2 independently controlled ducted indoor units, hidden above the ceiling or in a soffit
- 36,000 BTU nominal capacity across 2 zones, each room on its own remote
- Inverter heat pump — efficient variable-speed cooling and heating from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
- Discreet ducted air delivery — central-air comfort with mini-split efficiency
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M24FC-230VI | 24,000 Btu/h | Universal Floor/Ceiling Console |
| 2 | BRV-M24FC-230VI | 24,000 Btu/h | Universal Floor/Ceiling Console |
