Bravo 36,000 BTU 3-Zone 12k+18k+18k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M36-230VO/M12CT+M18CT+M18CT-NO/NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.0
- WiFi
- Included
- Zone
- Three Zone
- Type
- Ceiling Cassette
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M36-230VO/M12CT+M18CT+M18CT-NO/NO/NO
System Specs
| Cooling Capacity | 36,000 (range 6,350-38,500) BTU/h |
|---|---|
| Heating Capacity | 36,000 (range 7,000-43,000) BTU/h |
| SEER2 | 23.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Sound Level (indoor) | 40/36/33 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 22.44 × 22.44 × 10.24 in | 30.9 / 37.5 lb | Wired controller |
Milano Series Description
The Bravo Milano 3-Zone Ductless Mini Split System features three ceiling cassette zones with combined cooling capacities of 36,000 BTU, utilizing R32 refrigerant for efficient performance. It offers smart app control, a SEER2 rating of 23, and operates down to -13°F for reliable heating in cold climates.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

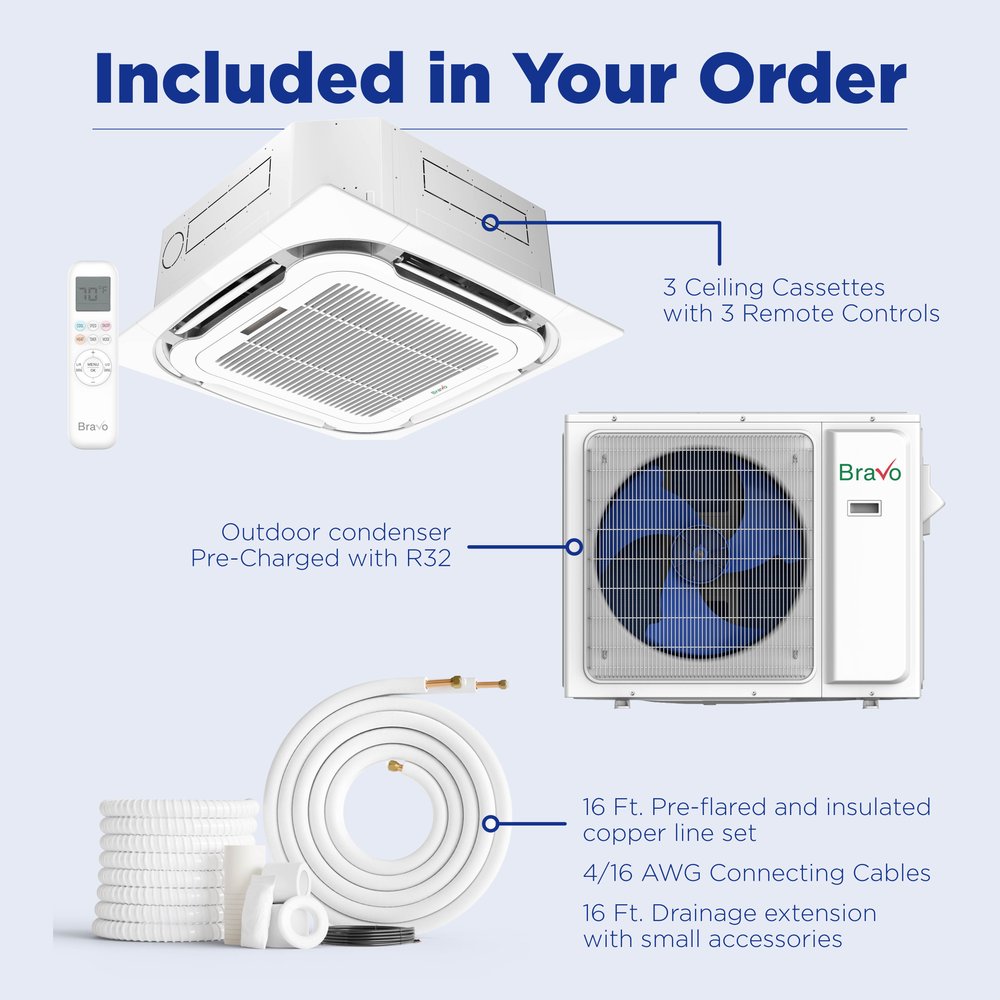

IN THE BOX
Everything included with this system
- Bravo Milano 36,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 12,000 BTU Indoor Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
- Indoor Ceiling Cassette — BRV-PN9-18CT × 3
- Bravo Milano 18,000 BTU Indoor Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 2
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M36-230VO
| Model | BRV-M36-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 41.18×17.91×31.81 in |
| Net/Gross Weight | 154.3/163.1 lb |
| Packing Dimensions (WxDxH) | 43.50×19.49×34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 29 A |
| Copper Line Size (Liquid/Gas) | 4x1/4"- 4x3/8" |
| Noise Level | 59 dB |
| Airflow | 2,353 CFM |
Indoor Unit Specs
| Model | BRV-M12CT-230VI | BRV-M18CT-230VI |
|---|---|---|
| Unit Dimensions (WxDxH) | 22.44×22.44×10.24 in | 22.44×22.44×10.24 in |
| Net/Gross Weight | 30.9/37.5 lb | 33.1/38.6 lb |
| Packing Dimensions (WxDxH) | 28.35×25.59×11.42 in | 28.35×25.59×11.42 in |
| Power Supply | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/3/8" | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 40/36/33 dB | 45/41/38 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 383 CFM | 442 CFM |
| Dehumidification | 2.11 pt/h | 3.38 pt/h |
| Filter Dimensions | 13.11*15.04*0.472inch in | 13.11*15.04*0.472inch in |
| Drain Pipe Diameter | 5/8" | 5/8" |
| Controller | wired controller | wired controller |
System Specs
| Cooling Capacity (Range) | 36,000 (range 6,350-38,500) Btu/h |
|---|---|
| Heating Capacity (Range) | 36,000 (range 7,000-43,000) Btu/h |
| SEER2 | 23 |
| HSPF2 (Region IV) | 10 |
| COP | 4.0 |
| Refrigerant | R32 / 81.2 oz |
| Outdoor MCA / Max. Fuse | 29 A / 45 A |
| Max. Connectable Indoor Units | up to 4 |
| Outdoor Airflow | 2,353 CFM |
| Outdoor Noise Level | 59 dB(A) |
| Pre-charged Line Length | 24.6 ft |
| Max. Line Length — Total / Per Indoor | 263 ft / 115 ft |
| Operating Range — Cooling / Heating | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Outdoor Dimensions (W×D×H) | 41.18 × 17.91 × 31.81 in |
| Outdoor Net / Gross Weight | 154.3 / 163.1 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M09CT-230VIBRV-PN9-18CT | BRV-M12CT-230VIBRV-PN9-18CT |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 9,000 |
| Heating Rated CapacityBtu/h | 10,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 383 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 22.44x22.44x10.24 |
| Indoor Unit Packing (WxDxH)in | 28.35x25.59x11.42 |
| Indoor Unit Net Weightlbs. | 30.9/37.5 |
| Panel Dimensions (WxDxH)in | 25.59x25.59x2.17 |
| Panel Packing (WxDxH)in | 27.95x27.95x3.15 |
| Panel Net/Gross Weightlbs. | 4.9/8.2 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravoBravo 36,000 BTU 3-Zone 12k+18k+18k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$3,129.84 |  BravoBravo 36,000 BTU 2-Zone 9k+9k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$2,582.92 |  BravoBravo 36,000 BTU 3-Zone 9k+9k+9k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$2,991.16 |  Bravo4 zone 36,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9k+9k+9k$3,399.40 | |
|---|---|---|---|---|
| Cooling Capacity | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h |
| SEER2 Rating | 23.0 | 23.0 | 23.0 | 23.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Three Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 36,000 BTU mini split cool?
The Bravo 36,000 BTU 3-Zone system can effectively cool up to three rooms, with a total coverage area of up to 1500 sq ft. This makes it ideal for multi-room applications where individual climate control is desired.
Can I mix BTU sizes with the Bravo mini split system?
Yes, in the Bravo system, you can mix BTU sizes for the indoor units, such as using a 12k and two 18k units. This flexibility allows you to tailor the system to your specific cooling and heating needs across multiple zones.
Do all zones in the Bravo mini split run simultaneously?
In the Bravo 36,000 BTU multi-zone system, all zones can operate simultaneously or independently based on your preference. This allows for customized comfort in each room without affecting the others.
Is the Bravo mini split system efficient compared to multiple single-zone units?
With a SEER rating of 23.0, the Bravo mini split system is more efficient than using multiple single-zone units, as it consolidates the cooling and heating into fewer components. This efficiency translates to lower energy bills and less maintenance over time.
What kind of warranty does the Bravo mini split come with?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Is the Bravo mini split pre-charged with refrigerant?
Yes, the Bravo mini split system comes pre-charged with R32 refrigerant and is designed to accommodate up to 25 ft of line set. This feature simplifies installation, allowing for quicker setup and operation.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
The Bravo Milano 3-Zone Ductless Mini Split System features three ceiling cassette zones with combined cooling capacities of 36,000 BTU, utilizing R32 refrigerant for efficient performance. It offers smart app control, a SEER2 rating of 23, and operates down to -13°F for reliable heating in cold climates.
Key Features
- 3-zone system — the BRV-M36-230VO outdoor unit powers 3 independently controlled Bravo Milano indoor units (up to 4 max)
- 36,000 BTU nominal capacity across 3 zones, each room on its own remote
- 23 SEER2 inverter efficiency — cools and heats from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M12CT-230VI | 12,000 Btu/h | Ceiling Cassette |
| 2 | BRV-M18CT-230VI | 18,000 Btu/h | Ceiling Cassette |
| 3 | BRV-M18CT-230VI | 18,000 Btu/h | Ceiling Cassette |
