Bravo 36,000 BTU 3-Zone 18k+18k+18k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M36-230VO/M18CT+M18CT+M18CT-NO/NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.0
- WiFi
- Included
- Zone
- Three Zone
- Type
- Ceiling Cassette
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M36-230VO/M18CT+M18CT+M18CT-NO/NO/NO
System Specs
| Cooling Capacity | 36,000 (range 6,350-38,500) BTU/h |
|---|---|
| Heating Capacity | 36,000 (range 7,000-43,000) BTU/h |
| SEER2 | 23.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Sound Level (indoor) | 45/41/38 dB |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 22.44 × 22.44 × 10.24 in | 33.1 / 38.6 lb | Wired controller |
Milano Series Description
The Bravo Milano 3-Zone Ductless Mini Split System features three ceiling cassette zones, each with 18,000 cooling BTU, and uses R32 refrigerant for efficient performance. It offers smart app control via Wi-Fi, a SEER2 rating of 23, and operates down to -13°F ambient temperature for reliable heating.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control

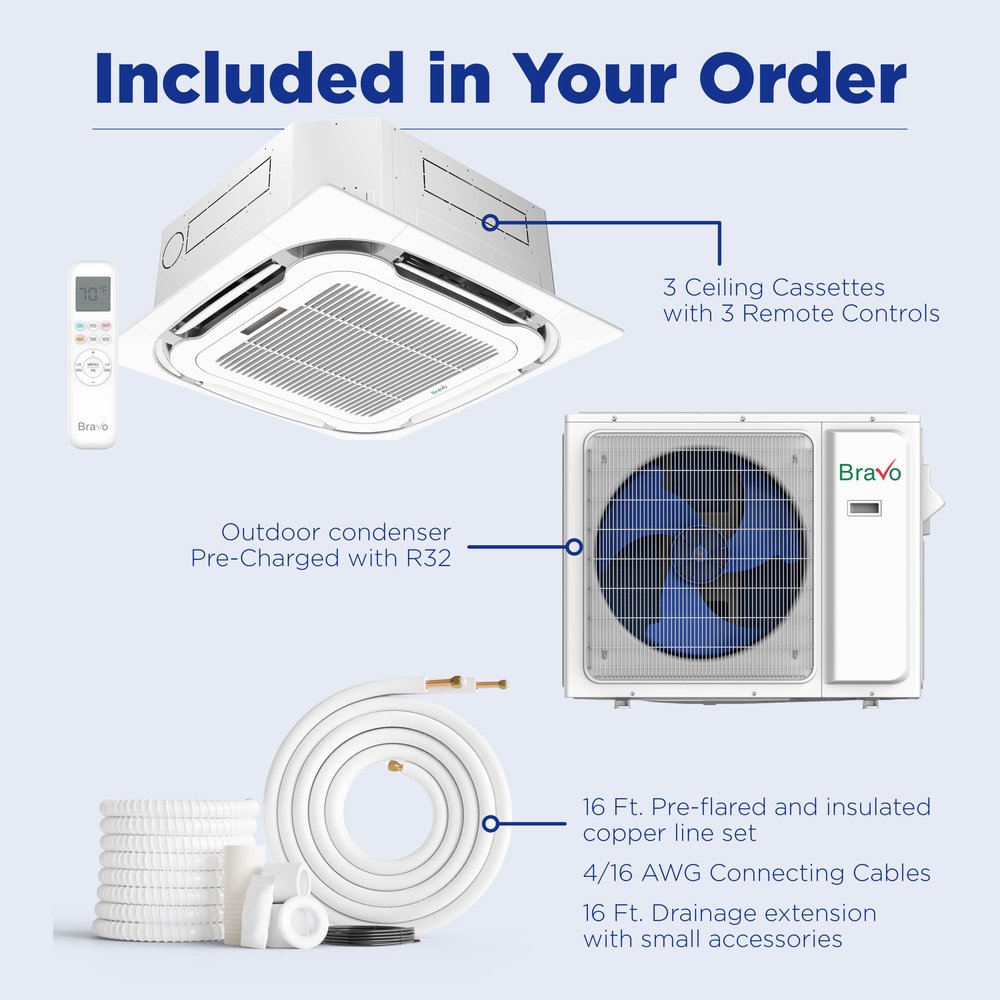

IN THE BOX
Everything included with this system
- Bravo Milano 36,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Bravo Milano 18,000 BTU Indoor Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 3
- Indoor Ceiling Cassette — BRV-PN9-18CT × 3
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M36-230VO
| Model | BRV-M36-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 41.18×17.91×31.81 in |
| Net/Gross Weight | 154.3/163.1 lb |
| Packing Dimensions (WxDxH) | 43.50×19.49×34.84 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 45 A |
| Min. Circuit Ampacity | 29 A |
| Copper Line Size (Liquid/Gas) | 4x1/4"- 4x3/8" |
| Noise Level | 59 dB |
| Airflow | 2,353 CFM |
Indoor Unit Specs— BRV-M18CT-230VI
| Model | BRV-M18CT-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 22.44×22.44×10.24 in |
| Net/Gross Weight | 33.1/38.6 lb |
| Packing Dimensions (WxDxH) | 28.35×25.59×11.42 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 5 A |
| Copper Line Size (Liquid/Gas) | 1/4"/1/2" |
| Noise Level (Hi/Med/Lo) | 45/41/38 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 442 CFM |
| Dehumidification | 3.38 pt/h |
| Filter Dimensions | 13.11*15.04*0.472inch in |
| Drain Pipe Diameter | 5/8" |
| Controller | wired controller |
System Specs
| Cooling Capacity (Range) | 36,000 (range 6,350-38,500) Btu/h |
|---|---|
| Heating Capacity (Range) | 36,000 (range 7,000-43,000) Btu/h |
| SEER2 | 23 |
| HSPF2 (Region IV) | 10 |
| COP | 4.0 |
| Refrigerant | R32 / 81.2 oz |
| Outdoor MCA / Max. Fuse | 29 A / 45 A |
| Max. Connectable Indoor Units | up to 4 |
| Outdoor Airflow | 2,353 CFM |
| Outdoor Noise Level | 59 dB(A) |
| Pre-charged Line Length | 24.6 ft |
| Max. Line Length — Total / Per Indoor | 263 ft / 115 ft |
| Operating Range — Cooling / Heating | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Outdoor Dimensions (W×D×H) | 41.18 × 17.91 × 31.81 in |
| Outdoor Net / Gross Weight | 154.3 / 163.1 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M09CT-230VIBRV-PN9-18CT | BRV-M12CT-230VIBRV-PN9-18CT |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 9,000 |
| Heating Rated CapacityBtu/h | 10,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 383 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 22.44x22.44x10.24 |
| Indoor Unit Packing (WxDxH)in | 28.35x25.59x11.42 |
| Indoor Unit Net Weightlbs. | 30.9/37.5 |
| Panel Dimensions (WxDxH)in | 25.59x25.59x2.17 |
| Panel Packing (WxDxH)in | 27.95x27.95x3.15 |
| Panel Net/Gross Weightlbs. | 4.9/8.2 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Which system is right for you?
| Your selectionBravoBravo 36,000 BTU 3-Zone 18k+18k+18k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$3,158.35 |  BravoBravo 36,000 BTU 2-Zone 9k+9k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$2,582.92 |  BravoBravo 36,000 BTU 3-Zone 9k+9k+9k Ceiling Cassette, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump$2,991.16 |  Bravo4 zone 36,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9k+9k+9k$3,399.40 | |
|---|---|---|---|---|
| Cooling Capacity | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h | 36,000 BTU/h |
| SEER2 Rating | 23.0 | 23.0 | 23.0 | 23.0 |
| Refrigerant | R32 | R32 | R32 | R32 |
| Zones | Three Zone | Dual Zone | Three Zone | Four Zone |
| Voltage | 230V | 230V | 230V | 230V |
| Shop Now → | Shop Now → | Shop Now → |
Frequently asked questions.
How many rooms can the Bravo 36,000 BTU mini split cool?
The Bravo 36,000 BTU ceiling cassette is designed to effectively cool up to three zones, accommodating multiple rooms in a space of up to 1500 sq ft. With its high capacity, it can manage the cooling requirements of several rooms simultaneously.
Can I mix BTU sizes when using the Bravo multi-zone system?
Yes, you can mix BTU sizes with the Bravo system, as long as the total BTUs do not exceed the 36,000 BTU capacity of the unit. This flexibility allows for tailored heating and cooling solutions across different zones.
Do all zones run simultaneously with the Bravo mini split?
In the Bravo multi-zone system, all zones can operate simultaneously, allowing for customized climate control in each area. This feature provides efficient heating and cooling tailored to your specific comfort needs.
Is a mini split system like the Bravo more efficient than multiple single-zone units?
The Bravo 36,000 BTU mini split boasts an impressive SEER rating of 23.0, making it more energy-efficient than multiple single-zone units, which often have lower ratings. This efficiency can lead to reduced energy costs while effectively servicing multiple zones.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split is pre-charged with R32 refrigerant for up to 25 ft of line set, simplifying installation. This feature allows for quicker setup while ensuring optimal performance right from the start.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
The Bravo Milano 3-Zone Ductless Mini Split System features three ceiling cassette zones, each with 18,000 cooling BTU, and uses R32 refrigerant for efficient performance. It offers smart app control via Wi-Fi, a SEER2 rating of 23, and operates down to -13°F ambient temperature for reliable heating.
Key Features
- 3-zone system — the BRV-M36-230VO outdoor unit powers 3 independently controlled Bravo Milano indoor units (up to 4 max)
- 36,000 BTU nominal capacity across 3 zones, each room on its own remote
- 23 SEER2 inverter efficiency — cools and heats from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M18CT-230VI | 18,000 Btu/h | Ceiling Cassette |
| 2 | BRV-M18CT-230VI | 18,000 Btu/h | Ceiling Cassette |
| 3 | BRV-M18CT-230VI | 18,000 Btu/h | Ceiling Cassette |
