Bravo 36,000 BTU 3-Zone 7k+9k+24k Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
Bravo7-Yr WarrantySKU: BRV-M36-230VO/M07WM+M09WM+M24WM-NO/NO/NO
Product specifications
- Voltage
- 230V
- SEER
- 23.0
- WiFi
- Included
- Zone
- Three Zone
- Type
- Wall Mount
- Freon
R32
Choose Your Configuration
Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.
Size — match your room area
Save 10% on these accessories
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00
FREE Delivery
Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy
BRAVO · MILANO
Built for year-round comfort
BRV-M36-230VO/M07WM+M09WM+M24WM-NO/NO/NO
System Specs
| Cooling Capacity | 36,000 (range 6,350-38,500) BTU/h |
|---|---|
| Heating Capacity | 36,000 (range 7,000-43,000) BTU/h |
| SEER2 | 23.0 |
| Voltage | 230V |
| Refrigerant | R32 |
| Compressor | Inverter |
|---|---|
| Climate Range | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Sound Level (indoor) | 38/35/30 |
| Warranty | 7-Yr Compressor / 5-Yr Parts |
Indoor Unit Specs
| Unit Dimensions (WxDxH) | Net / Gross Weight | Remote Control |
|---|---|---|
| 31.02 × 11.50 × 7.80 in | 17.60 / 22.00 lb | Remote controller |
Milano Series Description
The Bravo Milano 3-Zone Ductless Mini Split System features three wall-mounted zones with a total nominal cooling capacity of 36,000 BTU, utilizing R32 refrigerant for efficient performance. It offers smart app control, a SEER2 rating of 23, and operates down to -13°F ambient temperature for reliable heating in cold climates.
6 Modes for Maximum Comfort
Engineered to adapt to every season, every room, every need.
Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.
WHEREVER YOU ARE
Control your comfort, your way
- Easy scheduling & timer
- Multiple ways to control your comfort
- Smart geo location
- In-app support & assistance
- Voice control
IN THE BOX
Everything included with this system

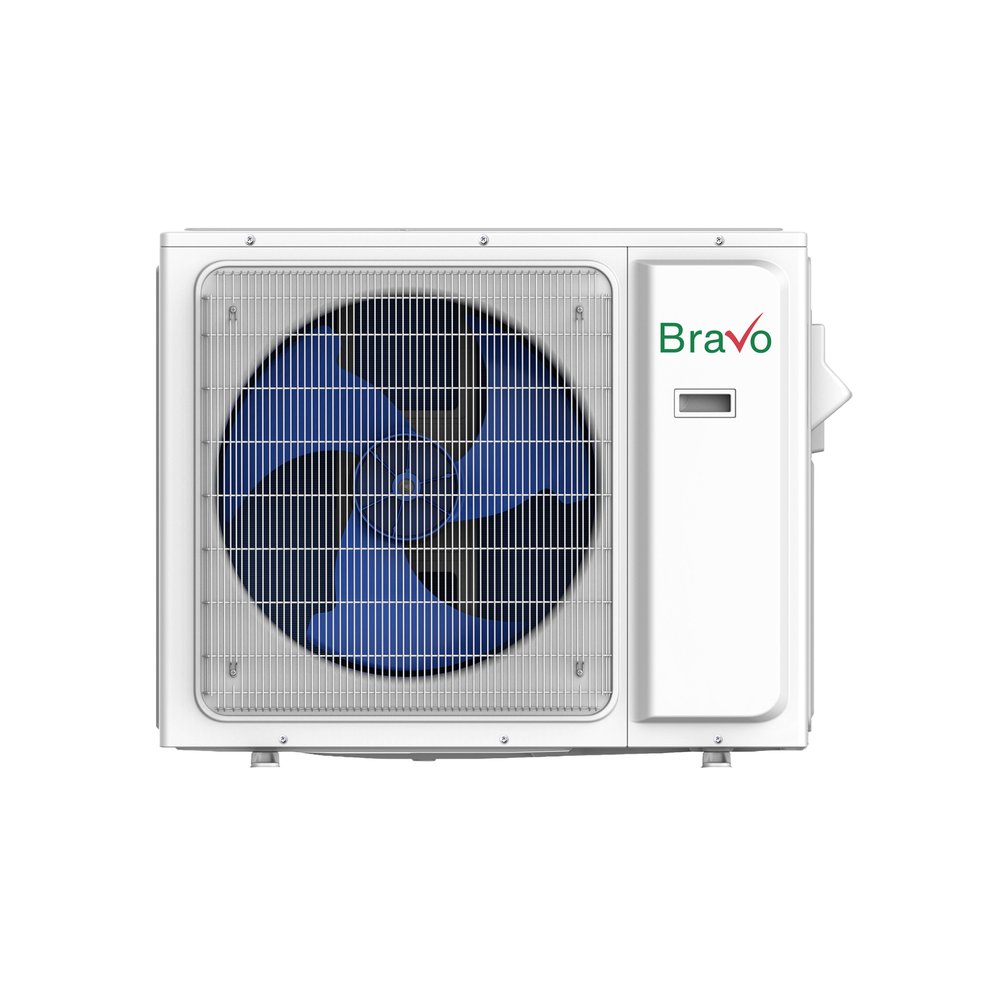

- Bravo Milano 36,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
- Indoor Wall Mount — BRV-M07WM-230VI
- Bravo Milano 9,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
- Bravo Milano 24,000 BTU Indoor Wall Mount, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump
WARRANTY
BACKED BY AC BRAVO
Industry-leading protection on every unit
Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.
Technical Specifications
Outdoor Unit Specs— BRV-M36-230VO
| Model | BRV-M36-230VO |
|---|---|
| BTU Rated | 36,000 |
| Refrigerant piping Liquid/Gas side (inch) | 4x1/4"- 4x3/8" |
| Performance level | Standard Heat |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Outdoor noise level (dB) | 59 |
| Outdoor air flow (CFM) | 2,353 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant type | R32 |
| Voltage range (V) | 165-264 |
| Heating capacity (Min/Max) (Btu/h) | 36,000 (7,000-43,000) |
| Cooling capacity (Min/Max) (BTU/h) | 36,000 (6,350-38,500) |
| Power source | 208-230V, 1Ph, 60Hz |
| Minimum circuit ampacity (A) | 29 |
| Max. fuse (A) | 45 |
| Ambient temperature - Cooling (F) | -13~125 |
| Ambient temperature - Heating (F) | -13~75 |
| EER2 up to | 12.3/11.6/11.95 |
| SEER2 up to | 23/20/21.5 |
| System type | Multi-zone unit |
| COP | 4/3.9/3.95 |
| HSPF2-4 | 10/10/2010 |
| HSPF2-5 | 7.5/7/7.25 |
| Unit dimensions (WxDxH) | 41.18×17.91×31.81 |
| Packing dimensions (WxDxH) | 43.50×19.49×34.84 |
| Net/Gross weight (lb) | 154.3/163.1 |
| Max height difference between Indoor and Outdoor unit | 49 |
| Dehumidification (Pnt/H) | / |
Indoor Unit Specs
| Model | BRV-M09WM-230VI | BRV-M24WM-230VI |
|---|---|---|
| Packing dimensions (WxDxH) | 34.65×14.57×11.42 | 47.64×15.75×12.87 |
| Net/Gross weight (lb) | 17.60/22.00 | 33.07/39.68 |
| System type | Multi-zone unit | Multi-zone unit |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" | 1/4"/5/8" |
| Drainage water pipe diameter (inch) | 5/8" | 5/8" |
| Controller | Remote controller | Remote controller |
| Dehumidification (Pnt/H) | 1.48 | 5.43 |
| Filter dimensions (WxDxH) (inch) | 2 pcs (11.34*11.02*0.169inch) | 2 pcs (16.81*13.54*0.276inch) |
| Refrigerant type | R32 | R32 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 | 765 |
| Power source | 208-230V, 1Ph, 60Hz | 208-230V, 1Ph, 60Hz |
| Indoor noise level (Hi/Med/Lo) (dB) | 38/35/30 | 46/42/40 |
| Operation room temperature Heating (F) | 50~89.6 | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 | 60.8~89.6 |
| Minimum circuit ampacity (A) | / | / |
| SEER2 up to | / | / |
| EER2 up to | / | / |
| BTU Rated | 9,000 | 24,000 |
| Max. fuse (A) | 5 | 5 |
| ESP | / | / |
| Voltage range (V) | 165-264 | 165-264 |
| Unit dimensions (WxDxH) | 31.02×11.50×7.80 | 44.13×12.95×9.09 |
System Specs
| Power Supply | 208–230V / 1 Ph / 60 Hz |
|---|---|
| Cooling Capacity (Range) | 36,000 (range 6,350-38,500) Btu/h |
| Heating Capacity (Range) | 36,000 (range 7,000-43,000) Btu/h |
| SEER2 | 23 |
| HSPF2 (Region IV) | 10 |
| Refrigerant | R32 / 81.2 oz |
| Outdoor MCA / Max. Fuse | 29 A / 45 A |
| Max. Connectable Indoor Units | up to 4 |
| Outdoor Airflow | 2,353 CFM |
| Outdoor Noise Level | 59 dB(A) |
| Pre-charged Line Length | 24.6 ft |
| Max. Line Length — Total / Per Indoor | 263 ft / 115 ft |
| Operating Range — Cooling / Heating | -13 to 125.6°F / -13 to 75.2°F outdoor ambient |
| Outdoor Dimensions (W×D×H) | 41.18 × 17.91 × 31.81 in |
| Outdoor Net / Gross Weight | 154.3 / 163.1 lbs |
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
Parameter
| Specification | Indoor Model |
|---|---|
| BRV-M07WM-230VI | BRV-M09WM-230VI |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling Rated CapacityBtu/h | 7,000 |
| Heating Rated CapacityBtu/h | 7,000 |
| Max FuseA | 5 |
| Indoor Air FlowCFM | 353 |
| Indoor Noise LeveldB(A) | 40 |
| Indoor Unit Dimensions (WxDxH)in | 31.02x7.80x11.50 |
| Indoor Unit Packing (WxDxH)in | 34.65x14.57x11.42 |
| Indoor Unit Net/Gross Weightlbs. | 17.60/22.00 |
| Refrigerant Piping Liquid / Gas Sidein | 1/4’’ / 3/8’’ |
| Operation Temperature Range°F | 60.8~89.6 |
Parameter
| Specification | Outdoor Model |
|---|---|
| BRV-M18-230VO | BRV-M24-230VO |
| Power SupplyV-Ph-Hz | 208~230-1-60 |
| Cooling CapacityBtu/h | 17,700 (3,800-19,800) |
| EER2Btu/h | 3.60 |
| SEER2Btu/h | 22 |
| Heating Rated CapacityBtu/h | 18,000 (4,200-22,000) |
| HSPF2-4Btu/h | 10 |
| COP2W/W | 3.8 |
| Minimum Circuit AmpacityA | 20 |
| Max FuseA | 20 |
| Outdoor Air FlowCFM | 1529 |
| Outdoor Side Noise LeveldB(A) | 54 |
| Outdoor Unit Dimensions (WxDxH)in | 34.65x13.90x21.93 |
| Outdoor Unit Packing (WxDxH)in | 35.55x15.04x24.21 |
| Outdoor Unit Net Weightlbs. | 75.0/80.5 |
| Refrigerant Type / Volumeoz | R32/38.8 |
| Refrigerant Prechargeft | 24.6 |
| Refrigerant Piping Liquid Side / Gas Sidein | 1/4" / 3/8" |
| Max Refrigerant Pipe Lengthft | 82 |
| Ambient Temperature Outdoor (Cooling)°F | -13~125.6 |
| Ambient Temperature Outdoor (Heating)°F | -13~75.2 |
Frequently asked questions.
How many rooms can the Bravo 36,000 BTU mini split cool?
The Bravo 36,000 BTU mini split is designed to effectively cool up to three zones, accommodating multiple rooms or spaces within a total coverage area of up to 1,800 sq ft.
Can I mix BTU sizes with the Bravo multi-zone system?
Yes, you can mix BTU sizes with the Bravo 36,000 BTU system as long as the total BTU output does not exceed the capacity of the outdoor unit, allowing for flexibility in your heating and cooling needs. This configuration uses 7,000 BTU, 9,000 BTU, 24,000 BTU indoor units.
Do all zones run simultaneously with the Bravo mini split?
With the Bravo multi-zone system, individual zones can be controlled separately, meaning that not all zones need to run simultaneously, which can lead to energy savings based on your usage.
What is the efficiency of the Bravo compared to multiple single-zone units?
The Bravo 36,000 BTU mini split has a SEER rating of 23.0, which offers superior efficiency compared to multiple single-zone units, making it a cost-effective solution for cooling and heating multiple spaces.
What are the warranty terms for the Bravo mini split system?
The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system is pre-charged with R32 refrigerant, sufficient for up to 25 ft of line set, simplifying installation and ensuring optimal performance out of the box.
Manufacturer Technical Support
Reach your brand's tech support team directly
You may also like
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+9kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 9k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Wall Mounted 12k+12kFree Shipping
- R32SEER2 22.0HEATS down to −13°FCOOLS up to 126°F
7-Yr Warranty
Bravo2 zone 18,000 BTU BRAVO Ductless Mini Split AC Ceiling Cassette 9k+9kFree Shipping
The Bravo Milano 3-Zone Ductless Mini Split System features three wall-mounted zones with a total nominal cooling capacity of 36,000 BTU, utilizing R32 refrigerant for efficient performance. It offers smart app control, a SEER2 rating of 23, and operates down to -13°F ambient temperature for reliable heating in cold climates.
Key Features
- 3-zone system — the BRV-M36-230VO outdoor unit powers 3 independently controlled Bravo Milano indoor units (up to 4 max)
- 36,000 BTU nominal capacity across 3 zones, each room on its own remote
- 23 SEER2 inverter efficiency — cools and heats from one system
- Heat pump — heats down to -13°F outdoor ambient
- R32 refrigerant, factory pre-charged; smart app control
This System’s Zones
| Zone | Indoor Unit | Cooling | Type |
| 1 | BRV-M07WM-230VI | 7,000 Btu/h | Wall Mount |
| 2 | BRV-M09WM-230VI | 9,000 Btu/h | Wall Mount |
| 3 | BRV-M24WM-230VI | 24,000 Btu/h | Wall Mount |
