Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump

Name: Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump
Brand: HVAC Mart
SKU: BRV-M42-230VO/M12UFC+M12UFC+M12UFC-NO/NO/NO
Price: 4314.24 USD
Availability: InStock

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 2

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 3

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 4

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 5

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 6

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 7

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 8

Bravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump — photo 9

1 / 9

SEER2 23.0Heats & CoolsR32

Bravo7-Yr WarrantySKU: BRV-M42-230VO/M12UFC+M12UFC+M12UFC-NO/NO/NO

$4,314.24

As low as $360/mo withaffirm

Product specifications

Voltage: 230V
SEER: 23.0
WiFi: Included
Zone: Three Zone
Type: Universal Floor/Ceiling
Freon: R32

See full Tech Specs

Choose Your Configuration

Indoor unit 1 · 12 BTU — installation kit: No Installation Kit

Indoor unit 2 · 12 BTU — installation kit: No Installation Kit

Indoor unit 3 · 12 BTU — installation kit: No Installation Kit

Choose a line-set kit length for each indoor unit. “No Installation Kit” ships the units only.

Size — match your room area

24,000 BTUup to 1200 ft²from $2,975 30,000 BTUup to 1400 ft²from $3,617 36,000 BTUup to 1800 ft²from $3,73842,000 BTUCurrent size

Save 10% on these accessories

ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)-10%$49.00
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity-10%$89.00
ARMBRIDGE 30 AMP Fusible Metallic Disconnect Box Durable Enclosed Disconnect for Residential and Light Commercial HVAC Systems-10%$29.00
ARMBRIDGE Non-Metallic A/C Whip 3/4" x 6 ft – Pre-Wired Liquid tight Conduit with 8/2 & 10/1 Wires for HVAC & Air Conditioner Power Connection-10%$34.00

FREE Delivery

Ships from the nearest of our three US warehouses, leaves in 1–2 business days. Shipping policy

Warranty Included

30-Day Returns

BRAVO · ROMA

Built for year-round comfort

BRV-M42-230VO/M12UFC+M12UFC+M12UFC-NO/NO/NO

System Specs

Cooling Capacity	42,000 BTU/h
SEER2	23.0
Voltage	230V
Refrigerant	R32

Compressor	Inverter
Sound Level (indoor)	36/34/31 dB
Warranty	7-Yr Compressor / 5-Yr Parts

Indoor Unit Specs

Unit Dimensions (WxDxH)	Net / Gross Weight	Remote Control
39.37 × 9.25 × 27.17 in	57.3 / 67.2 lb	Remote controller

Roma Series Description

The Bravo Milano 3-Zone Ducted Mini Split System features three universal floor/ceiling console zones, each with 12,000 BTU cooling capacity, and uses R32 refrigerant for efficient performance. It includes a BRV-R42-230VO outdoor unit capable of heating down to -13°F and offers smart app control via WiFi for convenient management.

Tech Specifications

6 Modes for Maximum Comfort

Engineered to adapt to every season, every room, every need.

Auto mode

Maintain a comfortable indoor temperature by automatically switching between heating and cooling as needed. Ideal for year-round use.

WHEREVER YOU ARE

Control your comfort, your way

Easy scheduling & timer
Multiple ways to control your comfort
Smart geo location
In-app support & assistance
Voice control

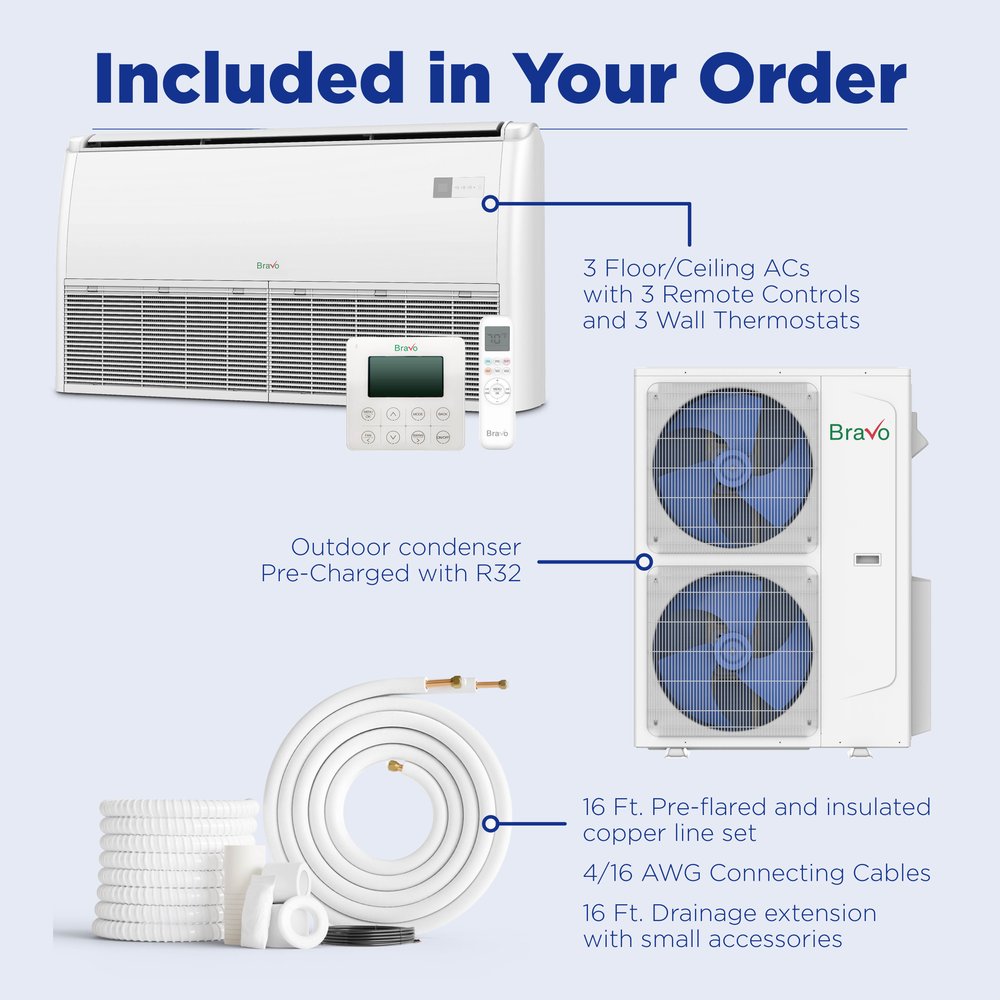

IN THE BOX

Everything included with this system

Bravo Milano 42,000 BTU Outdoor Condenser, 230V, R32 - Mini Split Air Conditioner Heat Pump
Bravo Milano 12,000 BTU Indoor Universal Floor/Ceiling, 230V, R32 - Ductless Mini Split Air Conditioner Heat Pump × 3

7YEAR COMPRESSOR
WARRANTY

BACKED BY AC BRAVO

Industry-leading protection on every unit

Compressor: 7-year coverage
With product registration after professional installation.
Parts & components: 5-year coverage
All major components and refrigerant circuit parts.

Technical Specifications

Outdoor Unit Specs— BRV-M42-230VO

Outdoor Unit — BRV-M42-230VO
Model	BRV-M42-230VO
Unit Dimensions (WxDxH)	39.80x15.75x51.97 in
Net/Gross Weight	205.0/224.9 lb
Packing Dimensions (WxDxH)	42.52x16.93x56.69 in
Power Supply	208-230V, 1Ph, 60Hz
Maximum Fuse Size	45 A
Min. Circuit Ampacity	32 A
Copper Line Size (Liquid/Gas)	5x1/4"- 5x3/8"
Noise Level	60 dB
Airflow	4,235 CFM

Indoor Unit Specs— BRV-M12FC-230VI

Indoor Unit — BRV-M12FC-230VI
Model	BRV-M12FC-230VI
Unit Dimensions (WxDxH)	39.37×9.25×27.17 in
Net/Gross Weight	57.3/67.2 lb
Packing Dimensions (WxDxH)	42.52×12.80×30.32 in
Power Supply	208-230V, 1Ph, 60Hz
Maximum Fuse Size	5 A
Copper Line Size (Liquid/Gas)	1/4"/3/8"
Noise Level (Hi/Med/Lo)	36/34/31 dB
Airflow (Turbo/Hi/Mi/Lo)	500 CFM
Dehumidification	2.11 pt/h
Filter Dimensions	17.6410.30.374inch in
Drain Pipe Diameter	1"
Controller	Remote controller

Series Comparison Table

Technical specifications for every model in the series — this product is one of them.

Indoor Model

Specification	BRV-M09FC-230VI	BRV-M12FC-230VI	BRV-M18FC-230VI	BRV-M24FC-230VI
Power Supply	208~230-1-60	208~230-1-60	208~230-1-60	208~230-1-60
Cooling	Rated Capacity	9,000	12,000	18,000
Btu/h	9,000	12,000	18,000	24,000
Heating	Rated Capacity	11,000	12,000	18,000
Btu/h	11,000	12,000	18,000	24,000
Max Fuse	5	5	5	5
Indoor Air Flow	500	500	530	824
Indoor Noise Level	39	39	41	44
Indoor Unit	Dimensions (WxDxH)	39.37×27.17×9.25	39.37×27.17×9.25	39.37×27.17×9.25
Packing (WxDxH)	42.52×30.32×12.80	42.52×30.32×12.80	42.52×30.32×12.80	53.54×30.32×12.80
Net/Gross Weight	57.3/67.2	57.3/67.2	59.5/69.5	71.7/83.8
Refrigerant Piping	Liquid Side / Gas Side	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"
Operation Temperature Range	60.8~89.6	60.8~89.6	60.8~89.6	60.8~89.6

Parameter

Specification	Outdoor Model
BRV-M18-230VO	BRV-M24-230VO
Power SupplyV-Ph-Hz	208~230-1-60
Cooling CapacityBtu/h	17,700 (3,800-19,800)
EER2Btu/h	3.60
SEER2Btu/h	22
Heating Rated CapacityBtu/h	18,000 (4,200-22,000)
HSPF2-4Btu/h	10
COP2W/W	3.8
Minimum Circuit AmpacityA	20
Max FuseA	20
Outdoor Air FlowCFM	1529
Outdoor Side Noise LeveldB(A)	54
Outdoor Unit Dimensions (WxDxH)in	34.65x13.90x21.93
Outdoor Unit Packing (WxDxH)in	35.55x15.04x24.21
Outdoor Unit Net Weightlbs.	75.0/80.5
Refrigerant Type / Volumeoz	R32/38.8
Refrigerant Prechargeft	24.6
Refrigerant Piping Liquid Side / Gas Sidein	1/4" / 3/8"
Max Refrigerant Pipe Lengthft	82
Ambient Temperature Outdoor (Cooling)°F	-13~125.6
Ambient Temperature Outdoor (Heating)°F	-13~75.2

Which system is right for you?

	Your selectionBravoBravo 42,000 BTU 3-Zone 12k+12k+12k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$4,314.24	BravoBravo 42,000 BTU 2-Zone 9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$3,661.92	BravoBravo 42,000 BTU 3-Zone 9k+9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$4,253.76	BravoBravo 42,000 BTU 4-Zone 9k+9k+9k+9k Universal Floor & Ceiling Console, 230V, R32 - Non-Ducted Mini Split Air Conditioner Heat Pump$4,845.60
Cooling Capacity	42,000 BTU/h	42,000 BTU/h	42,000 BTU/h	42,000 BTU/h
SEER2 Rating	23.0	23.0	23.0	23.0
Refrigerant	R32	R32	R32	R32
Zones	Three Zone	Dual Zone	Three Zone	Four Zone
Voltage	230V	230V	230V	230V
		Shop Now →	Shop Now →	Shop Now →

Frequently asked questions.

How many rooms can the Bravo 42,000 BTU mini split system cool?

The Bravo 42,000 BTU 3-Zone mini split system is designed to effectively cool or heat up to three rooms, depending on the size and insulation of each space. With 12k BTU for each zone, it offers flexible installation options for various room configurations.

Can I mix different BTU sizes with the Bravo mini split system?

Yes, you can mix different BTU sizes when using the Bravo 42,000 BTU mini split system, allowing for tailored cooling and heating solutions across your three zones. Just ensure that the combined BTUs do not exceed the system's total capacity of 42k BTU.

Do all zones in the Bravo mini split run simultaneously?

The Bravo 42,000 BTU mini split can operate all three zones simultaneously, providing efficient heating or cooling as needed. This flexibility allows you to customize comfort levels in each room based on occupancy and personal preference.

Is the Bravo mini split system more efficient than multiple single-zone units?

With a SEER rating of 23.0, the Bravo 42,000 BTU mini split system offers superior efficiency compared to multiple single-zone units, reducing energy consumption and operational costs. This makes it a smart choice for managing energy use across multiple rooms.

What is the warranty for the Bravo mini split system?

The Bravo mini split system comes with a 7-year compressor and 5-year parts limited warranty, provided it is installed by a licensed HVAC professional and registered after installation.

Does the Bravo mini split come pre-charged with refrigerant?

Yes, the Bravo 42,000 BTU mini split is pre-charged with R32 refrigerant for installation with up to 25 ft of line set. This feature simplifies the installation process and ensures optimal performance right out of the box.

Manufacturer Technical Support

Reach your brand's tech support team directly

Cooper & Hunter

(888) 201-2119

Olmo Comfort

(800) 977-0724

AC Bravo

(786) 953-6706

Key Features

3-zone concealed-duct system — the BRV-R42-230VO outdoor unit powers 3 independently controlled ducted indoor units, hidden above the ceiling or in a soffit
42,000 BTU nominal capacity across 3 zones, each room on its own remote
Inverter heat pump — efficient variable-speed cooling and heating from one system
Heat pump — heats down to -13°F outdoor ambient
R32 refrigerant, factory pre-charged; smart app control
Discreet ducted air delivery — central-air comfort with mini-split efficiency

This System’s Zones

Zone	Indoor Unit	Cooling	Type
1	BRV-M12FC-230VI	12,000 Btu/h	Universal Floor/Ceiling Console
2	BRV-M12FC-230VI	12,000 Btu/h	Universal Floor/Ceiling Console
3	BRV-M12FC-230VI	12,000 Btu/h	Universal Floor/Ceiling Console
